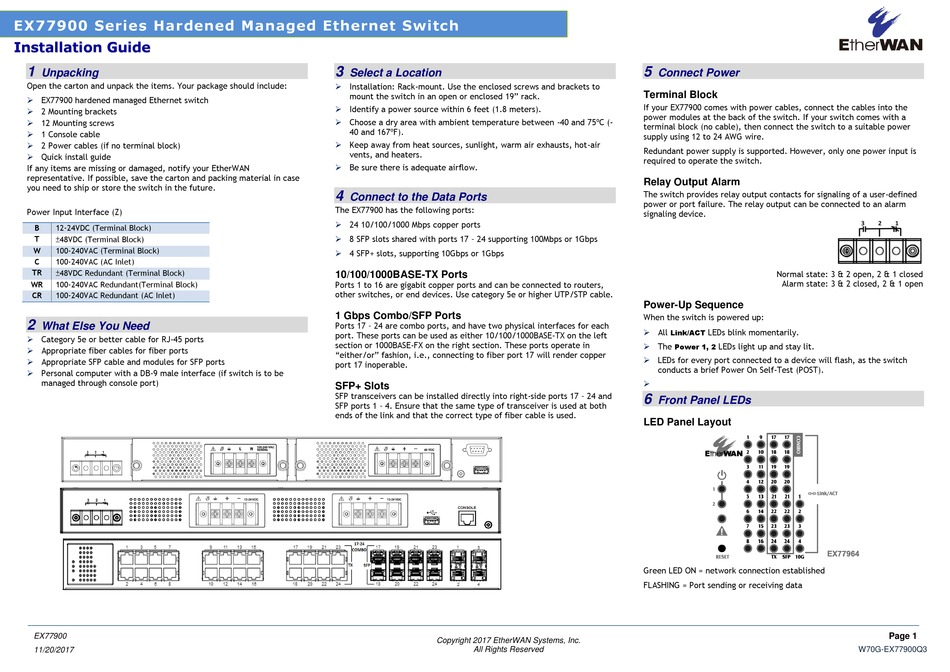

EtherWAN EX77964 Installation Manual

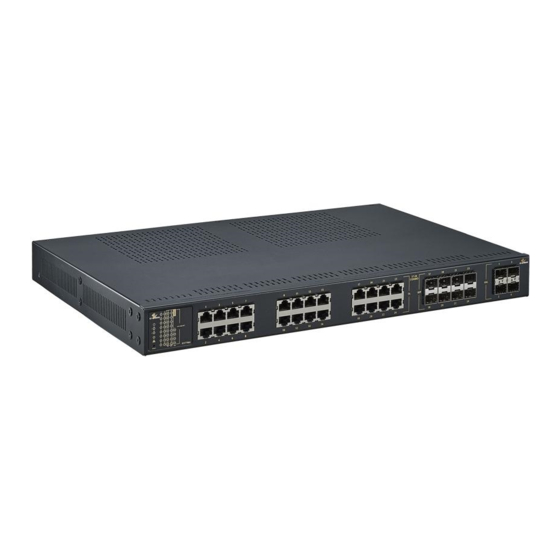

EX77900 Series Hardened Managed Ethernet Switch
Installation Guide
1

Unpacking

Open the carton and unpack the items. Your package should include:
 EX77900 hardened managed Ethernet switch
2 Mounting brackets

 12 Mounting screws
 1 Console cable
2 Power cables (if no terminal block)

 Quick install guide
If any items are missing or damaged, notify your EtherWAN
representative. If possible, save the carton and packing material in case
you need to ship or store the switch in the future.
Power Input Interface (Z)
B 12-24VDC (Terminal Block)
T ±48VDC (Terminal Block)
W 100-240VAC (Terminal Block)
C 100-240VAC (AC Inlet)
TR
±48VDC Redundant (Terminal Block)
WR 100-240VAC Redundant(Terminal Block)
CR 100-240VAC Redundant (AC Inlet)
2

What Else You Need

 Category 5e or better cable for RJ-45 ports
 Appropriate fiber cables for fiber ports
Appropriate SFP cable and modules for SFP ports

 Personal computer with a DB-9 male interface (if switch is to be
managed through console port)
EX77900
11/20/2017
3

Select a Location

 Installation: Rack-mount. Use the enclosed screws and brackets to
mount the switch in an open or enclosed 19" rack.
 Identify a power source within 6 feet (1.8 meters).
 Choose a dry area with ambient temperature between -40 and 75ºC (-
40 and 167ºF).
Keep away from heat sources, sunlight, warm air exhausts, hot-air

vents, and heaters.
 Be sure there is adequate airflow.
4

Connect to the Data Ports

The EX77900 has the following ports:
 24 10/100/1000 Mbps copper ports
 8 SFP slots shared with ports 17 – 24 supporting 100Mbps or 1Gbps
 4 SFP+ slots, supporting 10Gbps or 1Gbps
10/100/1000BASE-TX Ports
Ports 1 to 16 are gigabit copper ports and can be connected to routers,
other switches, or end devices. Use category 5e or higher UTP/STP cable.
1 Gbps Combo/SFP Ports
Ports 17 – 24 are combo ports, and have two physical interfaces for each
port. These ports can be used as either 10/100/1000BASE-TX on the left
section or 1000BASE-FX on the right section. These ports operate in
"either/or" fashion, i.e., connecting to fiber port 17 will render copper
port 17 inoperable.
SFP+ Slots
SFP transceivers can be installed directly into right-side ports 17 – 24 and
SFP ports 1 – 4. Ensure that the same type of transceiver is used at both
ends of the link and that the correct type of fiber cable is used.
Copyright 2017 EtherWAN Systems, Inc.
All Rights Reserved
5

Connect Power

Terminal Block
If your EX77900 comes with power cables, connect the cables into the
power modules at the back of the switch. If your switch comes with a
terminal block (no cable), then connect the switch to a suitable power
supply using 12 to 24 AWG wire.
Redundant power supply is supported. However, only one power input is
required to operate the switch.
Relay Output Alarm
The switch provides relay output contacts for signaling of a user-defined
power or port failure. The relay output can be connected to an alarm
signaling device.
Normal state: 3 & 2 open, 2 & 1 closed
Alarm state: 3 & 2 closed, 2 & 1 open
Power-Up Sequence
When the switch is powered up:
 All Link/ACT LEDs blink momentarily.
 The Power 1, 2 LEDs light up and stay lit.
 LEDs for every port connected to a device will flash, as the switch
conducts a brief Power On Self-Test (POST).

6

Front Panel LEDs

LED Panel Layout
Green LED ON = network connection established
FLASHING = Port sending or receiving data
Page 1
W70G-EX77900Q3
