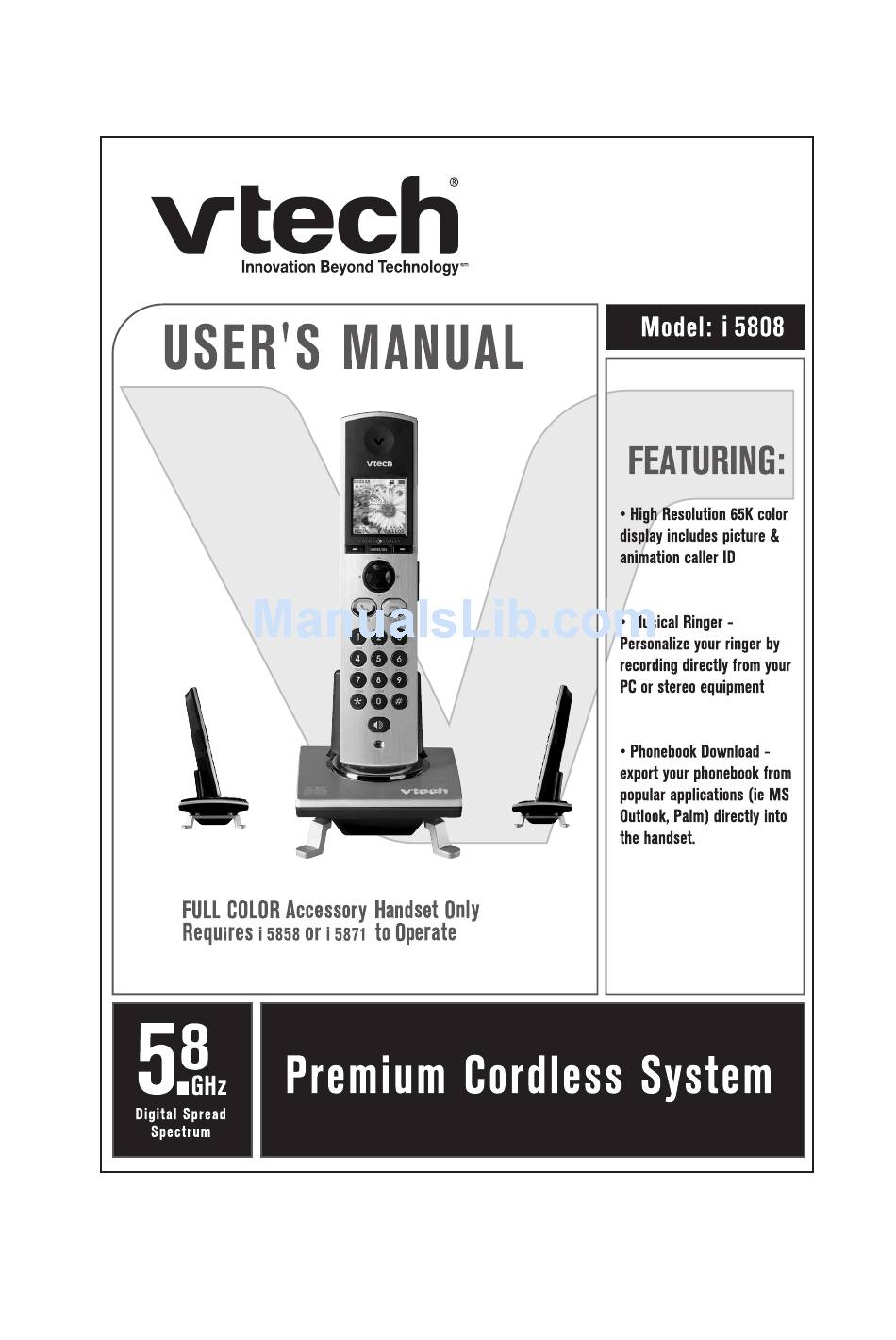

Premium cordless system
Hide thumbs Also See for I5808:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Instructions, User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I5808 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VTech I5808

Summary of Contents for VTech I5808

  • Page 2 CORDLESS Troubleshooting TAGS 250 De-register and register De-register handset from the E2525, E2600B and E2555 Please take the Handset out of the Base before de-registering. Using the [SOFT] Keys on the Base, press MENU, then press the Down arrow twice until BASE SETTINGS is highlighted.

  • Page 3: Vtech Telephones

    Additional Handsets will be assigned numbers in the order the are registered (2, 3, 4, etc.) up to a maximum of eight. Keypad Tone Feature - Vtech Telephones When the Keypad Tone Feature is ON but the handset is OFF (i.e. in standby): You will hear loud tones being emitted through the external speaker on the back of the handset when you press any handset button except for the volume key.

  • Page 4: Keypad Tone Feature

    button, and the [OFF] button emitted through the external speaker on the back of the handset. 2.You will not hear any tone when you press the [SOUND SELECT] button. Keypad Tone Feature When the Keypad Tone Feature is ON but the handset is OFF (i.e. in standby): You will hear loud tones being emitted through the external speaker on the back of the handset when you press any handset button except for the volume key.
  • Page 5 When the Keypad Tone Feature is ON and the Speakerphone on the handset is ON: 1.You will hear the tones from the number buttons ([0] - [9]), the [SOFTKEY] buttons (the three unnamed buttons under the display), the [XFER/INTERCOM] button, the [SPEAKER] button, the [PHONE] button, and the [OFF] button emitted through the external speaker on the back of the handset.
  • Page 6 ARS label via US Mail for him or her to ship their original product back at no charge to them. · If this is the case, it will be necessary for you to place an order for the VTech T2406 using the EXCHANGE-IW promo code in COPS and use regular standard shipping. (The...

  • Page 7: Turning Message Light Off

    (no charges will be incurred by the customer). 2.You will need to place a no charge replacement order for the VTech GZ2434 using the CSAT promotion code in COPS and change the shipping method to Free Shipping- Overnight (manager use only) $0.
  • Page 8 ·Enter the 15 digit Base ID Code, located on the underside of the Base Unit. The ID Code can include numbers (0-9) and characters (*,#). ·Press OK. The Handset will display: PLEASE WAIT! ·Wait approximately 15 seconds. The Handset will display FOUND BASE. NOTE: Occasionally, it will take longer than 15 seconds for the Handset to find the Base Unit.
  • Page 9 SET TIME PONER TIEMPO REGLER L'HEURE CLOCK MODE MODO RELOJ MODE HORLOGE REGISTER REGISTRAR REGISTRE RINGER VOLUME TIMBRE VOLUMEN SONNERIE VOLUME RINGER MELODY TIPO DE TIMBRE SONNERIE MELODIE VIBRATE CONTROL CTRL VIBRACION MODE VIBRATION LOW BATT TONE TONO DE BAT BAJA SON PILE FAIBLE RANGE TONE TONO DE RANGO...
  • Page 10 FRENCH CALLS LOG GUEA DE LLAMADAS REGISTRE D'APPEL BASE SETTINGS CONFIG BASE REGLAGES BASE DISPLAY BASE-ID NUMERO DE BASE NUMERO DE BASE RINGER VOLUME TIMBRE VOLUMEN SONNERIE VOLUME RINGER MELODY TIPO DE TIMBRE SONNERIE MELODIE KEYPAD TONE TONO DE DECLADO SON DU CLAVIER TONE/PULSE TONOS/PULSOS...
  • Page 11 3.Hold down [PAGE] key for 5 seconds. When the LINE IN USE light begins to flash, release the [PAGE] key. 4.The HANDSET CHARGING light will blink 5 times. Within 5 seconds from when it stops blinking, press [PAGE] once. VT2461 Mk1 DEREGISTER A SINGLE HANDSET 1.Unplug power from the Base.
  • Page 12 - Advise the customer that you are sending him or her a brand new replacement set (Cordless 2230 or 2255 whichever the customer has). If the customer does not want the replacement, advise him or her to return their unit to the place of purchase. Stop! If the customer accepts the replacement 2230/2255 continue...

  • Page 13: Conference Calls

    9.Hit "Ok". Now "line or Line In" should show up in the master volume control for Recording. Please make sure that there is a check mark in the Select box under the "Line or Line IN 10.Go to Options and Select Properties. 11.There should be an option to adjust Recording or playback volume control.

  • Page 14: Operating Range

    of line voltage available at the phone and the distance of miles between the two other parties. Customer may consider 3-way calling service (if available through local telco) as alternative. Customer is less likely to experience volume loss due to more direct routing of conference.

  • Page 15: Cardiac Pacemakers

    This cordless operates in the 900 megahertz frequency band. Radio signals in this band can penetrate small openings and reflect around obstructions more effciently than those of conventional cordless telephones. This alows the unit to operate in areas that are typically difficult for cordless phones.
  • Page 16 940101B2-7CPS2A (CRS will not accept a slash.) The battery save feature will deactivate the ring approximately 60 seconds after being set. After 60 seconds, the phone will enter "sleep mode". The phone will not ring or display "incoming call" when the extension phones are ringing. If any button on the phone is pressed, this will "wake up"...

  • Page 17: Hearing Aid Compatibility

    ·If possible advise your callers to leave a message. ·Check with the local telephone company and advise them 7-10 seconds of silence is required for the answering system to disconnect. NOTE: Charges may apply Call Waiting disconnects answering system Answering System senses a fluctuation in line voltage caused by the Call Waiting signal and disconnects.

  • Page 18: Calling In Same Area Code

    Calling in same Area Code Many LTCO's are changing their dialing sequence to 0 +, or 1 +, 10-digit dialing (0 + 0r 1 + area code + seven-digit phone number) for all long distance calls that are made within the same area code.

  • Page 19: Base Unit Locked Up

    5.Replace battery cover. 6.Recradle handset in base for 15 seconds. 7.Pick up handset and press phone. NOTE: Be sure batteries have been charged recently. If not, charge batteries fully for 16 hours. Common Cure If the unit does not seem to be responding normally, then try putting the handset in the base to reinitialize the unit.

  • Page 20: Low Battery Indicator

    To determine if telephones ring separately or together: 1.Remove telephones from line. 2.Replace one at a time. ·Line 1 has a higher pitched ring that helps differentiate it from the ring of Line 2. ·Have someone call on each line. ·Let the telephone ring approximately five times and listen to the difference.
  • Page 21 Ringer Equivalence On the bottom of each telephone or adjunct is a Ringer Equivalence. 1.Find this number for everything connected to your telephone line. 2.Add up all the numbers to get the total Ringer Equivalence. Julian Date NOTE: Contact the telephone company, if required. The Julian date for this unit is found on the bottom of the unit.

  • Page 22: Table Of Contents

    Table of Contents Introduction...1 Important Safety Instructions...2 Getting Started...4 Parts Check List...4 The Handset Layout...5 Setup...6 Registration...8 Basic Operation...9 Handset Indicators...9 Additional Information...10 Headset Operation...10 Belt Clip...10 Maintenance...11 In Case Of Difficulty...12 Warranty Statement...14 FCC, ACTA and IC Regulations...16 Technical Specifications...20...

  • Page 23: Introduction

    Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3.

  • Page 24: Important Safety Instructions

    WARNING: To insure your safety from possible electric shock, only use the en- closed VTech audio patch cable to record custom ring tones. Do NOT leave the audio patch cable attached to the handset while charging in its base.
  • Page 25 Introduction EXPAND YOUR i 5858 or i 5871 SYSTEMS. YOUR BASE WILL WORK WITH UP TO 8 HANDSETS!!! IMPORTANT: The i 5808 is an accessory handset only for use with the i 5858 or i 5871 systems. You must have one of these base units in order to use the i 5808 accessory handset.

  • Page 26: Getting Started

    4. Handset Charger 5. Special Features Guide To purchase replacement batteries, visit us on the web at www.vtechphones.com or call VTech Communications, Inc. at 1-800-595-9511. In Canada, call VTech Telecommunications Canada Ltd. at 1-800-267-7377. NOTE: Use only VTech batteries P/N 89-1324-00-00.

  • Page 27: The Handset Layout

    The Handset Layout 1. Earpiece 2. USB Cable Jack 3. Headset Jack / Audio Patch Cable Jack (2.5mm) 4. On/Flash Key 5. Dialing Keys (0-9, *, #) 6. Speakerphone Key 7. LCD Display 8. Menu/Select Key 9. Softkeys 10. NavKeys (Navigation Keys) 11.

  • Page 28: Setup

    Setup Connecting Power to Handset Charger Because the i 5808 is an accessory handset to the i 5858 or i 5871system, all you need to do is choose the location for your handset charger, and plug in the power supply into an electrical outlet. Installation and Charge of Battery in Handset 1.
  • Page 29 Setup Battery Life A fully charged battery provides an average talk time of about seven hours or standby time of four days. NOTE: Talk time and standby time may vary depending on operating conditions. Battery Indicator Ten minutes before the battery charge level gets too low to operate the handset, an empty battery icon will start flashing, five short tones are generated and a Low Battery message is displayed.

  • Page 30: Registration

    Registration Installation and Registration of Accessory Handset Your i 5808 is an accessory handset ONLY and requires either a i 5858 or i 5871 base unit to operate. Registering the i 5808 handset for the first time After charging the handset will display registration directions, which are as follows: •...

  • Page 31: Basic Operation

    Handset Indicators Handset Icons Icon Description Line In Use Indicator • On steady when an extension handset or parallel set is in use. Hold Indicator • Flashes when a call is on hold. Mute Indicator • Flashes when the handset microphone is muted. Ringer Off Indicator •...

  • Page 32: Additional Information

    5808. For best results, use a VTech 2.5mm headset. To purchase a headset, visit us on the web at www.vtechphones.com or call VTech Customer Service at 1-800-595-9511.

  • Page 33: Maintenance

    Maintenance Taking care of your telephone Your cordless telephone contains sophisticated electronic parts, so it must be treated with care. Avoid rough treatment Place the Handset down gently. Save the original packing materials to protect your telephone if you ever need to ship it. Avoid water Your telephone can be damaged if it gets wet.

  • Page 34: In Case Of Difficulty

    In Case Of Difficulty If you have difficulty operating your phone, the suggestions below should solve the problem. If you still have difficulty after trying these suggestions, call VTech Communica- tions at 1-800-595-9511. In Canada, call VTech Telecommunications Canada Ltd. at 1-800-267-7377.
  • Page 35 In Case Of Difficulty Your Handset vibrates or shakes when a call comes in • It is likely that your Vibrating Handset Ringer option has been set to ON. You hear other calls while using your phone • Disconnect your Base Unit from the telephone jack, and plug in a regular telephone. If you still hear other calls, the problem is probably in your wiring or local service.

  • Page 36: Warranty Statement

    3. Product to the extent that the problem experienced is caused by signal conditions, network reliability or cable or antenna systems; or 4. Product to the extent that the problem is caused by use with non-VTech electrical accessories; or 5. Product whose warranty/quality stickers, Product serial numbers plates or electronic serial numbers have been removed, altered or rendered illegible;...
  • Page 37 • If the Product failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited warranty, VTech will notify you and will request that you authorize the cost of repair prior to any further repair activity. You must pay for the cost of repair and return shipping costs for the repair of Products that are not covered by this limited warranty.

  • Page 38: Fcc, Acta And Ic Regulations

    20 cm or more. If you choose to use a clipping device, please make sure to only use the supplied VTech belt clip. FCC and ACTA Information...
  • Page 39 FCC, ACTA and IC Regulations rules. If the equipment was approved after that date, it complies with the Part 68 rules and with Technical Requirements for Connection of Equipment to the Telephone Network adopted by the Administrative Council for Terminal Attachments (ACTA). We are required to provide you with the following information.
  • Page 40 FCC, ACTA and IC Regulations 5. Hearing aid compatibility If this product is equipped with a corded or cordless handset, it is hearing aid compatible. 6. Programming/testing of emergency numbers If this product has memory dialing locations, you may choose to store police, fire department and emergency medical service telephone numbers in these locations.
  • Page 41 FCC, ACTA and IC Regulations Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electrical inspection authority or electrician as appropriate.

  • Page 42: Technical Specifications

    Technical Specifications FREQUENCY CONTROL Crystal controlled PLL synthesizer TRANSMIT FREQUENCY Base: 5725-5850 MHz Handset: 5725-5850 MHz RECEIVE FREQUENCY 5725-5850 Base: Handset: 5725-5850 MHz CHANNELS 95 Channels SIZE Handset: 190mm x 42mm x 31mm Charger: 87.0mmx90.0mmx 84mm (including antenna) NOMINAL EFFECTIVE RANGE Maximum power allowed by FCC and IC.
  • Page 43 VTECH TELECOMMUNICATIONS LTD. A member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications Inc., Beaverton, Oregon, 97008 Telecommunications Distributed in Canada by VTech Canada Ltd., 7671 Alderbridge Way, Richmond, B.C. V6X 1Z9. Copyright 2005 for VTECH TELECOMMUNICATIONS LTD.

  • Page 44: Need Help

    Congratulations on your purchase of this VTech product NEED HELP? Our representatives are here to help you with any questions concerning the operation of this product, available accessories, or any other related issues. Call Toll Free: 1-800-595-9511 In Canada, Call:...
