All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Table of Contents
Related Manuals for Acnodes KC802
Summary of Contents for Acnodes KC802

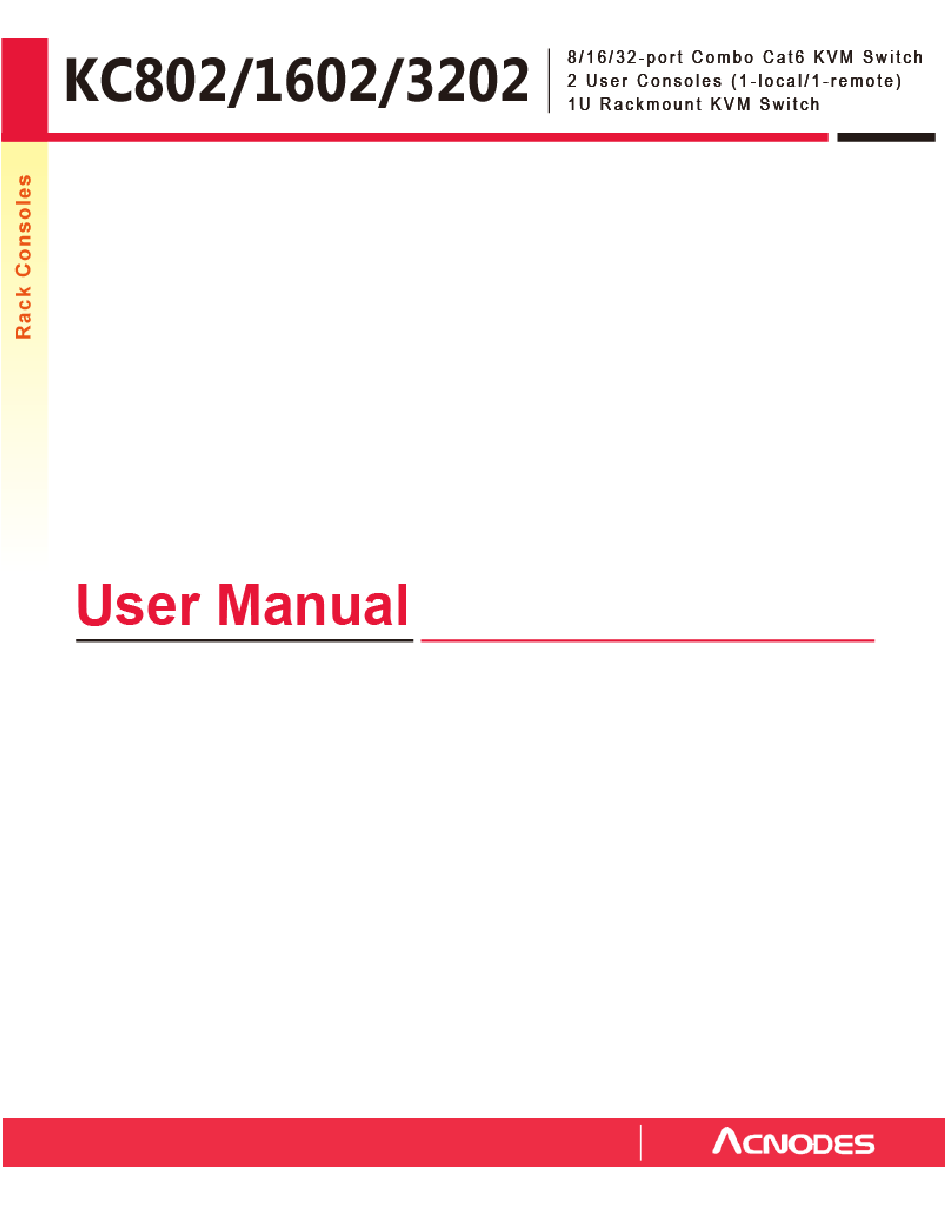

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part 1 > Combo Cat6 2-console KVM KC802 KC1602 KC3202 Package contents P.2 - 3 KVM port & Cat6 dongle connection P.4 - 5 Remote & Local console connection KVM Cascade Specifications < Part 2 > Usage KVM Button Password P.10... - Page 4 Before Installation ¦ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ¦ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part 1 > Combo Cat6 2-Console Kvm
Part 1. Combo Cat6 2-console KVM < 1.1 > Package Content Combo Cat6 2-console KVM KC802 / KC1602 / KC3202 • Combo KVM unit x 1 • Mounting set w/ bracket & screws x 1 KVM unit • Power cord ( for KVM ) x 1... - Page 6 Combo Cat6 2-console KVM Local console x 1 Local Remote console x 1 Console KC802 Remote Cascade Local Console KC1602 Remote Casc ade Local Console KC3202 Remote Casc ade...
-
Page 7: Kvm Port & Cat6 Dongle Connection
< 1.2 > KVM port & Cat6 dongle connection Combo Cat6 2-console KVM USB Servers US B DVI-USB dongle CAT 5 / 6 cable max. 40 meters DVI -D Cat6 KVM port PS/2 Servers USB Servers PS /2 VGA-USB dongle VGA-PS/2 dongle CAT 5 / 6 cable V G A... -
Page 8: Remote & Local Console Connection
< 1.3 > Remote & Local console connection Combo Cat6 2-console KVM Local console Remote Cat6 Console Rem ote Receiver USB console CAT 5 / 6 cable max. 150m... - Page 9 How to use a receiver to connect a remote console Combo Cat6 2-console KVM Receiver Local Computer Monitor Remote I/O Front Power Rear Local Remote K/B Mouse Button Button KVM switch The receiver provides a hotkey function for remote console. Please refer to P.23 Monitor Remote Console...
-
Page 10: Kvm Cascade
< 1.4 > KVM Cascade Combo Cat6 2-console KVM ¦ Cascade up to 8 levels, 256 servers ¦ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of KC801 / KC1601 / KC3201. When multiple combo Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 11: Specifications
< 1.5 > Specifications Combo Cat6 2-console KVM KC802 KC1602 KC3202 KVM Port ¯ Number of ports: 8, 16 or 32 Connector: RJ-45 Connectivity: DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console ¯... -
Page 12: Part 2. Usage
Part 2. Usage Combo Cat6 KVM Usage 2.1 KVM Button Power ON ¦ Turn off all servers and KVM switches ¦ Make sure all cables / connectors are properly connected ¦ Recommend Power ON sequence is monitor, KVM switch finally computer Front Panel - Port LED Indications 8 ports Bank no. -
Page 13: Password
Combo Cat6 KVM Usage Password The password is enabled by default, the default pass word is “00000000” eight zeros (Do not use “0” on number pad) ¦ Enable password Press the KVM hotkey Scroll Lock + S croll Lock + U Logout the KVM by pressing the hotkey Scroll Lock + Scroll Lock + P In SUPERVISOR level, enter “00000000”... -
Page 14: Kvm Osd
2.3 KVM OSD Combo Cat6 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter Complete / Switch to selected port... -
Page 15: Kvm Hotkey & Remote Console Hotkey
2.4 KVM Hotkey & Remote Console Hotkey Combo Cat6 KVM Usage Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock +... -
Page 16: Dc Power 12V, 24V, 48V Input
2.5 DC Power 12V, 24V, 48V Input Combo Cat6 KVM Usage Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA...
