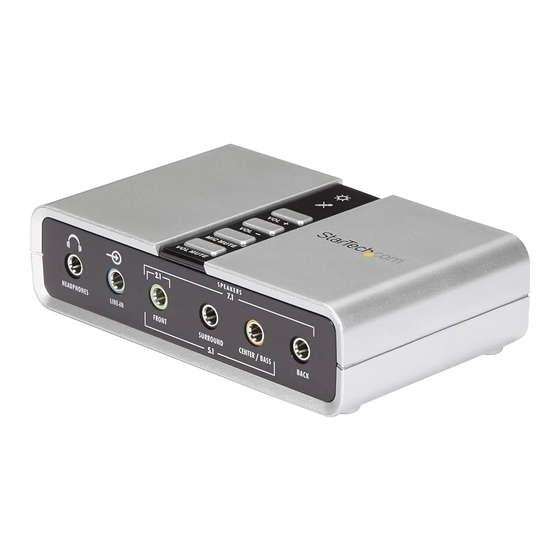

- Page 1 ICUSBAUDIO7D Instruction Manual USB External Sound Card Adapter 7.1 Channel USB Audio Adapter Exernal Sound Card...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 1 Driver Installation .................3 Specifications ..............4 Technical Support ............5 Warranty Information ............5... -
Page 4: Introduction
Introduction Packaging Contents • 1 x ICUSBAUDIO7D adapter • 1 x USB A-B cable • 1 x Software CD • 1 x Instruction Manual System Requirements • An available USB port ® ® • Microsoft WIndows 2000/XP/Server 2003/Vista, Mac OS 10.4/10.5 Installation Top Controls... - Page 5 Front View Headphone: Connect to headphone. Line In: Connect to tape/CD/DVD Player, or other audio sources for output mixing and/or recording. Front Speaker: Connect to Front speakers (via external amplifier). Surround Speaker: Connect to Surround speakers while in 4/6/8 channel modes (via external amplifier). Center/Bass Speaker: Connect to Center/Bass speakers while in 6/8 channel modes (via external amplifier).
-
Page 6: Driver Installation
Side View MIC (1) IN: Connect to a microphone (right channel only). MIC (2) IN: Connect to a microphone (left channel only). Driver Installation Windows 2000/XP/Server 2003/Vista Plug the USB Sound Adapter into an available USB port. Place the Driver CD into the CD-ROM drive. Click the Start button on the taskbar and click Run. -
Page 7: Specifications
Specifications Bus Interface USB 2.0 • 8 x 3.5mm mini-jack (headphone, line-in, front speaker, surround speaker, rear speaker, center/bass, Connectors mic 1, mic 2) • 2 x Toslink (S/PDIF in/out) • USB type B Volume Up, Volume Down, Buttons Volume Mute, Mic Mute LEDs Power/Activity, Mic Mute Chipset... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 9 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
