Grandio GRA-ASC-88 User Manual

8x8 ascent
Hide thumbs

Advertisement

Quick Links

Download this manual
GRANDIO
G R E E N H O U S E S
Model GRA-ASC-88 / GRANDIO 8X8 ASCENT

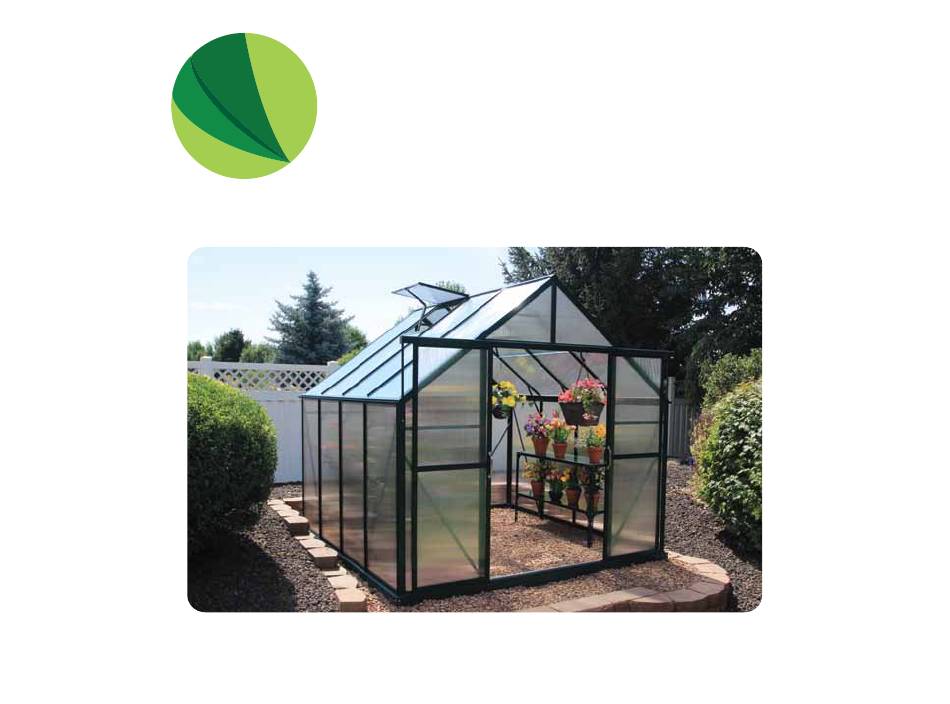

Model GRA-88-GR Shown In Image
GREENHOUSE USER MANUAL
© 2013 Grandio Greenhouses, Backyard Living Source Inc. All rights reserved

Advertisement

loading
Need help?

Need help?

Do you have a question about the GRA-ASC-88 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grandio GRA-ASC-88

Summary of Contents for Grandio GRA-ASC-88

  • Page 1 GRANDIO G R E E N H O U S E S Model GRA-ASC-88 / GRANDIO 8X8 ASCENT Model GRA-88-GR Shown In Image GREENHOUSE USER MANUAL © 2013 Grandio Greenhouses, Backyard Living Source Inc. All rights reserved...
  • Page 2 City or Municipality ordinances and HOA’s, as you may need a permit or documentation before you build. CONTACT OUR CUSTOMER SERVICE DEPARTMENT at: Contact your insurance company to make sure your Grandio Greenhouse will 1-866-928-3150 be covered on your policy. Hours: 8:30a.m.-5:00p.m. Monday through Call your local utilities companies before digging.

  • Page 3: Important Safety Instructions

    Before beginning assembly, read the instruc- tions and identify all parts using the hardware identifier and parts list on pages 35-40. Complete assembly and proper usage are essential to reduce the risk of accident or injury when using your Grandio Greenhouse. CAUTION:...
  • Page 4 It is extremely important to have the area prepared for 8x8 verses 8x12 see measurements in and leveled for installation of your greenhouse prior to starting the assembly of your Grandio Greenhouse. Decide at this time the final orientation of your Greenhouse. We recommend that you place your...

  • Page 5: Left Side

    BACK L08A L08B-X L08B-X 603B 603B 601A-B 601A-B 603A 603C 603C L08B 609-A 609-A L08C L08C L08C-X L08C-X 609-A 609-A 602B 602B 602A 602A 601B 601B L08C L08C 602B 602A 602B 602A 603E 603D 603C/616 603C/616 601B 601B L08C L08C 602A 602A 623A...
  • Page 6 GRANDIO © G R E E N H O U S E S ASSEMBLY INSTRUCTION STEPS STEP ONE: BASE ASSEMBLY STEP TWO: FRONT ASSEMBLY STEP THREE: BACK ASSEMBLY STEP FOUR: MIDDLE ASSEMBLY STEP FIVE: DOOR ASSEMBLY...
  • Page 7 W06 Must Be Modified Base Base Use a Hacksaw or Tinsnip to cut down the length of W06, Make sure base is squared GRANDIO T I P then install cut side down to and level before setting level surface. S03/M01 S03/M01 anchor into concrete.
  • Page 8 We recommend watching GRANDIO T I P L08A-X L08A-X our how to assembly videos with tricks and tips for easier assebly and installation of your Grandio Greenhouse at: 601A-FR 601A-FL www.grandiogreenhouses.com Lay at on ground to GRANDIO T I P assemble the front frame of your greenhouse.

  • Page 9: Front Frame Assembly

    603E 601B Attach W02T to 601B and 603D with 603D the S04/ML01 fasteners as shown in leave a bit loose to ease installation of next step. Inside View GRANDIO Transparent Film T I P Outside Greenhouse 601B 601B 603E Polycarbonate...
  • Page 10 619. INSIDE INSIDE OUTSIDE INSIDE Make sure the small screw GRANDIO T I P hole on the 601A face to Inside View the front of greenhouse for future of the L21 and L28 bracket that holds the door header in place.
  • Page 11 Inside View 601A-FL 601A-FR 603E 601B 601B Y3-1 Y3-2 W02T W02T 603D FAT END FAT END DOWN DOWN GRANDIO Transparent Film T I P 601B Outside Greenhouse 601A-FR 604-R 604-L 601A-FL FAT END Polycarbonate Opal White Film Inside Greenhouse Panel...
  • Page 12 601A-FR 601B 603D L08A-X 601A-FR W02T Set front aside in a shaded GRANDIO T I P area, do not lay on grass, S04/ML01 604-R prolonged sunlight through the polycarbon- ate panels will burn if placed directly on top of plants during the intense sun of the day.
  • Page 13 BACK ASSEMBLY INSTRUCTIONS This image shows the inside view of the back wall assembly. GRANDIO Transparent Film T I P Outside Greenhouse 601B 601B W04-1 W04-1 Opal White Film Polycarbonate Panel Inside Greenhouse Inside View Y5-2 Y5-1 Make sure the UV coated...
  • Page 14 BACK CONTINUED Use W01 bracket to attach the (2) 601B’s together as shown in diagram 601B Attach (2) W02’s to the (2) 601B’s as shown in 601B diagram Attach (2) 601A-B’s to L08A using S04/ML01 fastener as shown in diagram Attach (2) 603B’s to L08A using S04/ML01 fasten- ers as shown in diagram 601B...
  • Page 15 BACK CONTINUED Attach (4) 606’s to L08A as shown in diagram Insert the Y4 polycarbonate panels into the grooves of 603B and 603A. Make sure Y4 panels are inserted into 606 as shown in Y5-2 Y5-1 Set (2) 603C’s on top of the Y4’s that are now in 603C 603C place.
  • Page 16 ATTACHING ROOF TO BACK FRAME Attach the roof to the back wall use W01 fastener to 603A and the (2) W02’s to the (2) 601A’s using the S05 fasteners as shown in diagram , pre thread all screws for easiest installation, tighten when flush with frame and square. 601B 601B 603A...
  • Page 17 603B Inside View 603B L08B-X L08A L08B-X L08B-X ML01 603B 603B Square by loosening bolts GRANDIO T I P attached to the tops of the L08B-X, use measuring tape to make sure corners to corner measures the same.
  • Page 18 Inside View Outside Inside Base You will need a minimum of GRANDIO T I P (2) people to complete the middle assembly of your greenhouse. The more people the merrier at this stage of assembly.
  • Page 19 MIDDLE ASSEMBLY CONTINUED While the front section is being supported vertically by other person(s) slide in and attach the L08C’s to the front section as shown in . Using tape temporarily attach the loose end of the L08C’s to the base kit as shown in Front Side L08C...
  • Page 20 MIDDLE ASSEMBLY CONTINUED Attach L08C-X to 601A-FR with S04/ML01 on both sides as shown in L08C-X Attach bottom of L08C-X to L08C, W05, and base L08C as shown in . Repeat steps for other side. The L08C-X braces will hold the front up vertically without assistance.
  • Page 21 MIDDLE ASSEMBLY CONTINUED With 2 people, attach the ridge to front and back by sliding into place as Side Angle View shown in , using S04/ML01 fasteners attach the 607 to the 601B’s. 601B Inside View 601B 601B Inside View 601B 601B...
  • Page 22 3. Repeat steps 1 and 2 for the other end of 609. 4. With one side rmly secured move to the other side and repeat steps 1, 2 and 3. Remove only one L08C-X GRANDIO T I P at a time. If all L08C-X’s L08C-X are removed, the structure will collapse and cause unwarrantable damage.
  • Page 23 MIDDLE ASSEMBLY CONTINUED Before you attach the 602A’s to the sides of the greenhouse you will need to loosen the ML01 (nut) attached to the L08C-X and L08C located at the base. Once the bottom of L08C-X’s are loosened on one side attach the 602A’s to the sides of the greenhouse in this order.
  • Page 24 MIDDLE ASSEMBLY CONTINUED 4.10 Attach (2) 602B’s to 609’s and 607 as 602B shown in diagram. Do not attach remaining 602B’s to roof until roof vents are installed. 4.11 Assemble the roof window vents as shown below in , using the Z02 Screws attach the 615, 616, and 618’s as shown.
  • Page 25 Place directly across from each other for best cross draft ventilation, see optional placement. 4.13 Attach all remaining 602B’s after roof vents are positioned. 602B 602A Place roof windows in GRANDIO T I P desired location before attaching all 602B’s.
  • Page 26 INTERIOR ROOF SUPPORT ASSEMBLY 4.14 Attach the BZ1’s to the roof line as shown in diagram with the ML01/S04. Use CZ1’s to support the interior wall at the eave using the ML01/S04. See diagram 4.15 Use ML01/S04 to attach the L08C to 601B’s and 602B’s on the inside of roof midway between the roof and the gutters for additional roof support.
  • Page 27 4.16 To ensure there is no gap in roof vent position 603C as shown in . Connect Inside view of 603C 603C to middle of 602B’s using W04 603C bracket as shown in 603C 602B 4.17 Attach HQC01 to 616 with the screws , close roof vent and attach the handle onto HQC02 middle pin (the rst 603C...
  • Page 28 The top edges of Y7’s until the greenhouse is level. The top edges of Y7’s will align when greenhouse is level. will align when greenhouse is level. L08C GRANDIO Transparent Film PC sheet T I P Outside Greenhouse...
  • Page 29 Insert polycarbonate sheets Y8’s and Y10’s onto the top of your greenhouse. Panels may slide out before gutters are in place. You may want to place a piece of tape on the panel to prevent sliding as shown below once the panels are in place. GRANDIO Transparent Film T I P...
  • Page 30 Outside Outside inside Inside PC Sheet PC Sheet Note that there are two GRANDIO T I P parts labeled 609, one is the gutter support, the other is a clip that ts on inside of greenhouse to support polycarbonate panels.
  • Page 31 4.22 Attach end caps to the ridge and gutters on both front and back as shown below. J602A-E Squeeze a small amount of rubberized silicone or construction adhesive into the ends of ridge (607) to secure pressure t end caps (601). Adhesive not included.
  • Page 32 DOOR ASSEMBLY DIAGRAM 622-R Side View 623A 622-L Side View 623A Double Ball Catch 623B 623B J08A Bottom View Bottom View J08A J08A J08A Inside View...
  • Page 33 623A 623A 623A Side View 623B 623B 623B Inside View Bottom GRANDIO Transparent Film View T I P Outside Greenhouse J08A J08A Opal White Film Polycarbonate Inside Greenhouse...
  • Page 34 623B Inside View J08A J08A Pay close attention to 622 GRANDIO T I P orientation during assem- bly. (2) of the (4) 622’s will have holes for attaching handles and a brass double ball catch for the closure of the doors.

  • Page 35: Door Assembly

    DOOR ASSEMBLY With one person inside greenhouse line up hanging door track with door header, move bolts on L21 to line up with bolt holes on door header 603B. From the inside attach the S02 nut and bolt set and tighten while holding rmly as high as possible in position from the outside.

  • Page 36: Door Installation

    , and **We included some felt dots in your Grandio Welcome Kit, please apply to the inside bottom edge of the 623B as shown in these felt dots will make your doors t snug and still slide perfectly.
  • Page 37 DOOR INSTALLATION 5.10 Attach L28 to L21 and 601A as shown below in diagram . Attach (2) J07 to 603A the ends of L21 see 5.11 Remove all plastic lm from polycarbon- ate window panels immediately. S04/ML01 Top View 601A...
  • Page 38 GREENHOUSE GRA-88 94 5/16” ROOF PICTURE PARTS NO. DESCRIPTION MODELS GRA-812 142 5/16“ ROOF 49 1/8” 601A-B ALL MODELS BACK CORNERS L08A ALL MODELS 94 5/16” BACK 49 1/8” 601A-FL ALL MODELS FRONT LEFT CORNER THEY WILL BE L08B ALL MODELS PACKED TOGETHER 49 1/8”...
  • Page 39 2 Roof Vents GRA-88 GRA-88 22 3/4” ROOF WINDOW GRA-812 4 Roof Vents GRA-812 22 3/4“ ROOF WINDOW ALL MODELS 6X20 MM GRA-88 22 3/4” ROOF WINDOW GRA-88 M6X10 S03/M01 GRA-812 22 3/4“ ROOF WINDOW GRA-812 M6X10 GRA-88 19 9/16” ROOF WINDOW M6X14 GRA-88...
  • Page 40 GRA-88 ROOF ALL MODELS CORNER ANCHOR HQC01 GRA-812 ROOF ALL MODELS FRONT & BACK PANEL GRA-88 ROOF ALL MODELS FRONT & BACK HQC02 GRA-812 ROOF ALL MODELS FRONT PANEL Y3-1 ALL MODELS DOOR ALL MODELS FRONT PANEL Y3-2 ALL MODELS 10 MM NUT DRIVER ALL MODELS BACK PANEL...
  • Page 41 NOTES DOOR HANDLES 622-HNDL ALL MODELS PACKED TOGETHER 622-HNDL ALL MODELS DOOR HANDLES NUT/BOLT ALL MODELS 21 7/16” DOOR 95 1/2” DOOR ALL MODELS 64 7/16“ DOOR ALL MODELS ALL PACKED TOGETHER 64 7/16“ 622-L ALL MODELS LEFT DOOR 64 7/16“ 622-R ALL MODELS RIGHT DOOR...
  • Page 42 GRANDIO G R E E N H O U S E S Model GRA-88-GR & Model GRA-812-GR GREENHOUSE USER MANUAL KEEP IN A SAFE PLACE FOR REFERENCE CONTACT US IF YOU NEED HELP HAVE MISSING OR DAMAGED PARTS GRANDIOGREENHOUSES.COM BACKYARD LIVING SOURCE, INC.
