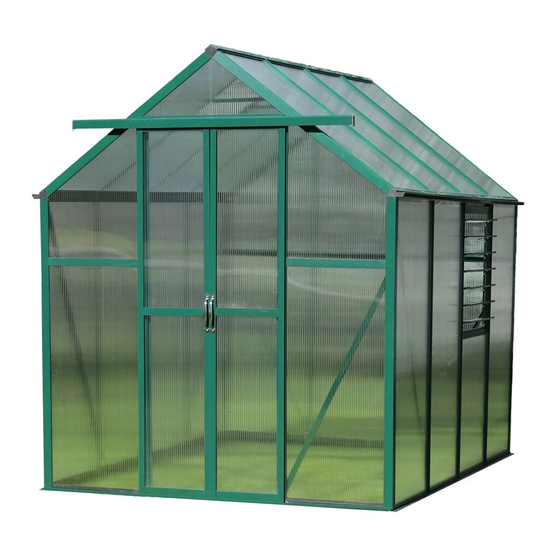

GRANDIO ELEMENT ADDITIONAL ROOF VENT KIT
FOR NEW AND EXISTING GREENHOUSE CUSTOMERS

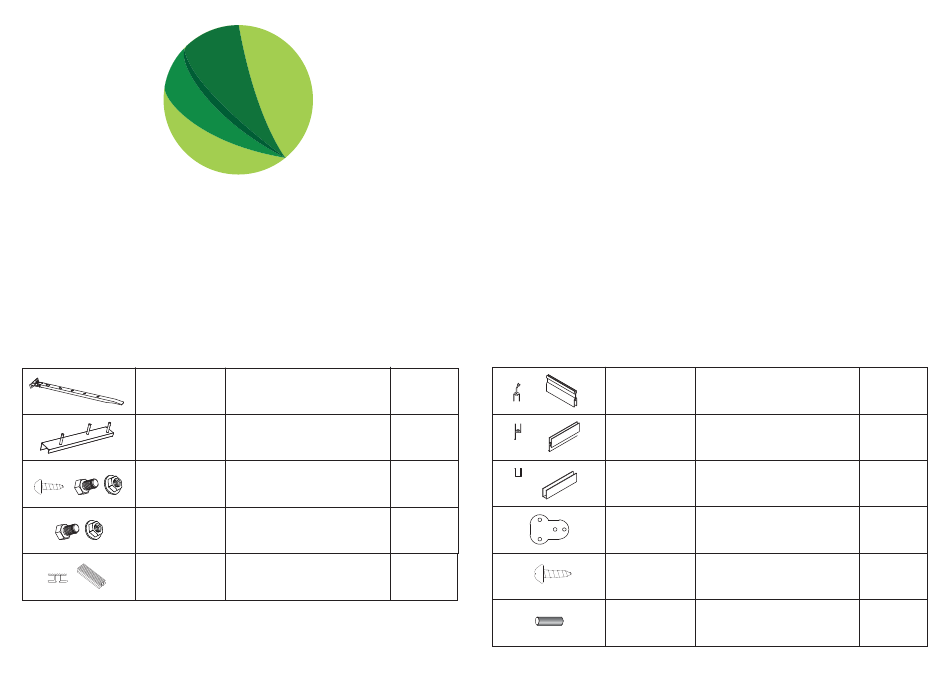

(GRA-ELEM-VENT) ELEMENT ROOF VENT PACKING LIST
SIZE/LOCATION
QUANTITY
ROOF VENT ARM
ROOF VENT LATCH
2 EACH
ROOF VENT HARDWARE
COMBOS FOR 603C/W04
21 7/8 in / 555 mm
© 2016 Grandio Greenhouses, Backyard Living Source Inc. All rights reserved
April 15, 2016 Manual Edition Extra Roof Vents for Element Greenhouses
GRAPHIC
1
1
8
1
®
PART NAME
SIZE/LOCATION
615
22 3/4 in / 578 mm
616
22 3/4 in / 578 mm
618
19 11/16 in / 500 mm
W04
CONNECTOR FOR 603
Z02
SCREWS FOR ROOF VENT
PLUG
ENDCAP PLUG
QUANTITY
1
1
2
2
5
2
Advertisement
Related Manuals for Grandio GRA-ELEM-VEN
Summary of Contents for Grandio GRA-ELEM-VEN
- Page 1 COMBOS FOR 603C/W04 CONNECTOR FOR 603 603C SCREWS FOR ROOF VENT 21 7/8 in / 555 mm PLUG ENDCAP PLUG © 2016 Grandio Greenhouses, Backyard Living Source Inc. All rights reserved April 15, 2016 Manual Edition Extra Roof Vents for Element Greenhouses...
- Page 2 Warning: This section is only for already built greenhouses. If you are just building your green- house for the first time skip ahead to page 2 for roof vent assembly. REMOVING GUTTER INSTRUCTIONS Detach the JG01 end cap from the 607 Ridge, and the J602A-E and J602B-E end caps from the 610 Gutters, you will only need to remove the gutter end caps on the side that you are replacing a panel with a roof vent.
- Page 3 ROOF VENT ASSEMBLY Locate your Y8 Panel from your original greenhouse or in the panel box if just beginning building now. You will need a utility knife, straight edge ruler or square, a tape measure and a permanent marker for the next steps. You will need to mark a small “X” on the side of the panel that should face outwards to the sun.
- Page 4 ROOF VENT ASSEMBLY CONTINUED Assemble the roof window vents as shown below in using the Z02 screws attach the 615, 616, and 618’s with the Y10 panel as shown. Be careful not to strip screw heads. Pay attention to the Y10 panel, stickers face the sun, and that the frames are 602B assembled according to images below.
- Page 5 ROOF VENT ASSEMBLY CONTINUED To ensure there is no gap in roof vent Inside view of 603B position 603C as shown in . Connect 603C 603C to middle of 602B’s or between a 601B and 602B using W04 brackets and 602B 603B S04/ML01 combos as shown.
- Page 6 ROOF VENT INSTALLATION 1.11 Insert polycarbonate sheets Y8’s and Y9’s into the lower roof of your greenhouse. Panels may slide out before gutters are in place. You may want to place a piece of tape on the panel to prevent sliding as shown in the diagram once the panels are in place.
- Page 7 END CAP INSTALLATION 1.13 For any greenhouse size if you have chosen to place a roof vent nearest the front or back you will need to locate the ENDCAP PLUG, you will slide into the 607 track just before placing the J601 caps into place in next steps. See 1.14 Attach caps to the ridge and gutters on both front and back as shown below.
