GRAPHIC
PART NAME
HQC01
HQC02
Z04, S04/ML01
S04/ML01
603B
GRANDIO
G R E E N H O U S E S
2015 GRANDIO ASCENT ADDITIONAL ROOF VENT KIT
FOR NEW AND EXISTING GREENHOUSE CUSTOMERS

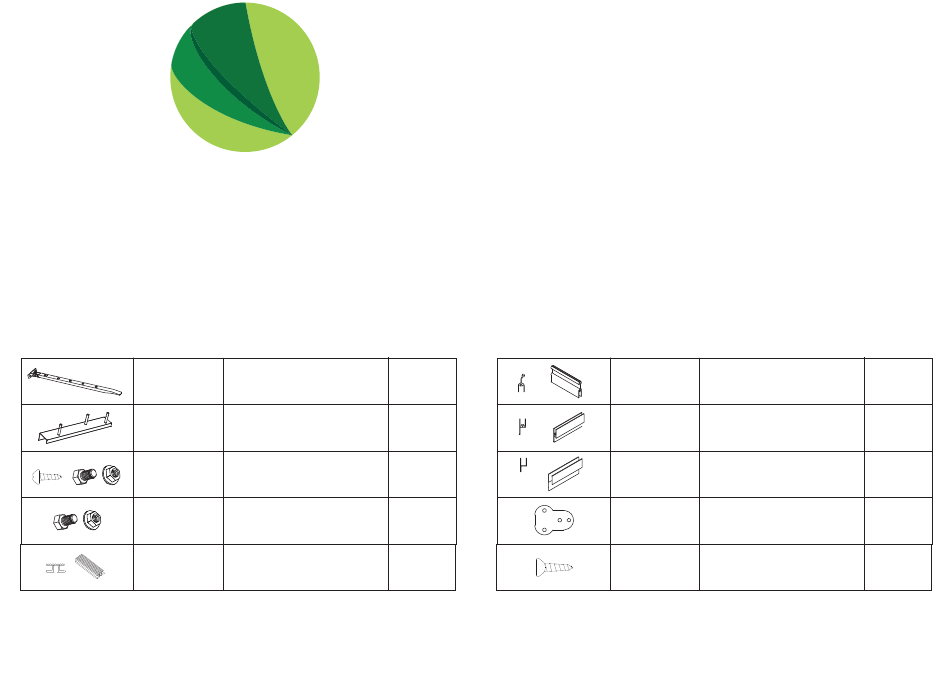

(GRA-ASC-VENT) ASCENT ROOF VENT PACKING LIST
SIZE/LOCATION
QUANTITY
ROOF VENT ARM
ROOF VENT LATCH
2 EACH
ROOF VENT HARDWARE
COMBOS FOR 603B/W04
21 7/8 in / 555 mm
© 2013 Grandio Greenhouses, Backyard Living Source Inc. All rights reserved
2015 Manual Edition Extra Roof Vents for Ascent Greenhouses
GRAPHIC
1
1
8
1
PART NAME
SIZE/LOCATION
615
22 3/4 in / 578 mm
616
22 3/4 in / 578 mm
618
19 11/16 in / 500 mm
W04
CONNECTOR FOR 603
Z02
SCREWS FOR ROOF VENT
QUANTITY
1
1
2
2
5
Advertisement
Related Manuals for Grandio GRA-ASC-VENT
Summary of Contents for Grandio GRA-ASC-VENT
- Page 1 19 11/16 in / 500 mm S04/ML01 COMBOS FOR 603B/W04 CONNECTOR FOR 603 603B 21 7/8 in / 555 mm SCREWS FOR ROOF VENT © 2013 Grandio Greenhouses, Backyard Living Source Inc. All rights reserved 2015 Manual Edition Extra Roof Vents for Ascent Greenhouses...
- Page 2 Warning: This section is only for already built greenhouses. If you are just building your green- house for the first time skip ahead to page 3 for roof vent assembly. REMOVING GUTTER INSTRUCTIONS Detach the L28 from only the top L21 as shown, let it fall to the side out of the way of the end caps on the side with the doors.
- Page 3 REMOVING GUTTER INSTRUCTIONS Slide 610 out of 609’s groove only as many panel sections as are needed to access the panel you would like to swap out for the roof vent of as shown in diagram . Window positions are your discretion however, must be in the middle for support, do not place nearest the front or back as you will need a 602B support to keep in window vent in place.
- Page 4 ROOF VENT ASSEMBLY Locate your Y7 Panel from your original greenhouse or in the panel box if just beginning building now. You will need a utility knife, straight edge ruler or square, a tape measure and a permanent marker for the next steps. You will need to mark a small “x” on the side of the panel that should face outwards to the sun.
- Page 5 Note Correct Orientation Inside View of Roof Vent Outside View Screwdriver Place roof windows in GRANDIO T I P desired location before attaching all 602B’s, if already partially built you will need to loosen and re attach after installation. .
- Page 6 ROOF VENT ASSEMBLY & INSTALLATION 1.10 To ensure there is no gap in roof vent Inside view of 603B position 603B as shown in . Connect 603B 603B to middle of 602B’s using W04 bracket as shown in 603B 602B 1.11 Attach HQC01 to 616 with the Z04 screws see...
- Page 7 609-WS Inside inside 609-WS PC Sheet PC Sheet Note that there are two GRANDIO T I P parts labeled 609 & 609-WS, one is the gutter support, the other is a clip that ts under poly- carbonate panels inside greenhouse.
- Page 8 ROOF VENT ASSEMBLY & INSTALLATION 1.15 Attach end caps to the ridge and gutters on both front and back as shown below. Squeeze a small amount of rubberized silicone or construction adhesive into the ends of ridge to secure pressure t end caps. It is recommended to caulk any areas that may allow J602A-E water penetration such as at the gutter end caps and at the base corners to seal against water as shown in...
