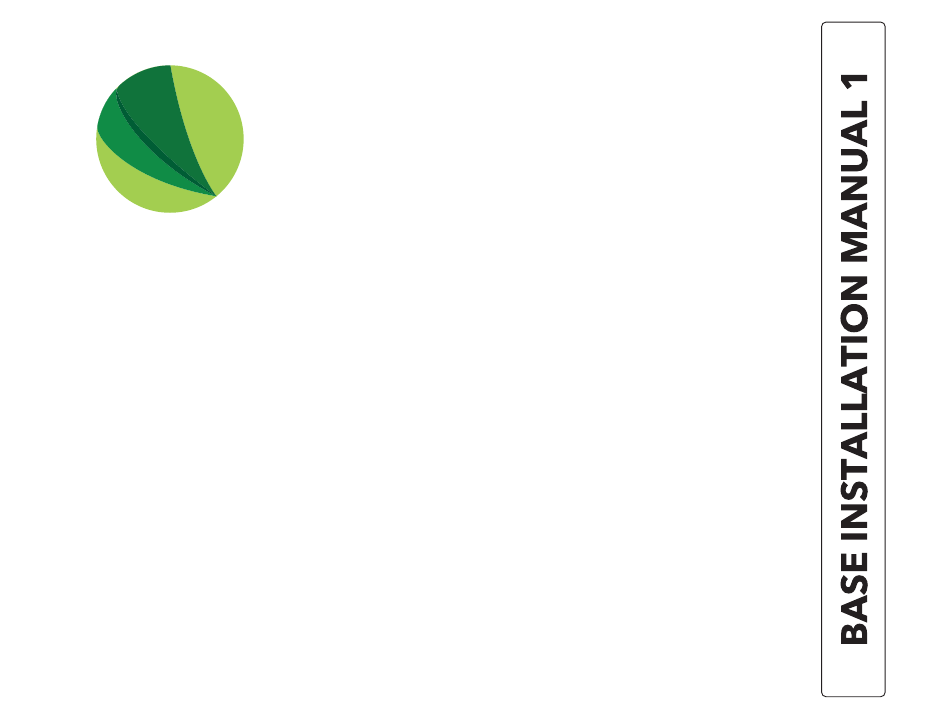

BASE INSTALLATION MANUAL 1

SUMMIT GREENHOUSE

BASE KIT ASSEMBLY AND INSTALLATION MANUAL

• PREPARING FOR INSTALLATION & WARNINGS

• CHOOSING YOUR SURFACE

• BASE KIT ASSEMBLY INSTRUCTIONS

• SECURING BASE KIT TO SURFACE FOR ALL SIZES

• WARRANTY

March 21, 2018 Summit Greenhouse Dimensions, Base Kit Assembly and Installation Manual 1

Need help?

Do you have a question about the Summit Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Grandio Summit Series

Page 1 • BASE KIT ASSEMBLY INSTRUCTIONS • SECURING BASE KIT TO SURFACE FOR ALL SIZES • WARRANTY © 2018 Grandio Greenhouses, Backyard Living Source Inc. All rights reserved March 21, 2018 Summit Greenhouse Dimensions, Base Kit Assembly and Installation Manual 1...
Page 2 GRANDIO INSTALLATION MANUAL 1 ® TABLE OF CONTENTS G R E E N H O U S E S GRANDIO SUMMIT BASE KIT DIMENSIONS, INSTALLATION & ASSEMBLY INSTRUCTIONS GUIDE Introduction............Safety Instructions..........INTRODUCTION: PREPARING FOR ASSEMBLY Box Conﬁgurations..........Assembley Preplanning and Placement....
Page 3 City or Municipality ordinances and HOA’s, as you may need a permit or reference and if you need our help. documentation before you build. CONTACT OUR CUSTOMER SERVICE Contact your insurance company to make sure your Grandio Greenhouse will be DEPARTMENT at: covered on your policy. 1-866-448-8231 Call your local utilities companies before digging.
Page 4 Manuals 1, 2, and 3. Complete assembly and proper usage are essential to reduce the risk of accident or injury when using your Grandio Greenhouse. CAUTION: Do not leave polycarbonate panels laying on grass, in direct sun light, or extreme heat. Keep in a cool dry place until they are to be installed!! (May cause burning to plants or grass if left directly on top of them, also may damage panels due to the protective ﬁlm adhering to panels.) Panels may scratch easily.
Page 5 8’ Extension Polycarbonate Panels GRA-SUM-12P-1 Polycarbonate Panels Box 1 GRA-SUM-12P-2 Polycarbonate Panels Box 2 GRANDIO STEEL BASE KIT 12X8 GRANDIO STEEL BASE KIT 4’ X GRANDIO STEEL BASE KIT 8’ X GRA-BASE-S128 GRA-BASE-S4X GRA-BASE-S8X 12x8 Steel Base Kit 4’ Steel Base Kit Extension...
Page 6 You will use wood screws to secure your Flat Mount Base Kit to the wood surface. For Earth Installation: You will use the Grandio Summit Steel Base Kit with the BA-A1 / L-BOLT anchoring system. With this method you will dig holes, place the L-Bolts into the ground and secure into place with quickrete.
Page 7 SUMMIT FLAT MOUNT BASE KIT PARTS LIST (FOR CONCRETE OR WOOD SURFACE INSTALLATIONS) (FOUND IN THE 12X8 ALUMINUM PARTS BOXES) GRAPHIC PART NAME SIZE/LOCATION 12X8 QTY 4X QTY 8X QTY 70 1/2 in / 1791 mm FM FRONT WALL LEFT 70 1/2 in / 1791 mm FM FRONT WALL RIGHT 94 5/16 in / 2396 mm...
Page 8 SUMMIT STEEL BASE KIT PARTS LIST (FOR EARTH INSTALLATIONS) GRAPHIC PART NAME PART NAME SIZE/LOCATION 12X8 QTY 4X QTY 8X QTY 23 5/8” / 1187mm BA-4X-R 4’ EXTENSION BA-4X-L BASE PIECE 72” / 1829 mm BA-6-RIGHT 6’ FRONT RIGHT BASE KIT PIECE front view 72”...
Page 9 GRANDIO SUMMIT 12x8 DIMENSIONS 12x8 Grandio Summit with Flat Mount Base Kit * The Flat Mount Base is included in each Summit Greenhouse Kit and is designed to be installed on a wooden deck or concrete slab. 111” Exterior Dimensions: 144” W x 97.25” L 2819 mm Interior Dimensions: 141.25”...
Page 10 GRANDIO SUMMIT 12x8 FLAT MOUNT BASE ASSEMBLY * The Flat Mount Base is included in each Summit Greenhouse Kit. The Flat Mount Base is designed to be installed on a wooden deck or concrete slab type surface. If you are using a Steel Base Kit for installing into the earth you will follow these instructions to assemble the Flat Mount section, but will then attach the Flat Mount Kit onto your Steel Base Kit.
Page 11 GRANDIO SUMMIT 12x8 FLAT MOUNT BASE ASSEMBLY 1. Lay out all of the parts exactly as shown in the diagram below. Conﬁrm that the front is where you want your doors to be located. Be sure the pieces are laid out exactly like the diagram, note that notches will have a 23” gap between each other, no notches should be right next to each other except at the corners.
Page 12 GRANDIO SUMMIT 12x8 FLAT MOUNT BASE ASSEMBLY 2. Connect the FRONT 12A and 12B pieces using the 14’s and the AFS-68 screws. See diagram 3. Connect the BACK section 12C and 12D using the 14’s and the AFS-68 screws. See diagram 4 Assemble the base kit as shown using the ABS-610 screws with the SQ-NUT-6 nuts at the 1C corners.
Page 13 GRANDIO SUMMIT 12x8 FLAT MOUNT BASE INSTALLATION 1. Square and Level your Flat Mount Base Kit to your Concrete or Wooden surface or pad. 2. Measure corner to corner and conﬁrm square. Use the appropriate anchoring fastener that was chosen at the time of purchase.
Page 14 GRANDIO SUMMIT 12x8 STEEL EARTH BASE KIT DIMENSIONS 12x8 Grandio Summit with Steel Base Kit Dimensions *The Steel Base Kit is sold separately from the Summit Greenhouse Kit and is to be installed directly into the Earth using the included L-Bolts which must be secured with Quikrete®...
Page 15 GRANDIO SUMMIT 12x8 STEEL BASE KIT ASSEMBLY 1. Lay out all the parts for your Steel Base Kit exactly as shown in the diagram below, failure to assemble exactly as shown will cause problems later in assembly. 2. Conﬁrm that the small oval holes are all on the top side of the base kit, and the large round holes for the BA-A1 and BA-S10 bolts are facing downward for correct assembly.
Page 16 GRANDIO SUMMIT 12x8 STEEL BASE KIT ASSEMBLY 3. Use the CB-610 bolts with the ML01 nuts to assemble the steel base kit as shown in diagrams , and , at the bottom of this page. Note the CB-610’s will be on the outside and the ML01 nut will be on the inside.
Page 17 GRANDIO SUMMIT 12x8 ATTACHING THE FLAT MOUNT BASE TO THE STEEL BASE KIT FOR EARTH INSTALLATION 1. Attach the side Flat Mount Base pieces to the Steel Base Kit as shown below using the ABS-625 screws with the ML01 nuts. See , and Tighten the hardware using the (W16) 10 mm Wrench and (W17) Allen Driver.
Page 18 GRANDIO 12x8 SUMMIT STEEL BASE KIT EARTH INSTALLATION **BASE MUST BE LEVEL & SQUARE, FOUNDATION MUST BE PROPERLY ANCHORED PRIOR TO GREENHOUSE ASSEMBLY WARNING: BASE KIT MUST BE LEVEL AND SQUARE, AN UNLEVEL BASE WILL AFFECT THE INTEGRITY OF YOUR GREENHOUSE.
Page 19 GRANDIO SUMMIT 12x12 DIMENSIONS 12x12 Grandio Summit with Flat Mount Base Kit * The Flat Mount Base is included in each Summit Greenhouse Kit and is designed to be installed on a wooden deck or concrete slab. Exterior Dimensions: 144” W x 144” L 111”...
Page 20 GRANDIO SUMMIT 12x12 FLAT MOUNT BASE ASSEMBLY * The Flat Mount Base is included in each Summit Greenhouse Kit. The Flat Mount Base is designed to be installed on a wooden deck or concrete slab type surface. If you are using a Steel Base Kit for installing into the earth you will follow these instructions to assemble the Flat Mount section, but will then attach the Flat Mount Kit onto your Steel Base Kit.
Page 21 GRANDIO SUMMIT 12x12 FLAT MOUNT BASE ASSEMBLY 1. Lay out all of the parts exactly as shown in the diagram below. Conﬁrm that the front is where you want your doors to be located. Be sure the pieces are laid out exactly like the diagram, note that notches will have a 23” gap between each other, no notches should be right next to each other except at the corners.
Page 22 GRANDIO SUMMIT 12x12 FLAT MOUNT BASE ASSEMBLY 2. Connect the FRONT 12A and 12B pieces using the 14’s and the AFS-68 screws. See diagram 3. Connect the BACK section 12C and 12D using the 14’s and the AFS-68 screws. See diagram 4.
Page 23 GRANDIO SUMMIT 12x12 FLAT MOUNT BASE INSTALLATION 1. Square and Level your Flat Mount Base Kit to your Concrete or Wooden surface or pad. 2. Measure corner to corner and conﬁrm square. Use the appropriate anchoring fastener that was chosen at the time of purchase.
Page 24 GRANDIO SUMMIT 12x12 STEEL EARTH BASE KIT DIMENSIONS 12x12 Grandio Summit with Steel Base Kit Dimensions *The Steel Base Kit is sold separately from the Summit Greenhouse Kit and is to be installed directly into the Earth using the included L-Bolts which must be secured with Quikrete®...
Page 25 GRANDIO SUMMIT 12x12 STEEL BASE KIT ASSEMBLY 1. Lay out all the parts for your Steel Base Kit exactly as shown in the diagram below, failure to assemble exactly as shown will cause problems later in assembly. 2. Conﬁrm that the small oval holes are all on the top side of the base kit, and the large round holes for the BA-A1 and BA-S10 bolts are facing downward for correct assembly.
Page 26 GRANDIO SUMMIT 12x12 STEEL BASE KIT ASSEMBLY 3. Use the CB-610 bolts with the ML01 nuts to assemble the steel base kit as shown in diagrams , and , at the bottom of this page. Note the CB-610’s will be on the outside and the ML01 nut will be on the inside.
Page 27 GRANDIO SUMMIT 12x12 ATTACHING THE FLAT MOUNT BASE TO THE STEEL BASE KIT FOR EARTH INSTALLATION 1. Attach the side Flat Mount Base pieces to the Steel Base Kit as shown below using the ABS-625 screws with the ML01 nuts. See , and Tighten the hardware using the (W16) 10 mm Wrench and (W17) Allen Driver.
Page 28 GRANDIO 12x12 SUMMIT STEEL BASE KIT EARTH INSTALLATION **BASE MUST BE LEVEL & SQUARE, FOUNDATION MUST BE PROPERLY ANCHORED PRIOR TO GREENHOUSE ASSEMBLY WARNING: BASE KIT MUST BE LEVEL AND SQUARE, AN UNLEVEL BASE WILL AFFECT THE INTEGRITY OF YOUR GREENHOUSE.
Page 29 GRANDIO SUMMIT 12x16 DIMENSIONS 12x16 Grandio Summit with Flat Mount Base Kit * The Flat Mount Base is included in each Summit Greenhouse Kit, and is designed to be installed on a wooden deck or concrete slab. 111” 2819 mm The Flat Mount Base Kit will attach on top of the Steel Base Kit.
Page 30 GRANDIO SUMMIT 12x16 FLAT MOUNT BASE ASSEMBLY * The Flat Mount Base is included in each Summit Greenhouse Kit. The Flat Mount Base is designed to be installed on a wooden deck or concrete slab type surface. If you are using a Steel Base Kit for installing into the earth you will follow these instructions to assemble the Flat Mount section, but will then attach the Flat Mount Kit onto your Steel Base Kit.
Page 31 GRANDIO SUMMIT 12x16 FLAT MOUNT BASE ASSEMBLY 1. Lay out all of the parts exactly as shown in the diagram below. Conﬁrm that the front is where you want your doors to be located. Be sure the pieces are laid out exactly like the diagram, note that notches will have a 23” gap between each other, no notches should be right next to each other except at the corners.
Page 32 GRANDIO SUMMIT 12x16 FLAT MOUNT BASE ASSEMBLY 2. Connect the FRONT 12A and 12B pieces using the 14’s and the AFS-68 screws. See diagram 3. Connect the BACK section 12C and 12D using the 14’s and the AFS-68 screws. See diagram 4.
Page 33 GRANDIO SUMMIT 12x16 FLAT MOUNT BASE INSTALLATION 1. Square and Level your Flat Mount Base Kit to your Concrete or Wooden surface or pad. 2. Measure corner to corner and conﬁrm square. Use the appropriate anchoring fastener that was chosen at the time of purchase.
Page 34 GRANDIO SUMMIT 12x16 STEEL EARTH BASE KIT DIMENSIONS 12x16 Grandio Summit with Steel Base Kit Dimensions *The Steel Base Kit is sold separately from the Summit Greenhouse Kit and is to be installed directly into the Earth using the included L-Bolts which must be secured with Quikrete®...
Page 35 GRANDIO SUMMIT 12x16 STEEL BASE KIT ASSEMBLY 1. Lay out all the parts for your Steel Base Kit exactly as shown in the diagram below, failure to assemble exactly as shown will cause problems later in assembly. 2. Conﬁrm that the small oval holes are all on the top side of the base kit, and the large round holes for the BA-A1 and BA-S10 bolts are facing downward for correct assembly.
Page 36 GRANDIO SUMMIT 12x16 STEEL BASE KIT ASSEMBLY 3. Use the CB-610 bolts with the ML01 nuts to assemble the steel base kit as shown in diagrams , and , at the bottom of this page. Note the CB-610’s will be on the outside and the ML01 nut will be on the inside.
Page 37 GRANDIO SUMMIT 12x16 ATTACHING THE FLAT MOUNT BASE TO THE STEEL BASE KIT FOR EARTH INSTALLATION 1. Attach the side Flat Mount Base pieces to the Steel Base Kit as shown below using the ABS-625 screws with the ML01 nuts. See , and Tighten the hardware using the (W16) 10 mm Wrench and (W17) Allen Driver.
Page 38 GRANDIO 12x16 SUMMIT STEEL BASE KIT EARTH INSTALLATION **BASE MUST BE LEVEL & SQUARE, FOUNDATION MUST BE PROPERLY ANCHORED PRIOR TO GREENHOUSE ASSEMBLY WARNING: BASE KIT MUST BE LEVEL AND SQUARE, AN UNLEVEL BASE WILL AFFECT THE INTEGRITY OF YOUR GREENHOUSE.
Page 39 GRANDIO SUMMIT 12x20 DIMENSIONS 12x20 Grandio Summit with Flat Mount Base Kit * The Flat Mount Base is included in each Summit Greenhouse Kit, and is designed to be installed on a wooden deck or concrete slab. 111” Exterior Dimensions: 144” W x 237 7/16” L 2819 mm 86 1/2”...
Page 40 GRANDIO SUMMIT 12x20 FLAT MOUNT BASE ASSEMBLY * The Flat Mount Base is included in each Summit Greenhouse Kit. The Flat Mount Base is designed to be installed on a wooden deck or concrete slab type surface. If you are using a Steel Base Kit for installing into the earth you will follow these instructions to assemble the Flat Mount section, but will then attach the Flat Mount Kit onto your Steel Base Kit.
Page 41 GRANDIO SUMMIT 12x20 FLAT MOUNT BASE ASSEMBLY 1. Lay out all of the parts exactly as shown in the diagram below. Conﬁrm that the front is where you want your doors to be located. Be sure the pieces are laid out exactly like the diagram, note that notches will have a 23” gap between each other, no notches should be right next to each other except at the corners.
Page 42 GRANDIO SUMMIT 12x20 FLAT MOUNT BASE ASSEMBLY 2. Connect the FRONT 12A and 12B pieces using the 14’s and the AFS-68 screws. See diagram 3. Connect the BACK section 12C and 12D using the 14’s and the AFS-68 screws. See diagram 4.
Page 43 GRANDIO SUMMIT 12x20 FLAT MOUNT BASE INSTALLATION 1. Square and Level your Flat Mount Base Kit to your Concrete or Wooden surface or pad. 2. Measure corner to corner and conﬁrm square. Use the appropriate anchoring fastener that was chosen at the time of purchase.
Page 44 GRANDIO SUMMIT 12x20 STEEL EARTH BASE KIT DIMENSIONS 12x20 Grandio Summit with Steel Base Kit Dimensions *The Steel Base Kit is sold separately from the Summit Greenhouse Kit and is to be installed directly into the Earth using the included L-Bolts which must be secured with Quikrete®...
Page 45 GRANDIO SUMMIT 12x20 STEEL BASE KIT ASSEMBLY 1. Lay out all the parts for your Steel Base Kit exactly as shown in the diagram below, failure to assemble exactly as shown will cause problems later in assembly. 2. Conﬁrm that the small oval holes are all on the top side of the base kit, and the large round holes for the BA-A1 and BA-S10 bolts are facing downward for correct assembly.
Page 46 GRANDIO SUMMIT 12x20 STEEL BASE KIT ASSEMBLY 3. Use the CB-610 bolts with the ML01 nuts to assemble the steel base kit as shown in diagrams , and , at the bottom of this page. Note the CB-610’s will be on the outside and the ML01 nut will be on the inside.
Page 47 GRANDIO SUMMIT 12x20 ATTACHING THE FLAT MOUNT BASE TO THE STEEL BASE KIT FOR EARTH INSTALLATION 1. Attach the side Flat Mount Base pieces to the Steel Base Kit as shown below using the ABS-625 screws with the ML01 nuts. See , and Tighten the hardware using the (W16) 10 mm Wrench and (W17) Allen Driver.
Page 48 GRANDIO 12x20 SUMMIT STEEL BASE KIT EARTH INSTALLATION **BASE MUST BE LEVEL & SQUARE, FOUNDATION MUST BE PROPERLY ANCHORED PRIOR TO GREENHOUSE ASSEMBLY WARNING: BASE KIT MUST BE LEVEL AND SQUARE, AN UNLEVEL BASE WILL AFFECT THE INTEGRITY OF YOUR GREENHOUSE.
Page 49 GRANDIO SUMMIT 12x24 DIMENSIONS 12x24 Grandio Summit with Flat Mount Base Kit * The Flat Mount Base is included in each Summit Greenhouse Kit, and is designed to be installed on a wooden deck or concrete slab. 111” 2819 mm Exterior Dimensions: 144”...
Page 50 GRANDIO SUMMIT 12x24 FLAT MOUNT BASE ASSEMBLY * The Flat Mount Base is included in each Summit Greenhouse Kit. The Flat Mount Base is designed to be installed on a wooden deck or concrete slab type surface. If you are using a Steel Base Kit for installing into the earth you will follow these instructions to assemble the Flat Mount section, but will then attach the Flat Mount Kit onto your Steel Base Kit.
Page 51 GRANDIO SUMMIT 12x24 FLAT MOUNT BASE ASSEMBLY 1. Lay out all of the parts exactly as shown in the diagram below. Conﬁrm that the front is where you want your doors to be located. Be sure the pieces are laid out exactly like the diagram, note that notches will have a 23” gap between each other, no notches should be right next to each other except at the corners.
Page 52 GRANDIO SUMMIT 12x24 FLAT MOUNT BASE ASSEMBLY 2. Connect the FRONT 12A and 12B pieces using the 14’s and the AFS-68 screws. See diagram 3. Connect the BACK section 12C and 12D using the 14’s and the AFS-68 screws. See diagram 4.
Page 53 GRANDIO SUMMIT 12x24 FLAT MOUNT BASE INSTALLATION 1. Square and Level your Flat Mount Base Kit to your Concrete or Wooden surface or pad. 2. Measure corner to corner and conﬁrm square. Use the appropriate anchoring fastener that was chosen at the time of purchase.
Page 54 GRANDIO SUMMIT 12x24 STEEL EARTH BASE KIT DIMENSIONS 12x24 Grandio Summit with Steel Base Kit Dimensions *The Steel Base Kit is sold separately from the Summit Greenhouse Kit and is to be installed directly into the Earth using the included L-Bolts which must be secured with Quikrete®...
Page 55 GRANDIO SUMMIT 12x24 STEEL BASE KIT ASSEMBLY 1. Lay out all the parts for your Steel Base Kit exactly as shown in the diagram below, failure to assemble exactly as shown will cause problems later in assembly. 2. Conﬁrm that the small oval holes are all on the top side of the base kit, and the large round holes for the BA-A1 and BA-S10 bolts are facing downward for correct assembly.
Page 56 GRANDIO SUMMIT 12x24 STEEL BASE KIT ASSEMBLY 3. Use the CB-610 bolts with the ML01 nuts to assemble the steel base kit as shown in diagrams , and , at the bottom of this page. Note the CB-610’s will be on the outside and the ML01 nut will be on the inside.
Page 57 GRANDIO SUMMIT 12x24 ATTACHING THE FLAT MOUNT BASE TO THE STEEL BASE KIT FOR EARTH INSTALLATION 1. Attach the side Flat Mount Base pieces to the Steel Base Kit as shown below using the ABS-625 screws with the ML01 nuts. See , and Tighten the hardware using the (W16) 10 mm Wrench and (W17) Allen Driver.
Page 58 GRANDIO 12x24 SUMMIT STEEL BASE KIT EARTH INSTALLATION **BASE MUST BE LEVEL & SQUARE, FOUNDATION MUST BE PROPERLY ANCHORED PRIOR TO GREENHOUSE ASSEMBLY WARNING: BASE KIT MUST BE LEVEL AND SQUARE, AN UNLEVEL BASE WILL AFFECT THE INTEGRITY OF YOUR GREENHOUSE.
Page 59 GRANDIO SUMMIT 12x28 DIMENSIONS 12x28 Grandio Summit with Flat Mount Base Kit * The Flat Mount Base is included in each Summit Greenhouse Kit, and is designed to be installed on a wooden deck or concrete slab. Exterior Dimensions: 144” W x 330 7/8” L Interior Dimensions: 141.25”...
Page 60 GRANDIO SUMMIT 12x28 FLAT MOUNT BASE ASSEMBLY * The Flat Mount Base is included in each Summit Greenhouse Kit. The Flat Mount Base is designed to be installed on a wooden deck or concrete slab type surface. If you are using a Steel Base Kit for installing into the earth you will follow these instructions to assemble the Flat Mount section, but will then attach the Flat Mount Kit onto your Steel Base Kit.
Page 61 GRANDIO SUMMIT 12x28 FLAT MOUNT BASE ASSEMBLY 1. Lay out all of the parts exactly as shown in the diagram below. Conﬁrm that the front is where you want your doors to be located. Be sure the pieces are laid out exactly like the diagram, note that notches will have a 23” gap between each other, no notches should be right next to each other except at the corners.
Page 62 GRANDIO SUMMIT 12x28 FLAT MOUNT BASE ASSEMBLY 2. Connect the FRONT 12A and 12B pieces using the 14’s and the AFS-68 screws. See diagram 3. Connect the BACK section 12C and 12D using the 14’s and the AFS-68 screws. See diagram 4.
Page 63 GRANDIO SUMMIT 12x28 FLAT MOUNT BASE INSTALLATION 1. Square and Level your Flat Mount Base Kit to your Concrete or Wooden surface or pad. 2. Measure corner to corner and conﬁrm square. Use the appropriate anchoring fastener that was chosen at the time of purchase.
Page 64 GRANDIO SUMMIT 12x28 STEEL EARTH BASE KIT DIMENSIONS 12x28 Grandio Summit with Steel Base Kit Dimensions *The Steel Base Kit is sold separately from the Summit Greenhouse Kit and is to be installed directly into the Earth using the included L-Bolts which must be secured with Quikrete®...
Page 65 GRANDIO SUMMIT 12x28 STEEL BASE KIT ASSEMBLY 1. Lay out all the parts for your Steel Base Kit exactly as shown in the diagram below, failure to assemble exactly as shown will cause problems later in assembly. 2. Conﬁrm that the small oval holes are all on the top side of the base kit, and the large round holes for the BA-A1 and BA-S10 bolts are facing downward for correct assembly.
Page 66 GRANDIO SUMMIT 12x28 STEEL BASE KIT ASSEMBLY 3. Use the CB-610 bolts with the ML01 nuts to assemble the steel base kit as shown in diagrams , and , at the bottom of this page. Note the CB-610’s will be on the outside and the ML01 nut will be on the inside.
Page 67 GRANDIO SUMMIT 12x28 ATTACHING THE FLAT MOUNT BASE TO THE STEEL BASE KIT FOR EARTH INSTALLATION 1. Attach the side Flat Mount Base pieces to the Steel Base Kit as shown below using the ABS-625 screws with the ML01 nuts. See , and Tighten the hardware using the (W16) 10 mm Wrench and (W17) Allen Driver.
Page 68 GRANDIO 12x28 SUMMIT STEEL BASE KIT EARTH INSTALLATION **BASE MUST BE LEVEL & SQUARE, FOUNDATION MUST BE PROPERLY ANCHORED PRIOR TO GREENHOUSE ASSEMBLY WARNING: BASE KIT MUST BE LEVEL AND SQUARE, AN UNLEVEL BASE WILL AFFECT THE INTEGRITY OF YOUR GREENHOUSE.
Page 69 GRANDIO SUMMIT 12x32 DIMENSIONS 12x32 Grandio Summit with Flat Mount Base Kit * The Flat Mount Base is included in each Summit Greenhouse Kit, and is designed to be installed on a wooden deck or concrete slab. Exterior Dimensions: 144” W x 377 5/8” L Interior Dimensions: 141.25”...
Page 70 GRANDIO SUMMIT 12x32 FLAT MOUNT BASE ASSEMBLY * The Flat Mount Base is included in each Summit Greenhouse Kit. The Flat Mount Base is designed to be installed on a wooden deck or concrete slab type surface. If you are using a Steel Base Kit for installing into the earth you will follow these instructions to assemble the Flat Mount section, but will then attach the Flat Mount Kit onto your Steel Base Kit.
Page 71 GRANDIO SUMMIT 12x32 FLAT MOUNT BASE ASSEMBLY 1. Lay out all of the parts exactly as shown in the diagram below. Conﬁrm that the front is where you want your doors to be located. Be sure the pieces are laid out exactly like the diagram, note that notches will have a 23” gap between each other, no notches should be right next to each other except at the corners.
Page 72 GRANDIO SUMMIT 12x32 FLAT MOUNT BASE ASSEMBLY 2. Connect the FRONT 12A and 12B pieces using the 14’s and the AFS-68 screws. See diagram 3. Connect the BACK section 12C and 12D using the 14’s and the AFS-68 screws. See diagram 4.
Page 73 GRANDIO SUMMIT 12x32 FLAT MOUNT BASE INSTALLATION 1. Square and Level your Flat Mount Base Kit to your Concrete or Wooden surface or pad. 2. Measure corner to corner and conﬁrm square. Use the appropriate anchoring fastener that was chosen at the time of purchase.
Page 74 GRANDIO SUMMIT 12x32 STEEL EARTH BASE KIT DIMENSIONS 12x32 Grandio Summit with Steel Base Kit Dimensions *The Steel Base Kit is sold separately from the Summit Greenhouse Kit and is to be installed directly into the Earth using the included L-Bolts which must be secured with Quikrete®...
Page 75 GRANDIO SUMMIT 12x32 STEEL BASE KIT ASSEMBLY 1. Lay out all the parts for your Steel Base Kit exactly as shown in the diagram below, failure to assemble exactly as shown will cause problems later in assembly. 2. Conﬁrm that the small oval holes are all on the top side of the base kit, and the large round holes for the BA-A1 and BA-S10 bolts are facing downward for correct assembly.
Page 76 GRANDIO SUMMIT 12x32 STEEL BASE KIT ASSEMBLY 3. Use the CB-610 bolts with the ML01 nuts to assemble the steel base kit as shown in diagrams , and , at the bottom of this page. Note the CB-610’s will be on the outside and the ML01 nut will be on the inside.
Page 77 GRANDIO SUMMIT 12x32 ATTACHING THE FLAT MOUNT BASE TO THE STEEL BASE KIT FOR EARTH INSTALLATION 1. Attach the side Flat Mount Base pieces to the Steel Base Kit as shown below using the ABS-625 screws with the ML01 nuts. See , and Tighten the hardware using the (W16) 10 mm Wrench and (W17) Allen Driver.
Page 78 GRANDIO 12x32 SUMMIT STEEL BASE KIT EARTH INSTALLATION **BASE MUST BE LEVEL & SQUARE, FOUNDATION MUST BE PROPERLY ANCHORED PRIOR TO GREENHOUSE ASSEMBLY WARNING: BASE KIT MUST BE LEVEL AND SQUARE, AN UNLEVEL BASE WILL AFFECT THE INTEGRITY OF YOUR GREENHOUSE.
Page 79 GRANDIO GREENHOUSE LIMITED LIFETIME WARRANTY 1. Grandio Greenhouses are warranted to the original purchaser to be free from defects in material or workmanship for ten years from the date of original retail purchase on all plastic panels. Additionally the aluminium frame is warrantied for life. The word “defects”...
