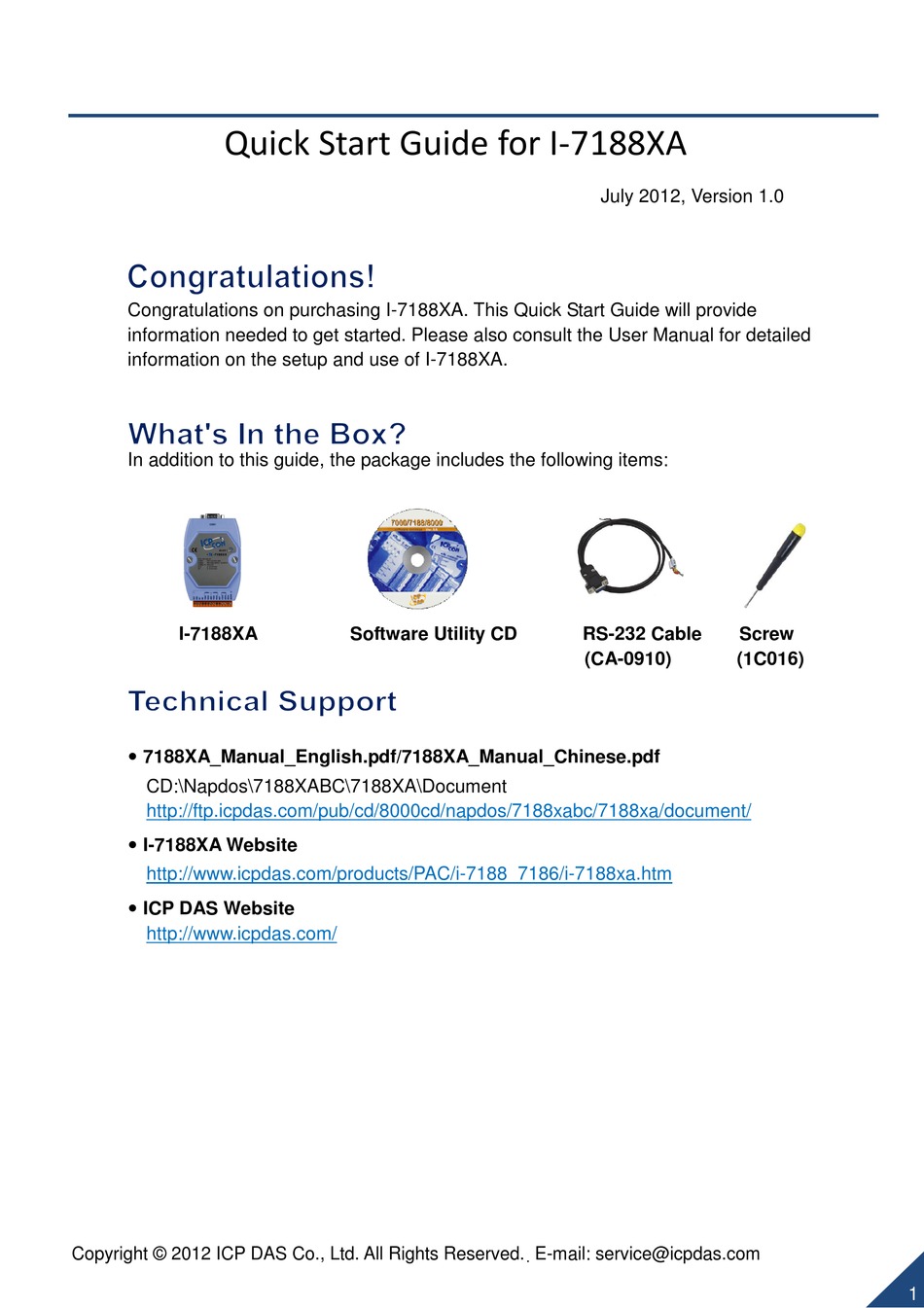

Quick Start Guide for I-7188XA
Congratulations on purchasing I-7188XA. This Quick Start Guide will provide
information needed to get started. Please also consult the User Manual for detailed
information on the setup and use of I-7188XA.
In addition to this guide, the package includes the following items:

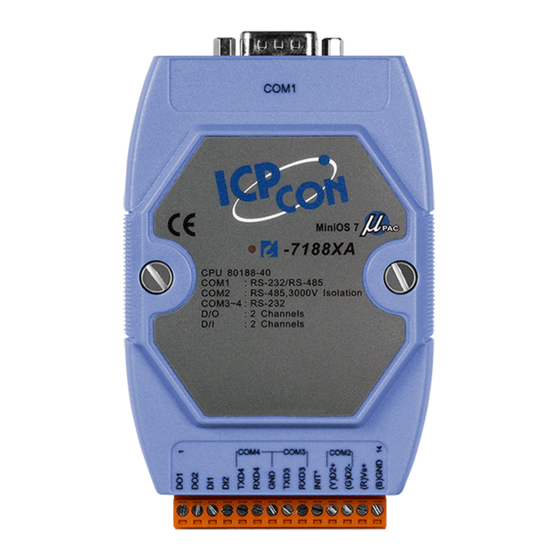

I-7188XA
7188XA_Manual_English.pdf/7188XA_Manual_Chinese.pdf
CD:\Napdos\7188XABC\7188XA\Document
http://ftp.icpdas.com/pub/cd/8000cd/napdos/7188xabc/7188xa/document/
I-7188XA Website
http://www.icpdas.com/products/PAC/i-7188_7186/i-7188xa.htm
ICP DAS Website
http://www.icpdas.com/
Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com
Software Utility CD
July 2012, Version 1.0
RS-232 Cable
Screw
(CA-0910)
(1C016)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I-7188XA and is the answer not in the manual?

Questions and answers

Related Manuals for ICP DAS USA I-7188XA

Summary of Contents for ICP DAS USA I-7188XA

  • Page 1 Quick Start Guide for I-7188XA July 2012, Version 1.0 Congratulations on purchasing I-7188XA. This Quick Start Guide will provide information needed to get started. Please also consult the User Manual for detailed information on the setup and use of I-7188XA.
  • Page 2 Step 1: Connect the CA0910 download cable between COM4 of the I-7188XA(D) and the COM Port of the Host PC, as shown in the diagram below. Step 2: Apply power (Vs+, GND) to the I-7188XA(D). Vs+ can be in a range from +10V to +30V DC.
  • Page 3 Connect to the COM CA0910 Port of Host PC Connect to the Power supply Connect INIT* with 5-digit 7-SEG LED Red LED Step 3: After applying the power, the 5-digits of the 7-SEG LED will continuously show as follows. Hour Minute Second If the non-display version of module is being used, please continue to the next step.
  • Page 4 Downloading Programs to the I-7188XA(D) Before using the MiniOS7 Utility, ensure that the download cable is connected from the Host PC to the I-7188XA(D) and ensure that no other programs are running on the I-7188XA(D). The program download procedure is as follows: Step 1: From the Windows START menu, go to Programs/ICPDAS/MiniOS7 Utility Ver XXX/and locate the MiniOS7 Utility Ver XXX.
  • Page 5 Step 3: See if the MiniOS7 Utility connects with I-7188XA. The connected icon is . The disconnected icon is See here to know connection status. Step 4: Select the file to load from left side and click to load file into module or draw the file to the right side.
  • Page 6 Step 5: Select the file and then press the right mouse button. Choose the Run and press to execute the program. Step 6: The result of the program will be shown in 7188xw window. Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
  • Page 7 NOTE: The 7188xw window has to be closed and then the download operation (Step 4) could be done. The content of the Hello.c file is as follow: #include “7188xa.h” /* Include the headers to use 7188xal.lib functions */ void main(void) InitLib();...
