INSTALLATION-CONNECTING CABLES*

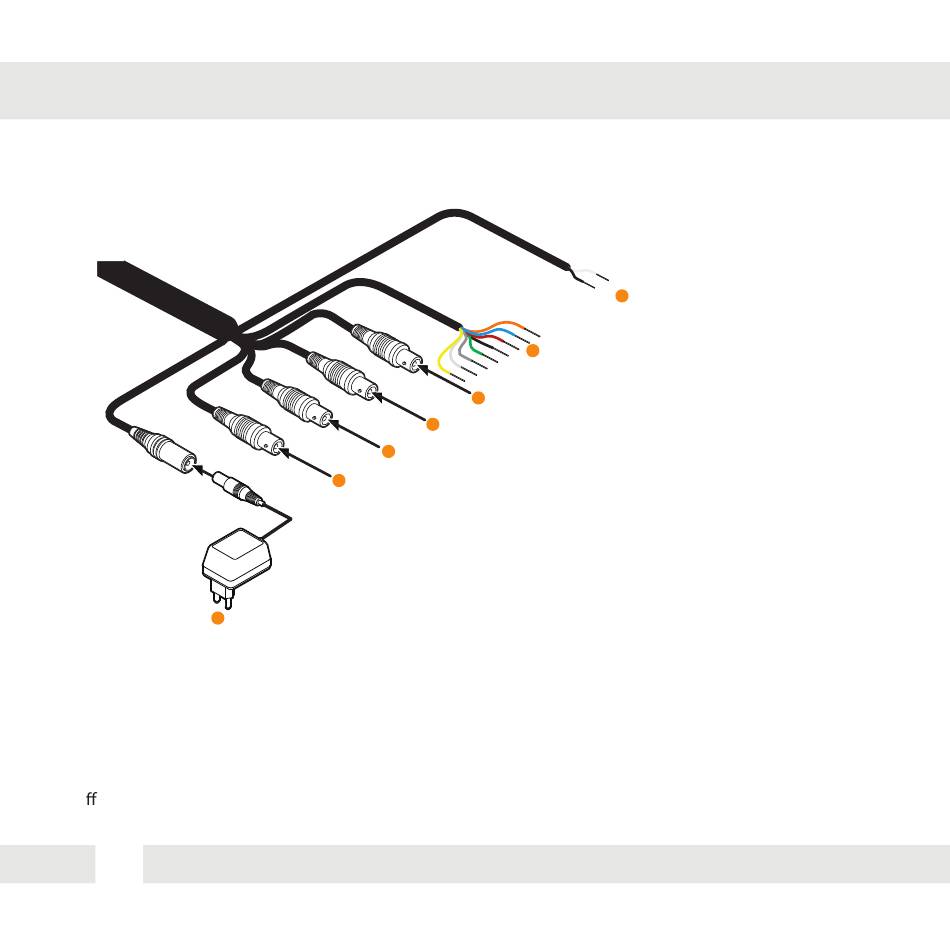

Use the diagram below to connect the camera to external devices:
RS485
7
ALARM
6
AHD 4CH
5
AHD 3CH
4
AHD 2CH
3
2 AHD 1CH
Power
1
1. Power: connect the camera to a proper power supply. The camera supports both 12VDC
and 24VAC. Below are the maximum power supplies for the camera:
DC12V : 8.36W
AC24V : 8.36W
2~5. AHD BNC Outputs 1~4: Connect each of the camera's lenses as a separate output to a
DVR supporting AHD signal such as the VMAX A1. On the DVR side, each lens will be set as a
di erent channel.
