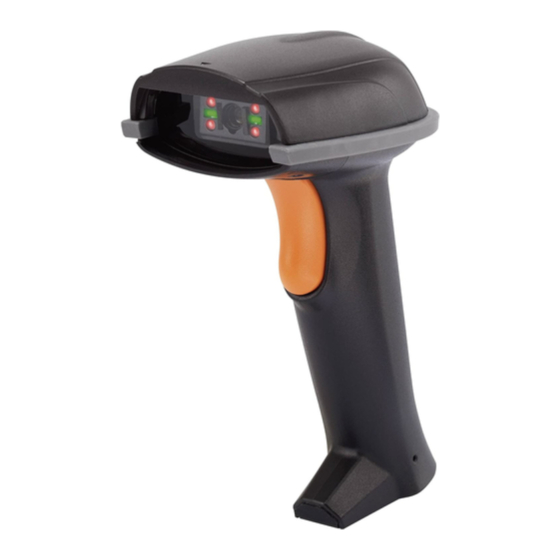

RIOTEC LS6307L Programming Quick Manual

*
Programming Quick Guide
-LS6307L/ LS6327L.

Installation

Make sure that the scanner has the correct cable to plug in the PC as below
described: *Note : Please install PL-2303 driver for USB serial
Auto-sensing setup
(For LS6327L Only)
The auto-sensing will active
while scanner position on stand.
When scanner remove from
stand will become trigger mode.

Reset Configuration to Defaults

If you are unsure of the scanner configuration or have scanned the
incorrect codes, please scan from A1 to A3 for USB HID or B1 to B5 for
RS232 or USB Serial. This will reset the scanner to its factory defaults.
A1 B1
A2 B2
A3 B3
B4
B5
Barcode Configuration Method:
(Flow chart for setup procedure :)
Start
Configuration

Keyboard Country (For USB HID only)

Scan the appropriate country code as below to program the keyboard
layout for your country or language. As a general rule, the following
characters are supported, but need special care for countries other
than the United States: @ | $ # { } [ ] = / ' \ < > ~
USA
Denmark
France
Italy
Turkey F
1
Keyboard Country (For USB HID only)
Scan the appropriate country code as below to program the keyboard
layout for your country or language. As a general rule, the following
characters are supported, but need special care for countries other
than the United States: @ | $ # { } [ ] = / ' \ < > ~
Belgium
Germany
End
Austria
Configuration
Sweden
1D Symbologies – 1
ENABLE
Japan
ENABLE
Finland
ENABLE
UK
ENABLE
Norway
ENABLE
Turkey Q
Spain
Russia
Portugal
EAN-8
DISABLE
EAN-13
DISABLE
ISSN
DISABLE
ISBN
DISABLE
Codabar DISABLE
