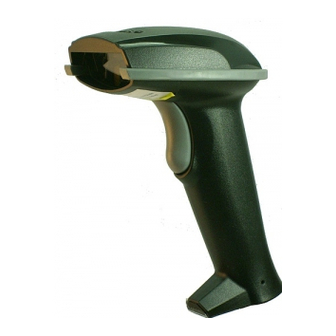

RIOTEC LS6300 Programming Quick Manual

Programming Quick Guide
-LS6300/LS6320
-FS5020S

Installation

Make sure that the scanner has the correct cable to plug in the PC
as below described:
1. USB cable Connection:
(Please use correct cable for the interface)

Reset Configuration to Defaults

If you are unsure of the scanner configuration or have scanned the
incorrect codes, please scan the "Default" barcode. This will reset the
scanner to its factory defaults.
Default
2. PS2 cable connection :
Please read above "Default" first, and then set the output mode as
Keyboard.(On the top right corner)
3. R S232 cable connection :
Please read above "Default" first, and then set the output mode as
RS232.(On the top right corner)
★If change the difference interface cable, after make the barcode
setting "default & output mode". Need to re-plug the cable from PC to
complete setting.
4. Auto-sensing setup (For LS6320 only )
For some scanners have auto-sensing function. Press the auto-sensing
function button shown on below
photo. Default is ON.
*Auto-sensing normally is ON. Press
once is OFF, Press once again is ON.

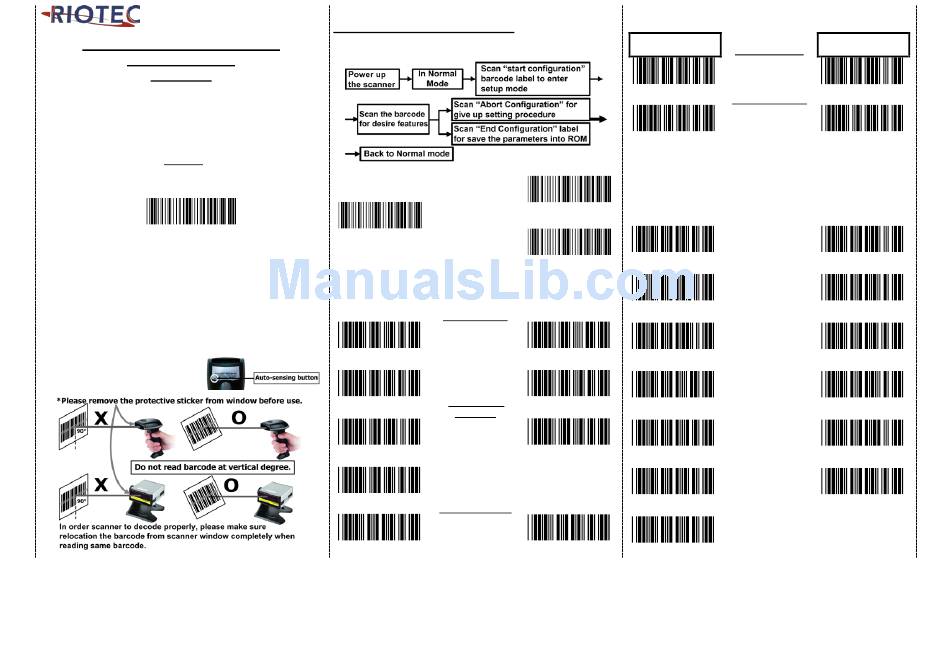

Barcode Configuration Method:

(Flow chart for setup procedure :)
Abort
Configuration

Multi-Interface Functions

SOUND LEVEL
LOUDER
LOWER
SOUND /LED
CONTROL
LONG
SHORT
DOUBLE CHECK
DOUBLE CHECK
(ENABLE)
1
Multi-Interface Functions
OUTPUT MODE
– KEYBOARD
SINGLE SCAN

Keyboard Language (For USB / PS2)

Scan the appropriate country code as below to program the
keyboard for your country or language. As a general rule, the
following characters are not supported by the scanner for
countries other than the United States:
@ | $ # { } [ ] = / ' \ < > ~
Start
Configuration
DENMARK
End
GERMANY
Configuration
MIDDLE
JAPAN
SILENT
NORWEGIAN
MIDDLE
SPANISH
SWITZERLAND
DOUBLE CHECK
(DISABLE)
VIETNAM
OUTPUT MODE –
OUTPUT MODE RS232
SINGLE SCAN
READING MODE
NO TRIGGER
FRENCH
HUNGARY
ITALIAN
PORTUGAL
SWEDISH
USA
