RIOTEC LS6300E Programming Quick Manual

Programming Quick Guide
LS6300E/LS6320E./FS5020E
Installation
Make sure that the scanner has the correct cable to
plug into the PC as below described:
1.USB cable connection/ PS2 cable connection:
(Please use correct cable for the interface)
Reset Configuration to Default
If you are unsure of the scanner configuration or have
scanned the incorrect codes, please read the "Default"
barcode. This will reset the scanner to its factory
default.
Default
2.RS232 cable connection:
Please read above "Default" first,
and then set the output mode as
RS232 (SERIAL).
★If you want to switch to different interface, please
scan the correct configuration code (Output Mode,
right above), then, change the appropriate cable.

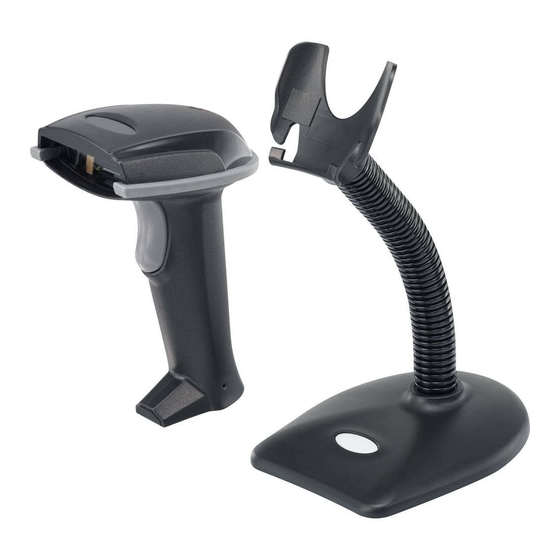

3.Auto-sensing setup
The auto-sensing will be activated while scanner puts
on stand. When scanner is removed from stand, it
becomes trigger mode.
OUTPUT
OUTPUT MODE –
KEYBOARD / USB MODE
READING
SINGLE SCAN MODE
LASER TIMEOUT
– 5 SECONDS
CODE 11 DOUBLE DOUBLE
CHECK -ENABLE CHECK
CODE 39 DOUBLE
CHECK -ENABLE
CODE 93 DOUBLE
CHECK -ENABLE
CODE 128 DOUBLE
CHECK -ENABLE
MSI DOUBLE
CHECK-ENABLE
OUTPUT MODE I2OF5 DOUBLE
- RS232 (SERIAL) CHECK -ENABLE
ID2OF5 DOUBLE
SINGLE SCAN
NO TRIGGER CHECK -ENABLE
CODABAR DOUBLE
LASER TIMEOUT
CHECK -ENABLE
– 2 SECONDS
CODE 11 DOUBLE UPC/EAN DOUBLE
CHECK -DISABLE CHECK -ENABLE
CODE 39 DOUBLE REVERSE IMAGE
CHECK -DISABLE –ENABLE
SEND BAR CODE ID
CODE 93 DOUBLE
-DISABLE
CHECK -DISABLE
SEND BAR CODE ID
CODE 128 DOUBLE
-RESET
CHECK -DISABLE
MSI DOUBLE
CHECK -DISABLE
I2OF5 DOUBLE
DOUBLE
CHECK -DISABLE
CHECK
ID2OF5 DOUBLE
CHECK -DISABLE
CODABAR DOUBLE
CHECK -DISABLE
UPC/EAN DOUBLE
CHECK -DISABLE
REVERSE IMANGE
-DISABLE
SEND BAR CODE
CODE ID
ID – AS A PREFIX
SEND BAR CODE
ID –AS A SUFFIX
