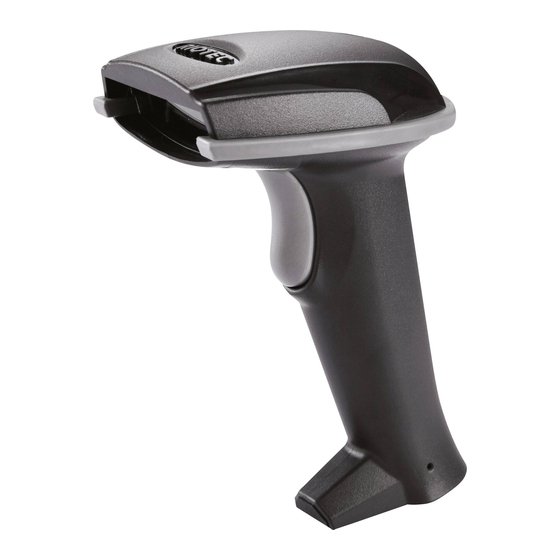

RIOTEC LS6300V Programming Quick Manual

Programming Quick Guide
-LS6300V/LS6320V

Installation

Make sure that the scanner has the correct cable to plug in the PC
as below described:

Reset Configuration to Defaults

If you are unsure of the scanner configuration or have scanned the incorrect
codes, please scan from A1 to A10 for USB HID or B1 to B7 for RS232 or USB
Serial. This will reset the scanner to its factory defaults.
Demo
USB HID
Demo
A1
W010F01
A2
Demo
WFFD980
A3
Demo
W010F01
Demo
A4
W031A00
Demo
A5
W100900
Demo
A6
WFFD9C3
A7
WFF115D
A8
W306A 20
Demo
A9
W016500
A10
W010F00

Barcode Configuration Method:

(Flow chart for setup procedure :)
Demo
RS232 or USB Serial
Demo
B1
W010F01
B2
Demo
WFFD980
Demo
B3
W010F01 Start
Configuration
B4
WFF115D

Auto sensing (For LS6320V only)

W010F01
B5
W306A 20
Auto-Sensing ON:
Demo
B6
Auto-Sensing OFF:
W016500
B7
W010F00

Emulate Numeric Keypad

Enable
W041A04
End
Configuration
W010F00
pressing trigger button for 5 seconds to
activate auto-sensing function ( defaults)
Press trigger button for 5 seconds again to
turn off auto-sensing function.
Disable
1
W041A00

Keyboard Language

Scan the appropriate country code as below to program the keyboard
layout for your country or language. As a general rule, the following
characters are supported, but need special care for countries other
than the United States: @ | $ # { } [ ] = / ' \ < > ~
Turkey1
Finland
WFF1919
Brazil
WFF1906
Canada
WFF1902
Denmark
WFF1903
Greece
WFF1905
Italy
WFF1909
Norway
WFF190C
WFF190F
France
Belgium
WFF1907
U.S.
WFF1901
Czech
WFF1900
Austria
WFF1904
Hungary
WFF1908
Netherland
WFF190A
Spain
WFF190E
WFF1916
