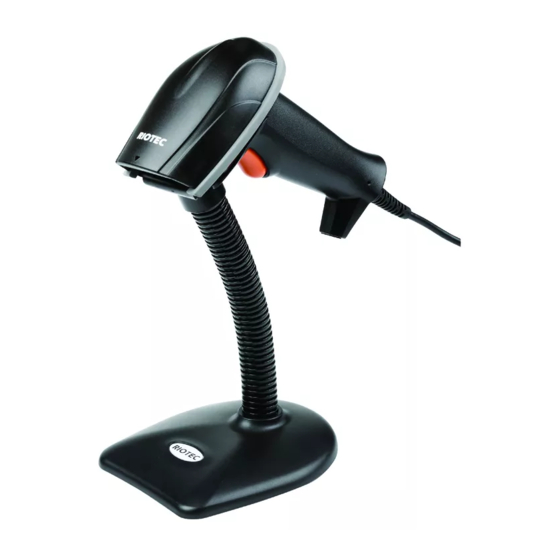

RIOTEC LS6300J Programming Quick Manual

Programming Quick Guide
-LS6300J
Installation
Make sure that the scanner has the correct cable to plug into PC as below
described,
After you plug cable into PC and hear the beep sound, the scanner can read
the barcodes now.
Reset Configuration to Default :
If you are unsure of the scanner configuration or have scanned the
incorrect codes, please scan A1 for USB HID or B1~B2 for RS232 or
USB Serial. This will reset the scanner to its factory defaults.
USB HID
A1 B1
B2
*Note : Please install PL-2303 driver for USB serial
Keyboard Country
Scan the appropriate country code as below to program the keyboard
layout for your country or language. As a general rule, the following
characters are supported, but need special care for countries other
than the United States
USA
(Original setting)
Italy
Portuguese (Brazil)
1D Symbologies – 1
RS232/
USB serial
ENABLE
ENABLE
ENABLE
ENABLE
(FOR USB HID Only)
:
@ | $ # { } [ ] = / ' \ < > ~
France
Spanish
Portuguese (Portugal)
CODABAR
DISABLE
CODE 39
DISABLE
Interleaved 25
DISABLE
Industrial 25
DISABLE
1
1D Symbologies – 2
Matrix 25
ENABLE
CODE 93
ENABLE
ENABLE CODE 128
GS1-128
ENABLE
UPC-A
ENABLE
ENABLE UPC-E
EAN 8
ENABLE
EAN 13
ENABLE
ISBN
ENABLE
DISABLE
DISABLE
DISABLE
DISABLE
DISABLE
DISABLE
DISABLE
DISABLE
DISABLE
