Woxcon VLHDMIMAT4X4 Manual

4x4 hdmi2.0 matrix with audio matrix
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
VLHDMIMAT4X4
4x4 HDMI2.0 Matrix with Audio Matrix
All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLHDMIMAT4X4 and is the answer not in the manual?

Questions and answers

Related Manuals for Woxcon VLHDMIMAT4X4

Summary of Contents for Woxcon VLHDMIMAT4X4

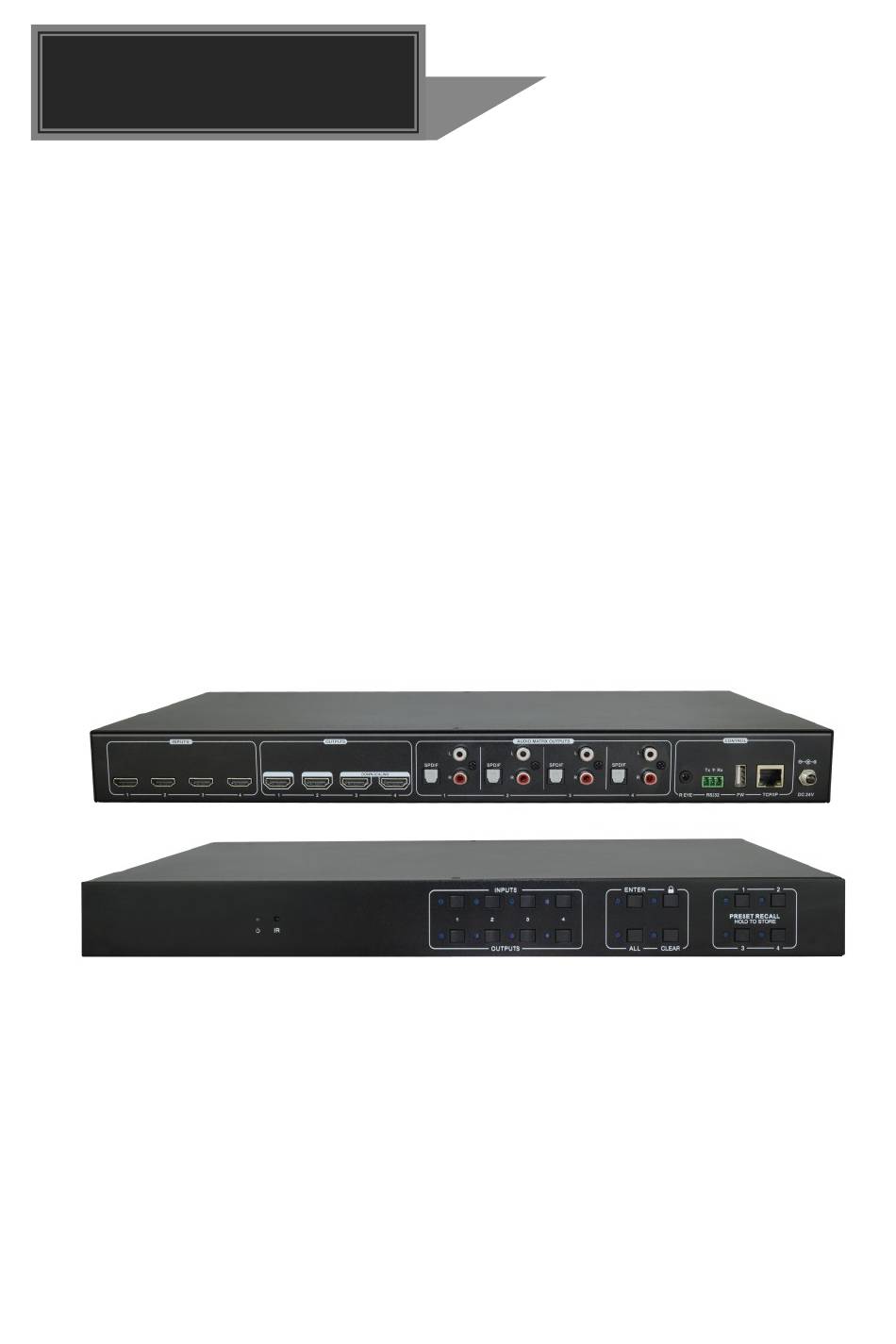

  • Page 1 User Manual VLHDMIMAT4X4 4x4 HDMI2.0 Matrix with Audio Matrix All Rights Reserved...
  • Page 2 4x4 HDMI2.0 Matrix with Audio Matrix Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
  • Page 3 4x4 HDMI2.0 Matrix with Audio Matrix SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ...

  • Page 4: Table Of Contents

    4x4 HDMI2.0 Matrix with Audio Matrix Contents 1. Product Introduction ....................1 1.1 Features ......................1 1.2 Package List ...................... 1 2. Specification ....................... 2 3. Panel Description ......................4 3.1 Front Panel ......................4 3.2 Rear Panel ......................5 4.
  • Page 5 4x4 HDMI2.0 Matrix with Audio Matrix 9.2 Basic Settings ....................22 9.3 RS232 Communication Commands..............23 9.3.1 System Commands ................23 9.3.2 Control Management ................23 9.3.3 Query Commands ................. 24 9.3.4 Lock/unlock Commands ................ 27 9.3.5 Audio Commands .................. 27 9.3.6 HDCP Compliance ................

  • Page 6: Product Introduction

    4x4 HDMI2.0 Matrix with Audio Matrix 1. Product Introduction The MUH44-H2 is a professional 4x4 HDMI 2.0 Matrix Switcher with Audio Matrix. It includes 4 HDMI inputs, 4 HDMI outputs and the last two outputs with down-scaling function, which is designed for switching two HDMI2.0 and HDCP2.3 compliant signals. It also features 4 SPDIF and 4 analog audio outputs for audio matrix.

  • Page 7: Specification

    4x4 HDMI2.0 Matrix with Audio Matrix 2. Specification Video Video Input (4) HDMI Video Input Connector (4) Type-A female HDMI Video input Video Resolution Up to 4K@60Hz 4:4:4 Video Output (4) HDMI Video Output Connector (4) Type-A female HDMI, Video output Video Resolution Up to 4K@60Hz 4:4:4 HDMI Version Up to 2.0...
  • Page 8 4x4 HDMI2.0 Matrix with Audio Matrix Control Port (1) IR IN, (1) RS232, (1) FIRMWARE, (1) TCP/IP, (1) IR EYE, (1) 3.5mm jack, (1) 3-pin terminal block, (1) USB-A, (1) RJ45, Control Connector General Transmission Distance 4K/60Hz/444 5m,4K/60Hz/420 10m,1080P 15m Bandwidth 18Gbps Operation Temperature...

  • Page 9: Panel Description

    4x4 HDMI2.0 Matrix with Audio Matrix 3. Panel Description 3.1 Front Panel Name Description Illuminates green when device powered on;  Power Indicator ① Turns red in standby mode.  Built-in IR sensor, receives IR signal sent from IR sensor ②...

  • Page 10: Rear Panel

    4x4 HDMI2.0 Matrix with Audio Matrix 3.2 Rear Panel Name Description HDMI input ports, 4 in total, connects with HDMI INPUTS ① sources. HDMI: 4 in total, connects with HDMI displays. The OUTPUTS ② latter four HDMI ports have down-scaling function. SPDIF: audio output ports for de-embedded HDMI audio, 4 in total.

  • Page 11: Video Resolution Down-Scaling

    4x4 HDMI2.0 Matrix with Audio Matrix 4. Video Resolution Down-scaling The product supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output for compatibility with 1080p display, shown in the below chart. Input Output Resolutio Color Refresh Downscale 1080p Specs...

  • Page 12: System Connection

    4x4 HDMI2.0 Matrix with Audio Matrix 5. System Connection 5.1 Usage Precaution Make sure all components and accessories included before installation.  System should be installed in a clean environment with proper temperature and  humidity. All of the power switches, plugs, sockets, and power cords should be insulated and ...

  • Page 13: Panel Control

    4x4 HDMI2.0 Matrix with Audio Matrix 6. Panel Control 6.1 I/O connection switching The front panel features four input selection buttons and four output selection buttons for switching I/O connection. To convert 1 input to 1 output: Example: Input 1 to Output 3 →...

  • Page 14: Clear Button

    4x4 HDMI2.0 Matrix with Audio Matrix 6.5 CLEAR Button Please press the CLEAR button if want to withdraw an operation before the ENTER button comes into effect, meanwhile, the matrix will return to the previous status.

  • Page 15: Ir Remote Control

    4x4 HDMI2.0 Matrix with Audio Matrix 7. IR Remote Control The Matrix Switcher features one built-in IR receiver to receive IR signal from IR remote to enable IR control. If the external IR receiver or other IR control device need to be used, the IR IN port on rear panel can be connected.

  • Page 16: Gui Control

    4x4 HDMI2.0 Matrix with Audio Matrix 8. GUI Control The matrix can be controlled via TCP/IP. The default IP settings are: IP Address: 192.168.0.178 Subnet Mask: 255.255.255.0 Gateway: 192.168.0.1 Type 192.168.0.178 in the internet browser, it will enter the below log-in webpage: Username: admin Password: admin Type the user name and password, and then click Login to enter the section for video...

  • Page 17: Switching Tab

    4x4 HDMI2.0 Matrix with Audio Matrix 8.1 Switching Tab Use the 4x4 button grid on the page to set which inputs are directed to which outputs. For example, clicking the button on the Input 1 row and Output 1 column, directs input 1 to output 1.

  • Page 18: Audio Tab

    4x4 HDMI2.0 Matrix with Audio Matrix 8.2 Audio Tab Audio Setting  There are eight audio sources can be selected for four digital SPDIF output ports. Audio Output Audio Sources Ports Input Breakout Output Breakout SPDIF 1 & Analog 1 Audio on Input 1 Audio on Output 1 SPDIF 2 &...

  • Page 19: Configuration Tab

    4x4 HDMI2.0 Matrix with Audio Matrix Audio Volume  Four pairs analog L/R audio to control their outputs volume. 8.3 Configuration Tab EDID Copy Copy the EDID of the selected output device to one or more input source device. ...
  • Page 20 4x4 HDMI2.0 Matrix with Audio Matrix EDID Setting Select the compatible built-in EDID for the selected input source.  Upload user-defined EDID by the below steps:  1) Prepare the EDID file (.bin) on the control PC. 2) Select the User-defined. 3) Click the box , and then select the EDID file (.bin) according the tooltip.

  • Page 21: Cec Tab

    4x4 HDMI2.0 Matrix with Audio Matrix 8.4 CEC Tab If the input source devices, output display devices support CEC, they can be controlled via the following CEC interface. Input Source Device Control Select one input source device to be controlled, and then press function buttons. ...
  • Page 22 4x4 HDMI2.0 Matrix with Audio Matrix Output Display Device Control Select one output device to be controlled, and then press function buttons.  Note: It can not control two or more output devices simultaneously.

  • Page 23: Rs232 Tab

    4x4 HDMI2.0 Matrix with Audio Matrix 8.5 RS232 Tab ASCII or HEX command format can be selected.  Baud Rate: Supports 2400, 4800, 9600, 19200, 38400, 57600 or 115200.  Command Ending: NULL, CR, LF or CR+LF can be chosen. ...

  • Page 24: Interface Tab

    4x4 HDMI2.0 Matrix with Audio Matrix 8.6 Interface Tab Modify the title bar label.  Modify the button labels. ...

  • Page 25: Network Tab

    4x4 HDMI2.0 Matrix with Audio Matrix 8.7 Network Tab Static IP or Dynamic Host Configuration Protocol (DHCP).  Modify the static IP Address, Subnet Mask, and Gateway.  8.8 Access Tab Modify the login password.  Lock or unlock the front panel buttons. ...

  • Page 26: Gui Upgrade

    4x4 HDMI2.0 Matrix with Audio Matrix 8.9 GUI Upgrade Please visit at http://192.168.0.178:100 for GUI online upgrade. Type the username and password (the same as the GUI log-in setting, modified password will be available only after rebooting) to login the configuration interface. After that, click Administration in the source menu to get to Upload Firmware as shown below: Select the desired update file and press Apply, it will start upgrading then.

  • Page 27: Rs232 Control

    4x4 HDMI2.0 Matrix with Audio Matrix 9. RS232 Control 9.1 Installation/uninstallation of RS232 Control Software Installation: Copy the control software file to the control PC.  Uninstallation: Delete all the control software files in corresponding file path.  9.2 Basic Settings Firstly, connect MUH44-H2 with necessary input devices and output devices.

  • Page 28: Rs232 Communication Commands

    4x4 HDMI2.0 Matrix with Audio Matrix Set the parameters (baud rate, data bit, stop bit and parity bit) correctly to ensure reliable RS232 control. 9.3 RS232 Communication Commands  Case-sensitive.  “[“, “]” in the commands are for easy recognition only and not necessary in real ...

  • Page 29: Query Commands

    4x4 HDMI2.0 Matrix with Audio Matrix Command Function Feedback Example [xx]=00~02, xx =01~02 is the corresponding number of output 3 or 4 port, if the xx =00, it means both output 3 and 4 ports. Able HDMI 5V of output port. Turn ON Output 01! [xx]=00~04, Turn ON Output 02!
  • Page 30 4x4 HDMI2.0 Matrix with Audio Matrix Command Function Feedback Example Output 01 Switch To In 03! Output 02 Switch To In 03! Output 03 Switch To In 03! Output 04 Switch To In 03! Turn ON Output 01! Turn ON Output 02! Turn ON Output 03! Turn ON Output 04! HDMI OUT 03 Down Scale ON!
  • Page 31 4x4 HDMI2.0 Matrix with Audio Matrix Command Function Feedback Example port. Query HPD OUT 1 2 3 4 STA_OUT. Status of LINK N Y N N output. Output 01 Switch To In 01! Query the input Output 02 Switch To In 02! STA_VIDEO.

  • Page 32: Lock/Unlock Commands

    4x4 HDMI2.0 Matrix with Audio Matrix 9.3.4 Lock/unlock Commands Command Function Feedback Example Lock. Lock the front panel buttons. Front Panel Locked! Unlock. Unlock the front panel buttons. Front Panel Unlock! 9.3.5 Audio Commands Command Function Feedback Example SPDIF OUT and ANALOG OUT(They are same input audio source at one group) select which input audio source.

  • Page 33: Hdcp Compliance

    4x4 HDMI2.0 Matrix with Audio Matrix 9.3.6 HDCP Compliance Command Function Feedback Example Force able and output HDCP 1.4. OUT 01 HDCP ON! [xx]=00~04, OUT 02 HDCP ON! HDCP[xx]ON. xx =01~04 is the number of OUT 03 HDCP ON! output port, if the xx =00, it OUT 04 HDCP ON! means all output ports.
  • Page 34 4x4 HDMI2.0 Matrix with Audio Matrix Command Function Feedback Example [xx]=00~04 EDID Upgrade OK By  RS232 Or GUI! xx=01~04 is the number of input port(able EDID user-defined for corresponding HDMI input), if the xx=00, it means all input ports(able EDID user-defined for all HDMI inputs).
  • Page 35 4x4 HDMI2.0 Matrix with Audio Matrix Command Function Feedback Example [xx]=01~04 xx =01~04 is the number of the output port. [yy]=00~04 yy=01~04 is the number of input port, if the yy=00, it means all input ports. Send serial data to local. [X]= 1--2400；2--4800；3--9600；...

  • Page 36: Cec Control

    4x4 HDMI2.0 Matrix with Audio Matrix 9.3.8 CEC Control If the input sources, HDBaseT output devices and local HDMI output devices are supports CEC, they can be controlled by sending the following command instead of IR remote. CEC[I/O][AA][BB][CC][DD]. The “[I]” represents the input port. The “[O]” represents the output port. ...
  • Page 37 4x4 HDMI2.0 Matrix with Audio Matrix CECI0204440D. CECI[AA][BB][CC]0D. Exit menu. CEC Input 02 Send Success! CECI0204446D. CECI[AA][BB][CC]6D. Power on. CEC Input 02 Send Success! CECI0204446C. CECI[AA][BB][CC]6C. Power off. CEC Input 02 Send Success!  Control the output display device: Command Example and Command Description Response...

  • Page 38: Firmware Upgrade

    4x4 HDMI2.0 Matrix with Audio Matrix 10. Firmware Upgrade Please follow the steps as below to upgrade firmware by the FIRMWARE port on the rear panel: 1) Prepare the latest upgrade file and rename it as “08010000.APP” on PC. 2) Power off the switcher, and connect the FIRMWARE port of switcher to the PC with USB cable.

  • Page 39: Troubleshooting And Maintenance

    4x4 HDMI2.0 Matrix with Audio Matrix 12. Troubleshooting and Maintenance Problems Potential Causes Solutions The connecting cables may not Check whether the cables be connected correctly or it are connected correctly and Color losing or no may be broken. in working condition. video signal output Make sure the connection is Fail or loose connection.
  • Page 40 4x4 HDMI2.0 Matrix with Audio Matrix EDID management Change for another HDMI The HDMI cable is broken at does not work cable which is in good the output end. normally working condition. Switch again. Manage the EDID data There is a blank The display does not support manually to make the screen on the display...

  • Page 41: Customer Service

    4x4 HDMI2.0 Matrix with Audio Matrix 13. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed three years.
