  • Page 1 User Manual MMX1616-N Modular Matrix Switcher 16x16 All Rights Reserved Version: MMX1616-N_2017V2.6...
  • Page 2 Modular Matrix Switcher 16x16 Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. In the constant effort to improve our product, we reserve the right to make functions or parameters changes without notice or obligation.
  • Page 3 Modular Matrix Switcher 16x16 SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for possible future shipment l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 4: Table Of Contents

    Modular Matrix Switcher 16x16 Table of Contents 1. Introduction ......................1 1.1. About Modular Matrix Switcher 16x16 ............1 1.2. Features ...................... 1 1.2.1. Modular Matrix Switcher signal card (changeable cards) ....2 1.3. Package List ....................3 2. Panel Description ....................3 2.1.
  • Page 5 Modular Matrix Switcher 16x16 4.3. RS232 Control ................... 20 4.3.1. Connection of RS232 Communication Port ........20 4.3.2. RS232 Communication Commands ..........21 4.4. TCP/IP Control (Optional) ................31 4.4.1. Control Modes ................. 31 4.4.2. Control Modular Matrix Switcher 16x16 via TCP/IP communication software .....................

  • Page 6: Introduction

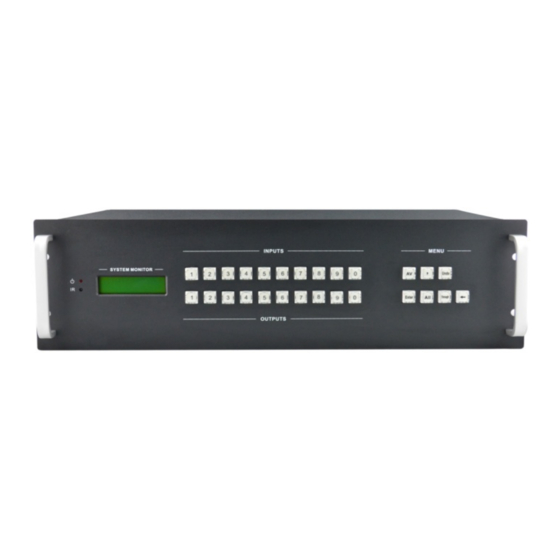

    Modular Matrix Switcher 16x16 1. Introduction 1.1. About Modular Matrix Switcher 16x16 Modular Matrix Switcher 16x16 is a high-performance video and audio modular matrix switcher supporting max 16 input signal sources and 16 output display synchronously. It supports different video signals with cross switching. Every video or audio signal is transmitted and switched independently to decrease signal attenuation.

  • Page 7: Modular Matrix Switcher Signal Card (Changeable Cards)

    Modular Matrix Switcher 16x16 1.2.1. Modular Matrix Switcher signal card (changeable cards) Modular Matrix Switcher 16x16 supports multiple signal cards as listed in the following charts: Spec Inputs Signal Format Models 4I-HD HDMI 4I-HS HDMI& analog audio 4I-DV DVI, HDMI, VGA, AV, 4I-DS YPbPr 4I-VG...

  • Page 8: Package List

    Modular Matrix Switcher 16x16 1.3. Package List l 1 x Modular Matrix Switcher 16x16 l 1 x Power Cord l 1 x IR remote (Not include battery) l 4 x Plastic cushions l 1 x RS232 cable l 1 x User manual Notes: Confirm all the accessories are included, if not, please contact with the dealers.

  • Page 9: Rear Panel

    Modular Matrix Switcher 16x16 ENTER: confirm switching operation. Operation will not be executed by the matrix without confirmation. ALL: select all input/output channel THROUGH: To transfer the signals directly to the corresponding output channels. ß : Backspace button, to backspace the last press. 2.1.2.

  • Page 10: Changeable Cards

    Modular Matrix Switcher 16x16 2.2. Changeable Cards Modular Matrix Switcher 16x16 supports expansion through various changeable input/ output cards of different signals including DVI, HDMI, VGA, twisted pair, SDI etc. Here is a brief introduction to the changeable cards. 2.2.1. 4I-DV & 4O-DV DVI signal card.
  • Page 11 Modular Matrix Switcher 16x16 Shield T.M.D.S.Data1/3 T.M.D. S. Clock + Shield T.M.D.S.Data3- T.M.D.S.Data3+ Analog Green Horizontal Sync Analog Blue Analog Note: Pin C1~C5 are not used in 4I-DV & 4O-DV.

  • Page 12: Ds& 4O-Ds

    Modular Matrix Switcher 16x16 2.2.2. 4I-DS& 4O-DS Seamless DVI signal card. (Please check the specification from 5.2.2) It is fully compatible with HDMI1.3& HDCP, and supports seamless transmission for high-definition DVI, HDMI, VGA, AV, YPbPr signals. Signal format can be modified via RS232 commands.
  • Page 13 Modular Matrix Switcher 16x16 Signal Yellow Other pins are unused. DVI- YPbPr: Signal Signal GREEN BLUE Other pins are unused. DVI- VGA (female): Signal Signal Horizontal Sync GREEN Analog Vertical Sync Analog Other pins are unused.

  • Page 14: Hd & 4O-Hd

    Modular Matrix Switcher 16x16 2.2.3. 4I-HD & 4O-HD HDMI signal card. (Please check the specification from 5.2.3) It boasts embedded EDID management, and supports DDC. It’s also compliant with DVI signal & HDCP. 4I-HD: input card, maximum four input signal. Input signal can pass to output device through 4O-HD, or other kinds of output cards.

  • Page 15: Vg & 4O-Vg

    Modular Matrix Switcher 16x16 HDMI embeded audio and auxiliary stereo audio supports PCM format, audio source selectable via designed command (default: HDMI embeded audio); Built in scaler handles various resolution, output resolution adjustable via command. 4I-HS: input card, maximum four input signal. Input signal can pass to output device through 4O-HS, or other kinds of output cards.
  • Page 16 Modular Matrix Switcher 16x16 Pin layout of the VGA connectors (female): Signal Signal KEY/PWR GREEN BLUE ID0/RES ID2/RES ID1/SDA HSync RED_RTN VSync GREEN_RTN ID3/SCL BLUE_RTN When connecting to YPbPr or C-VIDEO signal, insert converting cables according to specific pin definitions (see the figures below): VGA- YPbPr: Signal Signal...

  • Page 17: Sd & 4O-Sd

    Modular Matrix Switcher 16x16 2.2.6. 4I-VA VGA signal card. (Please check the specification from 5.2.6) Scale all inputs to 1080p or 1920x1200; Input signal can be VGA (RGBHV), YPbPr, S-video, C-video or CVBS; 4 stereo audio inputs. 4I-VA: input card, maximum four VGA inputs and four stereo audio inputs. Input signal can pass to output device through any kinds of output cards.

  • Page 18: Tp & 4O-Tp

    Modular Matrix Switcher 16x16 Tip (+) Sleeve ( ) BNC Connector 2.2.8. 4I-SS Seamless SDI signal card (Please check the specification from 5.2.8) It is compatible with different SDI signal formats, including SD/HD/3G-SDI (adaptive), support seamless transmission for high-definition signal up to 1080p; Auto-detect input resolution and scale to 1080p@60Hz (default resolution, adjustable via command);...

  • Page 19: Uh & 4O-Uh

    Modular Matrix Switcher 16x16 How the indicators work: Color Definition Status Blink once powered on; Yellow Power Indicator Turn off when there is no power. Light when the port is connected with Green Link Indicator CAT5e/6; Turn off when there is no connection. Pin layout of the HDBT connector: Color orange white...

  • Page 20: Uf & 4O-Uf

    Modular Matrix Switcher 16x16 4I-UH: input card, maximum four input signal. Input signal can pass to output device through 4O-UH, or other kinds of output cards. Note: When matching with output cards that do not support 4kx2k, adjust the input resolution to 1080p to enable reliable output.

  • Page 21: Bt & 4O-Bt

    Modular Matrix Switcher 16x16 Note: Use the 4I-UF/ 4O-UF with optical fiber transmitter/ receiver. Multi-mode transmission may include the following cases: Single-mode optical fiber module& Multi-mode optical fiber cable Multi-mode optical fiber module& Multi-mode optical fiber cable Before using 4I-UF & 4O-UF, upgrade the front-board and backboard of Modular Matrix Switcher 16x16.

  • Page 22: System Connection

    Modular Matrix Switcher 16x16 The indicators and pin layout is the same with 4I-TP & 4O-TP’s. Refer to 2.2.9 4I-TP & 4O-TP for detailed information. 3. System Connection 3.1. Usage Precautions 1) System should be installed in a clean environment and has a prop temperature and humidity.

  • Page 23: Application

    Modular Matrix Switcher 16x16 Note: All the input/output signal cards don’t support hot-plug while input& output ports on the cards support hot-plug. 3.3. Application Modular Matrix Switcher series has a good application in various occasions, such as radio & television, multi-media meeting room, big screen displaying, television education and command &...

  • Page 24: Control Operations

    Modular Matrix Switcher 16x16 4. Control Operations 4.1. Front Panel Button control Users can control Modular Matrix Switcher 16x16 rapidly and directly with its front panel buttons. To switch AV signal, please operate the buttons under the following format: Format: “Input Channel” + “AV” +“Output Channel”+“Enter” Note: 1) “Input Channel”: Fill with the number of input channel to be controlled, 2) “Output Channel”: Fill with the number of output channels to be controlled.

  • Page 25: Ir Remote Control

    Modular Matrix Switcher 16x16 4.2. IR Remote control With the IR remote, Modular Matrix Switcher 16x16 could be controlled remotely. As the function buttons on the IR remote are the same with the ones on the front panel, the IR remote shares the same operations and commands with the control panel. Press the buttons under below format: “Input Channel”...

  • Page 26: Rs232 Communication Commands

    Modular Matrix Switcher 16x16 Function Unused Transmit Receive Unused Ground Unused Unused Unused Unused When Modular Matrix Switcher 16x16 connects to the RS232 port of a computer with control software, users can control it by that computer. To control the switcher, users need to use RS232 control software.
  • Page 27 Modular Matrix Switcher 16x16 Communication protocol: Baud rate: 9600; Data bit: 8; Stop bit: 1; Parity bit: none. Command Description Feedback /*Type; Inquire the models information. MODULAR1616 System Locked! /%Lock; Lock front panel buttons. System Unlock! /%Unlock; Unlock front panel buttons. Vx.x.x /^Version;...
  • Page 28 Modular Matrix Switcher 16x16 Save the present operation to the Save[Y]. preset command [Y]. [Y] ranges from 0 Save To F8 to 9. Recall From F8 V: 01->001 Recall[Y]. Recall the preset command [Y]. A: 01->001 … … Clear F8 Clear[Y].
  • Page 29 Modular Matrix Switcher 16x16 Custom command for signal cards, USER/[Y]/[X]:*****; [Y]=I/O; [X]= port number; *****: User-definable command, e.g. 0623% Restore factory default. All I/O connection will be restored to %0911. straight through: 1->1, 2->2,…; saved operation status will remain the same. 4I-HS Set the brightness of input [x] to xx, USER/I/[x]:02xx%;...
  • Page 30 Modular Matrix Switcher 16x16 USER/I/[x]:0712%; Select analog audio as audio source 0712% 4O-HS Set the resolution of output [x] to Resolution USER/O/[x]:0804%; 1280x720P @60Hz Out03 1280x720P Set the resolution of output [x] to Resolution USER/O/[x]:0813%; 1280x1080P @60Hz Out03 1920x1080P Set the resolution of output [x] to Resolution USER/O/[x]:0824%;...
  • Page 31 Modular Matrix Switcher 16x16 Set the resolution of input [x] to USER/I/[x]:0619%; 0619% 1360X768@60Hz. Set the resolution of input [x] to USER/I/[x]:0621%; 0621% 1600X1200@60Hz. Set the resolution of input [x] to USER/I/[x]:0629%; 0629% 1920X1080@60Hz. Set the resolution of input [x] to USER/I/[x]:0620%;...
  • Page 32 Modular Matrix Switcher 16x16 USER/I/[x]:0608%; Configure image scale 0608% USER/I/[x]:0614%; Configure picture mode 0614% USER/I/[x]:0617%; Restore input [x] to factory default. 0617% Set the resolution of input [x] to USER/I/[x]:0619%; 0619% 1360x768, HD Set the resolution of input [x] to USER/I/[x]:0626%;...
  • Page 33 Modular Matrix Switcher 16x16 Set the resolution of input [x] to USER/I/[x]:0627%; 0627% 1280x720, 720P Set the resolution of input [x] to USER/I/[x]:0628%; 0628% 1280x800, WXGA Set the resolution of input [x] to USER/I/[x]:0629%; 0629% 1920x1080, 1080P Set the resolution of input [x] to USER/I/[x]:0620%;...
  • Page 34 Modular Matrix Switcher 16x16 Restore output [x] to factory default. USER/O/[x]:0617%; 0617% 4I-UH/BT Select audio source for input [X] [X] is port number; [Z] stands for audio AUDIO[X]I[Z]. AUDIO1I0. source, can be 0 (embedded HDMI audio) or 1 (analog audio)
  • Page 35 Modular Matrix Switcher 16x16 Examples: 1、 Transfer signals from an input channel to all output channels: [x]All. Example: Send “3All.” to transfer signals from the input 3 to all output channels. 2、 Transfer all input signals to corresponding output channels respectively: All#.

  • Page 36: Tcp/Ip Control (Optional)

    Modular Matrix Switcher 16x16 Example: “USER/I/7:0623%;” to set the input 7 to support YPbPr signal, the card is plugged in the second input slot of the matrix. 4.4. TCP/IP Control (Optional) 4.4.1. Control Modes TCP/IP default settings: IP is 192.168.0.178, Gateway is 192.168.0.1, and Serial Port is 4001.

  • Page 37: Control Modular Matrix Switcher 16X16 Via Tcp/Ip Communication Software

    Modular Matrix Switcher 16x16 the router. Please connect as the following figure for LAN control. Step1. Connect the TCP/IP port of the Modular Matrix Switcher 16x16 to Ethernet port of PC with twisted pair. Step2. Set the PC’s network segment to the same as the Modular Matrix Switcher 16x16.

  • Page 38: Tcp/Ip Configuration

    Modular Matrix Switcher 16x16 2) After connect successfully, we can enter commands to control the Modular Matrix Switcher 16x16, as below: Enter your command here. Commands are the same with RS232 commands listed in 4.3.2 RS232 Communication Commands Here you will receive the feedback when a command is sent.

  • Page 39: Specification

    Modular Matrix Switcher 16x16 In this interface, you can: Ø Change website display language Ø Modify network settings: Go to Internet Settings -> WAN Ø Upgrade TCP/IP module: Go to Administration -> Upload Program -> Select program file -> Start upgrading Reboot the device after upgrading.

  • Page 40: Ds & 4O-Ds

    Modular Matrix Switcher 16x16 Output Input Impedance 75Ω 75Ω Impedance General 340 MHz (10.2 Gain 0 dB Bandwidth Gbit/s) DVI 1.0/HDMI 1.3 Video Signal full digital T.M.D.S Switching Speed 200ns (Max.) signal Max Time-delay 5nS (±1nS) Crosstalk <-50dB@5MHz Supports Extended Display Identification Data (EDID) and EDID and DDC Display Data Channel (DDC) data using DVI and HDMI standards.

  • Page 41: Hs & 4O-Hs

    Modular Matrix Switcher 16x16 Output Input Impedance 75Ω 75Ω Impedance General 6.75 Gbps Gain 0 dB Bandwidth DVI 1.0/HDMI 1.3 Video Signal full digital T.M.D.S Max Time-delay 5nS (±1nS) signal Switching Speed 200ns (Max.) Crosstalk <-50dB@5MHz Supports Extended Display Identification Data (EDID) and EDID and DDC Display Data Channel (DDC) data HDCP...

  • Page 42: Sd & 4O-Sd

    Modular Matrix Switcher 16x16 Impedance Impedance VGA (RGBHV), Video Signal YPbPr, S-video, Video Signal C-video& CVBS. General Gain 0 dB Bandwidth 350MHz (-3dB) Switching 200ns (Max.) Crosstalk <-50dB@5MHz Speed 5.2.6. 4I-VA Video Audio Input 4 VGA Input 4 Stereo Audio Input 3-pin Pluggable Female 15 pin HD...

  • Page 43: Tp & 4O-Tp

    Modular Matrix Switcher 16x16 Input Return <-14 dB @ 1 MHz ~ Input Return <-14 dB @ 1 MHz ~ Loss 1.5 GHz Loss 1.5 GHz SMPTE 292M, SMPTE 259M, Video Standard SMPTE 424M, Data Type 8bit, 10bit, 12bit ITU-RBT.601, ITU-RBT.1120 Audio Bits per 18 bits per channel, 2 channels (L, R)

  • Page 44: Uh & 4O-Uh

    Modular Matrix Switcher 16x16 100MHz-100M HDMI Standard Support HDMI1.3 Differential ±10° @ and HDCP Phase Error 135MHz_100M 5.2.10. 4I-UH & 4O-UH 4I-UH Video Input Audio Input Input 4 HDMI Input 4 Analog Input 3.5mm pluggable Female HDMI Input Connector Connector terminal block Min.～Max.

  • Page 45: Bt & 4O-Bt

    Modular Matrix Switcher 16x16 Input 4 Fiber Optical Output 4 Fiber Optical Input SPF Fiber Optical Output SPF Fiber Optical Connector Connector Connector Connector Multi-mode, Single Multi-mode, Single Fiber Type Fiber Type mode mode General Data Rate 10.2 Gbps Color Depth 8bit, 10bit, 12bit, 16bit Work Reference...
  • Page 46 Modular Matrix Switcher 16x16 Control Part 3-pin pluggable Control Control Signal 4 RS232 Connector terminal block TCP/IP Protocol General Gain Bandwidth 10.2Gbps Max Resolution 4Kx2K Crosstalk <-50dB@5MHz Transmission 1080P ≤ Switching Speed 200ns (Max.) Distance 4Kx2K ≤ Work Reference 0~50℃ 10%～90% Temperature Humility...

  • Page 47: Troubleshooting & Maintenance

    Modular Matrix Switcher 16x16 6. Troubleshooting & Maintenance Problems Causes Solutions Bad quality of the Try another high quality connecting cable cable Output image with ghost Impropriate image setting Adjust corresponding of the displayer image settings Output image with color Reconnect the losing or no video signal Fail connection...
  • Page 48 Modular Matrix Switcher 16x16 Static becomes stronger Check the grounding when connecting the Bad grounding and make sure it is video connectors connected well. Type in correct RS232 Wrong RS232 communication Cannot control the device communication parameters parameters. by control device (e.g. a PC) through RS232 port Send it to authorized Broken RS232 port...

  • Page 49: Customer Service

    Modular Matrix Switcher 16x16 7. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed 3 (three) years. 2) Scope These terms and conditions of Customer Service apply to the customer service provided for the products or any other items sold by authorized distributor only.
