Woxcon MMX3232-N User Manual

Modular matrix switcher 32x32
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
MMX3232-N
Modular Matrix Switcher 32x32
All Rights Reserved
Version: MMX3232-N_2017V2.6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MMX3232-N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Woxcon MMX3232-N

Summary of Contents for Woxcon MMX3232-N

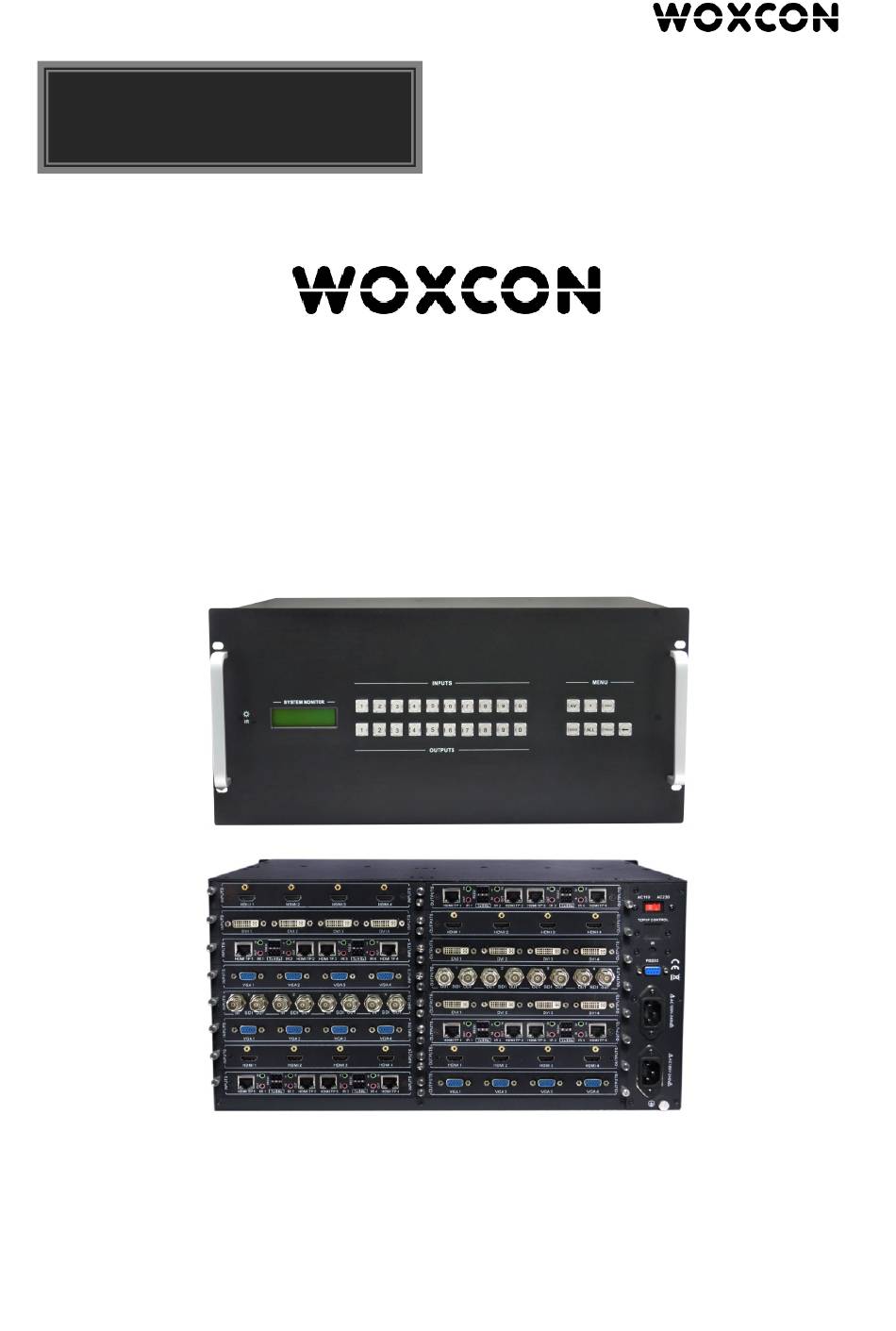

  • Page 1 User Manual MMX3232-N Modular Matrix Switcher 32x32 All Rights Reserved Version: MMX3232-N_2017V2.6...
  • Page 2 Modular Matrix Switcher 32x32 Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. In the constant effort to improve our product, we reserve the right to make functions or parameters changes without notice or obligation.
  • Page 3 Modular Matrix Switcher 32x32 SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for possible future shipment l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 4: Table Of Contents

    Modular Matrix Switcher 32x32 Table of Contents 1. Introduction ........................1 1.1. About Modular Matrix Switcher 32x32 ............... 1 1.2. Features ......................1 1.2.1. Modular Matrix Switcher signal card (changeable cards) ....... 2 1.3. Package List ...................... 3 2. Panel Description ......................4 2.1.
  • Page 5 Modular Matrix Switcher 32x32 4.3.1. Connection of RS232 Communication Port .......... 21 4.3.2. RS232 Communication Commands ............22 4.4. TCP/IP Control (Optional) ................32 4.4.1. Control Modes ..................32 4.4.2. Control Modular Matrix Switcher 32x32 via TCP/IP communication software ......................34 4.4.3.

  • Page 6: Introduction

    Modular Matrix Switcher 32x32 1. Introduction 1.1. About Modular Matrix Switcher 32x32 Modular Matrix Switcher 32x32 is a high-performance video and audio modular matrix switcher supporting max 32 input signal sources and 32 output display synchronously. It supports different video signals with cross switching. Every video or audio signal is transmitted and switched independently to decrease signal attenuation.

  • Page 7: Modular Matrix Switcher Signal Card (Changeable Cards)

    Modular Matrix Switcher 32x32 1.2.1. Modular Matrix Switcher signal card (changeable cards) Modular Matrix Switcher 32x32 supports multiple signal cards as listed in the following charts: Spec Inputs Signal Format Models 4I-HD HDMI 4I-HS HDMI& analog audio 4I-DV DVI, HDMI, VGA, AV, 4I-DS YPbPr 4I-VG...

  • Page 8: Package List

    Modular Matrix Switcher 32x32 1.3. Package List l 1 x Modular Matrix Switcher 32x32 l 1 x Power Cord l 1 x IR remote (Not include battery) l 4 x Plastic cushions l 1 x RS232 cable l 1 x User manual Notes: Confirm all the accessories are included, if not, please contact with the dealers.

  • Page 9: Panel Description

    Modular Matrix Switcher 32x32 2. Panel Description 2.1. Modular Matrix Switcher 32x32 2.1.1. Front Panel Figure 2- 1 Front Panel of Modular Matrix Switcher 32x32 Name Description IR sensor, receive IR signal sent from IR remote ① Power Illuminate red once powered on ②...

  • Page 10: Rear Panel

    Modular Matrix Switcher 32x32 THROUGH: To transfer the signals directly to the corresponding output channels. UNDO: Undo button, to resume to the status before the command just performed. ß : Backspace button, to backspace the last press. 2.1.2. Rear Panel Figure 2- 2 Rear Panel of Modular Matrix Switcher 32x32 Name Description...

  • Page 11: Changeable Cards

    Modular Matrix Switcher 32x32 2.2. Changeable Cards Modular Matrix Switcher 32x32 supports expansion through various changeable input/ output cards of different signals including DVI, HDMI, VGA, twisted pair, SDI etc. Here is a brief introduction to the changeable cards. 2.2.1. 4I-DV & 4O-DV DVI signal card.

  • Page 12: Ds& 4O-Ds

    Modular Matrix Switcher 32x32 T.M.D.S. Clock T.M.D.S.Data1+ Shield T.M.D.S.Data1/3 T.M.D. S. Clock + Shield T.M.D.S.Data3- T.M.D.S.Data3+ Analog Green Horizontal Sync Analog Blue Analog Note: Pin C1~C5 are not used in 4I-DV & 4O-DV. 2.2.2. 4I-DS& 4O-DS Seamless DVI signal card. (Please check the specification from 5.2.2) It is fully compatible with HDMI1.3&...

  • Page 13: Hd & 4O-Hd

    Modular Matrix Switcher 32x32 Switcher 32x32. Seek technical assistant from our technical supporters. DVI interfaces on the signal card are same with the interfaces on 4I-DV& 4O-DV. Pin C1~C5 are used in 4I-DS & 4O-DS. When connecting to VGA, YPbPr or C-VIDEO signal, insert converting cables according to specific pin definitions (see the figures below): DVI- C-VIDEO: Signal...
  • Page 14 Modular Matrix Switcher 32x32 Pin layout of the HDMI connectors (female). Signal Signal TMDS Data 2+ SHELL TMDS Data 2 Hot Plug Detect Shield TMDS Data 2- +5V Power TMDS Data 1+ Ground TMDS Data 1 DDC Data Shield TMDS Data 1- DDC Clock TMDS Data 0+ No Connect...

  • Page 15: Hs & 4O-Hs

    Modular Matrix Switcher 32x32 2.2.4. 4I-HS & 4O-HS Seamless HDMI signal card with auxiliary audio port (Please check the specification from 5.2.4) It boasts seamless switch that provides real-time audio& video switching; support HDMI1.3& HDCP1.2, compliant with DVI signal; HDMI embeded audio and auxiliary stereo audio supports PCM format, audio source selectable via designed command (default: HDMI embeded audio);...
  • Page 16 Modular Matrix Switcher 32x32 4O-VG: output card, maximum four VGA output signal and 4 stereo audio outputs, output video signal from 4I-VG, or other kinds of input cards, and output audio signal from the audio of the input signal. Pin layout of the VGA connectors (female): Signal Signal KEY/PWR...

  • Page 17: Sd & 4O-Sd

    Modular Matrix Switcher 32x32 Signal Signal Other pins are not used. 2.2.6. 4I-VA VGA signal card. (Please check the specification from 5.2.6) Scale all inputs to 1080p or 1920x1200; Input signal can be VGA (RGBHV), YPbPr, S-video, C-video or CVBS; 4 stereo audio inputs.

  • Page 18: Tp & 4O-Tp

    Modular Matrix Switcher 32x32 Tip (+) Sleeve ( ) BNC Connector 2.2.8. 4I-SS Seamless SDI signal card (Please check the specification from 5.2.8) It is compatible with different SDI signal formats, including SD/HD/3G-SDI (adaptive), support seamless transmission for high-definition signal up to 1080p; Auto-detect input resolution and scale to 1080p@60Hz (default resolution, adjustable via command);...

  • Page 19: Uh & 4O-Uh

    Modular Matrix Switcher 32x32 How the indicators work: Color Definition Status Blink once powered on; Yellow Power Indicator Turn off when there is no power. Light when the port is connected with Green Link Indicator CAT5e/6; Turn off when there is no connection. Pin layout of the HDBT connector: Color orange white...

  • Page 20: Uf & 4O-Uf

    Modular Matrix Switcher 32x32 4I-UH: input card, maximum four input signal. Input signal can pass to output device through 4O-UH, or other kinds of output cards. Note: When matching with output cards that do not support 4kx2k, adjust the input resolution to 1080p to enable reliable output.

  • Page 21: Bt & 4O-Bt

    Modular Matrix Switcher 32x32 Note: Use the 4I-UF/ 4O-UF with optical fiber transmitter/ receiver. Multi-mode transmission may include the following cases: Single-mode optical fiber module& Multi-mode optical fiber cable Multi-mode optical fiber module& Multi-mode optical fiber cable Before using 4I-UF & 4O-UF, upgrade the front-board and backboard of Modular Matrix Switcher 32x32.
  • Page 22 Modular Matrix Switcher 32x32 The indicators and pin layout is the same with 4I-TP & 4O-TP’s. Refer to 2.2.9 4I-TP & 4O-TP for detailed information.

  • Page 23: System Connection

    Modular Matrix Switcher 32x32 3. System Connection 3.1. Usage Precautions 1) System should be installed in a clean environment and has a prop temperature and humidity. 2) All of the power switches, plugs, sockets and power cords should be insulated and safe.

  • Page 24: Application

    Modular Matrix Switcher 32x32 3.3. Application Modular Matrix Switcher series has a good application in various occasions, such as radio & television, multi-media meeting room, big screen displaying, television education and command & control center etc.

  • Page 25: Control Operations

    Modular Matrix Switcher 32x32 4. Control Operations 4.1. Front Panel Button control Users can control Modular Matrix Switcher 32x32 rapidly and directly with its front panel buttons. To switch AV signal, please operate the buttons under the following format: Format: “Input Channel” + “AV” +“Output Channel”+“Enter” Note: “Input Channel”: Fill with the number of input channel to be controlled, 2) “Output Channel”: Fill with the number of output channels to be controlled.

  • Page 26: Ir Remote Control

    Modular Matrix Switcher 32x32 4.2. IR Remote control With the IR remote, Modular Matrix Switcher 32x32 could be controlled remotely. As the function buttons on the IR remote are the same with the ones on the front panel, the IR remote shares the same operations and commands with the control panel. Press the buttons under below format: “Input Channel”...

  • Page 27: Rs232 Communication Commands

    Modular Matrix Switcher 32x32 Function Unused Transmit Receive Unused Ground Unused Unused Unused Unused When Modular Matrix Switcher 32x32 connects to the RS232 port of a computer with control software, users can control it by that computer. To control the switcher, users need to use RS232 control software.
  • Page 28 Modular Matrix Switcher 32x32 Note: 1. Please disconnect all the twisted pairs before sending command EDIDUpgrade[X]. 2. In the commands, “[”and “]” are symbols for easy reading and do not need to be typed in actual operation. 3. Please remember to end the commands with the ending symbols “.” or “;”. 4.
  • Page 29 Modular Matrix Switcher 32x32 Communication protocol: Baud rate: 9600; Data bit: 8; Stop bit: 1; Parity bit: none. Command Description Feedback MODULAR1616 /*Type; Inquire the models information. /%Lock; Lock front panel buttons. System Locked! System Unlock! /%Unlock; Unlock front panel buttons. Vx.x.x /^Version;...
  • Page 30 Modular Matrix Switcher 32x32 V: 01->001 Inquire the input channel to the output Status. A: 01->001 channels one by one. … … Save the present operation to the Save To F8 Save[Y]. preset command [Y]. [Y] ranges from 0 to 9. Recall From F8 V: 01->001 Recall[Y].
  • Page 31 Modular Matrix Switcher 32x32 Manually EDID switching. Enable input [Y] to learn the EDID data of output[X]. EDIDM[X]B[Y]. If there is problem learning the EDID EDIDM2B1 data, it will automatically set the default EDID data for input [Y]. Custom command for signal cards, USER/[Y]/[X]:*****;...
  • Page 32 Modular Matrix Switcher 32x32 USER/I/[x]:0698%; Software update 0698% Set the output signal of input [x] to USER/I/[x]:0686%; 0686% HDMI Select HDMI embeded audio as audio USER/I/[x]:0711%; 0711% source USER/I/[x]:0712%; Select analog audio as audio source 0712% 4O-HS Set the resolution of output [x] to Resolution USER/O/[x]:0804%;...
  • Page 33 Modular Matrix Switcher 32x32 Set the resolution of input [x] to USER/I/[x]:0626%; 0626% 1024x768@60Hz. Set the resolution of input [x] to USER/I/[x]:0627%; 0627% 1280X720@60Hz. Set the resolution of input [x] to USER/I/[x]:0628%; 0628% 1280X800@60Hz. Set the resolution of input [x] to USER/I/[x]:0619%;...
  • Page 34 Modular Matrix Switcher 32x32 Set the contrast of input [x] to xx, USER/I/[x]:03xx%; 03xx% xx=00~99 Set the saturation of input [x] to xx, USER/I/[x]:04xx%; 04xx% xx=00~99 Set the sharpness of input [x] to xx, USER/I/[x]:05xx%; 05xx% xx=00~99 USER/I/[x]:0607%; Set picture’s color temperature 0607% USER/I/[x]:0608%;...
  • Page 35 Modular Matrix Switcher 32x32 Configure picture mode USER/I/[x]:0614%; 0614% Restore input [x] to factory default. USER/I/[x]:0617%; 0617% Set the resolution of input [x] to USER/I/[x]:0619%; 0619% 1360x768, HD Set the resolution of input [x] to USER/I/[x]:0626%; 0626% 1024x768, XGA Set the resolution of input [x] to USER/I/[x]:0627%;...
  • Page 36 Modular Matrix Switcher 32x32 Switch on the HDCP compliance of USER/O/[x]:0106%; 0106% output [x] Switch off the HDCP compliance of USER/O/[x]:0107%; 0107% output [x] Capture output resolution of output [x] GetResolution[x]. Inquire the output status of VGA port [x] GetVGAPortMode[x Restore output [x] to factory default.

  • Page 37: Tcp/Ip Control (Optional)

    Modular Matrix Switcher 32x32 Example: “12B12,13,15.” to transfer signal from the input 12 to output 12,13,15. 9、Inquire the input channel to the output channel [x]: Status[x]. Example: Send “Status3.” to inquire the input channel to the output 3. 10、Inquire the input channel to the output channels one by one: Status. Example: “Status.”...
  • Page 38 Modular Matrix Switcher 32x32 Same network segment as the switcher l Controlled by PC(s) in LAN The Modular Matrix Switcher 32x32 can be connected with a router to make up a LAN with the PC(s), this make it able to be controlled in a LAN. When control, just make sure the Modular Matrix Switcher 32x32’s network segment is the same with the router.

  • Page 39: Control Modular Matrix Switcher 32X32 Via Tcp/Ip Communication Software

    Modular Matrix Switcher 32x32 Step1. Connect the TCP/IP port of the Modular Matrix Switcher 32x32 to Ethernet port of PC with twisted pair. Step2. Set the PC’s network segment to the same as the Modular Matrix Switcher 32x32. Do please remember the PC’s original network segment. Step3.

  • Page 40: Tcp/Ip Configuration

    Modular Matrix Switcher 32x32 2) After connect successfully, we can enter commands to control the Modular Matrix Switcher 32x32, as below: Enter your command here. Commands are the same with RS232 commands listed in 4.3.2 RS232 Communication Commands Here you will receive the feedback when a command is sent.

  • Page 41: Specification

    Modular Matrix Switcher 32x32 Here is the main configuration interface of the WebServer: In this interface, you can: Ø Change website display language Ø Modify network settings: Go to Internet Settings -> WAN Ø Upgrade TCP/IP module: Go to Administration -> Upload Program -> Select program file ->...

  • Page 42: Ds & 4O-Ds

    Modular Matrix Switcher 32x32 T.M.D.S. T.M.D.S. Input Level output Level 2.9V~3.3V 2.9V~3.3V Output Input Impedance 75Ω 75Ω Impedance General 340 MHz (10.2 Gain 0 dB Bandwidth Gbit/s) DVI 1.0/HDMI 1.3 Video Signal full digital T.M.D.S Switching Speed 200ns (Max.) signal Max Time-delay 5nS (±1nS) Crosstalk...

  • Page 43: Hs & 4O-Hs

    Modular Matrix Switcher 32x32 Input Connector Female HDMI Output Connector Female HDMI T.M.D.S. T.M.D.S. Input Level output Level 2.9V~3.3V 2.9V~3.3V Output Input Impedance 75Ω 75Ω Impedance General 6.75 Gbps Gain 0 dB Bandwidth DVI 1.0/HDMI 1.3 Video Signal full digital T.M.D.S Max Time-delay 5nS (±1nS) signal...

  • Page 44: Sd & 4O-Sd

    Modular Matrix Switcher 32x32 Input Connector Female 15 pin HD Output Connector Female 15 pin HD Input Level 0.5 ~ 2.0Vp-p Output Level 0.5 ~ 2.0Vp-p Output Input Impedance 75Ω 75Ω Impedance VGA (RGBHV), Video Signal YPbPr, S-video, Video Signal C-video&...

  • Page 45: Tp & 4O-Tp

    Modular Matrix Switcher 32x32 ~ 1.5 GHz ~ 1.5 GHz SMPTE 292M, SMPTE 259M, Video Standard SMPTE 424M, Data Type 8bit, 10bit, 12bit ITU-RBT.601, ITU-RBT.1120 Audio Bits per 18 bits per channel, 2 channels (L, R) Sample Switching Speed 200ns (Max.) Crosstalk <-50dB@5MHz 5.2.8.

  • Page 46: Uh & 4O-Uh

    Modular Matrix Switcher 32x32 5.2.10. 4I-UH & 4O-UH 4I-UH Video Input Audio Input Input 4 HDMI Input 4 Analog 3.5mm pluggable Input Connector Female HDMI Input Connector terminal block T.M.D.S. Min.～Max. Level Input Impedance 75Ω 2.9V~3.3V Frequency 20Hz～20K Hz Input Impedance 100Ω...

  • Page 47: Bt & 4O-Bt

    Modular Matrix Switcher 32x32 Multi-mode, Single Multi-mode, Single Fiber Type Fiber Type mode mode General 8bit, 10bit, 12bit, Data Rate 10.2 Gbps Color Depth 16bit Reference Work Temperature 0～55℃ 10%～90% Humility Optical Fiber Mode Connector LC connector Resolution Up to 4Kx2K 2km (Single mode transmission, using Single Mode Optical Transmission Module and OM3 Single Mode Fiber Cable)

  • Page 48: Troubleshooting & Maintenance

    Modular Matrix Switcher 32x32 Control 3-pin pluggable Control Signal 4 RS232 Connector terminal block Protocol TCP/IP General Gain Bandwidth 10.2Gbps Max Resolution 4Kx2K Crosstalk <-50dB@5MHz Transmission 1080P ≤ Switching Speed 200ns (Max.) Distance 4Kx2K ≤ Work Reference 0~50℃ 10%～90% Temperature Humility Supported Audio Embedded HDMI audio: PCM, Dobly Digital, DTS, DTS-HD...
  • Page 49 Modular Matrix Switcher 32x32 Change for another Run out of battery. IR remote does battery not work Send it to authorized IR remote is broken. dealer for repairing. POWER indicator doesn’t work or Make sure the power cord Fail connection of power cord. no respond to connection is good.
  • Page 50 Modular Matrix Switcher 32x32 remote / front panel buttons If your problem persists after following the above troubleshooting steps, seek further help from authorized dealer or our technical support.

  • Page 51: Customer Service

    Modular Matrix Switcher 32x32 7. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed 3 (three) years. 2) Scope These terms and conditions of Customer Service apply to the customer service provided for the products or any other items sold by authorized distributor only.
