Page 1

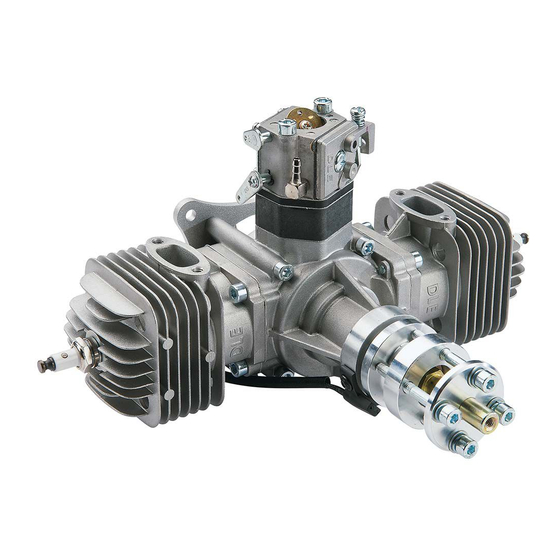

DLE is not responsible for all injuries result from the use. DLE60CC属于2冲程航模汽油发动机,该产品仅限用于航模。如果将本产品用于其他用 途所产生的一切安全事故以及经济损失,均与厂家无关. DLE 60 is a two-stroke gasoline engine designed for aeromodelling purpose only. The manufacturer will not take any responsibility of safety accidents and economic losses if this...
Page 2
product be used for other purposes. 一、 安全(SAFETY INSTRUCTIONS) 1、使用前请仔细检查螺旋桨、发动机架等相关部位,保证螺丝、镙母不松动,安装 时一定要使用螺纹胶(如:LOCTITTE 242 、 243等)固定螺丝、螺母。 Before every use, check the engine assembly, propeller and airframe carefully for loose screws and nuts. Loctite(242,243) is strongly recommended on all the screws. 2、请注意:如果要在试车台上磨合或测试发动机,必须有很好的减震装置,否则可能 导致发动机部分零件的损坏,最好把发动机安装在飞机上进行磨合。 During the break-in process, engine must running with shock absorber installed.
Page 3
三、发动机的调整(ENGINE ADJUSTMENT) 1、每台发动机出厂时都经过了初步调整,用户可以直接使用。但各地区的海拔高度 将会影响化油器的正常工作,化油器油针可能需要进行微调才能达到最佳的工作位置。 Every engine has been adjusted to average mixture settings which will most likely allow the engine to start and run in most locations. However, as altitudes and barometric pressures vary by location, it is very likely that the carburetor mixture settings will need to be adjusted to obtain optimum performance.
Page 4
(inlet side of the carburetor), gasket and pump membrane. The screen will be visible and can be cleaned after careful removal. 联系我们/Contact us 电话(TEL): 4001006090 传真(FAX):086-0873-6131518 销售 (Sale): 086-13529826090 Http:www.dlpower.net E-mail:dle@dlengine.com 地址:中国云南省弥勒市弥勒工业区弥阳工业园 邮编:652300 Address: MiYang Industrial Park Mile Industrial District Mile City, 652300, Yunnan Province, PR China 弥勒浩翔科技有限公司 Mile HaoXiang Technology Co.,Ltd...
