Summary of Contents for DLE 222

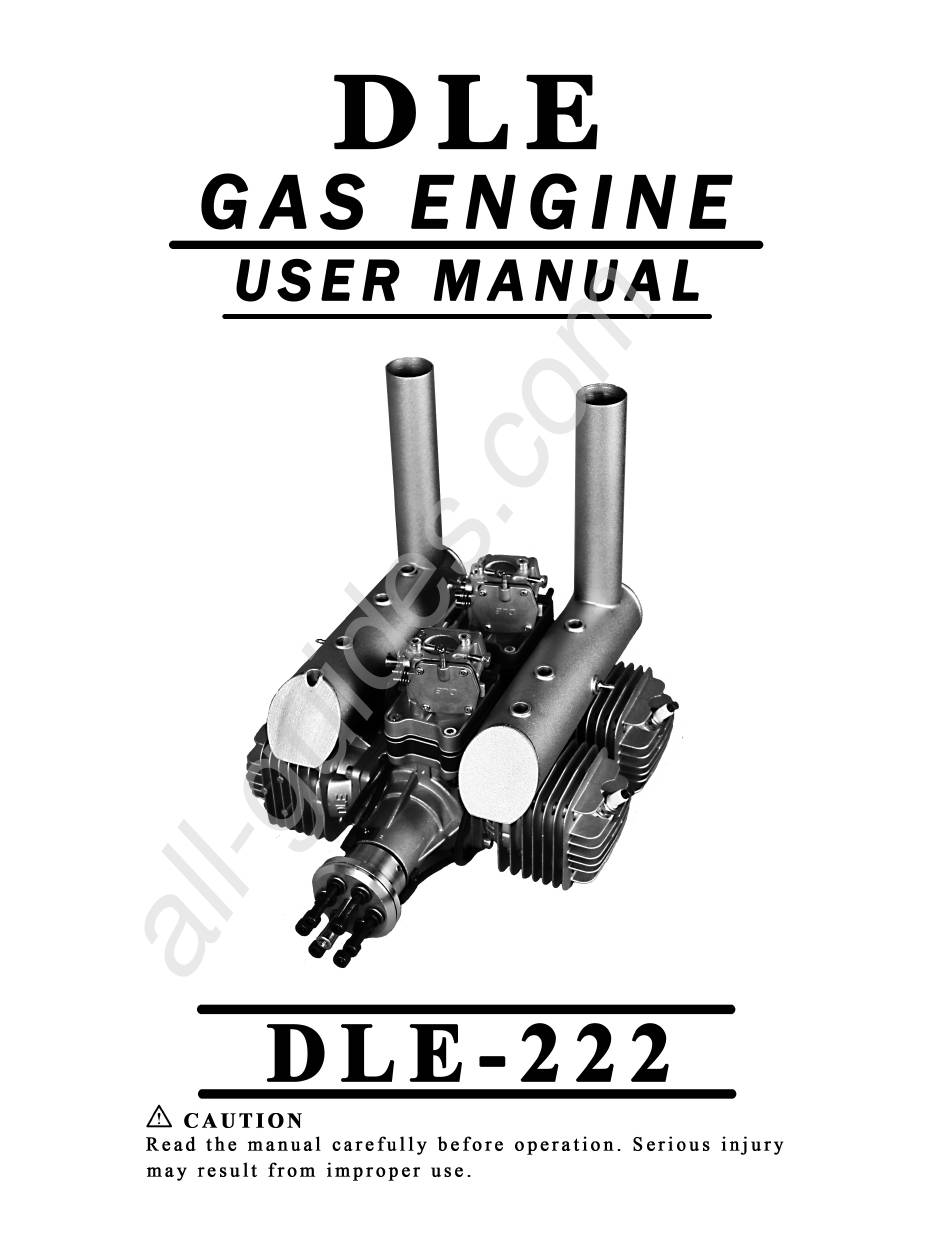

  • Page 1 All manuals and user guides at all-guides.com...
  • Page 2 书。 DLE series gasoline-engine is a professional design for the model airplane. With the advantages on the weight, power and stability, DLE provides you an opportunity on the power selection of TOC airplane. Please read the manual carefully before operation.
  • Page 3 All manuals and user guides at all-guides.com (1) 、风门,冷启动时使用;Choke Arm (The Choke Arm is used under the circumstance of cold start-up.); (2) 、油门;Throttle; (3) 、怠速调节螺丝;Idle Adjustment Screw; (4) 、低 速油针;Low-speed Needle; (5) 、高速油针;High-speed Needle; 调整:顺时针转动怠速螺丝3将增大怠速转速,同时要配合低速油针4一起调整,顺时 针转动低速油针减少油量(一般是把油针拧到底再退回1.5圈) ;高速油针5(退回1.5圈)最好 使用转速表来调整,使发动机达到最高转速,加减速顺畅为最佳。 � � � � ADJUSTMENT: ADJUSTMENT: ADJUSTMENT: ADJUSTMENT: Turn the Idle Adjustment Screw (See No.3) clockwise will increase the idle...
  • Page 4 All manuals and user guides at all-guides.com throttle to very slightly above the idle position, the engine should start in just a few flips. (4)热车启动:打开风门,油门开至怠速或比怠速稍大一点,直接启动发动机。 Step 4: pen the choke, advance the throttle to very slightly above the idle position, turn on the ignition and briskly flip the prop through compression.
