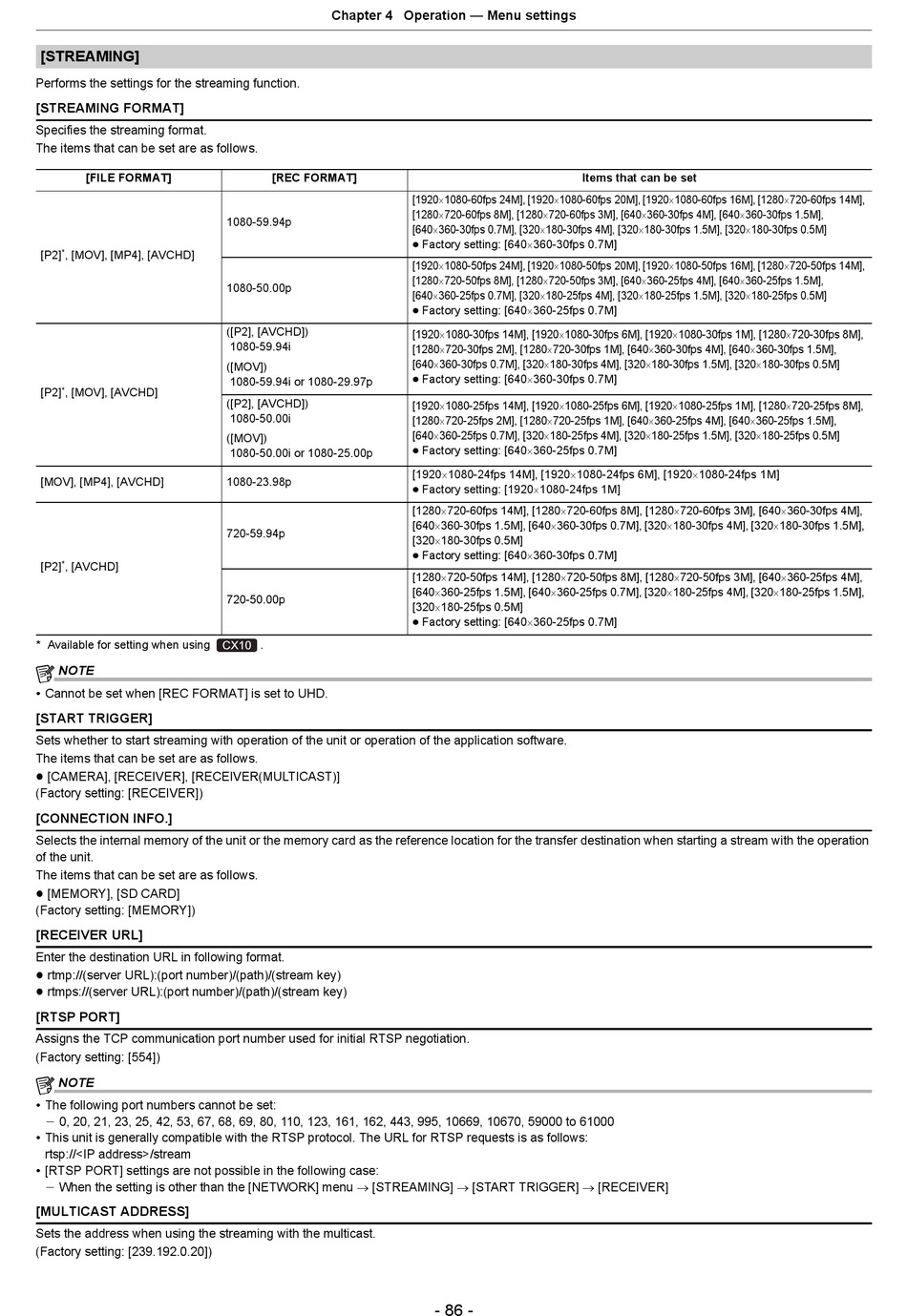

Panasonic AG-CX10 Operating Instructions Manual page 86

[STREAMING]
Performs the settings for the streaming function.
[STREAMING FORMAT]
Specifies the streaming format.
The items that can be set are as follows.
[FILE FORMAT]
*
[P2] , [MOV], [MP4], [AVCHD]
*
[P2] , [MOV], [AVCHD]
[MOV], [MP4], [AVCHD]
[P2] * , [AVCHD]
* Available for setting when using
@
NOTE
0 Cannot be set when [REC FORMAT] is set to UHD.
[START TRIGGER]
Sets whether to start streaming with operation of the unit or operation of the application software.
The items that can be set are as follows.
≥ [CAMERA], [RECEIVER], [RECEIVER(MULTICAST)]
(Factory setting: [RECEIVER])
[CONNECTION INFO.]
Selects the internal memory of the unit or the memory card as the reference location for the transfer destination when starting a stream with the operation
of the unit.
The items that can be set are as follows.
≥ [MEMORY], [SD CARD]
(Factory setting: [MEMORY])
[RECEIVER URL]
Enter the destination URL in following format.
≥ rtmp://(server URL):(port number)/(path)/(stream key)
≥ rtmps://(server URL):(port number)/(path)/(stream key)
[RTSP PORT]
Assigns the TCP communication port number used for initial RTSP negotiation.
(Factory setting: [554])
@ NOTE
0 The following port numbers cannot be set:
j 0, 20, 21, 23, 25, 42, 53, 67, 68, 69, 80, 110, 123, 161, 162, 443, 995, 10669, 10670, 59000 to 61000
0 This unit is generally compatible with the RTSP protocol. The URL for RTSP requests is as follows:
rtsp://<IP address>/stream
0 [RTSP PORT] settings are not possible in the following case:
j When the setting is other than the [NETWORK] menu → [STREAMING] → [START TRIGGER] → [RECEIVER]
[MULTICAST ADDRESS]
Sets the address when using the streaming with the multicast.
(Factory setting: [239.192.0.20])
Chapter 4 Operation — Menu settings
[REC FORMAT]
1080-59.94p
1080-50.00p
([P2], [AVCHD])
1080-59.94i
([MOV])
1080-59.94i or 1080-29.97p
([P2], [AVCHD])
1080-50.00i
([MOV])
1080-50.00i or 1080-25.00p
1080-23.98p
720-59.94p
720-50.00p
.
CX10
Items that can be set
[1920×1080-60fps 24M], [1920×1080-60fps 20M], [1920×1080-60fps 16M], [1280×720-60fps 14M],
[1280×720-60fps 8M], [1280×720-60fps 3M], [640×360-30fps 4M], [640×360-30fps 1.5M],
[640×360-30fps 0.7M], [320×180-30fps 4M], [320×180-30fps 1.5M], [320×180-30fps 0.5M]
≥ Factory setting: [640×360-30fps 0.7M]
[1920×1080-50fps 24M], [1920×1080-50fps 20M], [1920×1080-50fps 16M], [1280×720-50fps 14M],
[1280×720-50fps 8M], [1280×720-50fps 3M], [640×360-25fps 4M], [640×360-25fps 1.5M],
[640×360-25fps 0.7M], [320×180-25fps 4M], [320×180-25fps 1.5M], [320×180-25fps 0.5M]
≥ Factory setting: [640×360-25fps 0.7M]
[1920×1080-30fps 14M], [1920×1080-30fps 6M], [1920×1080-30fps 1M], [1280×720-30fps 8M],
[1280×720-30fps 2M], [1280×720-30fps 1M], [640×360-30fps 4M], [640×360-30fps 1.5M],
[640×360-30fps 0.7M], [320×180-30fps 4M], [320×180-30fps 1.5M], [320×180-30fps 0.5M]
≥ Factory setting: [640×360-30fps 0.7M]
[1920×1080-25fps 14M], [1920×1080-25fps 6M], [1920×1080-25fps 1M], [1280×720-25fps 8M],
[1280×720-25fps 2M], [1280×720-25fps 1M], [640×360-25fps 4M], [640×360-25fps 1.5M],
[640×360-25fps 0.7M], [320×180-25fps 4M], [320×180-25fps 1.5M], [320×180-25fps 0.5M]
≥ Factory setting: [640×360-25fps 0.7M]
[1920×1080-24fps 14M], [1920×1080-24fps 6M], [1920×1080-24fps 1M]
≥ Factory setting: [1920×1080-24fps 1M]
[1280×720-60fps 14M], [1280×720-60fps 8M], [1280×720-60fps 3M], [640×360-30fps 4M],
[640×360-30fps 1.5M], [640×360-30fps 0.7M], [320×180-30fps 4M], [320×180-30fps 1.5M],
[320×180-30fps 0.5M]
≥ Factory setting: [640×360-30fps 0.7M]
[1280×720-50fps 14M], [1280×720-50fps 8M], [1280×720-50fps 3M], [640×360-25fps 4M],
[640×360-25fps 1.5M], [640×360-25fps 0.7M], [320×180-25fps 4M], [320×180-25fps 1.5M],
[320×180-25fps 0.5M]
≥ Factory setting: [640×360-25fps 0.7M]
