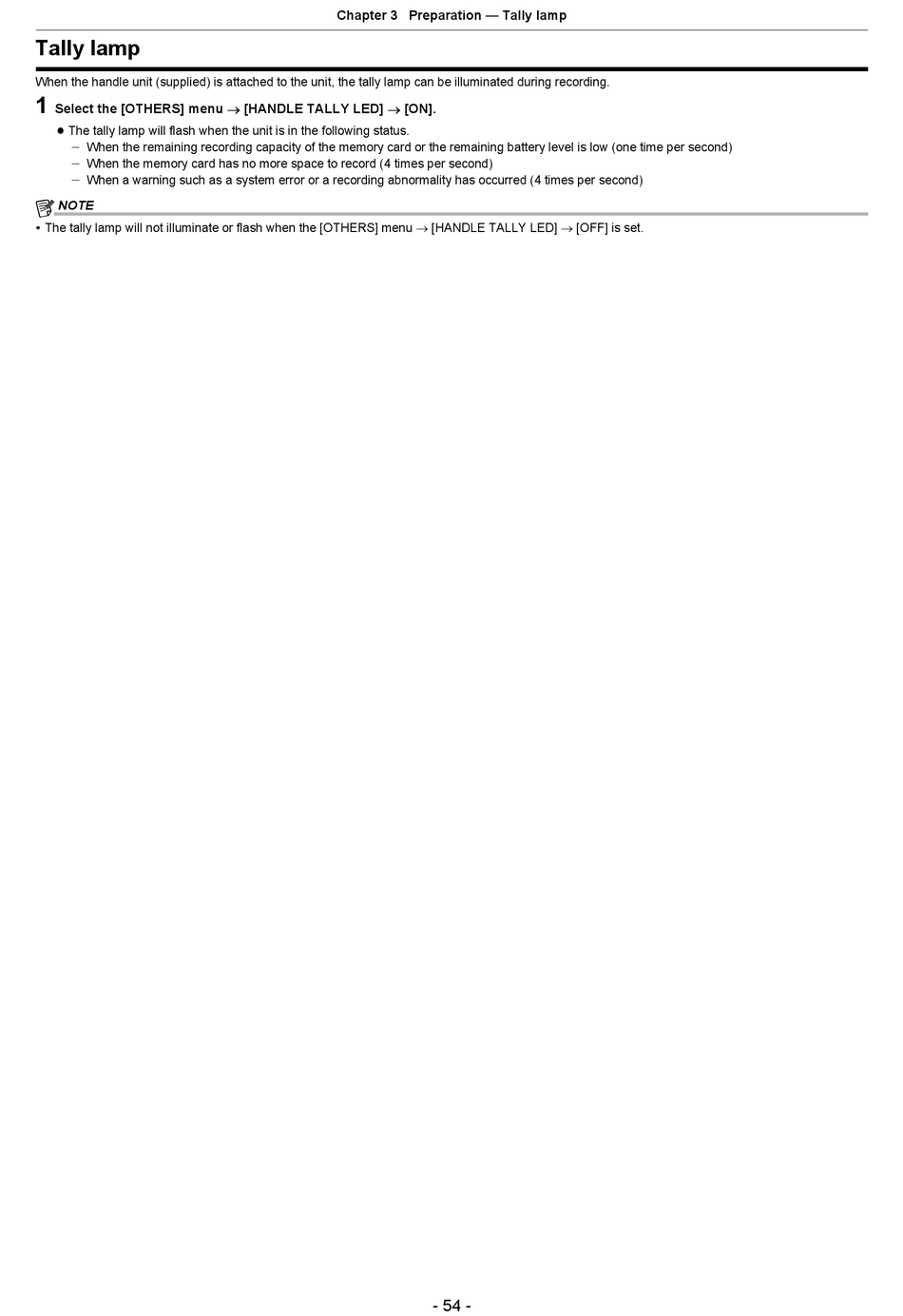

Tally lamp

When the handle unit (supplied) is attached to the unit, the tally lamp can be illuminated during recording.
1
Select the [OTHERS] menu → [HANDLE TALLY LED] → [ON].
≥ The tally lamp will flash when the unit is in the following status.
j When the remaining recording capacity of the memory card or the remaining battery level is low (one time per second)
j When the memory card has no more space to record (4 times per second)
j When a warning such as a system error or a recording abnormality has occurred (4 times per second)
@ NOTE
0 The tally lamp will not illuminate or flash when the [OTHERS] menu → [HANDLE TALLY LED] → [OFF] is set.
Chapter 3 Preparation — Tally lamp
- 54 -
