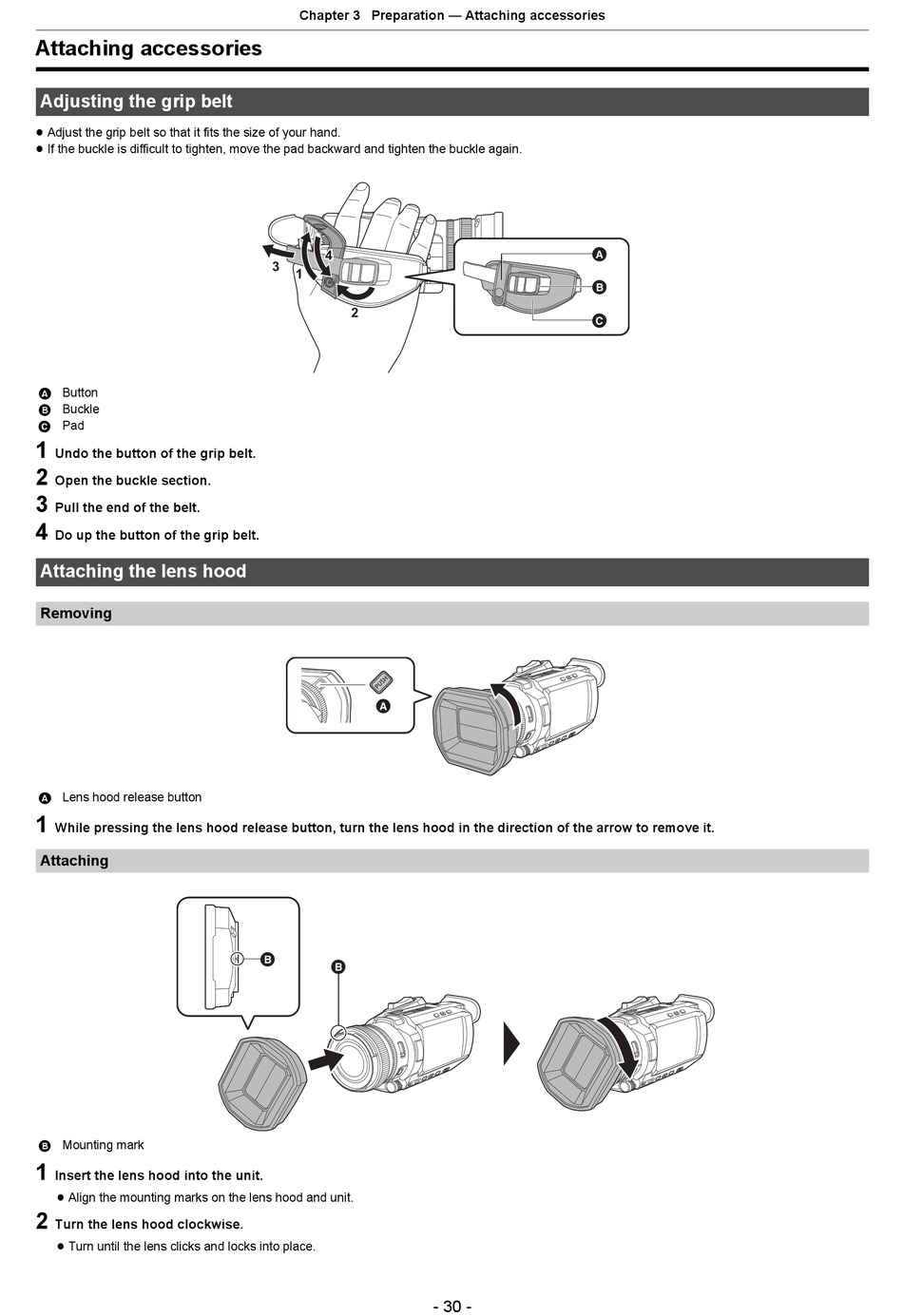

Attaching accessories

Adjusting the grip belt

≥ Adjust the grip belt so that it fits the size of your hand.
≥ If the buckle is difficult to tighten, move the pad backward and tighten the buckle again.
A Button
B Buckle
C Pad
1
Undo the button of the grip belt.
2
Open the buckle section.
3
Pull the end of the belt.
4
Do up the button of the grip belt.

Attaching the lens hood

Removing
A Lens hood release button
1
While pressing the lens hood release button, turn the lens hood in the direction of the arrow to remove it.
Attaching
B Mounting mark
1
Insert the lens hood into the unit.
≥ Align the mounting marks on the lens hood and unit.
2
Turn the lens hood clockwise.
≥ Turn until the lens clicks and locks into place.
Chapter 3 Preparation — Attaching accessories
4 4
3 3
1 1
2 2






- 30 -
