HIKVISION DS-2TD2167-7/PI Quick Start Manual

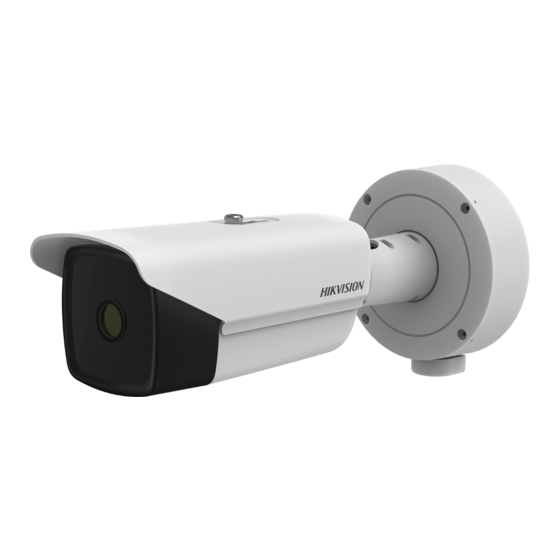

Thermal network bullet camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Camera
Thermal Network Bullet Camera
Quick Start Guide
UD05106B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-2TD2167-7/PI and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-2TD2167-7/PI

Summary of Contents for HIKVISION DS-2TD2167-7/PI

  • Page 1 Camera Thermal Network Bullet Camera Quick Start Guide UD05106B...
  • Page 2 Quick Start Guide COPYRIGHT © 2017 Hangzhou Hikvision Digital Technology Co., Ltd. ALL RIGHTS RESERVED. Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed,...
  • Page 3 LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
  • Page 4 FCC compliance: This equipment has been tested and found to comply with the limits for Class A device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 5 to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union.
  • Page 6 Warnings Follow these Cautions Follow these safeguards to prevent precautions to prevent serious injury or death. potential injury or material damage. Warnings ● Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. ●...
  • Page 7 ● Make sure the power supply voltage is correct before using the camera. ● Do not drop the camera or subject it to physical shock. ● Do not touch sensor modules with fingers. If cleaning is necessary, use clean cloth with a bit of ethanol and wipe it gently.
  • Page 8 recommended for all the users. Please contact with your dealer for more details. ● Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer.

  • Page 9: Table Of Contents

    Table of Contents 1 Appearance Description .............. 9 1.1 Type I Camera Appearance ......... 9 1.2 Type II Camera Appearance ........10 1.3 Cable Description ............11 2 Installation .................. 13 2.1 Memory Card Installation .......... 14 2.1.1 Type I Camera Memory Card Installation ..14 2.1.2 Type II Camera Memory Card Installation ..

  • Page 10: Appearance Description

    1 Appearance Description There are two kinds of thermal network bullet cameras: Type I bullet camera, and Type II bullet camera. The appearance description of two cameras are shown below. 1.1 Type I Camera Appearance The overview of Type I thermal network bullet camera and its components are shown below: Type I Camera Overview...

  • Page 11: Type Ii Camera Appearance

    Sun Shield Camera Memory Card Slot Bracket Holder Cable Outlet Bracket Hinge Bracket Arm Reset Button Junction Box Cover Junction Box Base Sealing Interface Type I Camera Components Overview 1.2 Type II Camera Appearance The overview of Type II thermal network bullet camera is shown in below: Type II Camera Overview...

  • Page 12: Cable Description

    Sun Shield Bracket Lens Reset Button Memory Card Slot Camera Components and Cables 1.3 Cable Description The bullet camera cables, including power cable, coaxial video cable, alarm cable, and audio cable are shown below. The Type I camera supports network cable and optical fiber.
  • Page 13 Cable Description Name Description Power Interface 24V AC and 12V DC are supported. For 12V DC power supply, make sure that the positive/negative terminals are connected correctly. Network Interface Connect to the internet. Alarm Interface Two-way alarm input and alarm output are supported.

  • Page 14: Installation

    2 Installation Before you start: Make sure the device in the package is in good ● condition and all the assembly parts are included. The standard power supply is 12V DC or 24V AC, ● please make sure your power supply matches your camera.

  • Page 15: Memory Card Installation

    Memory Card Installation Make sure you install the memory card in the same way you disassemble the camera, so that the leak-free sealing performance will not be affected. 2.1.1 Type I Camera Memory Card Installation Steps: 1. Unscrew the memory card slot cover and remove it. Memory Card Cover Removing Card Slot Cover (Type I Camera) 2.

  • Page 16: Type Ii Camera Memory Card Installation

    3. Cover the memory card slot and fix the screws on the memory card slot cover. 2.1.2 Type II Camera Memory Card Installation Steps: 1. Unscrew the memory card slot cover and remove it. Removing Card Slot Cover (Type II Camera) A rubber seal ring is on the top of the memory card slot cover.
  • Page 17 3. Cover the memory card slot and fix the screws on the memory card slot cover. Fixing Memory Card Slot Cover (Type II Camera)

  • Page 18: Wide Range Coverage For Different Specifications

    Wide Range Coverage for Different Specifications For fixed lens camera, the auto-focus function, and remote manual focus function are not supported. Select the proper installation site, and proper lens focal length according to the Wide Range Coverage list below: Wide Range Coverage Lens (focal length) 10mm 15mm 25mm 35mm 50mm 75mm...
  • Page 19 Type I Camera Installation Methods Steps: 1. Loosen the screws on the junction box cover. 2. Draw the latches from the latch hole of the junction box and take apart the cover from the junction box. Take Apart Junction Box 3.
  • Page 20 Drill Template (Type I Camera) 5. Align the hole of drill template with the screw hole of the junction box base to place the junction box onto the wall. 6. Route the screw through the sealing ring, and fix the junction box base on the wall with the screws.

  • Page 21: Installing Type Ii Camera

    Installing Junction Box Cover 9. Fix the delivered screws to secure the junction box. 10. Connect the corresponding cables to power on the camera and get the live view. 11. Adjust the camera according to the figure below. P-Direction Screw T-Direction Screw Tilt Range [-90°...
  • Page 22 2. (Optional) If you want to route cables through the installation surface, drill a cable hole according to the drill template. Otherwise, skip the step if you route the cable via the side opening. Drill Template (Type II Camera) 3. (Optional) Fix the camera to the junction box. 1) Attach the drill template (supplied) to the place where you want to fix the junction box, and then drill four holes in the ceiling/wall according to the drill template.
  • Page 23 Drill Template 3) Make sure the Top are on the top and the bottom are at the bottom. Fix the junction box to the installation surface with the supplied screws. 4) Fix the bullet camera to the junction box with the supplied screws, as shown in Figure 2-14.
  • Page 24 Wall Mounting Ceilling Mounting Install the Bracket onto the Wall 5. Adjust the camera to the optimal surveillance angle. 1) Loosen the pan adjusting screw to adjust panning position [0° to 360° ]. Tighten the screw. 2) Loosen the tile adjusting screw to adjust the tilting position [0°...

  • Page 25: Installation Of Network Cable Water-Proof Jacket

    Installation of Network Cable Water-proof Jacket Purpose: If the camera is installed outdoor, you can adapt the water-proof accessory for the network cable after the camera is secured on the installation surface. Water-proof Accessory Components Table 2-1 Components Components Camera’s Network Interface Socket O-Type Gasket Network Plug Waterproof Endcap...
  • Page 26 Align the snap and notch. i. Insert into ⑤ ④ ii. Secure with ⑥ ④ Camera Switch/Router Water-proof Accessory Installation Steps: 1. Feed the plugless network cable through the lock nut ⑦ ⑥ waterproof rubber gasket ⑤ (rubber gasket inset ridge must face waterproof endcap), and the water-proof endcap ④...
  • Page 27 4. Insert the network plug into the camera’s network ③ interface socket ① 5. Insert the water-proof rubber gasket into the waterproof ⑤ endcap , and secure lock nut with the water-proof ④ ⑥ endcap ④ 6. Align the snap on the water-proof endcap ④...

  • Page 28: Setting The Network Camera Over The Lan

    3 Setting the Network Camera over the LAN Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, please contact with your dealer or the nearest service center.

  • Page 29: Activating The Camera

    3.2 Activating the Camera You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, Activation via SADP, and Activation via Client Software are all supported. We will take activation via SADP software and Activation via Web Browser as examples to introduce the camera activation.

  • Page 30: Activation Via Sadp Software

    3. Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 31 SADP Interface Note: The SADP software supports activating the camera in batch. Please refer to the user manual of SADP software for details. 3. Create a password and input the password in the password field, and confirm the password. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters,...

  • Page 32: Modifying The Ip Address

    3.3 Modifying the IP Address Purpose: To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your PC. Then, install the SADP software or client software to search and change the IP of network camera. We will take modifying the IP Address via SADP software as an example to introduce the IP address modification.
  • Page 33 Modify the IP Address 4. Input the password to activate your IP address modification. The batch IP address modification is supported by the SADP; please refer to the User Manual of SADP for details.

  • Page 34: Accessing Via Web Browser

    4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024× 768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version Steps:...
  • Page 35 Click Login. Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. You may have to close the web browser to finish the installation of the plug-in. Download Plug-in...
  • Page 36 Install Plug-in (1) Install Plug-in (2) 6. Reopen the web browser after the installation of the plug-in and repeat steps 2~4 to login. For detailed instructions of further configuration, please refer to the user manual of network camera.

  • Page 37: Appendix

    Appendix Frequently Asked Questions (FAQ) Device Running Error Question: The device fails to start up or reboots repeatedly.  Answer: Examine the power supply of the positioning  system and see whether it meets the requirements. Select the power supply as close as possible. ...
  • Page 38 Examine if any obstruction is nearby, e.g. spider  web. Question: Live view fails with good network connection. Answer: Examine if the IE plug-in is well installed. Change  the Website Blocker settings if necessary. For cross-domain routing, enable the UPnP of ...

  • Page 39: Common Material Emissivity Reference

    Common Material Emissivity Reference Material Temperature (° C/° F) Emissivity Water 0 to 100/32 to 212 0.95~0.98 Soil (Dry) 20/68 0.92 Soil (Moist) 20/68 0.95 Wood 17/62.6 0.962 Sand 20/68 Sandstone 19/66.2 0.909~0.935 PVC (Polyvinyl Chloride) 70/158 0.93 Pitch 20/68 0.967 Paint 70/158...
