Hans Grohe PuraVida 15074 1 Series Installation Instructions Manual
Hide thumbs
Also See for PuraVida 15074 1 Series:
- Installation/user instructions/warranty (20 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hans Grohe PuraVida 15074 1 Series
Summary of Contents for Hans Grohe PuraVida 15074 1 Series

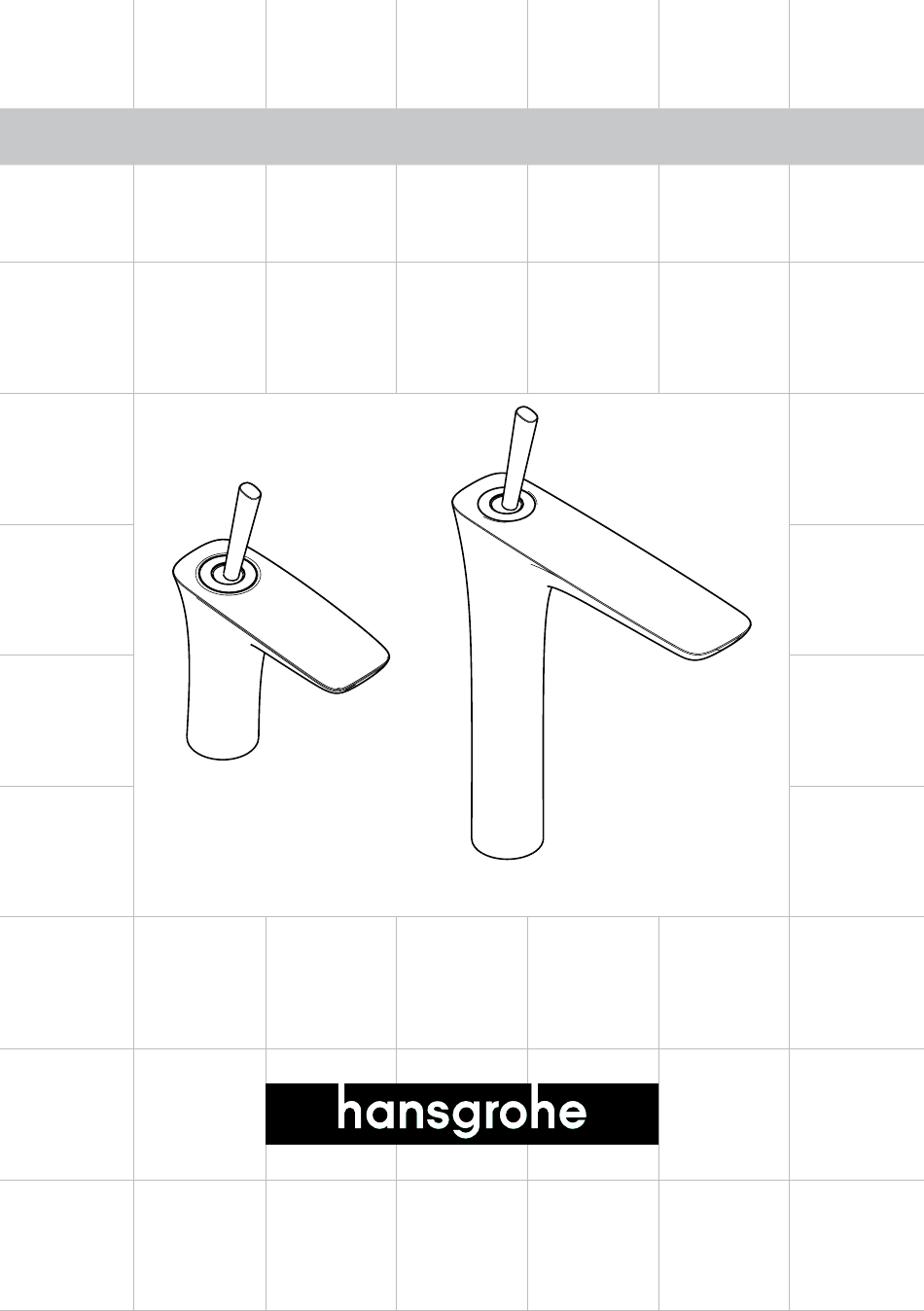

- Page 1 Installation Instructions / Warranty PuraVida 15070XX1 15074XX1 PuraVida 15072XX1...
- Page 2 15070XX1 15074XX1 15072XX1 Technical Information / Données techniques / Datos técnicos Recommended water Pression d’eau recomman- Presión recomendada en 15 - 75 psi pressure dée servicio Max. water pressure Pression d’eau maximale Presión máximo en servicio 145 psi Recommended hot Température recommandée Temp.
-
Page 3: Installation Considerations
Installation Considerations • For best results, Hansgrohe recommends that This faucet includes filters which this unit be installed by a licensed, professional must be used as they protect the plumber. faucet from debris in the water. • Please read over these instructions thoroughly Failure to install the filters may before beginning installation. - Page 4 English Installation Place the faucet and sealing ring on the mounting surface. Install the fiber washer, metal washer and mounting nut (1). Tighten the mounting nut by hand (2). Tighten the tensioning screws using a screwdriver.
- Page 5 Français Español Installation Instalación Placez le robinet et l’anneau d’étanchéité sur la Coloque el grifo y el aro de sellado sobre la superfi- surface de montage. cie de montaje. Installez la rondelle en fibre, la rondelle métallique et Instale la arandela de fibra, la arandela metálica y la l’écrou de montage (1).
- Page 6 English Install the adapters on the stops (1). Install the filters. Failure to install the filters may result in unsatisfactory operation of the faucet. Connect the hot and cold supply hoses to the adapters (2). Use two wrenches as shown. Do not allow the hoses to twist.
- Page 7 Français Español Installez les adaptateurs sur les butées d’arrêt (1). Instale los adaptadores sobre los topes (1). Installez les filtres. Instale los filtros. Si ces filtres ne sont pas instal- Si no se instalan los filtros, el grifo lés, il est possible que le robinet puede funcionar en forma insatis- n’offre pas un rendement satisfai- factoria.
- Page 8 English Install the pop-up drain Remove the plunger. Unscrew the flange from the tee. Unscrew the tailpiece from the tee. Wrap the tailpiece threads with Teflon tape. Install the tailpiece on the tee. Install the sealing gasket on the flange. Rest the flange in the sink outlet.
- Page 9 Français Español Installez l’obturateur à clapet Instale el tapón elevable Retirez le plongeur. Retire el émbolo. Dévissez la collerette du raccord en T. Desenrosque la brida del tubo en “T”. Dévissez la queue du raccord en T. Desenrosque la alcachofa del tubo en “T”. Enveloppez les filets de la queue avec du ruban de Envuelva las roscas de la alcachofa con cinta de Téflon.
- Page 10 User Instructions / Instructions de service / Manejo ouvert fermé abierto cerrar cold chaud froid caliente frío...
- Page 11 If the flow of water decreases over time, clean the aerator and the filter. Si le débit d’eau diminue au fil du temps, retirez le filtre et l'aérateur et nettoyez-les. Si el caudal de agua disminuye con el tiempo, lave los filtros y el aireador con agua limpia.
- Page 12 Replacement Parts / Pièces détachées / Repuestos 15074XX1 only / seulement / sólo 33x1,5 95288000 957XX0 95287000 94159XX0 SW 27 97157000 30x1.5 30x2 21.95x1.78 9339000 95311000 2x2 95282000 95290000 95141001 - 17½" 1391000 95372001 - 35" 95291000 XX = colors / couleurs / acabados 00 = chrome 40 = white/chrome...
- Page 13 Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning. Cleaning Materials for Faucets and Showers Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points when cleaning faucets and showers:...
- Page 14 Nettoyez vos produits de robinetterie et de douche aussi souvent que nécessaire. • Utilisez la quantité de produit nettoyant et respectez la durée recommandée par le fabricant. Ne laissez pas le produit sur les articles de robinetterie plus longtemps que nécessaire. •...
-
Page 15: Limited Lifetime Consumer Warranty
Limited Lifetime Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is limited to Hansgrohe products which are purchased by a consumer in the United States after March 1, 199, and installed in either the United States or Canada. - Page 16 Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from State to State. You may be required by law to give us a reasonable opportunity to correct or cure any failure to comply before you can bring any action in court against us under the Magnuson-Moss Warranty Act.
