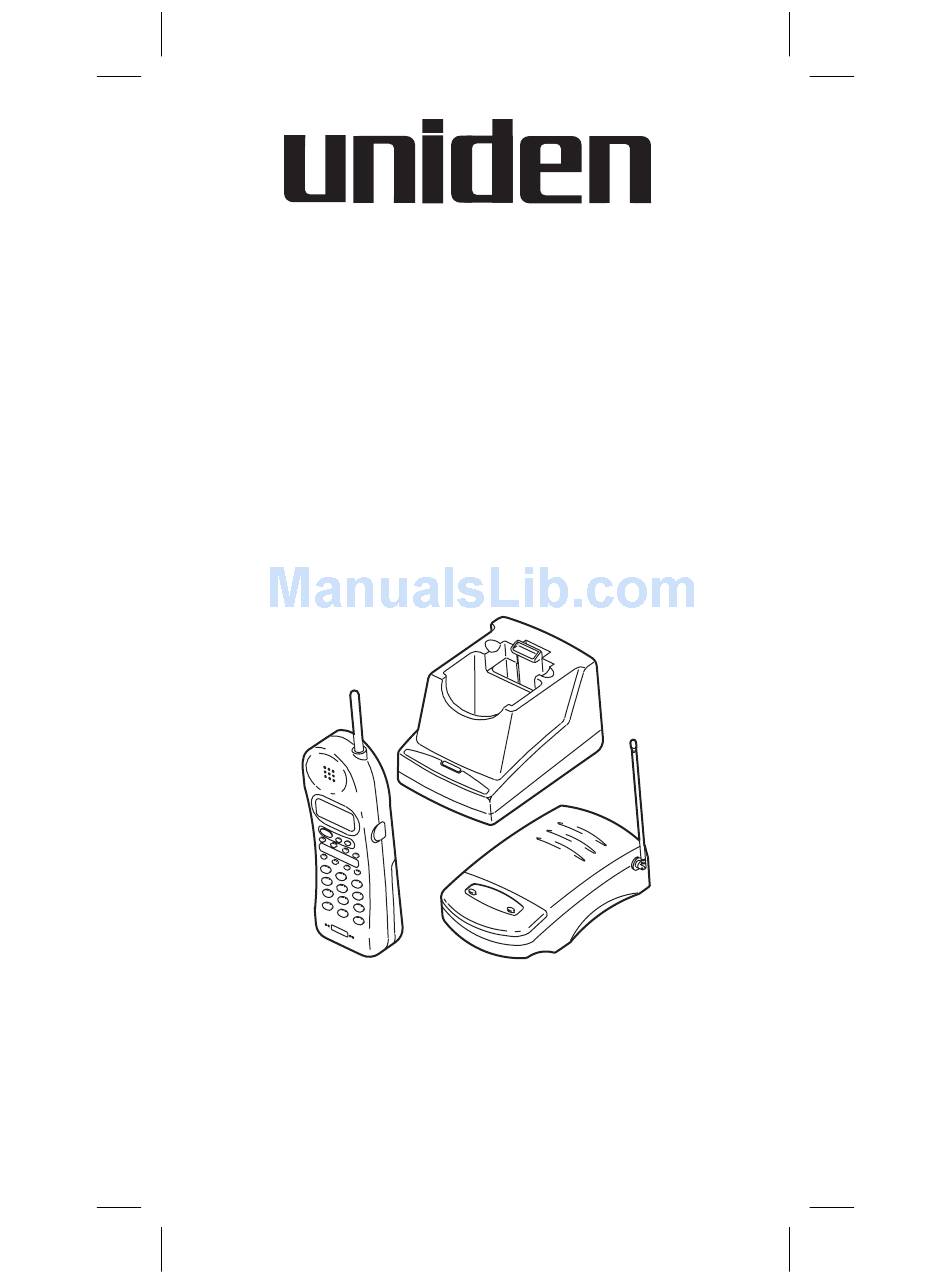

- Page 1 Color profile: Disabled Composite Default screen ® ANA 9610 900 MHz Analog Cordless Telephone Operating Guide P:\ana9610e\9610usae.vp Mon Aug 30 10:25:43 1999...
-
Page 2: One Year Limited Warranty
One Year Limited Warranty WARRANTOR: UNIDEN AMERICA CORPORATION (“Uniden”) ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original retail owner, this Uniden Product to be free from defects in materials and craftsmanship with only the limitations or exclusions set out below. - Page 3 Covered under one or more of the following U.S. patents: 4,511,761 4,523,058 4,597,104 4,797,916 4,803,491 5,253,268 and other patents pending. OMANA9610 ©1997 Uniden America Corporation. Printed in the USA. All rights reserved. P:\ana9610e\9610usae.vp Mon Aug 30 10:25:44 1999 4,595,795, 5,157,686 ®...
- Page 4 Before you read anything else, please observe the following: WARNING! Uniden America Corporation DOES NOT represent this unit to be waterproof. To reduce the risk of fire, electrical shock, or damage to the unit, DO NOT expose this unit to rain or moisture.
- Page 5 Color profile: Disabled Composite Default screen Handset Controls & Functions 1. Ringer ON/OFF switch 2. Message Display 3. Transfer ( xfer ) Key 4. Hold ( hold ) Key 5. Redial ( redial ) Key 6. Pause ( pause ) Key 7.
- Page 6 Color profile: Disabled Composite Default screen Base Unit Controls & Functions hold Key status Indicator P:\ana9610e\9610usae.vp Mon Aug 30 10:25:48 1999 page/find Key Tone Pulse Tone/Pulse slide Switch...
-
Page 7: Table Of Contents
Transferring a Call to the ANA 9610........ -
Page 8: Important Safety Instructions
Color profile: Disabled Composite Default screen Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons, including the following: Read and understand all instructions. Follow all warnings and instructions marked on the product. - Page 9 Color profile: Disabled Composite Default screen If the product does not operate normally when following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the product to normal operation.
-
Page 10: About Your Ana 9610
About Your ANA 9610 Congratulations on your purchase of the Uniden ANA 9610 Cordless Telephone. The ANA 9610 is designed and engineered to exacting standards for reliability, long life, and outstanding performance. It is designed to work with a PBX system. To get the most from your ANA 9610, please read this Operating Guide thoroughly. -
Page 11: Important Electrical Considerations
This phone is no exception. Caution: Changes or modifications to this product not expressly approved by Uniden, or operation of this product in any way other than as detailed by this Operating Guide, could void your authority to operate this product. -
Page 12: Radio Interference
Color profile: Disabled Composite Default screen Radio Interference Radio interference may occasionally cause buzzing and humming in your cordless Handset, or clicking noises in the Base Unit. This interference is caused by external sources such as TV, refrigerator, vacuum cleaner, fluorescent lighting, computer equipment, or electrical storm. -
Page 13: Ana 9610 Features
Color profile: Disabled Composite Default screen ANA 9610 Features Super Long Range 900MHz Digital 2-line, 16-digit LCD Display Headset Jack Ringer Volume Control Handset Volume Control Single button access to: CONFERENCE, HOLD, and TRANSFER features Four Function Keys: PAUSE, FLASH, REDIAL, SEARCH... -
Page 14: Installing Your Ana 9610
Selecting the Installation Location Select a location for the ANA 9610 to avoid excessive heat or humidity. The Base Unit of your ANA 9610 can be placed on a desk or tabletop near a standard 120V AC outlet and telephone line jack. -
Page 15: Connecting The Telephone Cords
Color profile: Disabled Composite Default screen Connecting the Telephone Cords The ANA 9610 must be connected to an analog PBX port or a standard analog telephone line. CAUTION: Never install telephone wiring during a lightning storm. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. -
Page 16: Tone/Pulse Switch
Color profile: Disabled Composite Default screen Tone/Pulse Switch Be sure the TONE/PULSE switch is in the TONE position. Note: Most systems are Tone dialing. Check with your PBX Administrator if you are not sure whether your system is Tone or Pulse dialing. Applying Power to the Base and Charger Units Adapter Use only the supplied AC Adapter: AD-9500... - Page 17 Note: If you cannot plug the AC Adapter into the outlet, contact someone about replacing the outlet. The unique design of your ANA 9610 allows you to place the Handset in the Charging Unit with or without the Belt Clip attached.
-
Page 18: Wall Installation
Color profile: Disabled Composite Default screen Wall Installation Standard Wall Plate Mounting These Phones are designed to be mounted on a standard AT&T or GTE wall plate. To attach the wall mount stand to the Base Unit: 1. Slide the Wall Mount stand into the notches at the top of the Base Unit, rotate the Wall Mount stand down and snap it... - Page 19 Color profile: Disabled Composite Default screen 6. Place the Base Unit on the posts of the wall plate and push down until it’s firmly seated. 7. Plug the AC Adapter into a standard 120V AC wall outlet. Note: Do not use an outlet controlled by a wall switch. Direct Wall Mounting If you do not have a standard wall plate, you can mount your phone directly on a wall.
- Page 20 Color profile: Disabled Composite Default screen 1. Insert two mounting screws 3 inches apart. Allow about of an inch between the wall and screw heads for mounting the phone. 2. Plug and secure the AC Adapter cord by following steps 2 and 3 of the Standard Wall Plate Mounting.
- Page 21 Color profile: Disabled Composite Default screen 5. Plug the other end of the short telephone cord into a telephone wall jack. 6. Plug the AC Adapter into a standard 120V AC wall outlet by following step 7 of the Standard Wall Plate Mounting. Charging Unit Wall Mounting The Charging Unit is also designed to be wall mounted.
- Page 22 Color profile: Disabled Composite Default screen 3. Place the Charging Unit on the posts of the wall screws and push down until it’s firmly seated. 4. Plug the AC Adapter into a standard 120V AC wall outlet. P:\ana9610e\9610usae.vp Mon Aug 30 10:26:10 1999 Strain Relief 3/16"...
-
Page 23: Attaching The Belt Clip To The Handset
Color profile: Disabled Composite Default screen Attaching the Belt Clip to the Handset You can use the Belt Clip to attach the Handset to your belt or pocket for convenient portability. 1. Snap the tab out of the Belt Clip notch on the top of the Handset. -
Page 24: Installing The Handset Battery Pack
Color profile: Disabled Composite Default screen 4. To remove, simply press the retain clip in toward the Belt Clip blade and slide the clip up at the same time. Once the Belt Clip is removed remember to re-install the cover tab. Installing the Handset Battery Pack 1. -
Page 25: Charging The Handset Battery Pack
Charging the Handset Battery Pack The Rechargeable Sealed Lead-Acid Battery Pack must be fully charged before using your ANA 9610 for the first time. ( Note: Charge the Battery Pack without interruption for 5 hours. ) 1. Place the Handset in the front slot of the Charging Unit. -
Page 26: Charging Spare Battery Packs
Composite Default screen Charging Spare Battery Packs The Charger Unit of your ANA 9610 is equipped to charge the Spare Battery Pack with or without the Handset in the front slot. 1. Slide the Spare Battery Pack into the second slot in the... -
Page 27: Cleaning The Battery And Charging Unit Contacts
Color profile: Disabled Composite Default screen Cleaning the Battery and Charging Unit Contacts To maintain a good charge, it is important to clean all charging contacts on the Handset, Spare Battery Pack and Charging Unit about once a month. Use a pencil eraser or other contact cleaner. Do not use any liquids or solvents. -
Page 28: Using Your Ana 9610 Handset
Color profile: Disabled Composite Default screen Using Your ANA 9610 Handset Before using your ANA 9610, be sure to raise the antenna to the vertical position. Note: Operation of the ANA 9610 is performed using the Hand- set out of the Charging Unit. -
Page 29: Ana 9610 Handset Controls
Color profile: Disabled Composite Default screen ANA 9610 Handset Controls talk Condition Handset Earpiece Volume Press vol on the front of (During a Call) the Handset to select a high or low Earpiece volume level. Ringer Select (Standby Press vol on the front of... -
Page 30: Using The Handset
Channel Busy Error Tone Line in Use Error Tone If the Handset is at the range limit of the ANA 9610, or no power is going to the Base Unit, you may see: Take the following action: During a Call... -
Page 31: Answering A Call
Color profile: Disabled Composite Default screen Answering a Call When you receive a call, the Handset rings and you’ll see: Handset in the Charging Unit Pick up the Handset. The AutoTalk feature allows you to answer the call immediately. When you finish the call, place the Handset back in the Charging Unit. AutoStandby automatically hangs up the phone. -
Page 32: Feature Buttons
Color profile: Disabled Composite Default screen Feature Buttons Note: The exact operation of the Feature Buttons depends on how your PBX system is configured. Contact your PBX Administrator for more information. Placing a call “on hold” Press hold . You’ll hear a “beep” and see: To resume the call, press hold or talk . -
Page 33: Programming The Feature Buttons
Press 9 . Press memo . Press xfer . Note: For the ANA 9610, conference and transfer keys are operated by the Flash Hook function. Please, program you system transfer or conference code with the assistance of the PBX System Administrator. -
Page 34: Function Keys
Color profile: Disabled Composite Default screen Function Keys HOLD Press once, you’ll hear a “beep” and the call is placed on hold. Press hold or talk to resume the call (local hold). XFER Press xfer (Transfer), you’ll hear a “beep”. Dial the target number. -
Page 35: Using Your Ana 9610 Memory
After pressing memo the second time, you have 20 seconds to enter the memory location. Otherwise, an error tone sounds and the unit returns to Standby. The ANA 9610 then returns to Standby mode. Example: Store 555-1234 in memory location 12: a. Press memo . -
Page 36: Erasing A Stored Number
Color profile: Disabled Composite Default screen b. Enter 5551234 . c. Press memo . d. Press 12 . The Handset beeps. This is confirmation that you have programmed 5551234 into memory location 12 and you see: The phone then returns to Standby. Erasing a Stored Number Press memo . -
Page 37: Dialing With A Stored Number
Color profile: Disabled Composite Default screen Dialing with a Stored Number Note: The following applies when the phone is in Standby Mode, and you have already established a connection between Handset and Base Unit. Press talk . Press memo . Enter the Memory Location (01 - 20). -
Page 38: Chain Dialing
Color profile: Disabled Composite Default screen Pressing the chan key, you will move down through the Memory (20 to 1). Pressing vol you will move up through the Memory (1 to 20). Press vol or chan until you reach the desired Memory Location. -
Page 39: Using Your Ana 9610 Base Unit
The hold button (1) is used in conjunction with a desk top phone to switch from the Handset to a desk top phone. If you need to use a desk top phone which the ANA 9610 is connected to, press hold on the Base unit then pick up the desk top phone. -
Page 40: Optional Head Set (Exp9530)
Default screen Optional Head Set (EXP9530) The optional Head Set provides a “Hands-Free” Option for the ANA 9610. With the Head Set installed, you can use the Belt Clip to carry the Handset, and conduct a conversation using the Head Set. -
Page 41: Optional Backup Ac Adapter (Exp9505)
To install the Backup Adapter: Disconnect the Standard AC Adapter from the Base Unit of the ANA 9610. Plug the AC Adapter into the jack of the EXP9505. Plug the wire from the EXP9505 into the DC IN jack of the Base Unit. -
Page 42: Using An Optional Second 2500-Type Analog Telephone
1. Press hold on the Base unit, hang up the desk phone and press talk on the Handset. The call is now transferred to the ANA 9610, and the Desk phone is disconnected. Transferring a Call to the Desk Telephone Press hold on the ANA 9610 Base Unit. -
Page 43: Typical Applications
Composite Default screen Typical Applications You can use the ANA 9610 together with a standard PBX telephone to give you effective business communications both at your desk and away from it. Contact your PBX Administrator for more information about your System. -
Page 44: Optional Accessories And Replacement Parts
Color profile: Disabled Composite Default screen Optional Accessories and Replacement For the following Optional Accessories and Replacement Parts contact your PBX Administrator. AC Adapter Telephone Cord Backup AC Adapter 500 mAh Battery EXP9505 BT-9000 Base Unit Wall Mount Head Set EXP9530 EXP9660 Leather Case... -
Page 45: Troubleshooting
Composite Default screen Troubleshooting If your ANA 9610 Cordless Telephone is not performing to your expectations, please try these simple steps. If you are still unable to resolve the problems, contact your PBX Administrator. Note: Do not attempt to service this unit yourself. All service must be done by qualified service personnel. -
Page 46: Specifications
Color profile: Disabled Composite Default screen Specifications General: The ANA 9610 complies with FCC and IC parts 15 and Frequency Control : Phase Lock Loop Modulation : FM Operating Temperature Base Unit Receive/Transmit Frequency : 902 MHz to 928 MHz...
