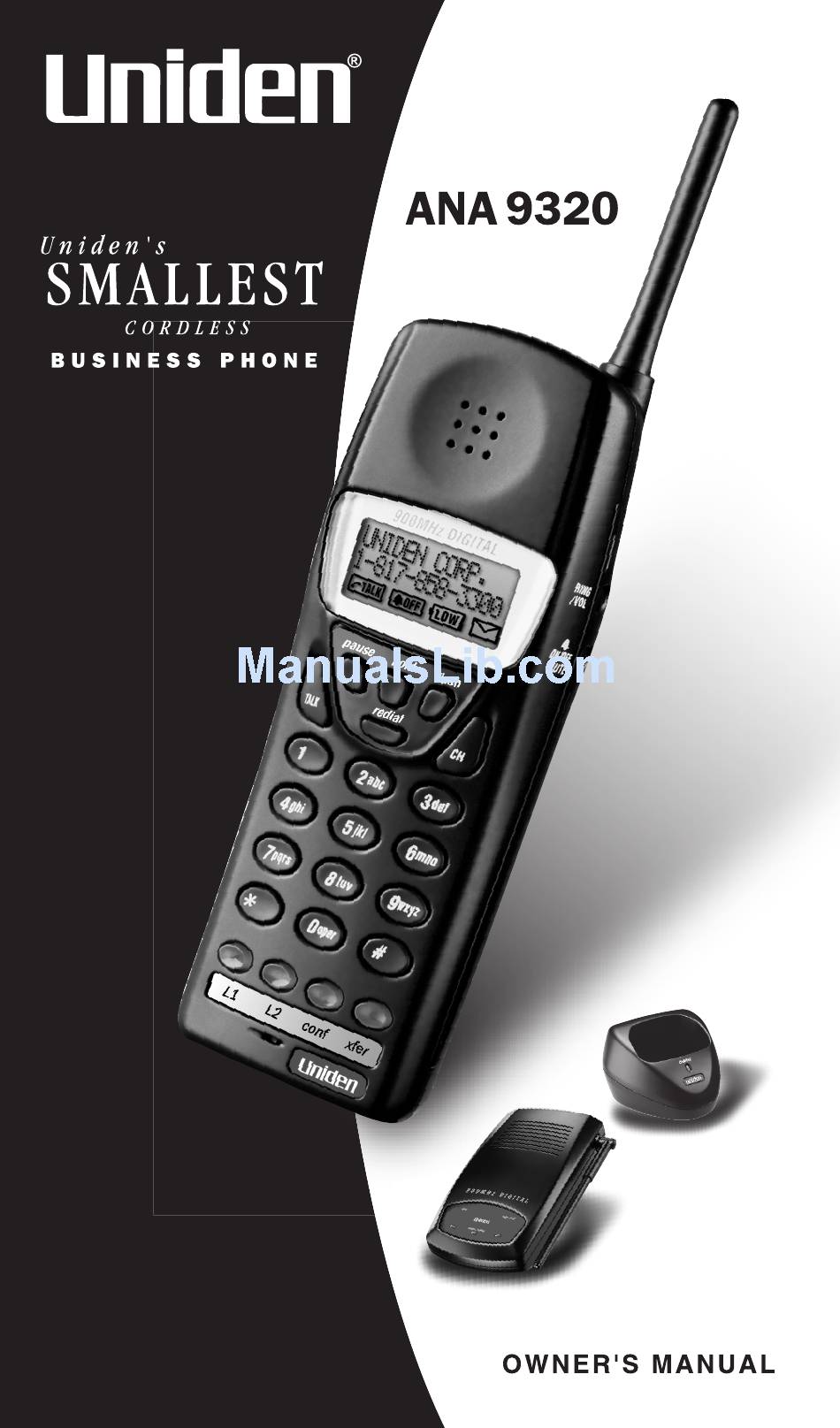

Uniden ANA 9320 Owner's Manual
  1. Manuals
  2. Brands
  3. Uniden Manuals
  4. Cordless Telephone
  5. ANA 9320
  6. Owner's manual
Uniden ANA 9320 Owner's Manual

Uniden ANA 9320 Owner's Manual

Uniden owner's manual cordless phone ana9320
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Uniden ANA 9320

Summary of Contents for Uniden ANA 9320

  • Page 2: One Year Limited Warranty

    One Year Limited Warranty WARRANTOR: UNIDEN AMERICA CORPORATION (“Uniden”) ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original retail owner, this Uniden Product to be free from defects in materials and craftsmanship with only the limitations or exclusions set out below.
  • Page 4 Before you read anything else, please observe the following: WARNING! Uniden America Corporation DOES NOT represent this unit to be waterproof. To reduce the risk of fire, electrical shock, or damage to the unit, DO NOT expose this unit to rain or moisture.
  • Page 5 Handset Controls & Functions 1. Headset Jack 2. Message Display 3. Pause ( pause ) Key 4. Talk ( TALK ) Key 5. Numeric Keypad 6. L2 Key 7. L1 Key 8. Microphone 9. Hold ( hold ) Key 10. Flash ( flash ) Key 11.
  • Page 6 Base Unit Controls & Functions 18. line 1 LED 19. power/status LED 20. line 2 LED...

  • Page 7: Table Of Contents

    Specifications............34 Uniden® is a registered trademark of Uniden America Corporation.

  • Page 8: Important Safety Instructions

    Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons, including the following: Read and understand all instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning.

  • Page 9: Save These Instructions

    D. If the product does not operate normally when following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the product to normal operation.

  • Page 10: About Your Ana 9320

    About Your ANA 9320 Congratulations on your purchase of the Uniden ANA 9320 Cordless Telephone. The ANA 9320 is designed and engineered to exacting standards for reliability, long life, and outstanding performance. It is designed to work with a PBX system. To get the most from your ANA 9320, please read this Operating Guide thoroughly.

  • Page 11: Important Electrical Considerations

    This phone is no exception. Caution: Changes or modifications to this product not expressly approved by Uniden, or operation of this product in any way other than as detailed by this Operating Guide, could void your authority to operate this product.

  • Page 12: Radio Interference

    Radio Interference Radio interference may occasionally cause buzzing and humming in your cordless Handset, or clicking noises in the Base Unit. This interference is caused by external sources such as a TV, refrigerator, vacuum cleaner, fluorescent lighting, computer equipment, or electrical storm. Your unit is NOT DEFECTIVE. If these noises continue and are too distracting, please check around your office to see what appliances may be causing the problem.

  • Page 13: Ana 9320 Features

    ANA 9320 Features Long Range 900MHz Digital 2-line, 16-digit LCD Display Ringer Volume Control Handset Volume Control Single button access to: CONFERENCE, HOLD, and TRANSFER features Four Function Keys: PAUSE, HOLD FLASH REDIAL 30 Simultaneous Conversations Separate Charging Stand AutoStandby AutoTalk Vibrator Ringer Alert Easy Installation...

  • Page 14: Installing Your Ana 9320

    A modular jack converter (not included) is required. You may need to rewire when connecting the converter (making color- coded connections). Note: Your Uniden Telephone Dealer or a telephone supply store can advise you on the proper adapter or converter.

  • Page 15: Connecting The Telephone Cords

    Connecting the Telephone Cords The ANA 9320 must be connected to a PSTN or an analog PBX port telephone line. TIP: To setup PSTN or PBX, refer to page 24. CAUTION: Never install telephone wiring during a lightning storm. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.

  • Page 16: Applying Power To The Base And Charger Units

    Applying Power to the Base and Charger Units Use only the supplied AC Adapter: EXP9704 IMPORTANT! Route the power cord where it will not create a trip hazard, or where it could become chafed and create a fire or other electrical hazards.

  • Page 17: Wall Installation

    Wall Installation Standard Wall Plate Mounting These Phones are designed to be mounted on a standard wall plate. To attach the wall mount stand to the Base Unit: 1. Slide the Wall Mount stand into the notches at the top of the Base Unit, push the Wall Mount stand down and snap it into place.
  • Page 18 6. Place the Base Unit on the posts of the wall plate and push down until it’s firmly seated. 7. Plug the AC Adapter into a standard 120V AC wall outlet. Note: Do not use an outlet controlled by a wall switch. Direct Wall Mounting If you do not have a standard wall plate, you can mount your phone directly on a wall.
  • Page 19 1. Insert two mounting screws 3 15/16 inches apart. Allow about 3/16 of an inch between the wall and screw heads for mounting the phone. 2. Plug and secure the AC Adapter cord by following steps 2 and 3 of the Standard Wall Plate Mounting. 3.
  • Page 20 Charging Unit Wall Mounting The Charging Unit is also designed to be wall mounted. Before mounting your charging unit, consider the following: Select a location away from electrical cables, pipes, or other items behind the mounting location that could cause a hazard when inserting screws into the wall.
  • Page 21 3. Slide the wall mount stand into the notches on the bottom of the charging unit. 4. Place the Charging Unit on the posts of the wall screws and push down until it’s firmly seated. 5. Plug the AC Adapter into a standard 120V AC wall outlet.

  • Page 22: Attaching The Belt Clip To The Handset

    Attaching the Belt Clip to the Handset You can use the Belt Clip to attach the Handset to your belt or pocket for convenient portability. 1. Snap the tab out of the Belt Clip notch on the top of the Handset. 2.

  • Page 23: Installing The Handset Battery Pack

    Installing the Handset Battery Pack 1. Remove the battery cover by pressing the latch and sliding the cover down and off of the Handset. 2. Connect the battery pack connector observing correct polarity to the jack inside the battery compartment. Do not exert any force on this connection.

  • Page 24: Charging The Handset Battery Pack

    Charging the Handset Battery Pack The Rechargeable Ni-MH Battery Pack must be fully charged before using your ANA 9320 for the first time. ( Note: Charge the Battery Pack without interruption for 5 hours. ) 1. Place the Handset into the Charging Unit.

  • Page 25: Using Your Ana 9320 Handset

    Using Your ANA 9320 Handset Before using your ANA 9320, be sure to raise the antenna to the vertical position. Note: Operation of the ANA 9320 is performed using the Handset out of the Charging Unit. ANA 9320 Handset Controls...

  • Page 26: Earpiece Volume

    Earpiece Volume Press RING/VOL on the side of the Handset during a call to select the earpiece volume of the handset.

  • Page 27: Handset Ringer Tone And Volume

    Handset Ringer Tone and Volume Pressing RING / VOL on the side of the Handset in standby mode to select seven ringer tones and volume combinations. Vibrate Mode “Ring off” shown on the above display is the Vibrate Mode. If you set the ringer off and the Handset is not on the charger, the Handset will vibrate when there is an incoming call.

  • Page 28: Using The Handset

    Using the Handset When you pick up the Handset and press TALK , you will see: After the connection has been made between the Handset and Base, the display will show the lines currently connected: Or, you may see one of the following: Condition No Connection to Base Unit...

  • Page 29: Answering A Call

    Answering a Call When you receive a call, the Handset rings and you’ll see: Handset in the Charging Unit Pick up the Handset. The AutoTalk feature allows you to answer the call immediately. When you finish the call, place the Handset back in the Charging Unit. AutoStandby automatically hangs up the phone.

  • Page 30: Programming Functions

    Programming Functions PBX or PSTN In the Programming mode, you can select either Analog PBX or PSTN (Public Service Telephone Network) operation. The default is PSTN. Available features of each mode of operation are illustrated in the table below. Feature Conference Transfer Note: Both Conference and Transfer commands must be programmed...

  • Page 31: Programming Xfer In Pbx

    Programming Xfer in PBX Note: Before programming these commands, contact your PBX Administrator to obtain programming codes. The xfer key can be programmed for special use, such as causing a "Hook Flash" followed by a special number or function. The Hook Flash is used to send a signal to the PBX system to initiate a transfer.

  • Page 32: Programming Conf In Pbx

    Programming Conf in PBX Your PBX system's configuration determines how the conference feature works. Contact your PBX Administrator for exact operation details. The example below is just a representation. For example - to program the conf key for "Hook Flash" and "9": Press and hold pause for two seconds.

  • Page 33: Feature Buttons

    Feature Buttons Note: The exact operation of the Feature Buttons depends on how your PBX system is configured. Contact your PBX Administrator for more information. : Placing a call “on hold” Press hold . You will see the following display: To resume the call, press L1 , L2 or TALK .

  • Page 34: Pbx Features

    PBX Features L1 Key Press the L1 key to initiate a call on Line 1. L2 Key Press the L2 key to initiate a call on Line 2. conf Key In PBX mode, the conf (conference) key must first be programmed. Refer to the section entitled "Programming Conf in PBX".

  • Page 35: Pstn Features

    RING/VOL Key This key selects the ringer volume level or tone (or silent alert) during standby mode, and handset earpiece audio level during a call. This key also selects an item during programming mode. CH Key The ANA 9320 automatically selects the clearest of three channels during a call for maximum audio quality.
  • Page 36 xfer Key Note: This feature is not available in PSTN mode. hold Key Press once and the call is placed on hold. Press L1 , L2 or TALK to resume the call. pause Key Press once to cause a four second pause while dialing a number. flash Key Press once to cause a "Hook Flash"...

  • Page 37: Optional Headset (Exp9730/9530)

    Optional Headset (EXP9730/EXP9530) The optional Headset provides a “Hands-Free” Option for the ANA 9320. With the Headset installed, you can use the Belt Clip to carry the Handset, and conduct a conversation using the Headset. To install the optional Headset, open the cover over the Headset Jack and plug the Headset in.

  • Page 38: Optional Accessories And Replacement Parts

    Optional Accessories and Replacement Parts For the following Optional Accessories and Replacement Parts contact your PBX Administrator. EXP9704 AC Adapter for Base Unit 750 mAh Battery BT-930 Headset EXP9530 Charging Unit Wall Mount EXP9360 Telephone Cords Operating Guide Base Unit Wall Mount OM9320 Headset EXP9730...

  • Page 39: Troubleshooting

    If your ANA 9320 Cordless Telephone is not performing to your expectations, please try these simple steps. If you are still unable to resolve the problems, contact your PBX Administrator. Note: Do not attempt to service this unit yourself. All service must be done by qualified service personnel.

  • Page 40: Specifications

    Frequency Control Modulation Operating Temperature Base Unit Receive/Transmit Frequency : 902 MHz to 928 MHz Power Requirements Size Weight Handset Receive/Transmit Frequency : 902 MHz to 928 MHz Power Requirements Size Weight Battery Talk Time Standby Time Specifications shown are typical and subject to change without notice. Specifications : Phase Lock Loop : FM...
  • Page 41 MEMO...
