Summary of Contents for Vacron VDH-NK800
- Page 1 VDH-NK800 Hardware Manual 2015 JUL V1.1...
-
Page 2: Table Of Contents
VDH-NK800 Hardware Manual Contents CAUTION .............................. 1 Introduction ............................2 1. Product Overview ........................2 2. Main functions ........................... 2 Unpacking ............................3 1. Accessories ..........................3 2. Unpacking ........................... 3 Installation ............................3 Product appearance ......................... 4 1. Front Panel ..........................4 2. -
Page 3: Caution
VDH-NK800 Hardware Manual A. CAUTION To our dear customer! Thank you for using our products. If you encounter any problems when using, please do not hesitate to contact our resellers. We will provide excellent services to you via our resellers. -
Page 4: Introduction
VDH-NK800 Hardware Manual B. Introduction Product Overview This equipment is an excellent digital surveillance product designed specifically for the security use. Using embedded LINUX operating system, it makes the system more stable. Using standard H.264 video compression and G.711A audio compression technology achieves audio and video functions such as high-quality, low bit rate and single-frame playback. -
Page 5: Unpacking
VDH-NK800 Hardware Manual C. Unpacking Accessories ★ Power cable and adaptor AC100-240V/DC12V 5A x 1PCS ★ HDD screws x 16pcs ★ Operation CD x 1pcs ★ Mouse x 1pcs Unpacking When you receive the product, check first whether the packing of the equipment has obvious damage. -
Page 6: Product Appearance

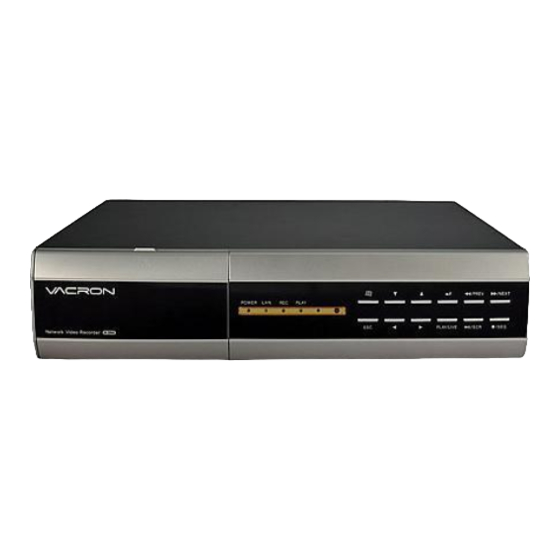

VDH-NK800 Hardware Manual E. Product appearance Front Panel MENU Going to Menu Exit ■ / SEQ Stop Stop when Playback INFO INFO Information Page When playing back，there are 2*、4*、8*、16*、 Backward 32*、1/2*、1/4* backward speeds. Under live page、2Ch and 9Ch can be changed When playback，there are 2*、4*、8*、16*、... -
Page 7: Rear Panel
VDH-NK800 Hardware Manual Rear Panel Alarm In Alarm Out E-SATA Audio Out VGA Out HD Out USB 3.0 USB 2.0 DC12V Input Alarm In/Alarm Out DC 12V ... -
Page 8: Installation Illustration
VDH-NK800 Hardware Manual Installation Illustration Video input Input interface is RJ-45 type; input signal is IP CAM The Video signal should comply with national standards, a higher signal to noise ratio, low distortion, low-interference; clear images, no deformation, nature color and appropriate brightness. -
Page 9: Audio Inputs
VDH-NK800 Hardware Manual The video outputs include VGA and HDMI interfaces. Pay attention to the following when you select a PC display instead of a monitor. Do not remain switched on for a long time to extend the life of the equipment;... - Page 10 VDH-NK800 Hardware Manual (c) When the alarm device is shared with two NVRs or connected to a NVR and other devices, it should be isolated by relays. Alarm OUT The alarm output of the NVR can not be connected with high-power load (no more than 1A).
-
Page 11: Q & A And Maintenance
VDH-NK800 Hardware Manual F. Q & A and Maintenance 1. Q & A Q 1. After power on, NVR doesn’t work. A: The possible causes: 1. Wrong power input 2. bad connection of power cable 3. Power error 4. Firmware update error 5. - Page 12 VDH-NK800 Hardware Manual 3. Recording not enabled Q 6. No audio sound A : The possible causes: 1. Not powered-microphone 2. Not powered-speaker 3. Audio cable error 4. NVR hardware error Q 7. Wrong time A : The possible causes: 1.
-
Page 13: Maintenance
VDH-NK800 Hardware Manual Q 12. Forget the administrative password or Internet password A : The possible solution: Please contact local customer service staff or call the customer service phone headquarters, we will guides you how to solve by the machine type and version of the program. -
Page 14: Appendix : Specifications
VDH-NK800 Hardware Manual G. Appendix : Specifications 16CH NVR System Operating system：Linux Storage Build in SATA interface x 4, compatible SATA/SATAII/SATA III HDD( Max. 16TB) Device/Interface E-SATA *1 (Max 16T) User Interface 14 operating buttons on Front panel controller Video And Other Dual video：HD OUT/VGA... - Page 15 VDH-NK800 Hardware Manual and 60 minutes after event taken place. Manual recording Only recording without live (depending on user authority) Backup Video output format: AVI Management The USB mobile storage device or remote NAS System ManagementRemote Client software; live, playback set up by PC (remote side).
- Page 16 Manufacturer : FUHO TECHOLOGY CO., LTD. No. 30 Lane 726 Sec. 3 Jinma Rd., Changhua City Phone: 886-4-751- 2881 Fax: 886-4-751-6631...
