Vacron SA-650CF User Manual

Vehicle 4-ch
Hide thumbs Also See for SA-650CF:
Table of Contents

Advertisement

Quick Links

Download this manual

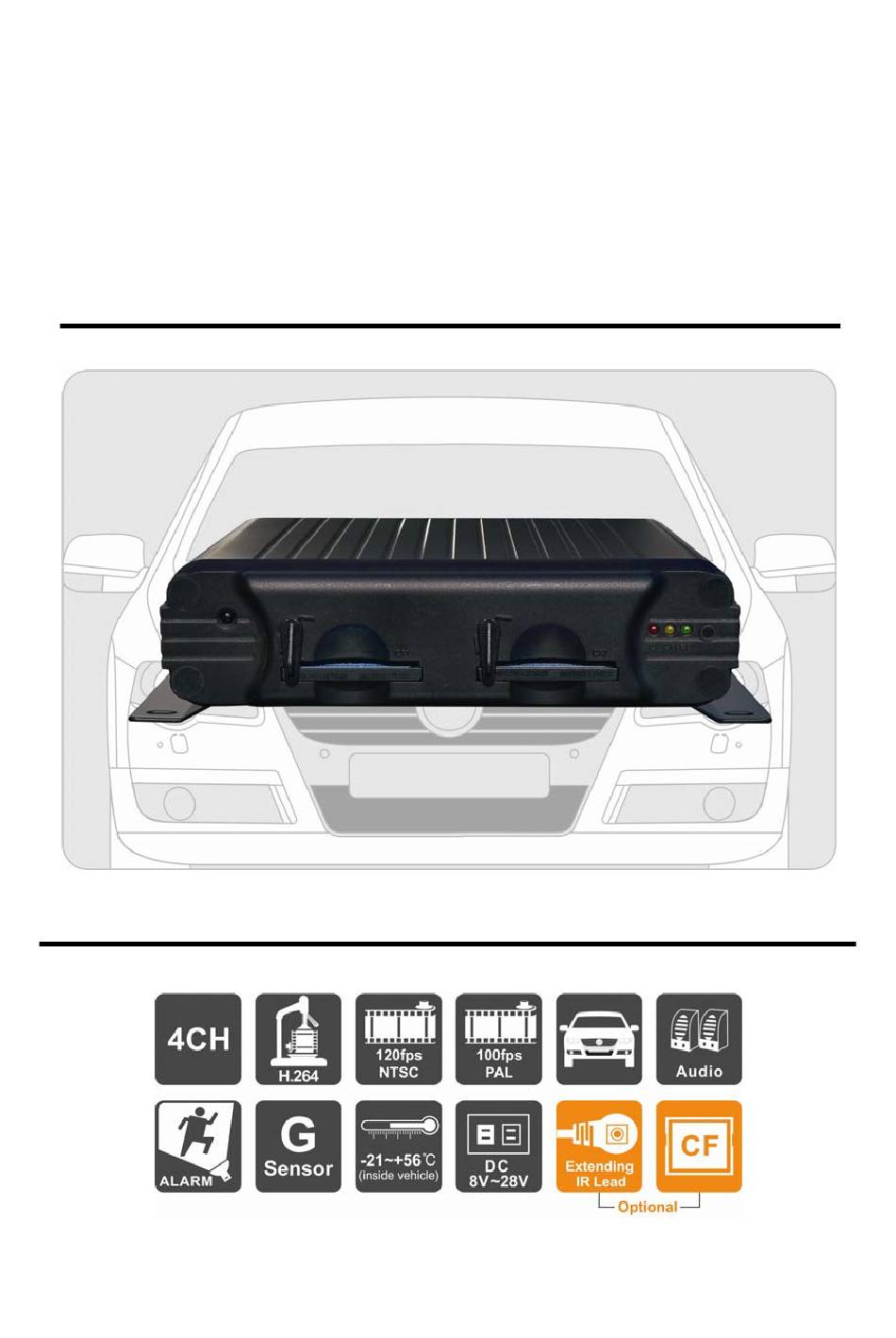

Vehicle 4-CH DVR System
USER MANUAL
2011 JAN. V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-650CF and is the answer not in the manual?

Questions and answers

Related Manuals for Vacron SA-650CF

Summary of Contents for Vacron SA-650CF

  • Page 1 Vehicle 4-CH DVR System USER MANUAL 2011 JAN. V1.0...

  • Page 2: Table Of Contents

    Table of Contents A. Product Features ..................1 B. Specification .................... 2 C. Front Panel ....................3 D. Rear Panel ....................3 E. Recording and Stop Recording ............... 4 F. System Operating Instruction ..............5 G. Play Recorded File ................10 H.

  • Page 3: Product Features

    A. Product Features  Provide Video output for playing-back mode in mainframe.  Recording format: D1 and CIF  Built-in microphone.  User friendly player software, easy to operation.  Overall quick search event log.  The full recording time and date can be showing in the monitor directly.

  • Page 4: Specification

    B. Specification Item Description Video Format NTSC Video Input 4CH Input / BNC Audio Input 1CH Input / Harness Connector Video Output 1CH Output /BNC Audio Output 1CH Output /RCA Alarm Input 4 Alarm Input Alarm Output Buzzer Display Mode Full Screen, 4 Split, Auto-Switch Display Resolution 720 x 480...

  • Page 5: Front Panel

    C. Front Panel CF1 Indicator LED Extending IR Lead CF2 Indicator LED IR Receiver CF 1 CF 2 Power Indicator LED D. Rear Panel Video Output Video Input Audio Output Power Input DC 8-28V Harness Connector Alarm Input DC+12V output Signal and general DC grounding Signal and general DC...

  • Page 6: Recording And Stop Recording

    E. Recording and Stop Recording CF1 Indicator LED CF2 Indicator LED Power Indicator LED 1. Power on/Recording: Turn on the power, and it will take approximately 40 seconds to boot up. During the recorder booting up, the CF card indicator LED will start flashing as the recording is in progress.

  • Page 7: System Operating Instruction

    F. System Operating Instruction Vehicle DVR system provides two operational methods: IR remote controller and PC software application.  Remote controller operating instruction As following is the key mapping table for remote controller: CH2 Display CH1 Display Recording CH3 Display Quad Display CH4 Display Mute...
  • Page 8 Menu Operation Remote Controller Selecting Options [Up/Down key] Enter selecting item [Enter key] Change selecting bar [Left/Right key] Back to top menu [MENU key] 2. Set Video Parameter Menu Operation Remote Controller Selecting options [Up/Down key] Enter selecting item [Enter key] Change selecting bar [Left/Right key] Back to top menu...
  • Page 9 Menu Operation Remote Controller Selecting options [Left/Right key] Enter selecting item [Enter key] Change selecting bar [Up/Down key] Back to top menu [MENU key] 5. Menu a. Delete All Record Data Menu Operation Remote Controller Selecting options [Left/Right key] Enter selecting item [Enter key] Change selecting bar None...
  • Page 10 c. Power Management Menu Operation Remote Controller Selecting options [Left/Right key] Enter selecting item [Enter key] Change selecting bar None Back to top menu [MENU key] d. Firmware Update Menu Operation Remote Controller Selecting options [Left/Right key] Enter selecting item [Enter key] Change selecting bar None...
  • Page 11  Screen setting and operating instruction Screen Operating Remote Controller Select single channel [ch1/ch2/ch3/ch4] display from ch 1~4 4 quad screen display [Quad key] Open quick menu [MENU key] Enter play-back mode [Play key] Start or stop manual [Recording key] recording Play-back operating instruction...

  • Page 12: Play Recorded File

    G. Play Recorded File 1. Playing file under PC Execute the CarBox2.exe from CD-ROM , the display as showing below. Click Play button to open the files in CF card; or click open file to choose the files from CF card or hard disk, and then double-click the file you want to play.
  • Page 13 Prev File Prev Frame Backward Play Pause Stop Play Next Frame Next File Disk backup. Configuration Google Map Playback Snapshot Tool, CF card format, language setting. Disk backup  Click disk backup icon, then it will pop-up as following dialogue windows. Step 1.
  • Page 14 Step 3. Choose the Backup Format. Backup format: (1)Original CF card format backup. XXXX*.sd file (2)AVI File(*.avi) backup when take this format as backup. CHN01 for front view camera image file, file type: *.avi ★caution: The difference between original CF card format file and AVI file is that AVI file contains only video and audio data but lose the speed and G-sensor data.
  • Page 15 Video Select the video Quality: High/ Normal / Low Quality Set the recording frame rate for the camera Video (2、4、6、8、10、15、20、25、30) Frame Rate Video D1/CIF Video Format : Format You can input the driver’s name or license number here to identify people’s identity. Information Suitable for company or group using.
  • Page 16  Snapshot While playing the recorded file, you can use this function to snapshot the picture and save it into your PC. Default saving path for snapshot picture will be in x:\IBoxPlayer/Snapshot folder. File type: .bmp b. Latitude & longitude coordinates Position Coordinate G Sensor...
  • Page 17 e. Video search & play speed Video searching bar Play speed (1) Video Searching: You can use the mouse to drag the bar to search the video quickly.。 (2) Play Speed: Support 2x, 4x fast forwarding and -2x, - 4x slow play mode. Volume control Volume BAR Volume degree...

  • Page 18: Format Memory Card

    H. Format Memory Card When to format the CF card? All CF cards that are purchased from other suppliers must be formatted before use. (The CF card that comes within the original package has been formatted and tested.) The procedure to format the CF card: ...
  • Page 19 6. When formatting is completed, please insert the card into machine for recording.  The procedure to format the CF card on DVR: 1. Use remote controller to enter DVR menu and choose format disk. 2. Click “Enter’’to start formatting. 3.

  • Page 20: Restoring Memory Card

    Restoring Memory Card When you have backup the recorded files into PC and want to use the CF card for other purposes, you have to restore it first so it can be used correctly. Follow the steps: 1. Put CF card into the 2.
