Vacron SA-650CF User Manual

Vehicle 4-ch dvr system, 3g module/without 3g module
Hide thumbs Also See for SA-650CF:
Table of Contents

Advertisement

Quick Links

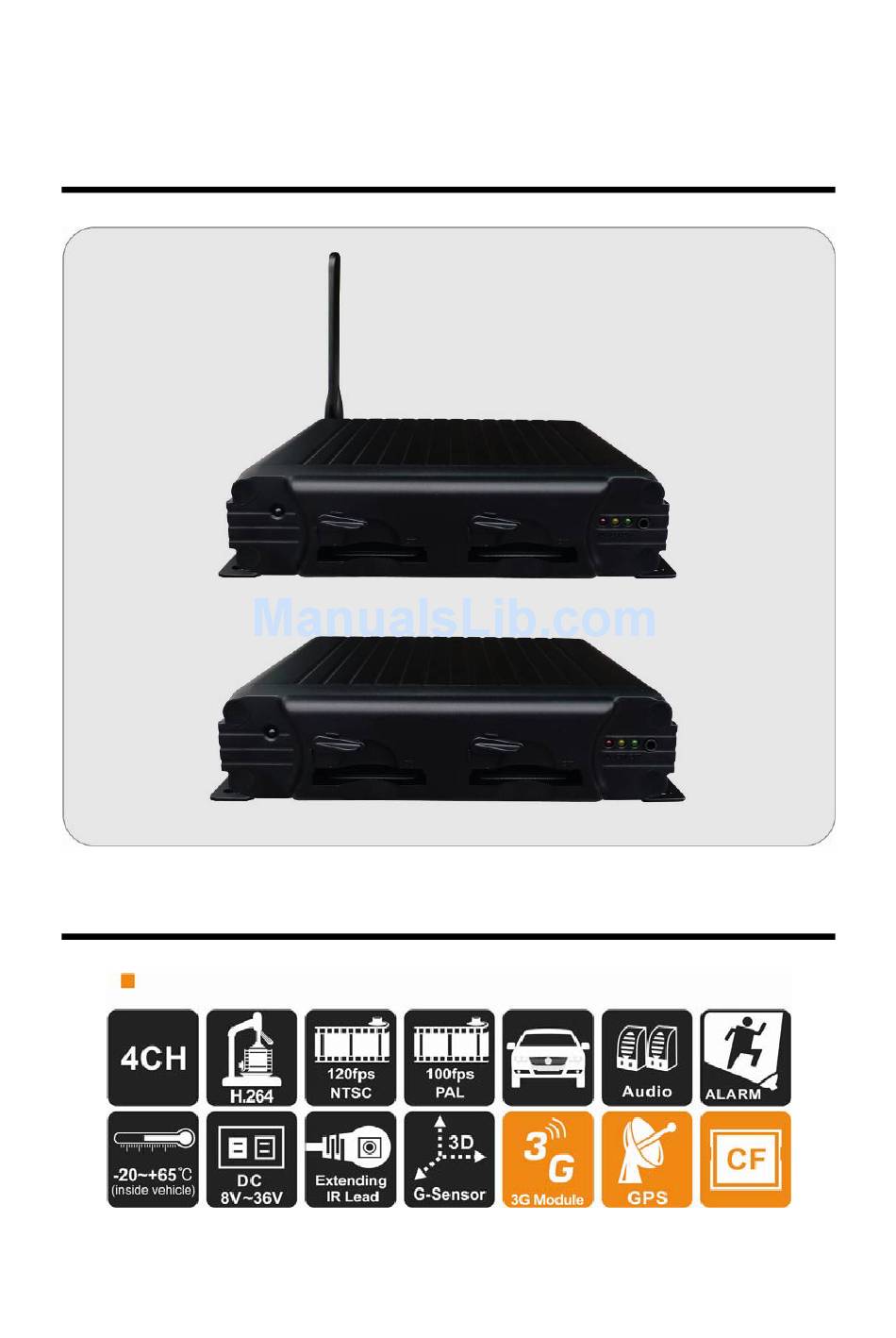

Vehicle 4-CH DVR System

USER MANUAL

3G Module
Without 3G Module
2011 NOV V1.2.2
Optional

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-650CF and is the answer not in the manual?

Questions and answers

Related Manuals for Vacron SA-650CF

Summary of Contents for Vacron SA-650CF

  • Page 1: User Manual

    Vehicle 4-CH DVR System USER MANUAL 3G Module Without 3G Module 2011 NOV V1.2.2 Optional...
  • Page 2 Index Product Features ....................1 Specification ......................2 Product Appearance .................... 3 Record / Stop-Record ..................5 System Operating Instruction ................6 1. Through IR Remote Controller Instruction ............6 2. Through Carbox Player on PC Site ..............14 (1) Use CF card to playback directly ..............14 (2) 3G client software for viewing directly(select models with 3G modules) ..

  • Page 3: A. Product Features

    A. Product Features  Max. up to 4 CH vehicle cameras, can take record for inside and outside the vehicle.  Video output for live view, playback with monitor.  H.264 Compression format. Recording format：D1 and CIF.   Build-in single channel microphone. ...

  • Page 4: B. Specification

    B. Specification Item Description Video Format NTSC 4CH Input BNC/ Harness Connector Video Input 1CH Input / Harness Connector Audio Input 1CH Output BNC / Harness Connector Video Output 1CH Output RCA / Harness Connector Audio Output Alarm Input 4 Alarm Input Buzzer Alarm Output Full Screen, 4 Split...

  • Page 5: C. Product Appearance

    C. Product Appearance Front Panel Extending IR Lead CF 1 CF 2 GPS Indicator LED(CF2) IR Receiver Record Indicator LED(CF1) Power Indicator LED Rear Panel TYPE1: without 3G module Video Output Video Input GPS(optional) Audio Output Power Input DC 8-28V Harness Connector Alarm Input DC+12V output...
  • Page 6 TYPE2: build-in 3G module 3G Module TYPE3: with 3G USB dongle 3G USB Module Dimension ( UNIT: mm...

  • Page 7: D. Record / Stop-Record

    Record / Stop-Record Record Indicator LED(CF1) Power Indicator GPS Indicator LED(CF2) 1. Power on / Record Turn on the power, and it will take approximately 40 seconds to boot up. During the recorder booting up, the CF card indicator LED will start flashing as the recording is in progress. Light indicator: Red light: light on, means power on;...

  • Page 8: E. System Operating Instruction

    E. System Operating Instruction Vehicle DVR system provides two operational methods: IR remote controller and PC software application. 1. Through IR Remote Controller Instruction 1.1 As following is the key mapping table for IR Remote controller: CH2 display CH1 display Record Quad display CH3 display...
  • Page 9 ◆IR Remote controller Instruction (1) Select Item: [up/down/left/right] (2) Change setting for selected item: [up/down/left/right] (3) Change setting for Bar item：[Enter] (4) Full Screen display for each CH: [CH1~CH4] (5) Open OSD menu, back to previous page：[menu] (6) Quad display ：[Quad] (7) Enter playback mode ：[play] (8) Stop Play/exit playback mode：[Stop] (9) Suspend recording:[Pause]...
  • Page 10 (2) Left/Right key→ Set brightness/contrast/hue for current channel (Left key→ To reduce)/ (Right key→ To increase)  Item Setting (1) Brightness: (Left key→ to reduce)/ (Right key→ to increase) (2) Contrast: (Left key→ to reduce)/ (Right key→ to increase) (3) Hue: (Left key→ to reduce Hue)/ (Right key→ to increase Hue) (3) Set Time ...
  • Page 11 (5) Delete All Record Data (Format Disk) (1) Delete All Record Data Use right key or left key to select the selection then click “enter” to confirm. ★Caution! All data will be deleted when you click “Yes”. (6) Default Live View Channel Display (1) Select the default live view CH after startup: Item selected will be default live view display mode after DVR booting completed.
  • Page 12 (8) Firmware Update During firmware update, please do not power off; after finished the DVR will reboot automatically. When update firmware, Using left/right button on remoter controller to select Yes/No for update, then press enter button to confirm. ★ Must use CF card for firmware update. (9) Check Firmware Version (1) To check current firmware version, please select version and press enter key.
  • Page 13 (11) 3G Networking Setting (Only available when DVR with specific 3G module) (1) When enable the 3G networking function, Press the right/left key on remote controller first to select 3G ON/OFF, then press “confirm” key to save the change. ★ After setup finished, press the up/down key to check information about 3G network settings are properly.
  • Page 14 (13) Password Setting (3G version without this function) (1) Set password protected on machine： It required to enter the password before setting, playback, formatting… implement relevant actions. (2) Use remote controller keys to change setting, Click Left key to move one space for selecting number for password, then click up/down key to enter the number, after finished, click “enter”...
  • Page 15  LIVE Display (1) Select CH1~CH4 to full display mode; If you want to return to quad display, please press quad key. (2) On Live view mode, click “menu’ to enter OSD menu or click ‘Play” to enter playback mode. ★...

  • Page 16: Through Carbox Player On Pc Site

    Through Carbox Player on PC Site (1) Use CF card to playback directly Execute the CarBox2.exe from CD-ROM , the display as showing below. Click Play button to select memory card; or click open file to choose the files from memory card or hard disk, and then double-click the file you want to play.
  • Page 17 Previous File Previous Frame Backward Play Pause Stop Play Next Frame Next file Open folder, select file. Disk backup. Select the backup path for file storage. Google Map Configuration Snapshot Tool, CF card format, language setting. Hard Disk Backup  Review footage on the CF card through PC, Click”...
  • Page 18 Step 1. Select the CF card drive no. Step 2. Select the recorded file which you want to backup Step 3. Select the Backup Format Backup format: (1)Original CF card format backup. XXXX*.sd file (2)AVI File(*.avi) backup when take this format as backup. CHN01 for front view camera image file, file type: *.avi caution:...
  • Page 19 Step 5. Backup: Click ‘backup’ to start saving the file to your specified destination  Configuration Before using the machine, please insert the CF card to card reader and connect to the PC to start setting. After setting, you can insert the card back to DVR and start recording.
  • Page 20 Audio Audio recording on or off. Recording This function can encrypt the data and prevent others from accessing. Maximum letters:15 letters. Example: 123456789123456 After setting the password up, you have to input password every time for playing the files, Password modify the setting, formatting the memory card etc.
  • Page 21  Snapshot While playing the recorded file, you can use this function to snapshot the picture and save it into your PC. Default saving path for snapshot picture will be in x:\IBoxPlayer/Snapshot folder. File type: .bmp b. Latitude & Longitude Coordinates Position Latitude &...

  • Page 22: G Client Software For Viewing Directly(Select Models With 3G Modules)

    e. Video Search & Play Speed Video searching BAR Play speed (1) Video Searching You can use the mouse to drag the bar to search the video quickly. (2) Play Speed Support 2x, 4x fast forwarding and -2x, -4x slow play mode. Volume Control Volume BAR Volume degree...
  • Page 23 Note: To perform this software will require DirectX 9.0 or more. Click and then select the name of vehicle to view the image (example, the figure of 175) then click on Channel-01 (or other Channel) and then hold down the left mouse button and drag to the split screen in right side.
  • Page 24 Click can watch the event log and vehicle driving records... Click can watch the Google Map and inquiry the date and time record of the vehicle…..

  • Page 25: F. Format Memory Card

     3G ClientApp page and other relevant settings Login: click Login on the top of the screen to open the login screen information. Add Device: In order to identify each device, add the vehicle information here. Style: watch different split-screen, just click Style option to set values;...

  • Page 27: G. Restoring Memory Card

    5. After formatting completed, re-insert the CF card to do relative setting. please insert the card into DVR for recording. █Process to Format the CF Card on DVR: 1. Use remote controller to enter DVR menu and choose Delete All the Record Data(format disk). 2.
  • Page 28 3. Execute the player “CarBox2.exe” into main page(refer to the charts below 4. Select restore button to start as following steps...
  • Page 29 5. You can use the memory card for other purposes.

  • Page 30: H. 3G-Sim Card Setting (With 3G Module)

    H. 3G-SIM Card Setting (with 3G Module) When use SIM card in our device, please pay attention to disable the PIM code protection feature first. How to turn off the PIN code protection? 1. Using HUAWEI 3G Module and then plug the SIM card into PCI-E board first.
  • Page 31 4. Confirm entering correct PIN code and then complete the cancellation PIN code function. 5. After completing above procedure, HUAWEI 3G Module and SIM card on our PCI-E board could connect to 3G system well. ★Unplug the USB cable and replace the original wiring connected to PCI-E board.

  • Page 32: I. 3G Config Tool Updated (With 3G Module)

    3G Config Tool Updated (with 3G Module) 1. Click icon to open setup page. 2. Connect the USB flash drive into your computer's USB port and then select the drive location, enter as following information.
  • Page 33 3. Click “OK” button to save data after whole information entered, and then the 3G module information setting is completed. Click the USB drive to view the file already exists. (File name is net3g.ncf) 4. Insert the USB drive into the DVR USB port, and then reconnect the power to reboot the machine.
  • Page 34  Setup page description 1. UserName: User name ( No setting recommend in this function) 2. Password: Password ( No setting recommend in this function) 3. Server Address: Set IP address for back-end site (Generally, the default setting as back-end testing for factory) 4.
  • Page 35 Record Time Estimation (Based on constant record mode with 8GB card) ＊The chart of estimated record time listed below is for reference only(based on 8Gb with 2 inner &2 exterior Cameras). The length of time recorded can be varied due to different record condition. Unit: Hr Resolution/ 5 fps...
