Transcend USB2.0 Internal Multi-Card Reader TS0MFLRD8B Specification Sheet page 2

T T S S 0 0 M M F F L L R R
T S 0 M F L R

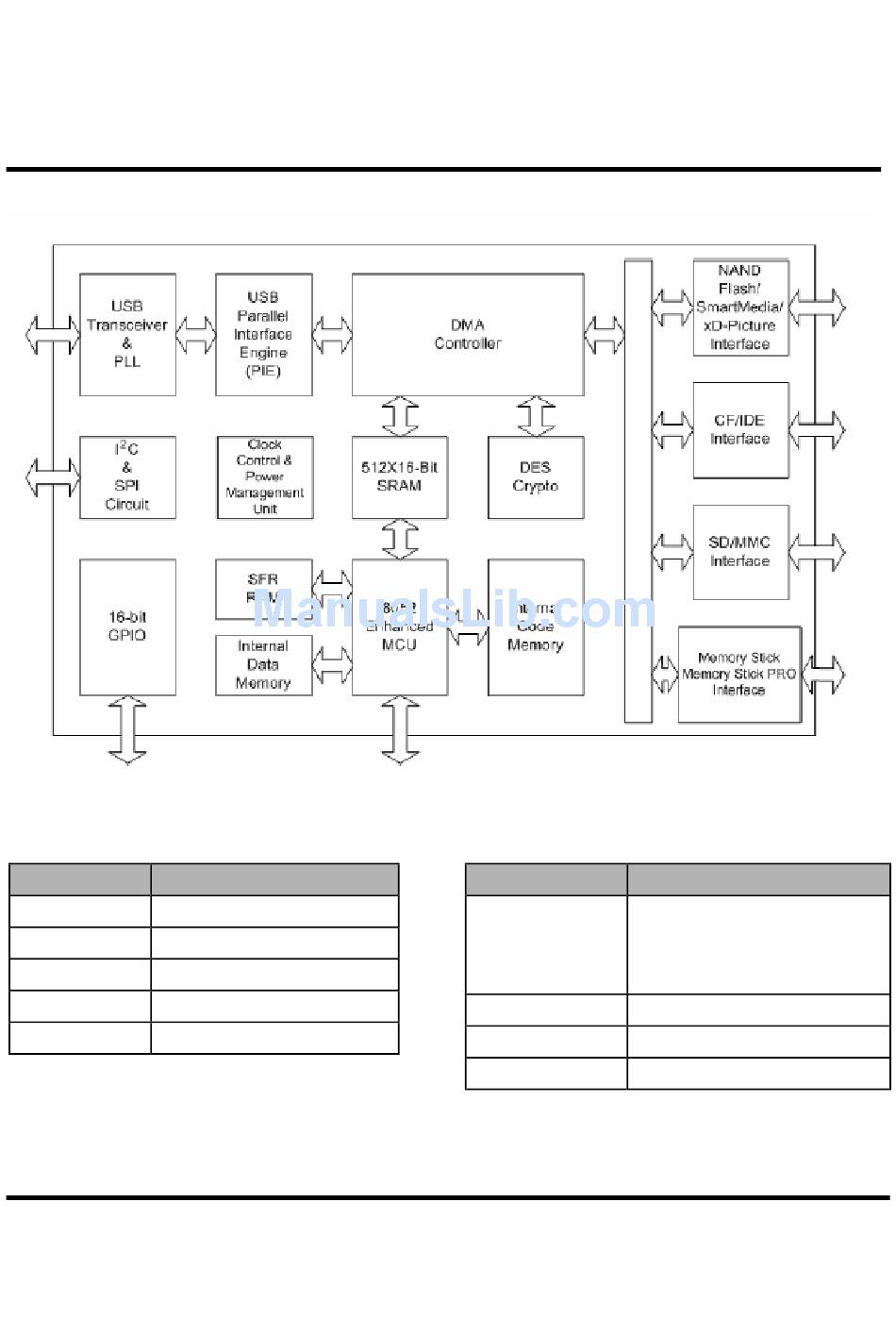

Block Diagram
Pinouts
Pin No.
01
02
03
04
05
Transcend Information, Inc.
D D 8 8 B B
D 8 B
Pin Name
VCC
USB-
USB+
VSS
NC / SG
USB2.0 Internal Multi-Card Reader
Pin Identification
Symbol
USB-
USB+
VSS
VCC
NC / SG
2
Function
USB differential signal:
The pairs are used to transmit
Data/Address/Command
Ground
USB Power Input
Not Connect / Shield Ground
