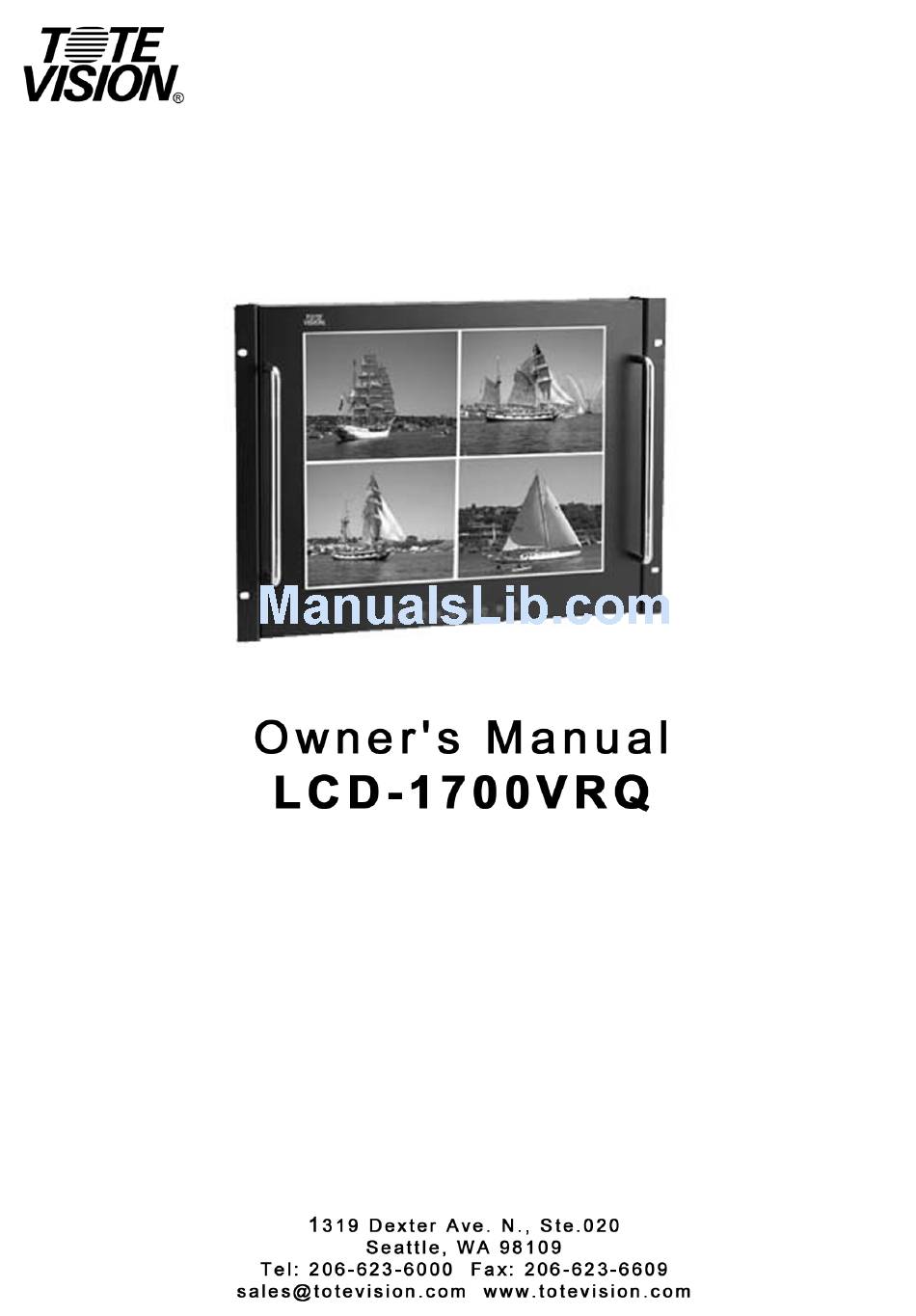

Tote Vision LCD-1700VRQ Owner's Manual
  1. Manuals
  2. Brands
  3. Tote Vision Manuals
  4. Monitor
  5. LCD-1700VRQ
  6. Owner's manual

Tote Vision LCD-1700VRQ Owner's Manual

Tote vision monitor owner's manual lcd-1700vrq
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCD-1700VRQ and is the answer not in the manual?

Questions and answers

Related Manuals for Tote Vision LCD-1700VRQ

Summary of Contents for Tote Vision LCD-1700VRQ

  • Page 3: Before Installing Your Monitor

    17” Quad display LCD monitor ______________________ CHAPTER 1 NTRODUCTION BEFORE INSTALLING YOUR MONITOR READ THIS MANUAL COVER TO COVER. PAY ATTENTION to all WARNING and CAUTIONS DO NOT use computer components not recommend by the manufacture Do not attempt to service the monitor your self. If a problem occurs, contact the manufacture's authorized service cente ABOUT YOUR MONITOR This monitor is a microprocessor-controlled, color monitor...

  • Page 4: Factory-Preset Modes

    ________________________17” Quad display LCD monitor FACTORY-PRESET MODES Table 1 shows standard video mode setting that have been pre-adjusted at the factory for accurate video display. These setting are stored in the monitor's memory Table 1. Factory-Preset Modes Mode Resolution 640x400 640x350 720x400 640x480...

  • Page 5: Specifications

    17” Quad display LCD monitor ______________________ PECIFICATIONS LCD-1700VRQ 17” LCD Monitor Overall Dimension (HxWxD): Shipping Weight (G/W): Effective Display area (H/V): 337.92 x 270.34 mm Display colors: Scan Frequencies: Horizontal Vertical Number of Pixels: Pixel pitch: Picture Tube: Power: Input...
  • Page 6 ________________________17” Quad display LCD monitor Compatibility: Environmental Limits: Operating Temp Storage Temp. Operating Humidity Storage Humidity Agency Approval Safety IBM and compatible, Apple Macintosh, NEC 32 to 104 F ( 0 to 40 C ) -4 to 140 F ( -20 to 60 C ) 10 to 85% without condensation 10 to 95% without Condensation FCC-A and CE...

  • Page 7: Product Package

    17” Quad display LCD monitor ______________________ RODUCT Open the shipping carton and check the contents. If any items are missing or damaged, contact your dealer immediately. The package should include the following items 8U 17” Color TFT LCD Monitor Accessory Box: VGA cable x 1 AC to DC adapter x 1 Power Cord x 1...

  • Page 8: Follow These Steps T O Install The Monitor

    ________________________17” Quad display LCD monitor FOLLOW THESE STEPS T O INSTALL THE MONITOR Before you connect the cables, make sure that the monitor and the system unit power switches are OFF Plug one end of the 15pin signal cable to the monitor and the other end to the video signal connector at the rear of the system.

  • Page 9: Control Functions

    17” Quad display LCD monitor ______________________ ONTROL The OSD control functions of 17” Quad display LCD monitor are located on the lower side. They are shown in the figure below and described in the following paragraphs. Menu AV/PC Menu ?/CH1 ?/CH2 -/CH3 +/CH4 =/AUTO The first line is used for RGB OSD adjustment The second line is used for security OSD adjustment AV/PC: Switch the Screen between RGB and security...
  • Page 10 ________________________17” Quad display LCD monitor DJUSTING THE The LCD monitor is designed to work with a range of compatible video adapters on the market. Due to the possible deviations between these video adapters, you may make some adjustment to fit the monitor for adapter used. ADJUSTMENT PROCEDURE First, you must activate the OSD screen through pressing the MENU key, the screen will show in the center of...

  • Page 11: Osd Screen

    17” Quad display LCD monitor ______________________ We had two pages OSD screens; the screens are shown in OSD screen 1 and 2, if you choose the source to video not RGB, please see the next chapter. OSD SCREEN1 AUTO ADJUSTMENT H-POSITION ------------ V-POSITION ------------ PIXEL CLOCK-----------...
  • Page 12 ________________________17” Quad display LCD monitor OSD SCREEN2 PREVIOUS PAGE Brightness -------------- -------------- GREEN---------- BLUE ------------- Contrast --------------- -------------- GREEN ---------- BLUE ------------ 720/640 selection ---- OSD transparence OSD timeout ------ Load Default ---------- FIREWARE VERSIO 1024x768 SXGA 5F211-5140 48KHz 60Hz...
  • Page 13 17” Quad display LCD monitor ______________________ Adjustment Icon : Auto-adjustment Automatically adjust the pixel clock, H/V position and fine tune the screen to get better visual quality. H-position Adjusts the screen's width. The range is from 0-255. V-Position Adjusts the screen's height. The Range is from 0-255.
  • Page 14 ________________________17” Quad display LCD monitor OSD V-position Change the OSD Vertical Display location in the screen Move to the next OSD screen Move to the previous OSD screen OSD transparency setting To set the OSD display transparency mode. Load default OSD time out timer setting VERTICAL &...

  • Page 15: Brightness Adjustment

    17” Quad display LCD monitor ______________________ BRIGHTNESS ADJUSTMENT 1. Use the & ﹣ press & Note: We provide another easily method to do the brightness adjustment. You don’t need to activate the OSD screen, just ﹣ pressing the CONTRAST ADJUSTMENT Adjust the display contrast 1.
  • Page 16 ________________________17” Quad display LCD monitor HOW TO RESTORE THE PRE-DEFINE VALUE Restore your previous define setting 1. Use the press “-” will automatically load the pre-define value for each item. 2. Use this function only if you want to discard your new setting.

  • Page 17: Adjustment Procedure

    17” Quad display LCD monitor ______________________ CHAPTER 4 ADJUSTING THE SECURITY SCREEN SETTING The LCD monitor is designed to work with a range of compatible video display on the market. Due to the possible deviations between these video source, you may make some adjustment to fit the monitor for video usage.
  • Page 18 ________________________17” Quad display LCD monitor Security OSD menu setting When your screen is in AV mode, pressing MENU key to enter into OSD set up menu, you will see the following screen SETUP MENU SYSTEM CAMERA ALARM PLAYBACK VERSION You can use ?or ? key to move the highlight bar to the desired item, then press = to enter into the sub-menu to change setting.
  • Page 19 CH1 CH2 CH3 CH4 PB OUT PWR PW We also offer the hot key to let users easily operate the LCD-1700VRQ machine. Pressing ?/CH1 to let screen to display the channel 1 in full screen Pressing ?/CH2 to let screen to display the channel 2 in full screen...
  • Page 20 ________________________17” Quad display LCD monitor Pressing to let screen to display 4 channel quad display. Recording the screen will always set as quad display, When you playback the screen, we offered one hot key to let user to see the full channel # display.
  • Page 21 17” Quad display LCD monitor ______________________ IGNAL ONNECTOR Power Connector Pin 1 Pin 2 RGB SIGNAL CONNECTOR Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9 Pin 10 Pin 11 Pin 12 Pin 13 Pin 14 Pin 15...
