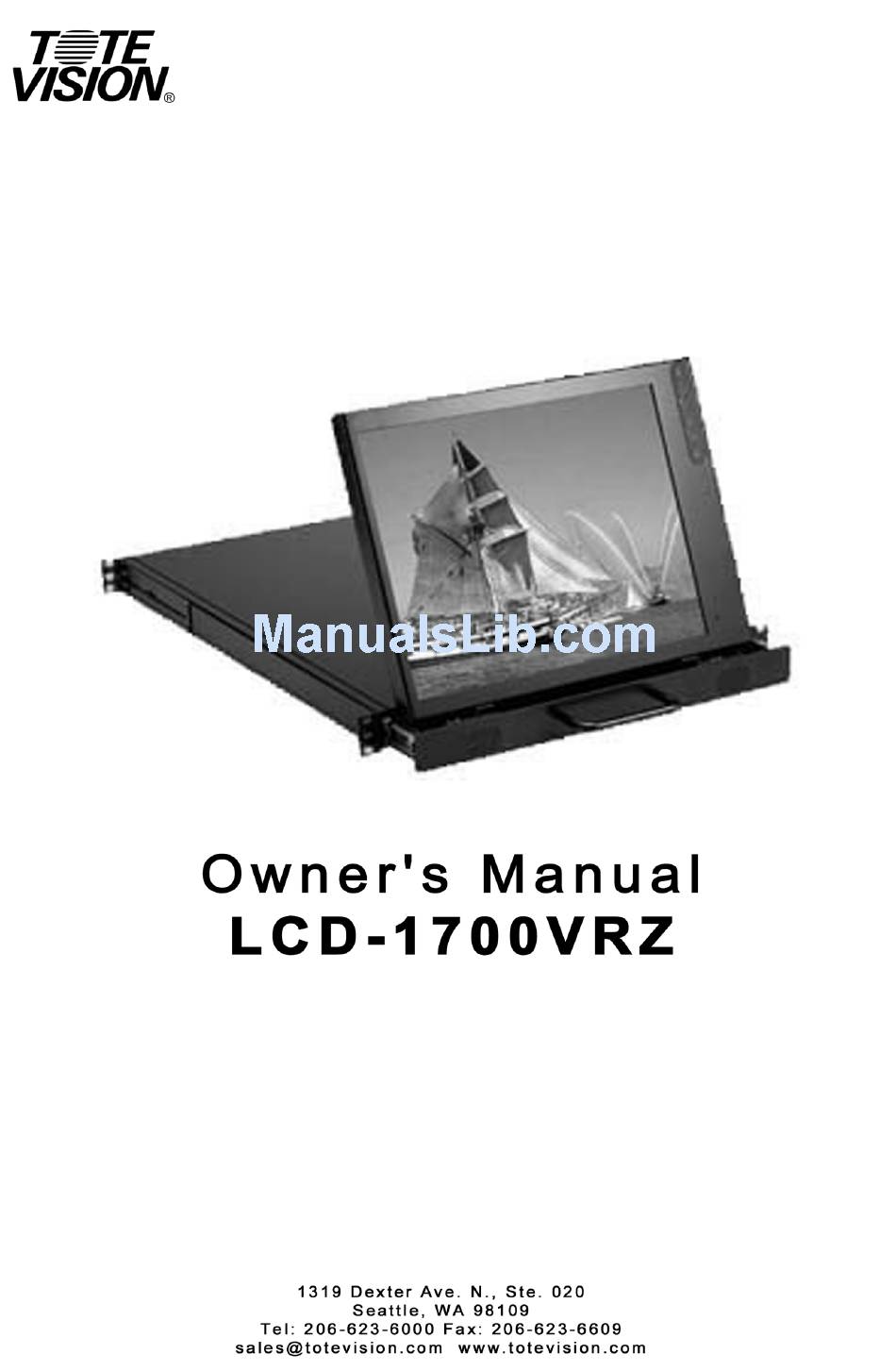

Summary of Contents for Tote Vision LCD-1700VRZ
-
Page 2: Table Of Contents
Specification LCD-1700VRZ Specification _______________________ 6 CHAPTER 2 Installing the Monitor _______________________________ Follow these steps to install the monitor Control Function LCD-1700VRZ Control function ____________________ 9 CHAPTER 3 Adjusting the Monitor _______________________________ VGA OSD Screen _________________________________ Adjustment Icon ___________________________________ CHAPTER 4... -
Page 3: Safety Precautions
Safety Precautions This monitor is manufactured and tested on the principle that the user’ s safety comes first. However, improper use or installation may not only damage the monitor but endanger the user as well. As a safety precaution, go over the following WARNINGS carefully before installation, and keep this guide handy. -
Page 4: Care And Maintenance
Care and Maintenance Care Avoid exposing your monitor directly to sunlight or other heat sources. Place your monitor away from the sun to reduce glare. Put your monitor in a well-ventilated area. Do not place anything heavy on top of your monitor. Make certain that your monitor is installed in a clean and moisture-free area. -
Page 5: Chapter 1 Introduction
CHAPTER 1 Introduction BEFORE INSTALLING YOUR MONITOR Read this manual cover to cover. PAY ATTENTION to all WARNING and CAUTIONS DO NOT use computer components not recommend by the manufacture Do not attempt to service the monitor your self. If a problem occurs, contact the manufacture's authorized service center ABOUT YOUR MONITOR This monitor is a microprocessor-controlled, color monitor that... -
Page 6: Factory-Preset Modes
FACTORY-PRESET MODES Table 1 shows standard video mode setting that has been pre-adjusted at the factory for accurate video display. These setting are stored in the monitor's memory Table 1. Factory-Preset Modes PC mode Mode Resolution 640x400 640x350 720x400 640x480 640x480 640x480 SVGA... -
Page 7: Specification
Specifications LCD-1700VRZ 17” LCD 1U Rack Display Monitor Overall Dimension(HxWxD): Effective Display area(H/V): Display colors: Scan Frequencies: Horizontal Vertical Number of Pixels: Pixel pitch: Picture Tube: Power: Input Consumption PC RGB Connector: Audio connector Speaker RGB Signals: Video Sync Display Data Channel:... - Page 8 Operations: User Controls On Screen Display Control Type: Compatibility: Environmental Limits: Operating Temp Storage Temp. Operating Humidity Storage Humidity On/Off Power Button, +/- and Up/down keys Auto adjustment, Brightness, contrast color temperature, Hue, Tint, Source select, PIP setup H-position, V-position, OSD position Audio volume, bass, treble, mute Load default Digital...
-
Page 9: Product Package
RODUCT Open the shipping carton and check the contents. If any items are missing or damaged, contact your dealer immediately. The package should include the following items Analog Color TFT LCD Monitor Accessory Box: VGA cable x 1 AC to DC adapter x 1 Power Cord x 1 User’... -
Page 10: The Control Key Description
ONTROL The Monitor control functions are located on the right corner of the front view side. They are shown in the figure below and described in the following paragraphs. The control key description 6. MENU : Activate the on screen display UNCTIONS : Power Switch : Decrement... - Page 11 DESCRIPTION : Power switch Use the power switch to turn ON or OFF power. We recommend turning your system power on first, then the LCD monitor. & + : decrement or increment the value The two keys are decrement or increment the value or enter into the sub-menu.
-
Page 12: Auto Adjustment
DJUSTING THE MONITOR 1024x768 1. Each time, when pressing the menu key, the screen will show as above. You can see the 3mark that means the selected item. Then you can change the setting through + or -.key. 2. Pressing the Sel key to move the arrow down or up. If the selected item has many option to choose, press –... -
Page 13: Vga Osd Screen
Auto adjustment § Automatically adjusts the phase and position of the LCD monitor for the best view setting Color temperature setting § Provide 9300K, user mode, and 6500K option Brightness adjustment § Let user adjust the brightness. The range if from 0 to 99 Contrast setup §... - Page 14 Geometry setup § We provide Pixel Clock, Phase, H Position, V Position, OSD H Position, OSD V Position and Txt/Gft option to change. § Pixel Clock: Adjust the viewing screen size. The range is from 0 to 99 Phase: Adjust phase tracking to reduce the display flicker. The range is from 0 to 31 §...
- Page 15 S-video, PIP YCbCr and PIP off for user’ s selection. Note: The PIP function is only valid on video on VGA screen. We can’ t support video on video screen Speaker volume control § We provide Volume, Bass, Treble, Mute and PIP audio for audio setup. §...
-
Page 16: Video Adjustment
VIDEO ADJUSTMENT NTSC XGA-KDC45-5100 1. Each time, when pressing the menu key, the screen will show as above. You can see the 3mark, that means the selected item Then you can change the setting through + or -.key. 2. Pressing Sel key to move the arrow down or up. If the selected item has many option to choose, press –... - Page 17 Intensity adjustment § Adjust the screen intensity value. The range is from 0 to 255 Tint adjustment § Adjust the screen Tint value. The range is from 0 to 127 Hue adjustment § Adjust the screen Hue value. The range is from 0 to 255 Geometry setup §...
-
Page 18: Appendix
Troubleshooting Procedures This LCD Monitor was pre-adjusted in the factory with standard VGA timing. Due to output timing differences among various VGA cards, you may initially experience an unstable or unclear display when a new display mode or new VGA card is selected. This LCD Monitor Supports Multiple VGA Modes.
