- Page 1 SM-UHD-2S 2-Port single Head HDMI KVM Switch USER MANUAL Designed and Manufactured in the USA 1-800-284-2131 www.smartavi.com...
-
Page 2: Table Of Contents
OVERVIEW INTRODUCTION______________________________________________________________________________ FEATURES___________________________________________________________________________________ TECHNICAL SPECIFICATIONS________________________________________________________________ HARDWARE DESCRIPTION__________________________________________________________________ INSTALLATION_______________________________________________________________________________ OPERATION__________________________________________________________________________________ TROUBLESHOOTING_________________________________________________________________________ TECHNICAL SUPPORT________________________________________________________________________ LIMITED WARRANTY STATEMENT____________________________________________________________ 2-Port 4K HDMI Single-head KVM Switch... -
Page 3: Introduction
The SM-UHD-2S KVM Switch allows the control of two computers with 4K single HDMI video output via a single console set of USB keyboard/mouse/hub, microphone, speaker and display. The SM- UHD-2S KVM Switch has the built-in USB 2.0 compliant and 3.5mm mini stereo ports allow sharing USB keyboard/mouse/hub, speaker, and microphone among the connected computers. -
Page 4: Hardware Description

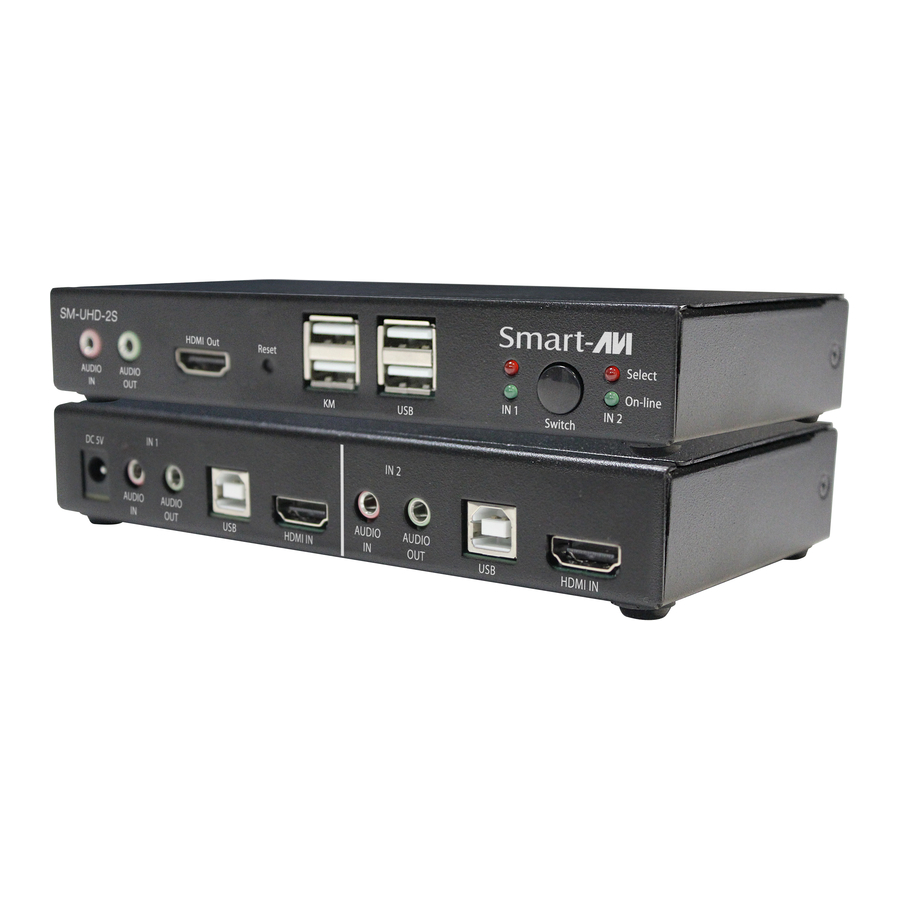

Hardware Description Front Panel Component Description Audio jack Microphone port at console Audio jack Speaker/Earphone port at console HDMI connector HDMI output at console Reset push-button Press to reset system to default USB Type A connector x 2 USB keyboard & mouse ports at console USB Type A connector x 2 USB hub ports at console for peripherals Light to indicate that the PC/server connected to the corresponding port... -
Page 5: Installation
installation Refer to the following steps and diagram to set up your single-head KVM switch installation. HDMI IN HDMI OUT USB IN USB K/M OUT USB 2.0 OUT AUDIO IN AUDIO OUT MICROPHONE IN 1. Connect HDMI monitor to the “HDMI Out” console port on the front panel of the KVM switch. 2. -
Page 6: Operation
operation PC Port Switching There are two ways of accessing computers and devices connected to the KVM switch: • Manual Push-button • Hotkey Manual Pushbutton • Press the push-button once to switch the selected PC port between the two connected computers cyclically Hotkey •... -
Page 7: Troubleshooting
Troubleshooting No Power • Make sure that the power adapter is securely connected to the power connector of the unit. • Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. • Replace the power supply. No Video •... -
Page 8: Limited Warranty Statement
Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase. - Page 9 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
