- Page 2 User Manual LCDK1016 1U Short Depth Keyboard Drawer...
- Page 3 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part. 1 > LCDK1016 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations Keyboard / Mouse Specifi cations Environmental Conditions www.RackmountMart.com... -
Page 5: Lcdk1016

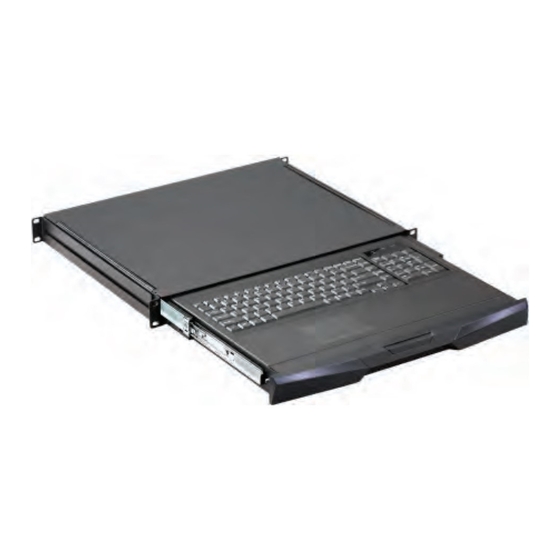

If anything is missing, or damaged, contact the supplier immediately. < Part 1 > LCDK1016 < 1.1 > Package Content LCDK1016 unit X 1 - Pair of L-bracket with fastener screws X 1 < 1.2 > Structure Diagram Adjustable rear mounting L-bracket... - Page 6 (W x D x H) 441.6 x 400 x 44 mm 8.6 kg LCDK1016 17.4 x 15.7 x 1.73 inch 18.9 lb * All dimensions stated are subject to change if options are selected / integrated to base model part codes...
- Page 7 < 1.3 > Installation- How to install L-bracket Step ■ Install left & right rear L-brackets with two fasteners shown above. ■ Leave the fasteners slightly loose. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear L-bracket to a suitable length and tighten the fasteners.
-
Page 8: Connection
< 1.4 > Connection to USB Server Keyboard Drawer attached 2-in-1 K/B cable USB server < 1.4 > Connection to external KVM Keyboard Drawer attached 2-in-1 K/B cable USB console KVM Caution : The keyboard drawer is hot-pluggable, but components of connected devices, such as the servers and KVM switch, may not be hot-pluggable. -
Page 9: Specifi Cations
< Part 2 > Specifi cations < 2.1 > Standard Keyboard / Mouse Specifi cations keyboard integrated with touchpad keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts... - Page 10 < 2.1 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts.
- Page 11 < 2.1 > SUN Keyboard / Mouse Options SUN keyboard integrated with touchpad SUN keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose SUN keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 12: Environmental Conditions
The company reserves the right to modify product speciÞ cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Synergy Global Technology Inc. All rights reserved. www.RackmountMart.com...
