Summary of Contents for Synergy Global Technology LCDK1002 Series
- Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...
- Page 2 Regulatory Notice Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without no- tice.

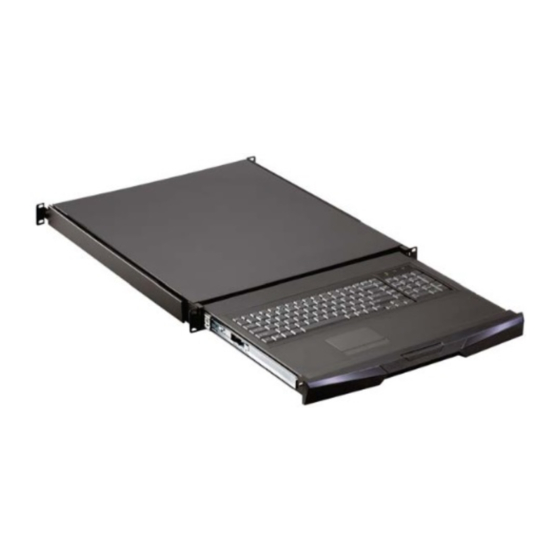

- Page 3 User Manual Rackmount Keyboard Drawer Models LCDK1002 Series - With KVM options Models LCDK1016 Series - Short depth version - Without KVM options...
-
Page 4: Table Of Contents
Connect to KVM via USB Interface........5 1.10 Connect to Server via PS/2 Interface........6 1.11 Connect to KVM via PS/2 Interface........6 Chapter 2 Keyboard and Mouse ..........7 Chapter 3 Optional Specifi cation KVM Options for LCDK1002 Series........8 Environmental..............8 Chapter 4 Dimensions ................8... -
Page 5: Package Contents
Keyboard drawer x 1 pc Fasteners for rear L-bracket x 4 pcs 330mm rear mounting L-bracket x 1 pair * LCDK1002 series mounting depth-adjustable from 210 to 800mm * LCDK1016 series maximum mounting depth is 645mm Combo keyboard cable x 1 pc... -
Page 6: Before Installation
If anything is missing, or damage, contact the supplier immediately. 1.4 Optional Accessories 1. Extended rear mounting L-bracket 1.1 430mm (16.9") extended rear L-bracket for : LCDK1002 series up to 900mm LCDK1016 series up to 745mm *Extended rear L-bracket in tailor-made length on request... -
Page 7: Peripheral Products
Chapter 1 1.5 Peripheral Products Item Model No. Description LCDK2006-2 / -3 / -4 Matrix Cat6 16 port KVM LCDK2012-31/ -41 / -42 Matrix IP Cat6 16 port KVM Matrix Cat6 KVM LCDK2007-2 / -3 / -4 Matrix Cat6 32 port KVM LCDK2013-31 / -41 / -42 Matrix IP Cat6 32 port KVM LCDK2004-2 / -3 / -4... -
Page 8: Installation
Chapter 1 1.7 Installation ■ Install each rear L-bracket using two fasteners shown in Figure 1. ■ Leaving the fasteners slightly loose Figure 1. Installing the rear L-bracket to the keyboard drawer. ■ Measure the front and rear mounting depth of the rack. -
Page 9: Connect To Server Via Usb Interface
The above connection is only for the keyboard without KVM switch built-in. ■ For the keyboard drawer with KVM switch built-in, please contact Synergy Global Technology Inc for information. The keyboard drawer is hot-pluggable, but components of connected devices, Caution : such as the servers and KVM switch, may not be hot-pluggable. -
Page 10: Connect To Server Via Ps/2 Interface
The above connection is only for the keyboard without KVM switch built-in. ■ For the keyboard drawer with KVM switch built-in, please contact Synergy Global Technology Inc for information. The keyboard drawer is hot-pluggable, but components of connected devices, Caution : such as the servers and KVM switch, may not be hot-pluggable. -
Page 11: Chapter 2 Keyboard And Mouse
Chapter 2 2.1 Keyboard & Mouse Supporting layouts N keyboard integrated with N keyboard integrated with trackball touchpad Supporting layouts only Supporting layouts only Compact keyboard integrated Compact keyboard integrated with touch-pad mouse with trackball... -
Page 12: Kvm Options For Lcdk1002 Series
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2008 Synergy Global Technology Inc. All rights reserved.
