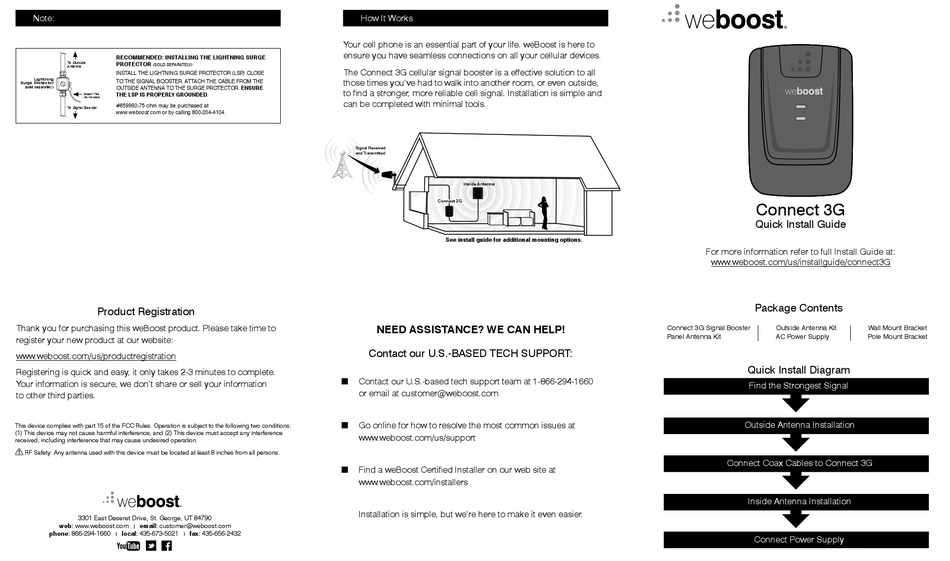

weBoost Connect 3G Quick Install Manual

Note:
RECOMMENDED: INSTALLING THE LIGHTNING SURGE
To Outside PROTECTOR
(SOLD SEPARATELY)
Antenna
INSTALL THE LIGHTNING SURGE PROTECTOR (LSP) CLOSE
Lightning
TO THE SIGNAL BOOSTER. ATTACH THE CABLE FROM THE
Surge Protector
(sold separately) OUTSIDE ANTENNA TO THE SURGE PROTECTOR. ENSURE
THE LSP IS PROPERLY GROUNDED.
Ground Wire
(not included)
#859992-75 ohm may be purchased at
To Signal Booster
www.weboost.com or by calling 800-204-4104.
Product Registration
Thank you for purchasing this weBoost product. Please take time to
register your new product at our website:
www.weboost.com/us/productregistration
Registering is quick and easy, it only takes 2-3 minutes to complete.
Your information is secure, we don't share or sell your information
to other third parties.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
RF Safety: Any antenna used with this device must be located at least 8 inches from all persons .
3301 East Deseret Drive, St. George, UT 84790
web: www.weboost.com email: customer@weboost.com
phone: 866-294-1660 local: 435-673-5021 fax: 435-656-2432
How It Works
Your cell phone is an essential part of your life. weBoost is here to
ensure you have seamless connections on all your cellular devices.
The Connect 3G cellular signal booster is a effective solution to all
those times you've had to walk into another room, or even outside,
to find a stronger, more reliable cell signal. Installation is simple and
can be completed with minimal tools.
Signal Received
and Transmitted
Inside Antenna
Connect 3G
See install guide for additional mounting options.
NEED ASSISTANCE? WE CAN HELP!
Contact our U.S.-BASED TECH SUPPORT:
n C ontact our U.S.-based tech support team at 1-866-294-1660
or email at customer@weboost.com
n Go online for how to resolve the most common issues at
www.weboost.com/us/support
n F ind a weBoost Certified Installer on our web site at
www.weboost.com/installers
Installation is simple, but we're here to make it even easier.
Connect 3G
Quick Install Guide
For more information refer to full Install Guide at:
www.weboost.com/us/installguide/connect3G
Package Contents
Connect 3G Signal Booster Outside Antenna Kit
Panel Antenna Kit AC Power Supply
TM
Cellular Signal Booster
Quick Install Diagram
460101
Find the Strongest Signal
Outside Antenna Installation
Connect Coax Cables to Connect 3G
Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Inside Antenna Installation
Connect Power Supply
Wall Mount Bracket
Pole Mount Bracket
