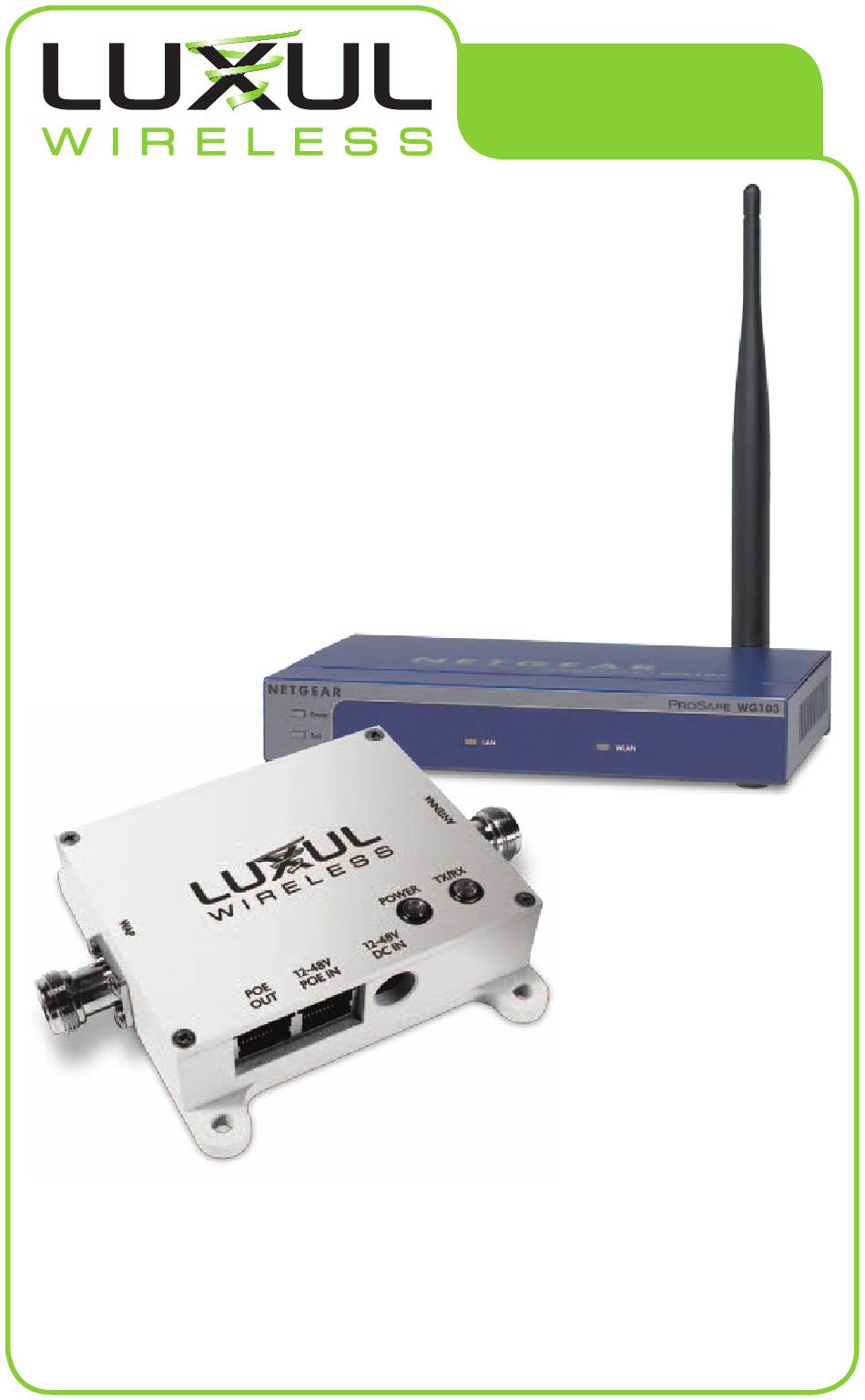

- Page 1 USER GUidE PRo-WAV™ Wi-Fi RAnGE ExtEndER SYStEM FoR USE With thE nEtGEAR WG103 PRoSAFE® 802.11G WiRElESS AccESS Point ModEl nUMbER: PW-Fc2 - SinGlE AntEnnA PW-Fc2 - dUAl AntEnnA...
- Page 2 No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul Wireless, Inc. (Luxul). The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design.
-
Page 3: Table Of Contents
ShocK-WAV SiGnAl booStER USER GUidE ContentS 1 - introduCtion ............2 1.1 Document Conventions . -
Page 4: Introduction
1 - introduCtion The Luxul Wireless Pro-WAV Wi-Fi Range Extender System is designed to complement and enhance the performance of the Netgear WG103 Wireless Access Point (WAP). When com- bined with the WG103 and X-WAV XW-24-FP7 Flat Panel Antenna, it delivers up to the maximum approved transmit power, resulting in a farther reaching and higher performing network. -
Page 5: Site Preparation
1.4 ProFeSSionAl inStAllAtion ConSiderAtionS CAUTION: Operation of the signal booster without regulatory approval is illegal The Luxul Wireless Pro-WAV Wi-Fi Range Extender System is required to be professionally installed. The following components are approved for use in the system. • Luxul PW-FC2 Wi-Fi Signal Booster •... -
Page 6: Specifications
2 - SPeCiFiCAtionS 2.1 SHoCK-WAV™ Wi-Fi SignAl booSter SPeCiFiCAtionS Operating Range 2400 - 2483 MHz Transmit Power 1Watt Transmit Gain 20dB Typical (under D-AGC Control) Receive Gain 17dB Typical TX Input Power +8dBm to +24dBm Noise Figure 3.5dB Typical LED Indicators TX\RX Red for Transmit, Green for Receive Power Consumption 400mW (RX) 5W (TX) Max... -
Page 7: Getting Started
• Verify the environment has a continuous temperature range between -4 F to +122F (-20c - +50c). 3.2 PACKAge ContentS The Luxul Wireless Pro-WAV Wi-Fi Range Extender System consists of the following: One-Shock-WAV Wi-Fi Signal Booster • PW-FC2 - Single Antenna: One-XW-24-FP7 - 7dBi High Gain 2.4GHz •... -
Page 8: Additional Items Required
3.4 oPtionAl ProduCtS And ACCeSSorieS Splitters and Surge Protectors: Signal splitters, lightning surge protectors, and other useful accessories are available for making the most of your Luxul Wireless purchase. 4 - inStAllAtion ProCedureS NOTE: The combination of the Netgear WG103 and the Shock-WAV Wi-Fi Signal Booster requires professional installation. -
Page 9: Connecting The Pw-Fc2 - Single Antenna To The Netgear Wg103
ShocK-WAV SiGnAl booStER USER GUidE 4.1 ConneCting tHe PW-FC2 - Single AntennA to tHe netgeAr Wg103 Figure 2 Coax Cable Using the supplied N-Male to RP-SMA-Male coax cable, connect the Shock-WAV Wi-Fi Signal Booster to your WG103’s Antenna port . (Figure 2 ) . -
Page 10: Connecting Direct Power And Data Source Cables
4.3 ConneCting direCt PoWer And dAtA SourCe CAbleS Power Supply Coax Cable Ethernet Power Data Source Figure 4 Power Power connections are the same for both PW-FC2 units. The PW-FC2 - Single antenna is show in figure 4. Connect your Data source Ethernet cable to the LAN port on the back of the Netgear WG103, (Figure 4) . -
Page 11: Optional Poe Injector
Figure 6 5 - AntennA PlACement Luxul Wireless products, particularly those implementing our patented signal booster technology, are often capable of emitting enough signal strength to cover the desired area regardless of orientation. For best results, the Antenna should be deployed where the maximum amount of signal can be sent throughout the desired coverage area. - Page 12 Figure 7 5.2 AntennA direCtion For maximum coverage it is important to have your antenna pattern radiating in the correct direction. The pattern radiates out in a cone shape pattern away from the antenna. If the antenna is tipped at an angle, the pattern will radiate out at that angle. See Figure 8 for an example of pattern radiation.
-
Page 13: Regulatory Compliance
ShocK-WAV SiGnAl booStER USER GUidE 6 - regulAtory ComPliAnCe This device is approved under the Luxul Wireless brand and designed to comply for use spe- cifically with the Netgear WG103. This device is designed to be compliant with rules and regu- lations in locations where they are sold and will be labeled as required. -
Page 14: Radio Frequency Interference Requirements-Fcc
Warning: Exposure To Radio Frequency (RF) Radiation: • The radiated output of this device is below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact during normal operation is minimized. •... -
Page 15: Radio Transmitters (Part 15)
ShocK-WAV SiGnAl booStER USER GUidE • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help. 6.4 rAdio trAnSmitterS (PArt 15) This device complies with Part 15 of the FCC Rules. - Page 16 United States, radio equipment must only be used in systems that have been FCC certified. It is the responsibility of the user/professional installer/operator to ensure that only approved equipment/systems are deployed. To ensure FCC part 15 compliance, Luxul amplifier products should only be installed in certified systems by licensed professionals.
