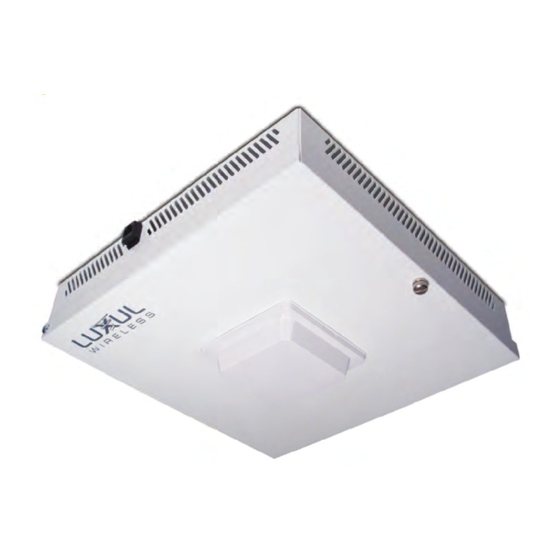

Pro-WAV™ 100 Lite
Wi-Fi rAnGe eXtenDer sYsteM
QUiCK instALL GUiDe
Congratulations on your purchase of a Luxul Wireless Pro-WAV Lite™ Wi-Fi Range Ex-
tender System. Pro-WAV systems are simple to install. In just a few short steps, you will
be able to enjoy the benefi ts of a farther reaching, clearer wireless signal.
LUXUL WireLess ProDUCTs CoVereD By This gUiDe
PW-100-24-Lite
- Pro-WAV Lite 2.4GHz indoor Wi-Fi Range Extender System
For use with the ECB3500 WAP
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Luxul Pro-WAV 100 Lite
Summary of Contents for Luxul Pro-WAV 100 Lite
- Page 1 QUiCK instALL GUiDe For use with the ECB3500 WAP Congratulations on your purchase of a Luxul Wireless Pro-WAV Lite™ Wi-Fi Range Ex- tender System. Pro-WAV systems are simple to install. In just a few short steps, you will be able to enjoy the benefi ts of a farther reaching, clearer wireless signal.
- Page 2 The Pro-WAV 100 LiTe sysTem iNCLUDes The foLLoWiNg: • Metal enclosure with space for mounting the EnGenius ECB3500 Internally • Integrated X-WAV™ CP Antenna (Circularly Polarized) (XW-24-FP7 - 7dBi High Gain 2.4GHz) • Ethernet cable • Coax cable (N-Male to RP-TNC) • POE injector and 48VDC Universal Input Power Supply (Power-Over-Ethernet) • Mounting hardware • Ethernet pass through • Velcro • Quick Install Guide geTTiNg sTArTeD: ADDiTioNAL iTem reQUireD • EnGenius ECB3500 Wireless Access Point (WAP) Included with the ECB3500: Wireless High power multi-function 7+1 AP (ECB3500), 12V/1A Power Adapter, CAT5 UTP Cable, QIG, CD (User’...
- Page 3 Pro-WAV™ 100 Lite QUiCK instALL GUiDe PoWeriNg yoUr Pro-WAV 100 LiTe sysTem For maximum fl exibility you may power the Wi-Fi Range Extender System by Direct Power or POE using the included Luxul Wireless POE Injector, an IEEE 802.3af compliant POE injector or POE enabled switch, (Check the POE injector or switch manual for instructions). Setting up Power Over Ethernet (POE) (diagram 2) POE Injector 1. Install the Luxul POE injector or your injector where you have access to your data source/network DC/Data Data Ethernet cable and a power source. 2. Connect your Ethernet cable from your data source/network to the “Data In” port of the Injector. 48VDC Ethernet to Ethernet 3. Be sure the power supply is not connect to a power Power Supply...
- Page 4 your Pro-WAV Lite Wi-Fi system and position it for use. Direct Power Option: (diagram 4) 1. Connect the Ethernet cable from your data source/network to the pass through port on the outside of the Pro-WAV Lite. 2. Connect the included Ethernet cable from the pass Power Supply through to the WAN port of the EnGenius ECB3500, labeled RJ45/POE. EXT ANT DC IN RJ45/POE EXT ANT 3. Decide where your Power Supply cord will enter (PRIMARY) (WAN) the Pro-WAV Lite enclosure. 4. Be sure the power supply is not connect to a power source. Attach the EnGenius power supply to the “DC IN” port of the EnGenius ECB3500. diagram 4 Ethernet Position your WAP in the enclosure and use the supplied adhesive Power Velcro to affi...
- Page 5 Pro-WAV™ 100 Lite QUiCK instALL GUiDe seTTiNg The eCB3500 To The PrimAry ANTeNNA PorT oNLy Consult your EnGenius ECB3500 documentation to access the WAP Confi guration Soft- ware. Confi gure the ECB3500 to use only the Primary Antenna Port. Using the Left side navigation tree, navigate to the Wireless\Wireless Advanced Settings (diagram 5) . In the Wireless Advanced Settings dialog box set the Antenna drop down to “1” (diagram 5) . Then apply your change. diagram 5 (Consult your ECB3500’ s documentation for more details on WAP Confi guration. Contact EnGenius directly for additional support or warranty information).
- Page 6 PosiTioNiNg yoUr Pro-WAV 100 LiTe sysTem The Pro-WAV 100 Lite System features a high gain directional antenna. Remember to con- sider the direction of the signal when positioning the Pro-WAV 100 Lite System. The signal extends outward, away from the antennas mounted on the lid of the enclosure. The Pro-WAV 100 Lite may be mounted on a wall in order to achieve the desired coverage. Use diagram 6 below to position your Pro-WAV 100 Lite system for maximum Wi-Fi coverage. diagram 6...
- Page 7 Pro-WAV™ 100 Lite QUiCK instALL GUiDe moUNTiNg yoUr Pro-WAV 100 LiTe sysTem The Pro-WAV 100 Lite system may be mounted to any surface using your fasteners. You can also mount the unit above a drop ceiling using the optional drop ceiling mounting mounts, Part Number HDW-PWM. See diagram 7 below for mounting options of the Pro-WAV 100 Lite system. Ceiling Wall Optional Drop ceiling Mounts diagram 7...
-
Page 8: Troubleshooting
Results may vary depending on building layout, type of construction and other environmental factors including Wi-Fi traffi c, Microwaves Ovens, Cordless Phones, etc. FCC NOTICE: The use of all radio equipment is subject to regulations in each country. To comply with FCC part 15 rules in the United States, radio equipment must only be used in systems that have been FCC certifi ed. It is the responsibility of the user/professional installer/operator to ensure that only approved equipment/systems are deployed. To ensure FCC part 15 compliance, Luxul amplifi er products should only be installed in certifi ed systems by licensed professionals. FCC Certifi cation Support for OEMs: Luxul Wireless offers FCC certifi cation assistance and engineering support for qualifi ed OEM’ s interested in certifying complete amplifi ed WLAN systems. Please contact us for details. LUXUL WIRELESS | 357 South 670 West, Lindon, UT, 84042 p: 801-822-5450 f: 801-822-5460 www.luxulwireless.com © 2009 Luxul Corp. All rights reserved. LUX-QIG-100620090210-PW10024LITE...
