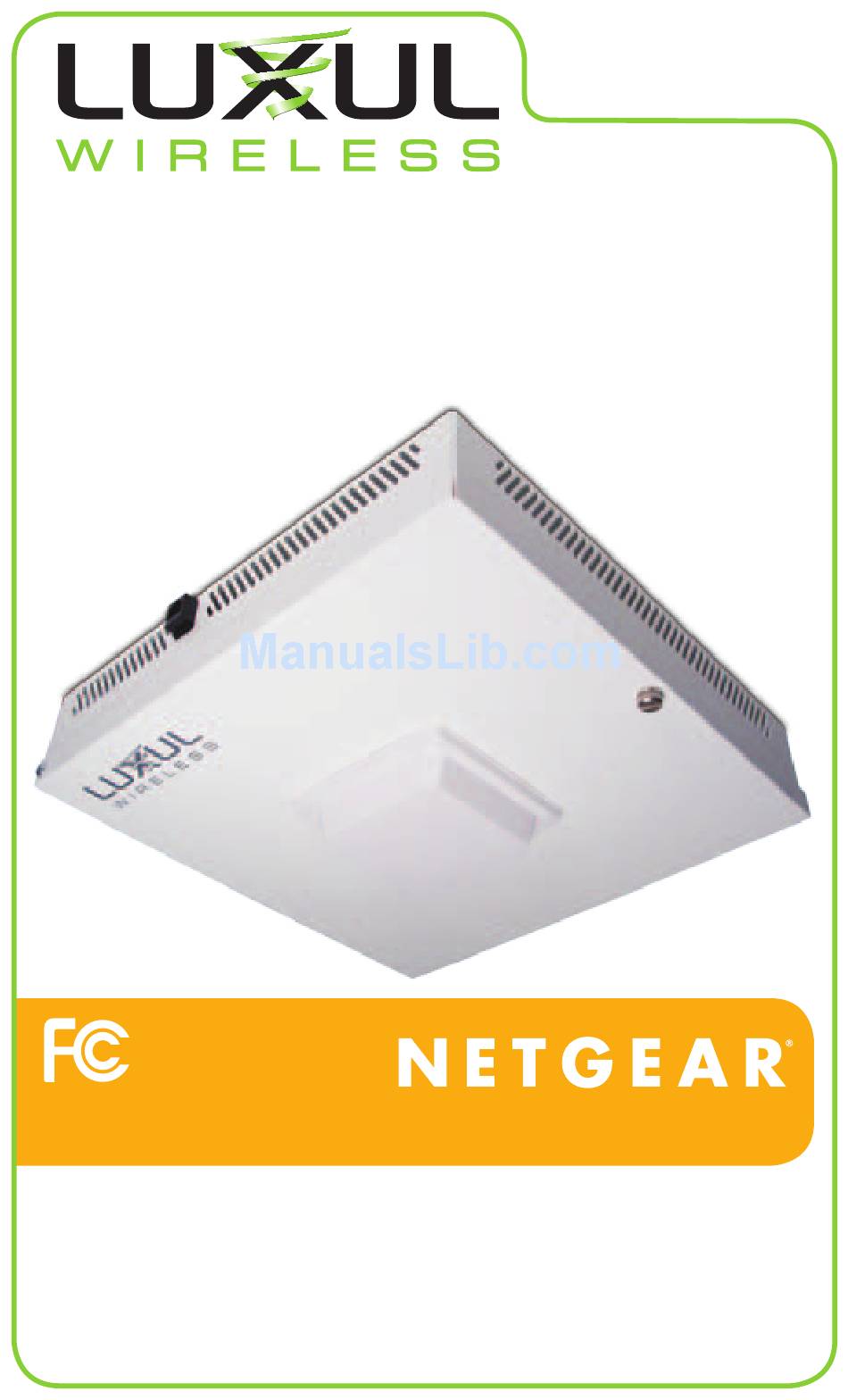

Pro-WAV™ 100
Wi-Fi rAnge extender SyStem
QUiCK inStAll gUide
F CC
CERTIFIED
Congratulations on your purchase of the Luxul Pro-WAV™ Range Extender
System! You are just minutes away from enjoying the benefits of a farther
reaching, clearer wireless signal in your home or office.
LuxuL WIRELEss PRoDuCTs CovERED by ThIs GuIDE
PW100-24-FC2
- Pro-WAV 1W 2.4GHz indoor Wi-Fi Range Extender System
WG103 AP Included
Advertisement
Table of Contents
Related Manuals for Luxul PW100-24-FC2
Summary of Contents for Luxul PW100-24-FC2
- Page 1 F CC WG103 AP Included CERTIFIED Congratulations on your purchase of the Luxul Pro-WAV™ Range Extender System! You are just minutes away from enjoying the benefits of a farther reaching, clearer wireless signal in your home or office. LuxuL WIRELEss PRoDuCTs CovERED by ThIs GuIDE PW100-24-FC2 - Pro-WAV 1W 2.4GHz indoor Wi-Fi Range Extender System...
- Page 2 No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul Wireless, Inc. (Luxul). The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design.
-
Page 3: Optional Equipment
• HDW-PWM - Optional drop ceiling mounting arms for Pro-WAV systems ConFIGuRE youR AP See the guide included with your AP and configure the AP before you connect the Luxul Range Extender System. Once the AP is configured, disconnect all power and connect the Luxul Range Extender System. - Page 4 1. Connect the Ethernet cable from the Ethernet pass through to the “10/100M” port of your Netgear AP, (See AP’ s documentation). 2. Attach the Luxul power supply (48VDC) to the “48V DC IN” port of the Signal Booster. 3. Connect Netgear power supply to the AP’ s power port (See AP’ s documentation).
- Page 5 QUiCK inStAll gUide optional Poe (Power over ethernet) (Figure 3) 1. Connect the Ethernet cable from the Ethernet pass through to the “48V POE IN” port of the Wi-Fi Signal Booster. 2. Connect the next Ethernet cable from the “POE OUT” of the Wi-Fi Signal Booster to the “10/100M”...
- Page 6 Placement Within Your Coverage Area Luxul Wireless products, particularly those implementing our patented booster products, are often capable of emitting enough signal strength to cover an entire home regardless of orientation.
- Page 7 QUiCK inStAll gUide large or unusually Shaped Coverage Areas If installing the Wi-Fi Range Extender System in a large or unusually shaped coverage area you may want to consider using the Pro-WAV 200-24-FC2. Figure 7 demonstrates how two antennas can more effectively cover large or unusually shaped coverage areas. FIGURE 6...
-
Page 8: Troubleshooting
TX/RX indicator will be Green with flashing Red. If there is no indication of data pass through remove the Luxul unit and test with the WAPs stock antennas to make sure the WAP’ s radio is transmitting. If the WAP is not transmitting check your WAP’...
