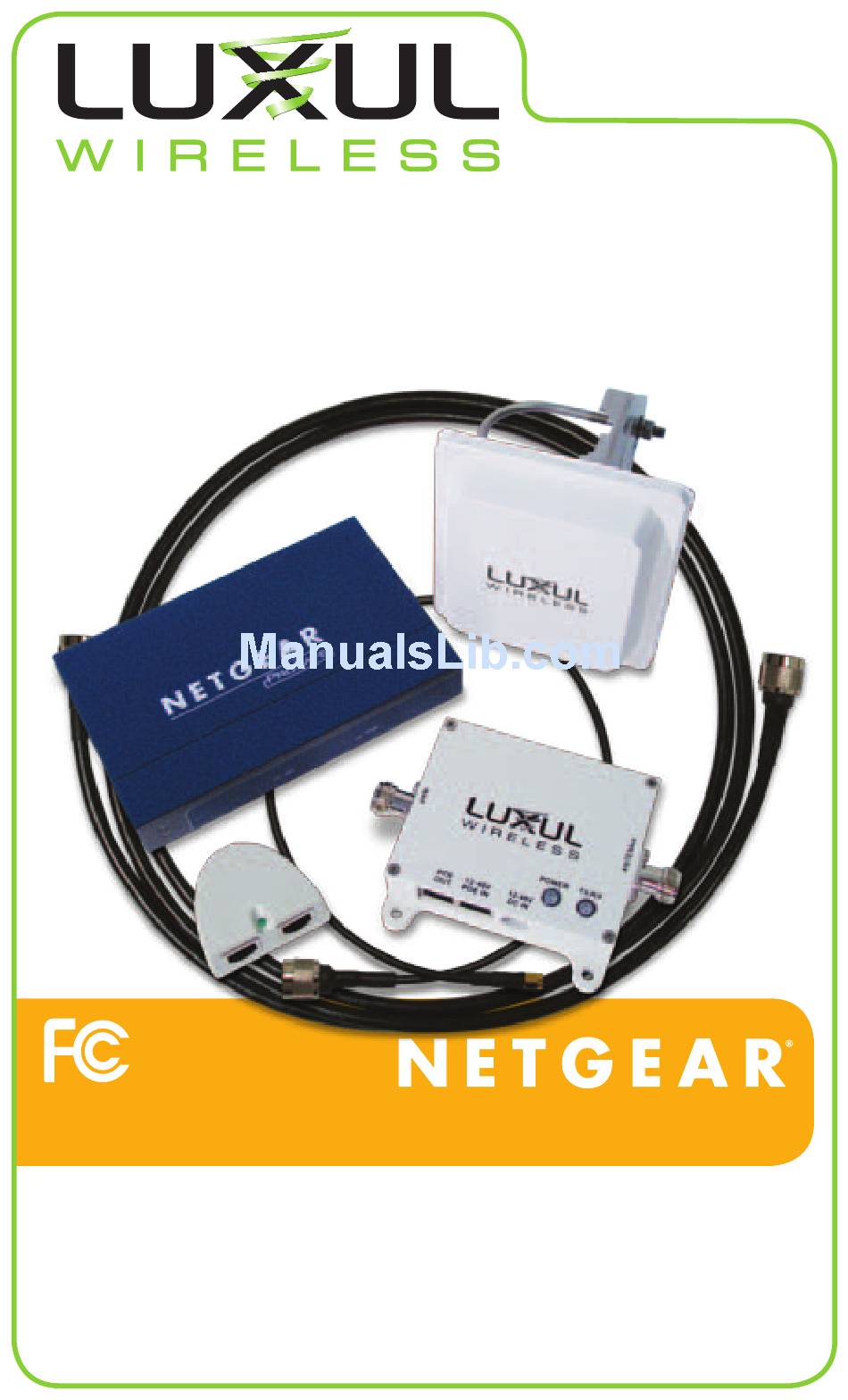

Congratulations on your purchase of the Luxul Pro-WAV™ Range Extender
Kit! You are just minutes away from enjoying the benefits of a farther
reaching, clearer wireless signal in your home or office.
LuxuL WIRELEss PRoDuCTs CovERED by ThIs GuIDE
PWK6-24-FC2 - Pro-WAV 1W 2.4GHz outdoor Wi-Fi Range Extender Kit
WG103 AP Included
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Luxul PWK6-24-FC2
Summary of Contents for Luxul PWK6-24-FC2
- Page 1 Congratulations on your purchase of the Luxul Pro-WAV™ Range Extender Kit! You are just minutes away from enjoying the benefits of a farther reaching, clearer wireless signal in your home or office. LuxuL WIRELEss PRoDuCTs CovERED by ThIs GuIDE PWK6-24-FC2 - Pro-WAV 1W 2.4GHz outdoor Wi-Fi Range Extender Kit...
- Page 2 No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul Wireless, Inc. (Luxul). The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design.
- Page 3 External Ethernet cable from your data/network source (Max. length 329’ or 100 meters). oPTIonAL EquIPMEnT • Luxul Wireless has a wide variety of cables available and can also make custom cables for your installations. Contact sales@luxulwireless.com for more information. • For creating a bridge you may want a second PRO-WAV™ Outdoor Range Extender/ Bridge Kit.
- Page 4 For maximum flexibility you may power the Pro-WAV Outdoor Range Extender/Bridge Kit by Direct Power or POE using the Luxul Wireless POE Injector or a POE injector that supports legacy mode. The Luxul Wireless Signal Booster does not support 802.3af POE...
- Page 5 “10/100M” port of your Netgear AP, Coax 195 (See AP’ s documentation). Coax 400 2. Attach the Luxul power supply (48VDC) to the “48V DC IN” port of the Signal Booster. 3. Connect Netgear power supply to the AP’s power port (See AP’ s documentation).
- Page 6 Use the adjustable antenna mount included in the kit to aim your antenna. Placement Within Your Coverage Area Luxul Wireless products, particularly those implementing our patented booster products, are often capable of emitting enough signal strength to cover an entire coverage area re- gardless of orientation.
- Page 7 Pro-WAV PWK6 Outdoor Range Extender/Bridge Kit allows even further wireless con- nections between APs. At Luxul Wireless we recommend using separate APs to create a wireless bridge, (Figure 6) instead of setting up an AP as a repeater because of the amount of signal throughput that is lost.
- Page 8 TX/RX indicator will be Green with flashing Red. If there is no indication of data pass through remove the Luxul unit and test with the WAPs stock antennas to make sure the WAP’ s radio is transmitting. If the WAP is not transmitting check your WAP’...
