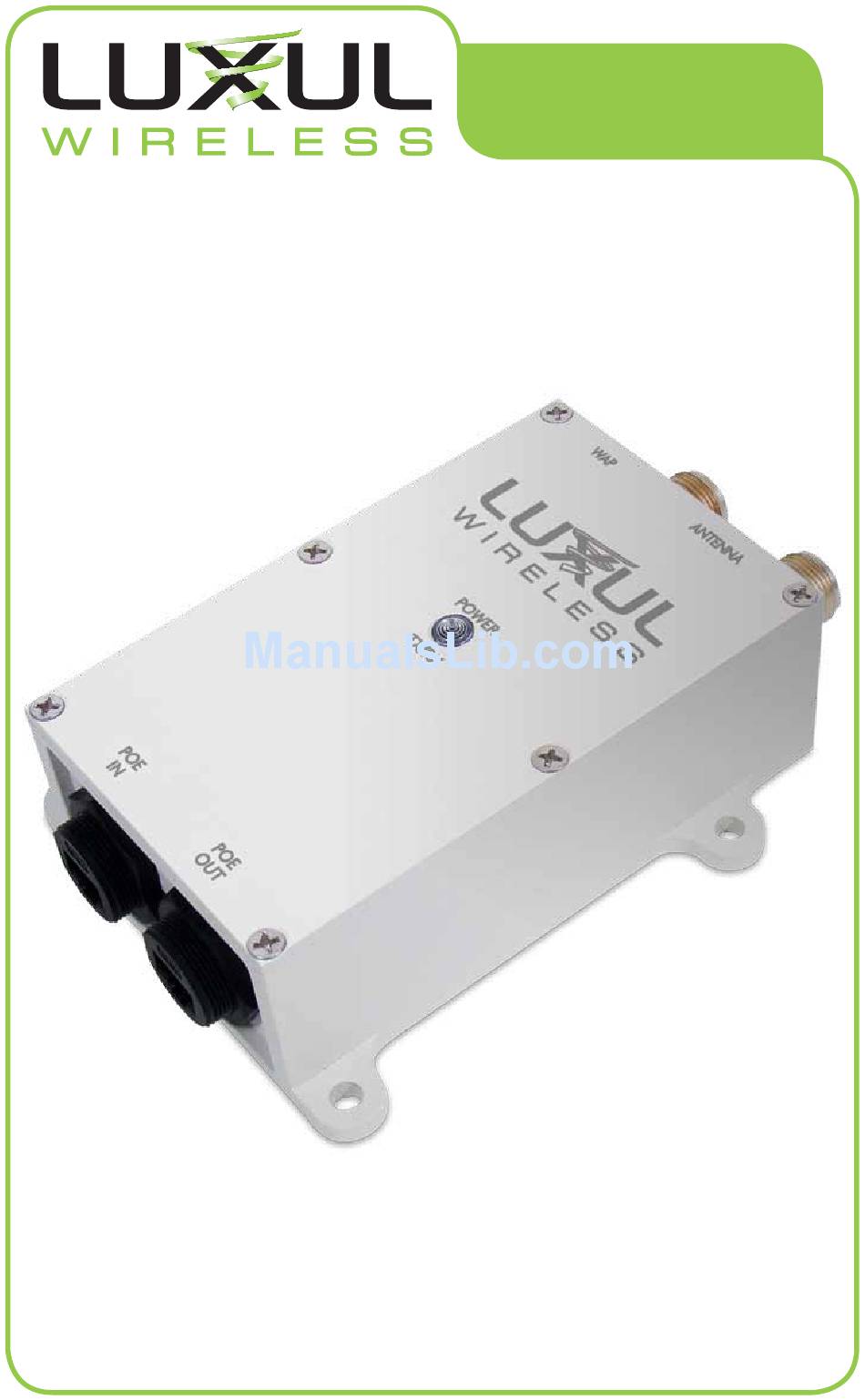

- Page 1 USER GUidE Shock-WAV™ oUTdooR Wi-Fi SiGnAl BooSTER FoR USE WiTh ThE MoToRolA AP-5181 ModEl nUMBER: SWM-1000-o...
-
Page 2: Installation Guide
No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul Wireless, Inc. (Luxul). The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. -
Page 3: Table Of Contents
Shock-WAV SiGnAl BooSTER USER GUidE contentS 1 - introduction ............2 1.1 Document Conventions . -
Page 4: Introduction
1 - introduction The Luxul Wireless Shock-WAV Wi-Fi Signal Booster is designed to complement and enhance the performance of the Motorola AP-5181 Wireless Access Point (WAP). When combined with the AP-5181 and approved antenna, it delivers up to the maximum transmit power allowed by the FCC (EIRP of 36dBm), resulting in a farther reaching and higher performing network. -
Page 5: Site Preparation
1.4 ProFeSSionAl inStAllAtion conSiderAtionS CAUTION: Operation of the signal booster without regulatory approval is illegal The Luxul Shock-WAV Wi-Fi Signal Booster system is required to be professionally installed. The following components are approved for use in the system. • Luxul SWM-1000-O •... -
Page 6: Shock-Wav Wi-Fi Signal Booster Specifications
The output power of the amplifier is set and tested during manufacturing. There are no user modifiable parameters in the amplifier. The Luxul Shock-WAV Wi-Fi Signal Booster incorporates a Digital Automatic Gain Control (D-AGC) that ensures a consistent and approved output power. -
Page 7: Package Contents
• An antenna (See section 3.5 for a list of certified antennas) 3.4 oPtionAl ProductS And AcceSSorieS X-WAV™ Antennas: Luxul Wireless offers a wide range of antenna products to complement your Shock-WAV Wi-Fi Signal Booster purchase. X-WAV antennas deliver superior range and signal penetration over other antenna products. -
Page 8: Antenna Options
(see section 3.5). In order to comply with FCC certification, cables connecting the device to the antenna must be no less than 1 foot in length. Luxul Wireless offers a variety of cable lengths that can be purchased separately and used in conjunction with the Shock-WAV device. -
Page 9: Connecting The Shock-Wav Wi-Fi Signal Booster
4.2 connecting the Shock-WAV Wi-Fi SignAl BooSter Shock-WAV Wi-Fi Signal Boosters are connected between the AP-5181 and the antenna. For better coverage, use Luxul Wireless X-WAV Antennas. A list of certified antennas can be found in section 3.5. NOTE: The primary and secondary radio ports are identified by dots under the “RADIO”... -
Page 10: Connecting Power Over Ethernet
4.3 connecting PoWer oVer ethernet CAUTION: Using the wrong power solution (including a POE system used with a legacy Motorola access point) could severely damage the Shock-WAV Wi-Fi Signal Booster and void the product warranty. WARNING!: Do not attempt to connect or disconnect any components while the Motorola AP-5181 WAP or Shock-WAV Signal Booster are plugged into power. -
Page 11: Setting The Ap-5181 To The Primary Antenna Port
For best results, the Antenna should be deployed where the maximum amount of signal can be sent throughout the desired coverage area. Luxul Wireless products, particularly those implementing our patented Signal Booster technol- ogy, are often capable of emitting enough signal strength to cover the desired area regardless... -
Page 12: Antenna Deployment
PRIMARY PORT POWER TX/RX Motorola OD24M-9 - 9dBi Omni Directional Antenna RADIO 1 PRIMARY PORT POWER TX/RX Luxul XW-24-FP7 - 7dBi CP Patch Antenna RADIO 1 PRIMARY PORT POWER TX/RX Luxul XW-24-FPS11 - 11dBi CP Sector Antenna RADIO 1 PRIMARY PORT... -
Page 13: Antenna Direction
6 - regulAtory coMPliAnce This device is approved under the Luxul Wireless brand and designed to comply for use specifically with the Motorola AP-5181. This device is designed to be compliant with rules and regulations in locations where they are sold and will be labeled as required. Any changes or modifications to Luxul equipment, not expressly approved by Luxul, could void the user’... -
Page 14: Health And Safety Recommendations
• The end user must avoid any extended human RF exposure directly in front of the Model SWM-1000-O, up to a distance of 20cm, when unit is switched on. • When servicing the equipment and selecting a location for the antennas, it is important to note that a minimum distance of 20cm is required between personnel and the Model SWM-1000-O antennas to comply with the radio frequency exposure limit. -
Page 15: Radio Frequency Interference Requirements-Fcc
Shock-WAV SiGnAl BooSTER USER GUidE Remote and Standalone Antenna Configurations: To comply with FCC RF exposure require- ments, antennas that are mounted externally at remote locations or operating near users at stand-alone desktop of similar configurations must operate with a minimum separation distance of 20 cm from all persons. -
Page 16: Sales And Support Contacts
United States, radio equipment must only be used in systems that have been FCC certified. It is the responsibility of the user/professional installer/operator to ensure that only approved equipment/systems are deployed. To ensure FCC part 15 compliance, Luxul amplifier products should only be installed in certified systems by licensed professionals.
