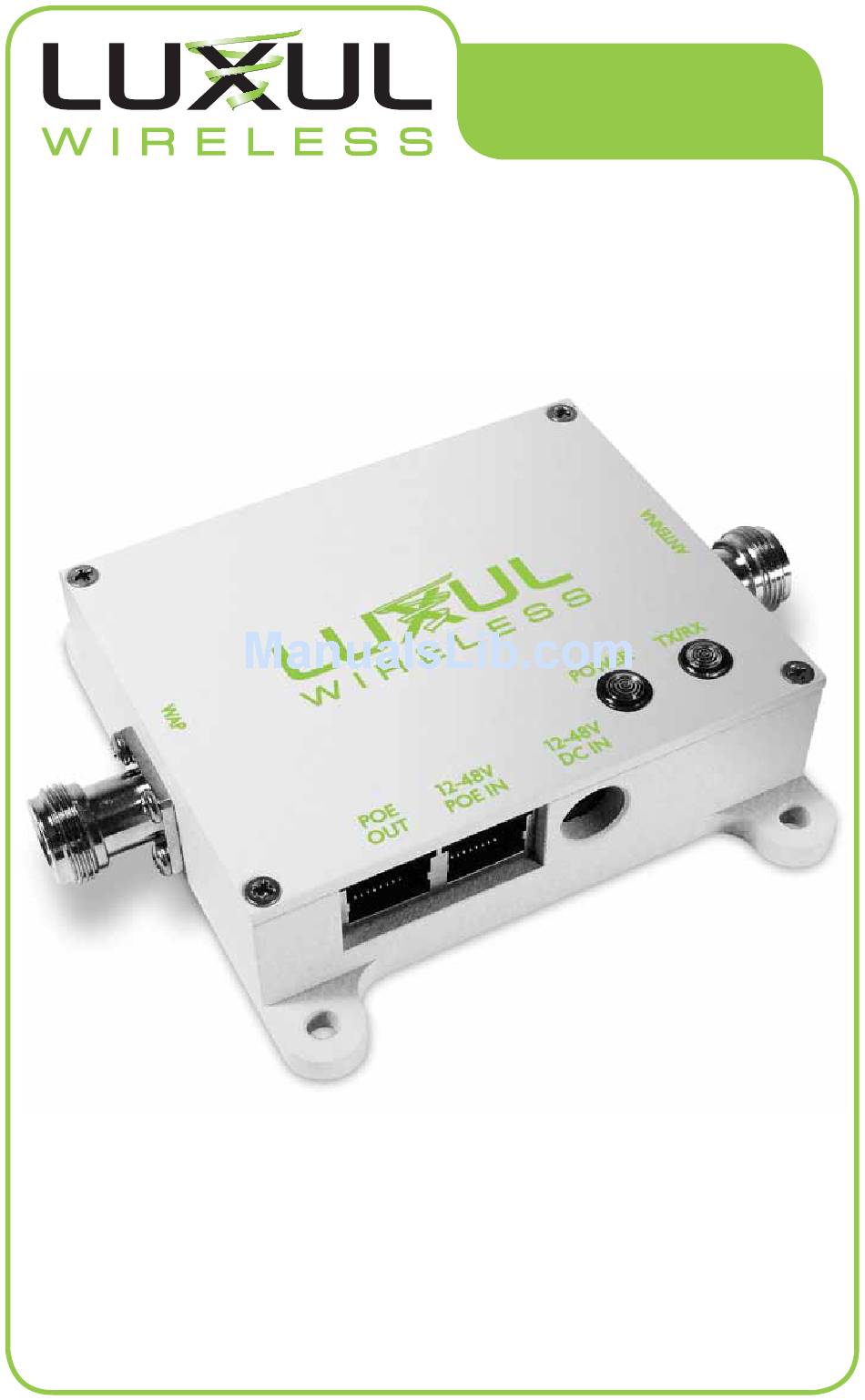

- Page 1 USER GUidE PRo-WAV™ Wi-Fi RAnGE ExtEndER SYStEM FoR USE With thE d-Link dWL-2100AP ModEL nUMbER: PW-FC1 - SinGLE AntEnnA PW-FC1 - dUAL AntEnnA...
-
Page 2: Installation Guide
No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul Wireless, Inc. (Luxul). The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. -
Page 3: Table Of Contents
4.1 Connecting the PW-FC1 - Single Antenna to the D-Link DWL-2100AP..... .7 4.2 Connecting the PW-FC1 - DUAL Antenna to the D-Link DWL-2100AP .....7 4.3 Connecting Power and Data Source cables . -
Page 4: Introduction
1 - introduCtion The Luxul Wireless Pro-WAV Wi-Fi Range Extender System is designed to complement and enhance the performance of the D-Link DWL-2100AP Wireless Access Point (WAP). When combined with the DWL-2100AP and X-WAV XW-24-FP7 Flat Panel Antenna, it delivers up to the maximum approved transmit power, resulting in a farther reaching and higher performing network. -
Page 5: Site Preparation
1.4 ProFeSSionAl inStAllAtion ConSiderAtionS CAUTION: Operation of the signal booster without regulatory approval is illegal The Luxul Wireless Pro-WAV Wi-Fi Range Extender System is required to be professionally installed. The following components are approved for use in the system. • Luxul PW-FC1 Wi-Fi Signal Booster •... -
Page 6: Specifications
2 - SPeCiFiCAtionS 2.1 SHoCk-WAV™ Wi-Fi SignAl booSter SPeCiFiCAtionS Operating Range 2400 - 2483 MHz Transmit Power (28dBm) Transmit Gain 20dB Typical (under D-AGC Control) Receive Gain 15dB Typical TX Input Power +8dBm to +24dBm Noise Figure 3.5dB Typical LED Indicators TX\RX Red for Transmit, Green for Receive Power Consumption 400mW (RX) 5W (TX) Max... -
Page 7: Getting Started
• Verify the environment has a continuous temperature range between -4 F to +122F (-20c - +50c). 3.2 PACkAge ContentS The Luxul Wireless Pro-WAV Wi-Fi Range Extender System consists of the following: One-Shock-WAV Wi-Fi Signal Booster • PW-FC1 - Single Antenna: One-XW-24-FP7 - 7dBi High Gain 2.4GHz •... -
Page 8: Additional Items Required
3.4 oPtionAl ProduCtS And ACCeSSorieS Splitters and Surge Protectors: Signal splitters, lightning surge protectors, and other useful accessories are available for making the most of your Luxul Wireless purchase. 4 - inStAllAtion ProCedureS NOTE: The combination of the D-Link DWL-2100AP and the Shock-WAV Wi-Fi Signal Booster requires professional installation. -
Page 9: Connecting The Pw-Fc1 - Single Antenna To The D-Link Dwl-2100Ap
Shock-WAV Wi-Fi Signal Booster to the X-WAV XW-24-FP7 antenna . Be sure to connect the cable to the side of the Signal Booster labeled Antenna 4.2 ConneCting tHe PW-FC1 - duAl AntennA to tHe d-link dWl-2100AP Figure 3 Coax Cable Using the supplied N-Male to RP-SMA-Male coax cable, connect the Shock-WAV Wi-Fi Signal Booster to your DWL-2100AP’... -
Page 10: Connecting Power And Data Source Cables
(ConsultyourD-LinkDocumentationformoreinformationontheDWL-2100AP). 5 - AntennA PlACement Luxul Wireless products, particularly those implementing our patented signal booster technology, are often capable of emitting enough signal strength to cover the desired area regardless of orientation. For best results, the Antenna should be deployed where the maximum amount of... -
Page 11: Antenna Deployment
ShoCk-WAV SiGnAL booStER USER GUidE 5.1 AntennA dePloyment Be sure you place the antenna so there is a minimum of 2 feet (.6 meters) of open space around it. Figure 5 Figure 6 Figure 5 (Single antenna) and 6 (Dual Antenna) show the recommended Antenna deployments and how loss of the signal coverage can happen due to bad antenna placement. -
Page 12: Regulatory Compliance
Figure 7 6 - regulAtory ComPliAnCe This device is approved under the Luxul Wireless brand and designed to comply for use spe- cifically with the D-Link DWL-2100AP. This device is designed to be compliant with rules and regulations in locations where they are sold and will be labeled as required. Any changes or modifications to Luxul equipment, not expressly approved by Luxul, could void the user’... -
Page 13: Health And Safety Recommendations
When installed adjacent to other equipment, it is advised to verify that the adjacent equipment is not adversely affected. Power Supply: Use only a Luxul approved power supply output rated at 48VDC and minimum 0.25A. The power supply shall be Listed to UL/CSA 60950-1; and certified to IEC60950-1 and EN60950-1 with SELV outputs. -
Page 14: Radio Frequency Interference Requirements-Fcc
• The following safety precautions should be observed: − Do not touch or move the antenna while the unit is transmitting or receiving. − Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting. -
Page 15: Industry Canada ( Rss-Gen Issue 2)
(e.i.r.p.) is not more than that permitted for successful communication. 7 - SAleS And SuPPort ContACtS For Sales Assistance: For technical Assistance: Luxul Wireless Luxul Wireless 357 South 670 West, Suite 160 357 South 670 West, Suite 160 Lindon, UT 84042 Lindon, UT 84042 sales@luxulwireless.com... - Page 16 United States, radio equipment must only be used in systems that have been FCC certified. It is the responsibility of the user/professional installer/operator to ensure that only approved equipment/systems are deployed. To ensure FCC part 15 compliance, Luxul amplifier products should only be installed in certified systems by licensed professionals.
