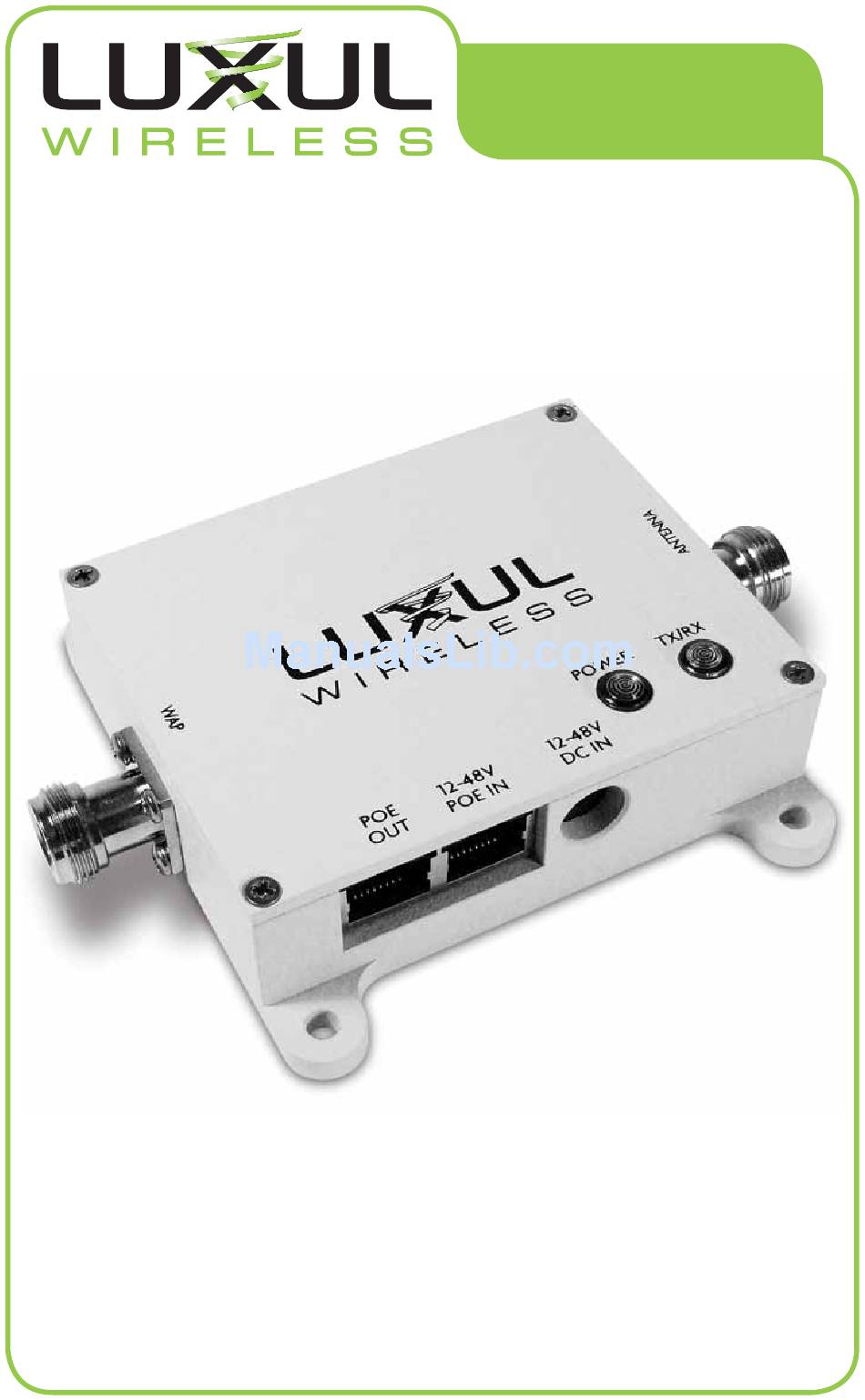

USER GUidE
Shock-WAV™ indooR Wi-Fi
SiGnAl BooStER
FoR USE With thE MotoRolA AP-5131
ModEl nUMBER: SWM-1000-i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWM-1000-I and is the answer not in the manual?

Questions and answers

Related Manuals for Luxul SWM-1000-I

Summary of Contents for Luxul SWM-1000-I

  • Page 1 USER GUidE Shock-WAV™ indooR Wi-Fi SiGnAl BooStER FoR USE With thE MotoRolA AP-5131 ModEl nUMBER: SWM-1000-i...

  • Page 2: Installation Guide

    No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul Wireless, Inc. (Luxul). The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design.

  • Page 3: Table Of Contents

    Shock-WAV SiGnAl BooStER USER GUidE contentS 1 - introduction ............2 1.1 Document Conventions .

  • Page 4: Introduction

    1 - introduction The Luxul Wireless Shock-WAV Wi-Fi Signal Booster is designed to complement and enhance the performance of the Motorola AP-5131 Wireless Access Point (WAP). When combined with the AP-5131 and approved antenna, it delivers up to the maximum allowed transmit power (EIRP of 36dBm), resulting in a farther reaching and higher performing network.

  • Page 5: Site Preparation

    1.4 ProFeSSionAl inStAllAtion conSiderAtionS CAUTION: Operation of the signal booster without regulatory approval is illegal The Luxul Shock-WAV Wi-Fi Signal Booster system is required to be professionally installed. The following components are approved for use in the system. • Luxul SWM-1000-I • Motorola AP-5131...

  • Page 6: Shock-Wav Wi-Fi Signal Booster Specifications

    The output power of the amplifier is set and tested during manufacturing. There are no user modifiable parameters in the amplifier. The Luxul Shock-Wav Wi-Fi Signal Booster incorporates a Digital AGC (D-AGC) that ensures a consistent and approved output power.

  • Page 7: Package Contents

    Shock-WAV SiGnAl BooStER USER GUidE 3.2 PAckAge contentS The Luxul Shock-WAV Wi-Fi Signal Booster consists of the following: One Shock-WAV Wi-Fi Signal Booster One 36” (914.4mm) N-Male to RP-SMA-Male cable One N-Male to RP-SMA-Female adapter One 36” (914.4mm) Ethernet cable 3.3 AdditionAl iteMS required...

  • Page 8: Antenna Options

    (see section 3.5). In order to comply with FCC certification, cables connecting the device to the antenna must be no less than 1 foot in length. Luxul Wireless offers a variety of cable lengths that can be purchased separately and used in conjunction with the Shock-WAV device.

  • Page 9: Installation Procedures

    4.1 AttAching Shock-WAV Wi-Fi SignAl BooSter to the MotorolA AP-5131 Shock-WAV Wi-Fi Signal Boosters are typically connected between the AP-5131 and the stock antenna. For better coverage, use Luxul Wireless X-WAV antennas. A list of certified antennas can be found in section 3.5.

  • Page 10: Connecting Power

    POE (Power Over Ethernet) injector AP-PSBIAS-1P2-AFR or alternatively directly from a 48V AC- DC power supply that can be ordered separately from Luxul Wireless (Part No. PS-48VDC). The optional Motorola Power Injector (Part No. AP-PSBIAS-1P2-AFR), in certain AP-5131 kits, is an integrated AC-DC converter and 802.3af power injector which requires 110-220V AC power...

  • Page 11: Power Over Ethernet Option

    Shock-WAV SiGnAl BooStER USER GUidE 4.2.1 PoWer oVer ethernet oPtion Connect to Data/POE source Coax Cable Ethernet Figure 4 Connect the included 36” (914.4mm) Ethernet cable to the Signal Booster “POE OUT” port (Fig- ure 4) . Connect the other end to the LAN port on the back of your Motorola AP-5131, (Figure .

  • Page 12: Setting The Ap-5131 To The Primary Antenna Port Only

    For best results, the Antenna should be deployed where the maximum amount of signal can be sent throughout the desired coverage area. Luxul Wireless products, particularly those implementing our patented signal booster technol- ogy, are often capable of emitting enough signal strength to cover the desired area regardless...

  • Page 13: Antenna Deployment

    Figure 6c and d show the loss of the signal coverage due to bad antenna placement. This prob- lem can be addressed by installing an approved Luxul Wireless X-WAV directional antenna. See section 3.5 for a list of approved antennas.

  • Page 14: Regulatory Compliance

    Pattern shape and size is not to scale, for refrence only 6 - regulAtory coMPliAnce This device is approved under the Luxul Wireless brand and designed to comply for use specif- ically with the Motorola AP-5131. This device is designed to be compliant with rules and regula- tions in locations where they are sold and will be labeled as required.

  • Page 15: Rf Exposure Guidelines

    Shock-WAV SiGnAl BooStER USER GUidE Power Supply: Use only a Luxul approved power supply output rated at 48VDC and minimum 0.25A. The power supply shall be Listed to UL/CSA 60950-1; and certified to IEC60950-1 and EN60950-1 with SELV outputs. The device can also be powered from a compliant POE source.

  • Page 16: Radio Transmitters (Part 15)

    United States, radio equipment must only be used in systems that have been FCC certified. It is the responsibility of the user/professional installer/operator to ensure that only approved equipment/systems are deployed. To ensure FCC part 15 compliance, Luxul amplifier products should only be installed in certified systems by licensed professionals.
