10 • ENGLISH
SAVE THESE INSTRUCTIONS
Symbols
• The label on your tool may include the following
symbols. The symbols and their definitions are as
follows:
V .......................volts
A .......................amperes
Hz.....................hertz
W......................watts
min ...................minutes
or AC ..........alternating current
or DC ......direct current
n o .....................no load speed
....................Class I Construction
(grounded)
.....................earthing terminal
...................safety alert symbol
....................Class II Construction
(double insulated)
.../min or rpm...revolutions or reciprocation
per minute

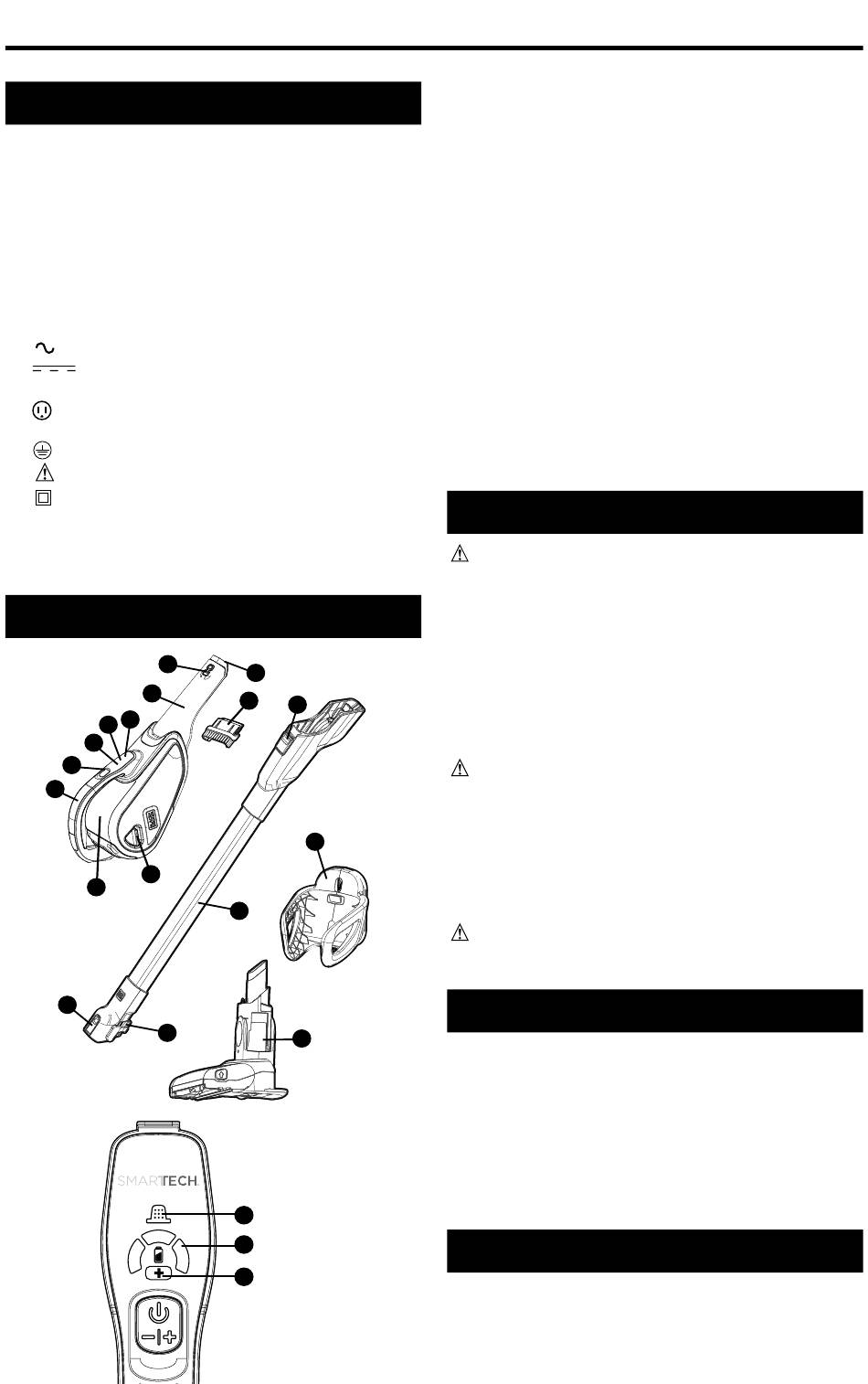

FUNCTIONAL DESCRIPTION
5
3
6 10
7
1
2
9
8
14
15
4
11
12
17
13
16
10
6
7
1. On/off power button
2. Handle
3. Nozzle
4. Extendable crevice tool
5. Crevice tool release button
6. LED BATTERYSENSE
7.
LED POWERBOOST indicator
8. Dust bowl
9. Dust bowl release button
10. FilterSense LED
11. Brush Tool
12. Floor extension release button
13. Extended reach tool
14. Floor head release button
15. Flip-up brush
16. Floor head
17. Wall mount bracket
CHARGING THE BATTERY
WARNING: For use only with the supplied charger.
• Before first use, the battery must be charged for at
least 4 hours.
•
Place the appliance on the wall mount bracket (17)
whenever it is not in use, as shown in Figure A.
•
Plug the jack plug of the charger into the charging
socket of the tool as shown in Figure B. Plug the
charger into any standard 120 Volt 60 Hz electrical
outlet or 220 Volts 50 Hz for the 220V models.
WARNING: Before charging, be sure to empty all
contents and dry thoroughly if needed to avoid damage
to your appliance.
NOTE: While charging, the charger may become
warm. This is normal and does not indicate a problem.
The appliance can be left connected to the charger
indefinitely.
WARNING: Do not charge the battery at ambient
temperatures below 50 °F or above 104°F.
SWITCHING ON AND OFF - FIGURE C
•
To switch the appliance on, depress the on/off button
(1). The battery indicator LED will illuminate and
vacuum will begin in the low-speed mode.
•
Depress the button a second time to engage the
POWERBOOST mode. The green LED will also illuminate,
indicating the vacuum is in the higher-speed mode.
•
To switch the appliance off, depress the button a third time.
POWERBOOST MODE
The green LED will illuminate when the appliance is in
POWERBOOST mode. The vacuum will operate at a higher
suction level to pick up debris that requires more power.
