Summary of Contents for Horizon Hobby Blade Infusion 180

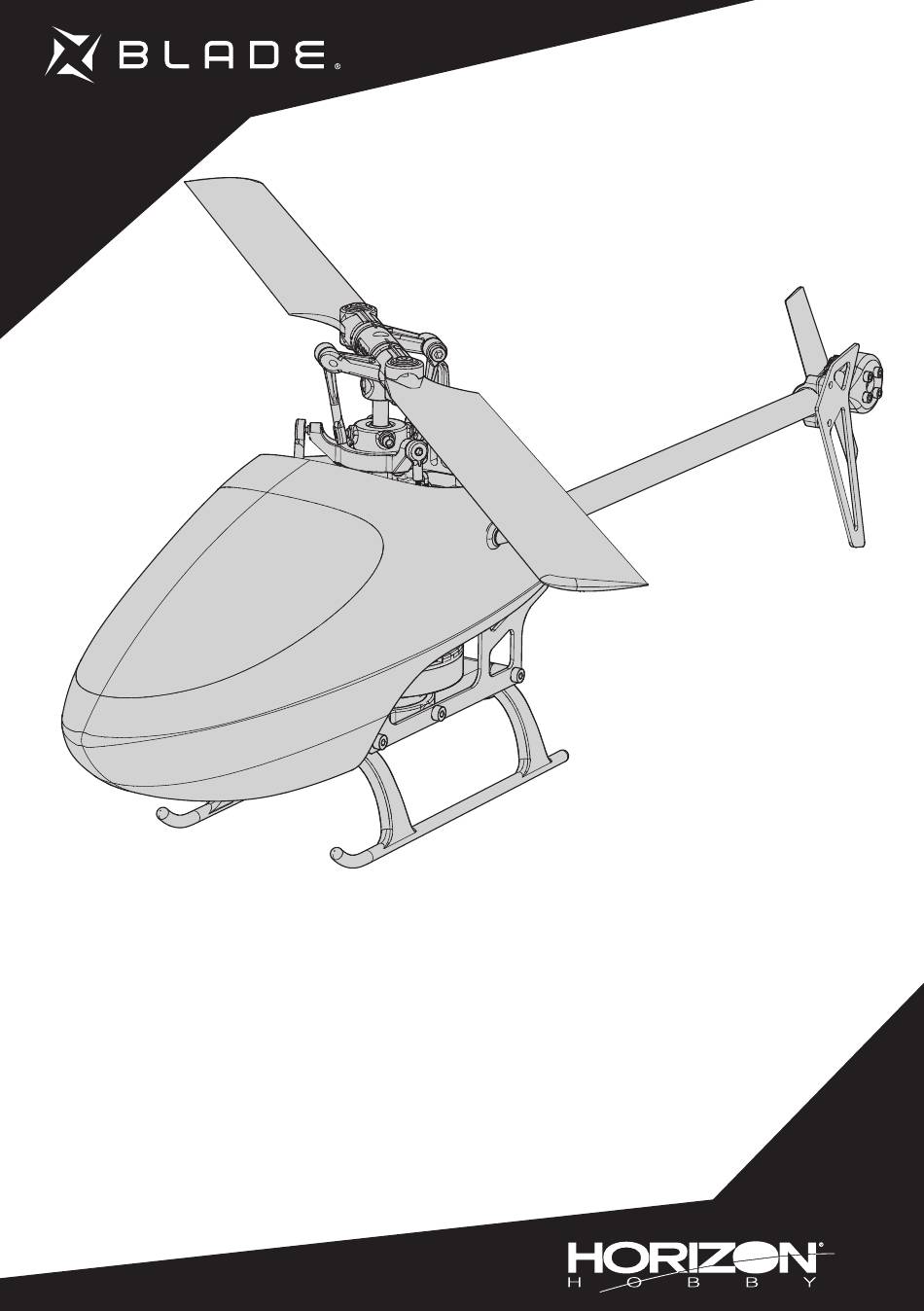

  • Page 1 Infusion 180 BLH7050 Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
  • Page 2 This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance.
  • Page 3: Table Of Contents

    Included Airframe Main Motor 650Kv Brushless (SPMXHM1005) Installed Tail Motor 5500Kv Brushless (SPMXHM1010) Installed Receiver/Flight Control Installed Blade Infusion 180 AS3X / Smart receiver (SPMAR6251MHX) ® ® Brushless ESC (SPMXAE1020A) Installed Servos 12g MG Heli Cyclic Servo (SPMSH2080) Installed 600mAh 3S 11.1V 30C Li-Po iC2 (SPMX6003S50)
  • Page 4: First Flight Preparation

    First Flight Preparation Flying Checklist ❏ Remove and inspect contents ❏ Always turn the transmitter on first ❏ Begin charging the flight battery ❏ Plug the flight battery into the lead from the ESC ❏ Program your computer transmitter (BNF only) ❏...
  • Page 5: Installing The Flight Battery

    Installing the Flight Battery 1. Lower the throttle stick to the lowest position. CAUTION: Always disconnect the Li-Po battery from the aircraft when not flying to avoid 2. Power ON the transmitter. over-discharging the battery. Batteries discharged to a 3. Center all trims. voltage lower than the lowest approved voltage may 4.
  • Page 6: Transmitter And Receiver Binding

    Smart Throttle Smart Throttle technology combines the throttle signal with To activate Smart Telemetry: telemetry data from the ESC on one normal three wire servo 1. With the aircraft powered on after binding connector. 2. Select the Telemetry screen; Settings; select Auto Config Smart Throttle ESCs can send current, voltage, ESC temp, and To configure RPM infomation using Smart Telemetry: mAh consumed.
  • Page 7: Safe Technology

    Technology There are three flight modes programmed into the flight SAFE technology delivers: controller on this aircraft. The pilot can choose the level of • Flight envelope protection you can select with the flight mode stabilization needed to suit their skills and flying style. When switch.
  • Page 8: Throttle Hold

    Throttle Hold Throttle hold is used to prevent the motor from powering on helicopter is out of control, in danger of crashing, or both. inadvertently. For safety, turn throttle hold ON any time you The blades will continue to spin briefly when throttle hold is need to touch the helicopter or check the direction controls.
  • Page 9: Understanding The Primary Flight Controls

    Understanding the Primary Flight Controls If you are not familiar with the controls of your aircraft, take a few minutes to familiarize yourself with them before attempting your first flight. Collective Left Side View Left Side View Descend Climb Throttle up Throttle down Rudder Nose Yaws Left...
  • Page 10: Flying The Infusion 180

    Flying the Infusion 180 Hovering Consult your local laws and ordinances before choosing a location to fly your aircraft. Making small corrections on the transmitter, try to hold the We recommend flying your aircraft outside in calm winds or helicopter in one spot. If flying in calm winds, the model inside a large gymnasium.
  • Page 11 Advanced Tuning (Forward Programming) Applies to forward programming capable Spektrum Transmitters including DX6e, DX8e, DX6G2, DX7G2, DX8G2, DX9, iX12, DX18, iX20, DX20, NX6, NX8, NX10 The Infusion 180 default settings are appropriate for most users. We recommend flying with the default parameters before making any adjustments.
  • Page 12 Applies to Spektrum transmitters not capable of forward programing including DX6i, DX6e, DX7s DX8, and DX8e Your Blade Infusion 180 was setup at the factory and test flown. The servo adjustment steps are usually only necessary in special circumstances, such as after a crash or if a servo or linkage is replaced.
  • Page 13: Trim Flight

    Calibration Procedure (Non-Forward Programming) If the Blade Infusion 180 is experiencing drift issues after completing the trim flight procedure located at www.bladehelis.com, perform the following calibration. The calibration procedure may also be needed following crash repairs.
  • Page 14: Post-Flight Inspection And Maintenance Checklist

    Post-Flight Inspection and Maintenance Checklist √ Make sure the plastic ball link holds the control ball, but is not tight (binding) on the ball. When a link is too Ball Links loose on the ball, it can separate from the ball during flight and cause a crash. Replace worn ball links before they fail.
  • Page 15 Problem Possible Cause Solution The bind plug was not removed Disconnect the flight battery, remove the bind plug from from the receiver after binding the receiver and reconnect the flight battery. Less than a 5-second wait between first powering on the Leave the transmitter powered on.
  • Page 16: Exploded View

    Exploded View...
  • Page 17: Parts Listings

    Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase is Horizon Hobby, LLC, (Horizon) warrants to the original purchaser required for all warranty claims. SERVICE OR REPLACEMENT AS that the product purchased (the “Product”) will be free from PROVIDED UNDER THIS WARRANTY IS THE PURCHASER’S SOLE...
  • Page 18: Warranty And Service Contact Information

    European Hanskampring 9 Union D 22885 Barsbüttel, Germany Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100 FCC Information Contains FCC ID: BRWWACO1T This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and/or antenna and your body (excluding fingers, hands, wrists, ankles and feet).
  • Page 19: Ic Information

    This appliance is labeled in accordance with BLH Infusion 180 BNF (BLH7050); Hereby, European Directive 2012/19/EU concerning waste Horizon Hobby, LLC declares that the device is of electrical and electronic equipment (WEEE). in compliance with the following: EU Radio Equipment Directive...
  • Page 20 Blade, the Blade logo, E-flite, BNF, the BNF logo, DSM, DSM2, DSMX, SAFE, the SAFE logo, Spektrum AirWare and ModelMatch are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
