Summary of Contents for Ross GearLIte DAC-9213-R

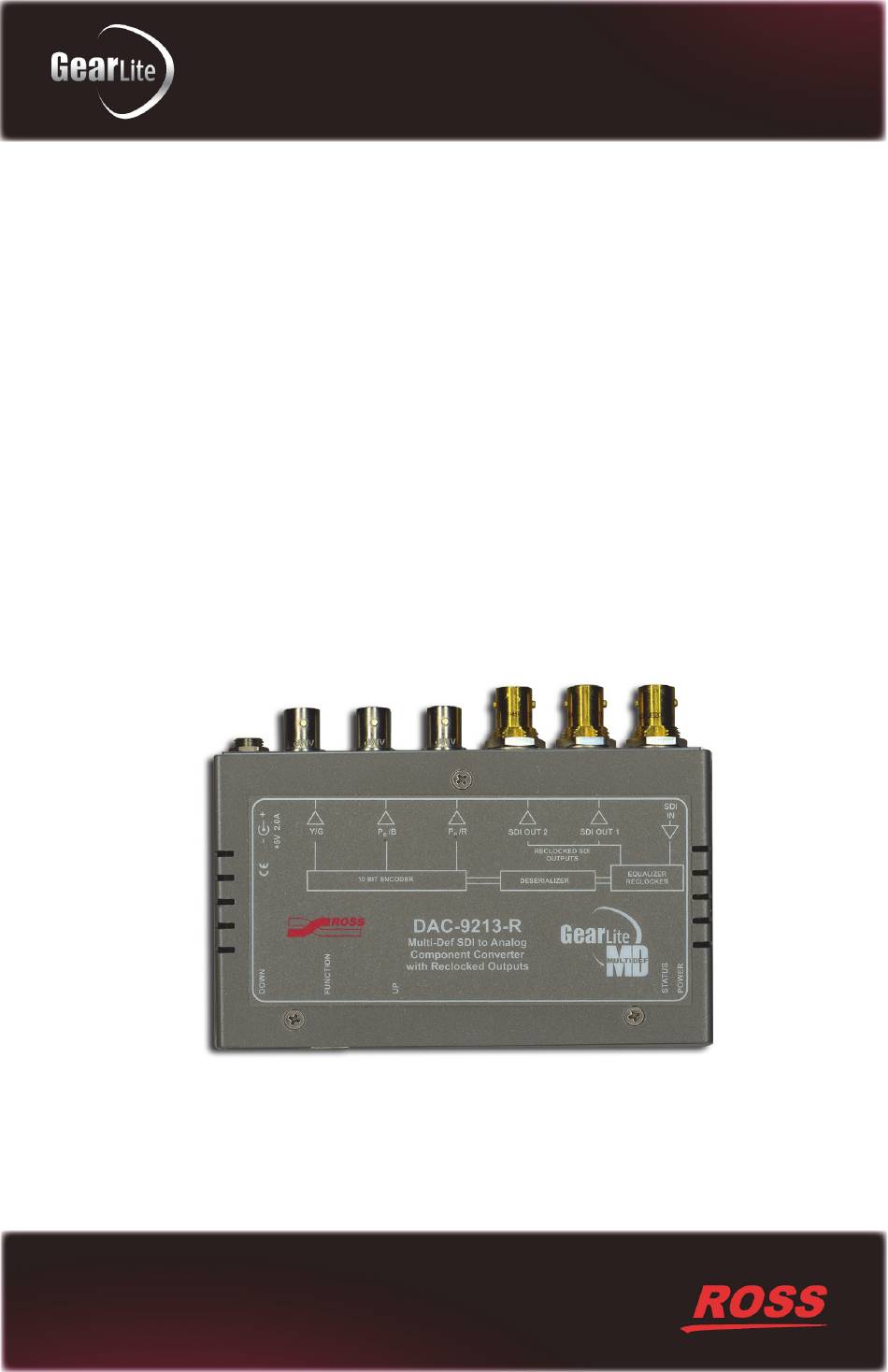

- Page 1 DAC-9213-R Multi-Definition SDI to Analog Component Converter with Reclocked Outputs User Manual...
- Page 2 I hope you enjoy reading it below. If anything at all with your Ross experience does not live up to your expectations be sure to reach out to us at solutions@rossvideo.com. David Ross CEO, Ross Video dross@rossvideo.com...
- Page 3 Release Date: May 6, 2014. Copyright © 2014 Ross Video Limited. Ross®, and any related marks are trademarks or registered trademarks of Ross Video Ltd. All other trademarks are the property of their respective companies. PATENTS ISSUED and PENDING. All rights reserved.
-
Page 4: Symbol Meanings
Important Regulatory and Safety Notices to Service Personnel Before using this product and any associated equipment, refer to the “Important Safety Instructions” listed below to avoid personnel injury and to prevent product damage. Product may require specific equipment, and/or installation procedures to be carried out to satisfy certain regulatory compliance requirements. -
Page 5: Important Safety Instructions
Important Safety Instructions Warning – Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. The safe operation of this product requires that a protective earth connection be provided. A grounding conductor in the equipment's supply cord provides this protective earth. To reduce the risk of electrical shock to the operator and service personnel, this ground conductor must be connected to an earthed ground. -
Page 6: Emc Notices
Notice — Changes or modifications to this equipment not expressly approved by Ross Video Limited could void the user’s authority to operate this equipment. CANADA This Class “A” digital apparatus complies with Canadian ICES-003. -
Page 7: Environmental Information
To avoid the potential release of those substances into the environment and to diminish the need for the extraction of natural resources, Ross Video encourages you to use the appropriate take-back systems. These systems will reuse or recycle most of the materials from your end-of-life equipment in an environmentally friendly and health conscious manner. -
Page 8: Simplified Block Diagram
Introduction Overview The DAC-9213-R Multi-Definition SDI to Analog Component Converter with Reclocked Outputs is a high-quality signal conversion solution for High Definition (HD) and Standard Definition (SD) SDI signals and part of a growing family of GearLite Multi-Definition (MD) self-contained, small brick format modules. - Page 9 Features The DAC-9213-R includes the following features: • HD-SDI and SD-SDI to analog component conversion • 2 reclocked SDI outputs • 10bit DAC resolution • 11bit data processing • Automatic input cable equalization >300m (>984ft) of Belden 1694A at SD-SDI rates (270Mbps) •...
-
Page 10: Static Discharge
Unpack each DAC-9213-R you received from the shipping container and check the contents to ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly. Mounting and Installation The DAC-9213-R can be mounted in any convenient location. However, to... -
Page 11: Optional Mounting Accessories
Optional Mounting Accessories Ross Video is committed to providing practical solutions for the needs of your high-quality broadcast facility. Installation (Iss. 04) • 10... - Page 12 Step 1. Figure 3 Flat Metal Plate Installation Option Install the chassis in the desired location using the Mounting Holes on the Flat Metal Plate. Mounting screws are not provided by Ross Video. Angle Mounting Bracket The Angle Mounting Bracket (Figure 4) allows a single GearLite module to be installed in positions not possible with the flat metal plate.
- Page 13 Figure 4 Angle Mounting Bracket Installation (Iss. 04) • 12...
- Page 14 Setup Note — Throughout this chapter, the term SDI is used universally to indicate either SD-SDI or HD-SDI signals. Power Adapter and Supply Connect the PS-9000 power adapter to the power supply connector. The PS-9000 provides up to 2A of regulated +5V DC (5%). The DC power cord has a locking connector that securely fastens into the power supply DC jack on the DAC-9213-R.
-
Page 15: Status And Selection Leds
Note — For cabling convenience, a 3-BNC molded analog output cable is available from Ross Video. For monitors with RCA inputs, Ross Video also has available RCA to BNC adapters. Contact your GearLite sales representative for cable ordering details. Status and Selection LEDs... -
Page 16: General Operating Rules
Configuration Use the Function Select switch and the Down and Up buttons to configure the DAC-9213-R to convert SDI signals to analog component. Settings are described in the section “Function Setup and Configuration Menus” on page 15. Refer to Figure 7 for switch and button locations. Function Down Button Select... -
Page 17: Led Display
Hold Up or Down button for 2-3 seconds for faster adjustment or special function Factory default state Lit LED display Unlit LED display Flashing LED display Table 2 Function Setup and Configuration Menu Function LED Display Selection Function Up/Down Buttons Mode Switch Menu... - Page 18 Table 2 Function Setup and Configuration Menu Function LED Display Selection Function Up/Down Buttons Mode Switch Menu Selection Menu DOWN Position +(h) Force Mono Off* Setup On – Syncon All Off* Disable Auto Mute ...
-
Page 19: Analog Output Format
In Auto Detect mode, the module will attempt to detect any of the supported incoming High Definition or Standard Definition SDI video standards. Refer to Table 3 for supported standards. When a supported standard is detected, the appropriate analog output format is selected. If the module is unable to determine the input standard, the STATUS LED will flash and the module will mute the analog outputs. - Page 20 Output Video Level Use this menu to adjust the component video output level by up to ± 25%. This setting affects all input standards and output formats. Pressing, or holding, the Up button will increase the output video level on all three analog output signals. Pressing, or holding, the Down button will decrease the output levels.
- Page 21 When selecting this option, the state of the UP LED will indicate if any settings are not in their default states. • If the UP LED is flashing, it indicates there is at least one user setting that is not in its default state. •...
-
Page 22: Specification
Specifications Specifications are subject to change without notification. Table 4 DAC-9213-R — Technical Specifications Category Parameter Specification Number of Inputs SMPTE 259M (270Mbps) Signal Standards SMPTE 292M (1.4835Gbps, Supported 1.485Gbps) SD: 525i 59.94Hz, 525i 60Hz, 625i 50Hz HD: 720p 59.94Hz, 720p 60Hz, Signal Formats Supported Serial Digital 1080psf 23.98Hz,... - Page 23 Table 4 DAC-9213-R — Technical Specifications Category Parameter Specification Number of Outputs Component Analog Video Video or RGB : SMPTE Supported Video Levels RGB: SMPTE, MII, Betacam Output Impedance 75ohm >45dB to 6MHz Output Return Loss >28dB to 30MHz Analog Component DC Offset for RGB or Output...
-
Page 24: Service Information
Service Information Warranty and Repair Policy The GearLite DAC-9213-R is warranted to be free of any defect with respect to performance, quality, reliability, and workmanship for a period of THREE (3) years from the date of delivery to the customer. In the event that your GearLite... - Page 25 Notes: Service Information (Iss. 04) • 24...
- Page 26 Notes: 25 • Service Information (Iss. 04)
- Page 27 Notes: Service Information (Iss. 04) • 26...
-
Page 28: Technical Support
Contact Us Contact our friendly and professional support representatives for the following: • Name and address of your local dealer • Product information and pricing • Technical support • Upcoming trade show information Telephone: +1 613 • 652 • 4886 Technical After Hours Emergency: +1 613 •...
