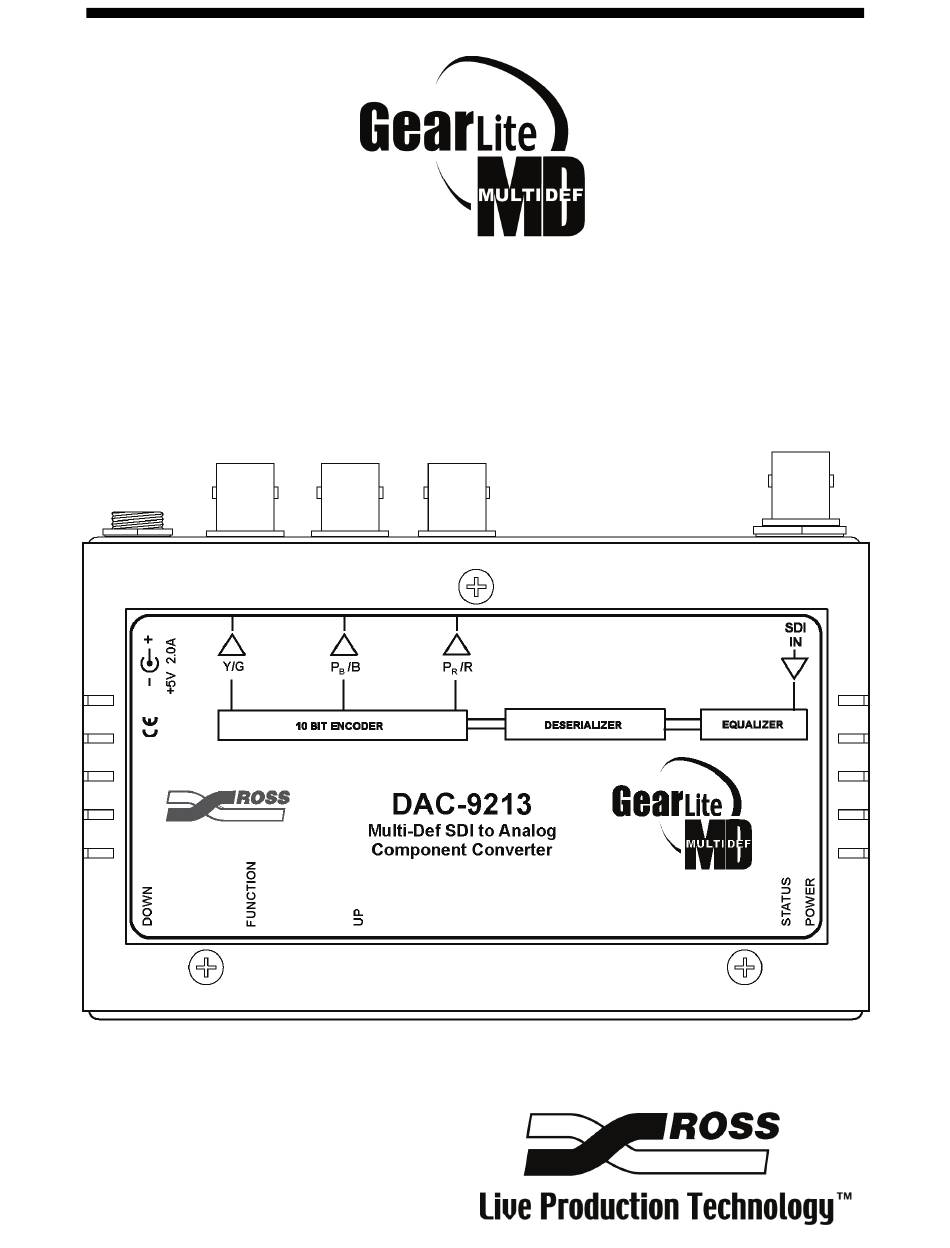

- Page 1 Ross Video Limited DAC-9213 Multi-Definition SDI to Analog Component Converter User Manual Ross Part Number: 9213DR-004 Issue: 02D...
- Page 2 The material in this manual is furnished for informational purposes only. It is subject to change without notice and should not be construed as a commitment by Ross Video Limited. Ross Video Limited assumes no responsibility or liability for errors or inaccuracies that may appear in this manual.
-
Page 3: Symbol Meanings
Important Regulatory and Safety Notices to Service Personnel Before using this product and any associated equipment, refer to the “Important Safety Instructions” listed below so as to avoid personnel injury and to prevent product damage. Products may require specific equipment, and /or installation procedures be carried out to satisfy certain regulatory compliance requirements. -
Page 4: Emc Notices
Operation of this equipment in a residential area is likely to cause harmful interference in which case users will be required to correct the interference at their own expense. Changes or modifications to this equipment not expressly approved by Ross Video Ltd. could void the user’s authority to operate this equipment. Notice CANADA This Class “A”... -
Page 5: Environmental Information
To avoid the potential release of those substances into the environment and to diminish the need for the extraction of natural resources, Ross Video encourages you to use the appropriate take-back systems. These systems will reuse or recycle most of the materials from your end-of-life equipment in an environmentally friendly and health conscious manner. -
Page 7: Table Of Contents
Contents Introduction In This Chapter................1-1 Overview................1-1 Functional Block Diagram..........1-2 Features................1-2 Installation In This Chapter................2-1 Static Discharge ..............2-1 Unpacking................2-1 Mounting and Installation..........2-2 Velcro Strips ..............2-2 Flat Metal Plate..............2-4 Non-Slip Pads ..............2-4 Optional Mounting Accessories ........ - Page 8 ii • Contents DAC-9213 User Manual (Iss. 02D)
-
Page 9: Introduction
Introduction In This Chapter This chapter contains the following sections: • Overview • Functional Block Diagrams • Features Overview The DAC-9213 Multi-Definition SDI to Analog Component Converter is a high quality signal conversion solution for High Definition (HD) and Standard Definition (SD) SDI signals and part of a growing family of GearLite Multi- Definition (MD) self-contained, small brick format modules. -
Page 10: Functional Block Diagram
Functional Block Diagram Analog Component Conversion Multi-Def Equalizer Matrix & SDI In Processing Figure 1. Simplified Block Diagram of DAC-9213 Functions Features The DAC-9213 Multi-Definition SDI to Analog Component Converter has the following features: • High Definition and Standard Definition SDI to analog component conversion •... -
Page 11: Installation
Unpack each DAC-9213 module you received from the shipping container and check the contents against the packing list to ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly. - Page 12 Mounting and Installation The GearLite 9000 series self-contained modules can be mounted in any convenient location. However, to ensure long life for these products, observe the following precautions and operating requirements: • Maintain an ambient temperature of 20° to 40°C. •...
- Page 13 Installing Velcro Strips 1. Remove the protective backing film from the adhesive on the bottom of the two mating Velcro strip sets. 2. Adhere the strip sets to the bottom side of the module as shown in Figure 2. Figure 2. Velcro Installation Option 3.
- Page 14 Flat Metal Plate Use the flat metal plate for permanent mounting to a rack, a desk, or any other location where bolts or screws can be applied. Be sure to position the module to allow for operator adjustments, if required. Installing the Flat Metal Plate 1.
-
Page 15: Optional Mounting Accessories
Optional Mounting Accessories Ross Video is committed to providing practical solutions for the needs of your high-quality broadcast facility. The following products may be ordered separately to expand your installation options. Refer to Chapter 6, “Ordering Information” for details. BPM-9000 The BPM-9000 Angle Mounting Bracket enables a single GearLite module to be installed in positions not possible with the flat metal plate. - Page 16 The flat metal plate and small plastic label (see Figure 6) included with every GearLite module are used to mount a module into the GRF-9000. Complete instructions are included in the GRF-9000 User Manual. Figure 6. Flat Metal Plate and Label Positions for GRF-9000 Mounting 2-6 •...
-
Page 17: Setup And Operation
Setup and Operation In This Chapter This section provides details of all operating modes and features. The following topics are discussed: • Cable Connections • User Controls • Setup and Configuration • Function Setup and Configuration Menu Table • Function Menu Notes Throughout this section, the term SDI is used universally to Note indicate either SD-SDI or HD-SDI signals. - Page 18 Figure 8. DAC-9213 Rear Connections Configuration Note For cabling convenience, a 3-BNC molded analog output cable is available from Ross Video. For monitors with RCA inputs, Ross Video also has available RCA to BNC adapters. See Chapter 6, “Ordering Information” for cable ordering details.
- Page 19 If using an adapter other than the PS-9000, ensure that: • the polarity is correct • the voltage is +5V DC regulated to 5% • sufficient current for the DAC-9213 is supplied Use of improper adapters may damage the DAC-9213 and will void the warranty. Caution Installations outside of North America using line voltages of 200 –...
-
Page 20: Reference Function
Status and Selection LEDs The front panel of the module has four LEDs (Down, Up, Status, Power) that display the status of the input signal, and indicate menu function and configuration selections. The LED displays are described in the following table: Table 1. - Page 21 Function Selection Switch and Down/Up Buttons The Function Select switch is a 16-position rotary switch used to select specific functions. The Function Select switch works in conjunction with the Down and Up buttons. First, the function category is selected with the rotary switch, and then the Down and Up buttons are used to select modes or level settings within that function category.
-
Page 22: Up/Down Buttons
Table 2. Function Setup and Configuration Menu Function Display Up/Down Buttons Selection Function Mode Selection Menu See Table Legend for symbol Switch Menu meanings Position See Table Legend for symbol meanings Down (yellow) (yellow) Operation Buttons perform no action ● ●... -
Page 23: Function Menu Notes
Function Display Up/Down Buttons Selection Function Mode Selection Menu See Table Legend Switch Menu for symbol meanings Position See Table Legend for symbol meanings Down (yellow) (yellow) Default Set Reset All User Settings to +(h) See Notes (See Function Factory Default state (Unity) Menu Notes) Function Menu Notes Some of the menu items in the Function Setup and Configuration Table are... - Page 24 Table 3. Supported Formats and Input Standards Analog Output Format Digital Input Signal SMPTE/ Standard NTSC SMPTE/ EBU Related 0 to 0 to 700mV 0 to 714mV 0 to 700mV 700mV (54 to (54 to (setup) 700mV) 714mV) 0 to 0 to 700mV 0 to 714mV -350mV to...
- Page 25 Force Mono Use this menu to blank the P and P component output signals. This option has no function in RGB format. Note that if the DAC-9213 is setup in RGB mode, and Force Mono is enabled, then the module is switched to YP mode, the P and P channels will be blanked (i.e.
- Page 26 3-10 • Setup and Operation DAC-9213 User Manual (Iss. 02D)
-
Page 27: Specifications
Specifications In This Chapter This chapter contains the Technical Specifications table. Specifications • 4-1 DAC-9213 User Manual (Iss. 02D) -
Page 28: Specification
Table 4. DAC-9213 - Technical Specifications Category Parameter Specification Number of Inputs SMPTE 259M-C (270Mb/s) Signal Standards Supported SMPTE 292M (1.4835 Gb/s, 1.485 Gb/s) SD: 525i/59.94, 525i/60, 625i/50 HD: 720p/59.94, 720p/60, Signal Formats Supported Serial 1080p/23.98sf, 1080p/24sf, Digital 1080i/50, 1080i/59.94, 1080i/60 Video Input Input Impedance 75Ω... -
Page 29: Service Information
Converter User Manual of our Digital Products line provides all pertinent information for the safe installation and operation of your RossGear Product. Ross Video policy dictates that all repairs to the RossGear DAC-9213 are to be conducted only by an authorized Ross Video Limited factory representative. - Page 30 RossGear DAC-9213. If required, a temporary replacement module will be made available at a nominal charge. Any shipping costs incurred will be the responsibility of you, the customer. All products shipped to you from Ross Video Limited will be shipped collect.
-
Page 31: Ordering Information
2RU space) Your DAC-9213 Multi-Definition SDI to Analog Component Converter is part of the GearLite line of the RossGEAR family of products. Ross Video Limited offers a full line of RossGEAR digital terminal equipment including distribution, conversion, monitoring, synchronizers, encoders, decoders, amplifiers, keyers, switchers, as well as analog audio and video products. - Page 32 613 • 349 • 0006 613 • 652 • 4425 General Information solutions@rossvideo.com E-MAIL Technical Support techsupport@rossvideo.com 8 John Street, Ross Video Limited Iroquois, Ontario, Canada POSTAL K0E 1K0 SERVICE P.O. Box 880, Ross Video Incorporated Ogdensburg, New York, USA...
