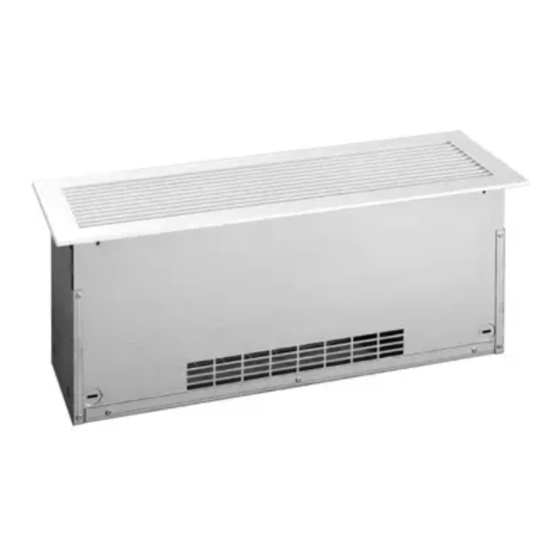

USER'S GUIDE
FI SERIES
FLOOR INSERT HEATER
For further information or to consult this guide online, please visit our website at www.stelpro.com
REPLACEMENT COMPONENT LIST INCLUDED
DESSIN TECHNIQUE / TECHNICAL DRAWING
24/11/2011
DATE:
DESSINATEUR
A. DESMARAIS
/ DRAFTER:
APPARE IL
FI
/ UNIT:
MIS À JOUR
UPDATED:
This unit
complies with
CSA and UL
standards
INSFI0719
Advertisement
Table of Contents
Related Manuals for Stelpro FI6032W
Summary of Contents for Stelpro FI6032W

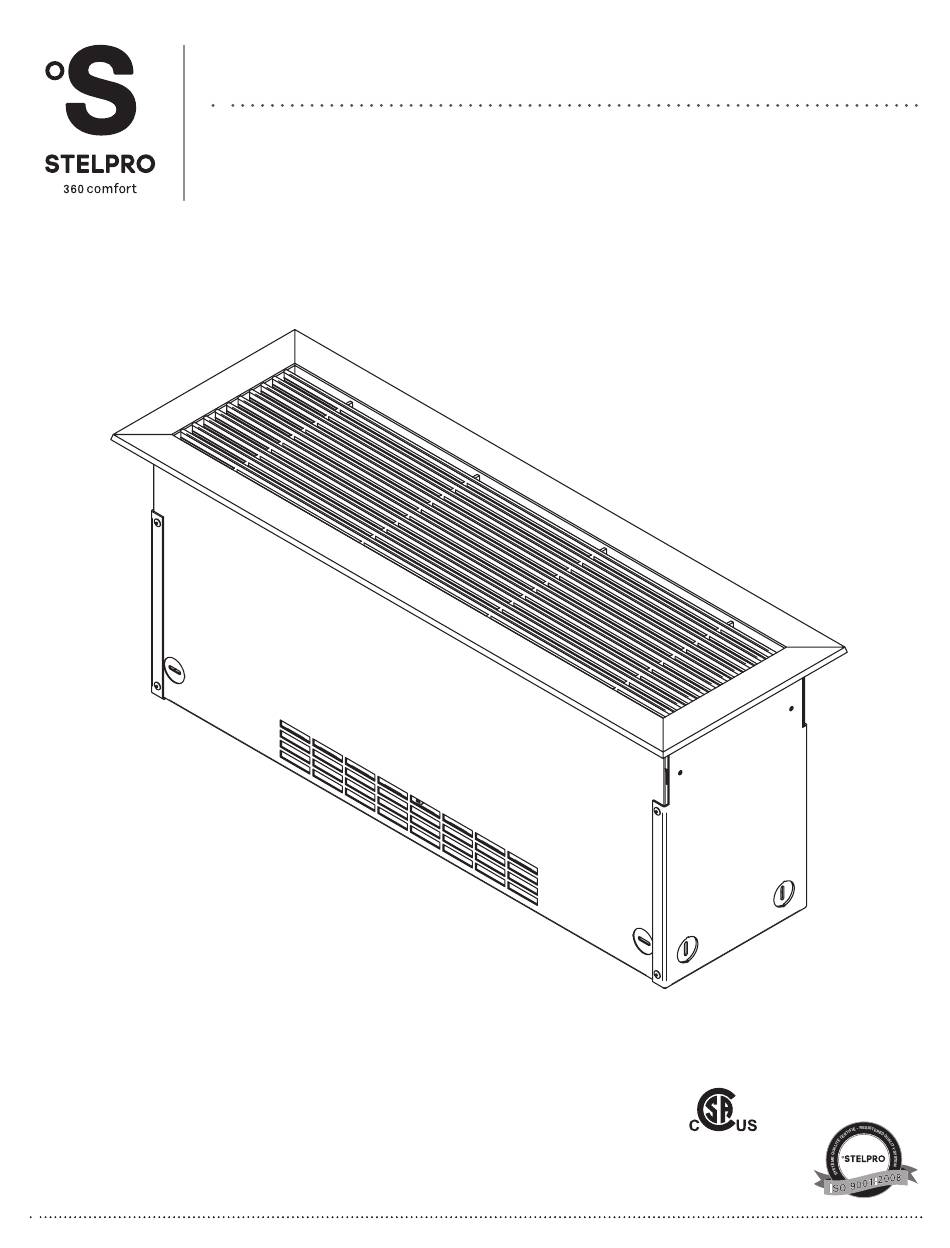

- Page 1 DESSIN TECHNIQUE / TECHNICAL DRAWING APPARE IL 24/11/2011 DATE: / UNIT: DESSINATEUR MIS À JOUR A. DESMARAIS / DRAFTER: UPDATED: This unit complies with CSA and UL standards For further information or to consult this guide online, please visit our website at www.stelpro.com INSFI0719...
-
Page 2: Important Instructions
If an option must be added, make sure it has been approved by Stelpro. This way, it will ensure that it has been tested in accordance with our safety rules and that an appropriate installation has been planned into the unit. - Page 3 TECHNICAL DRAWINGS & INSTALLATION TECHNICAL DRAWINGS 6" 6" 152mm 7/8" 15/16" 152mm 22mm 24mm 3 1/16" 78mm DESSUS 7 7/8" 200mm 3/16" 15/16" 9 7/16" 24mm 240mm 1 5/16" 1" 1" 33mm 25mm 25mm 6 1/8" 156mm DEVANT CÔTÉ FRONT SIDE SPECIFICATIONS TYPE...
-
Page 4: Maintenance
INSTALLATION, OPERATION & MAINTENANCE OPERATION WARNING: the heater must be properly installed before it is used. This heater must be controlled by a wall thermostat (thermostat not included). This unit is equipped with a thermal protection that must be reset manually. The activation of the manual reset can be made without removing the top grill. - Page 5 REPLACEMENT COMPONENT LIST REPLACEMENT COMPONENT LIST REF. # PART # DESCRIPTION M-FI0600H1* GRILL (ALUMINUM) (600 MM) M-FI0900H1* GRILL (ALUMINUM) (900 MM) M-FI1200H1* GRILL (ALUMINUM) (1200 MM) M-FI1500H1* GRILL (ALUMINUM) (1500 MM) M-FI1800H1* GRILL (ALUMINUM) (1800 MM) M-FI2100H1* GRILL (ALUMINUM) (2100 MM) M-FI2400H1* GRILL (ALUMINUM) (2400 MM) EA0300-06-***...
-
Page 6: Troubleshooting
. Stelpro reserves the right to examine or to ask one of its representatives to examine the product itself or any part of it before honoring the warranty. Stelpro reserves the right to replace the entire unit, refund its purchase price or repair a defective part.
