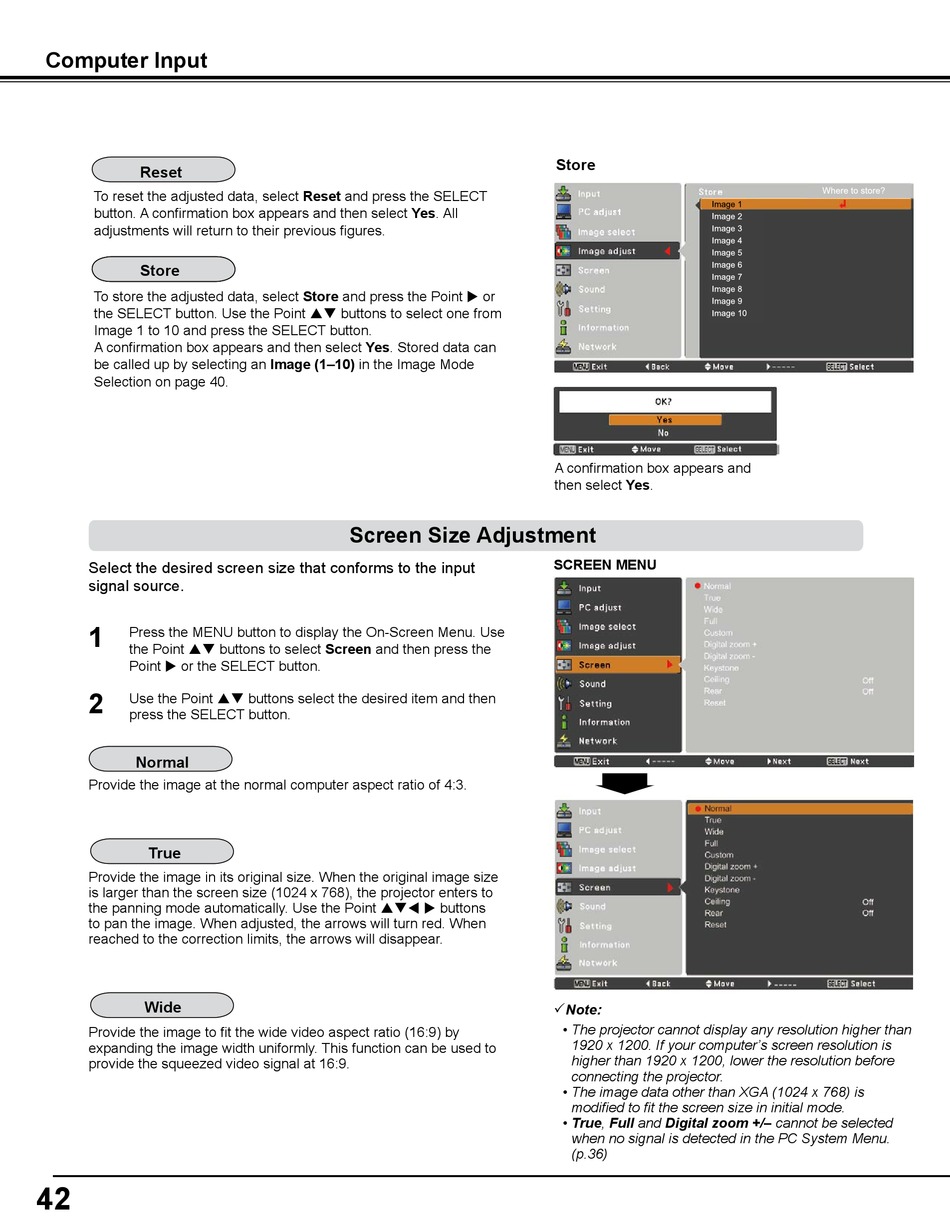

Screen Size Adjustment - Sanyo PLC-XM80 Owner's Manual

Computer Input
Reset
To reset the adjusted data, select Reset and press the SELECT
button. A confirmation box appears and then select yes. All
adjustments will return to their previous figures.
Store
To store the adjusted data, select Store and press the Point u or
the SELECT button. Use the Point pq buttons to select one from
Image 1 to 10 and press the SELECT button.
A confirmation box appears and then select yes. Stored data can
be called up by selecting an Image (1–10) in the Image Mode
Selection on page 40.
Select the desired screen size that conforms to the input
signal source.
1
Press the MENU button to display the On-Screen Menu. Use
the Point pq buttons to select Screen and then press the
Point u or the SELECT button.

Use the Point pq buttons select the desired item and then
press the SELECT button.
Normal
Provide the image at the normal computer aspect ratio of 4:3.
True
Provide the image in its original size. When the original image size
is larger than the screen size (1024 x 768), the projector enters to
the panning mode automatically. Use the Point pqt u buttons
to pan the image. When adjusted, the arrows will turn red. When
reached to the correction limits, the arrows will disappear.
Wide
Provide the image to fit the wide video aspect ratio (16:9) by
expanding the image width uniformly. This function can be used to
provide the squeezed video signal at 16:9.
4

Screen Size Adjustment

Store
A confirmation box appears and
then select yes.
SCREEN MENU
P Note:
• The projector cannot display any resolution higher than
1920 x 1200. If your computer's screen resolution is
higher than 1920 x 1200, lower the resolution before
connecting the projector.
• The image data other than XGA (1024 x 768) is
modified to fit the screen size in initial mode.
• True, Full and Digital zoom +/– cannot be selected
when no signal is detected in the PC System Menu.
(p.36)
